Disposable shower curtain assembly
US-7600274-B2Abstract

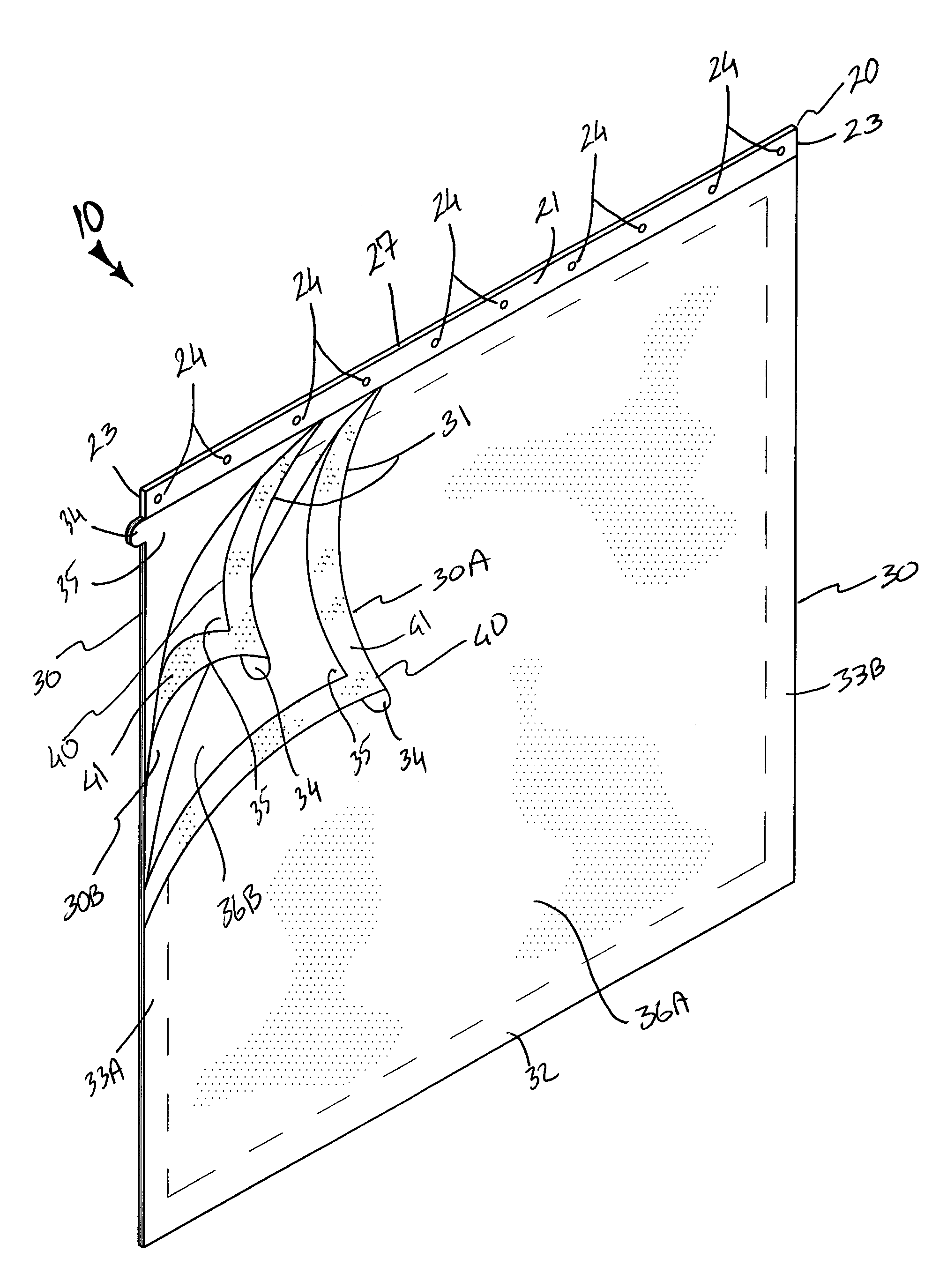

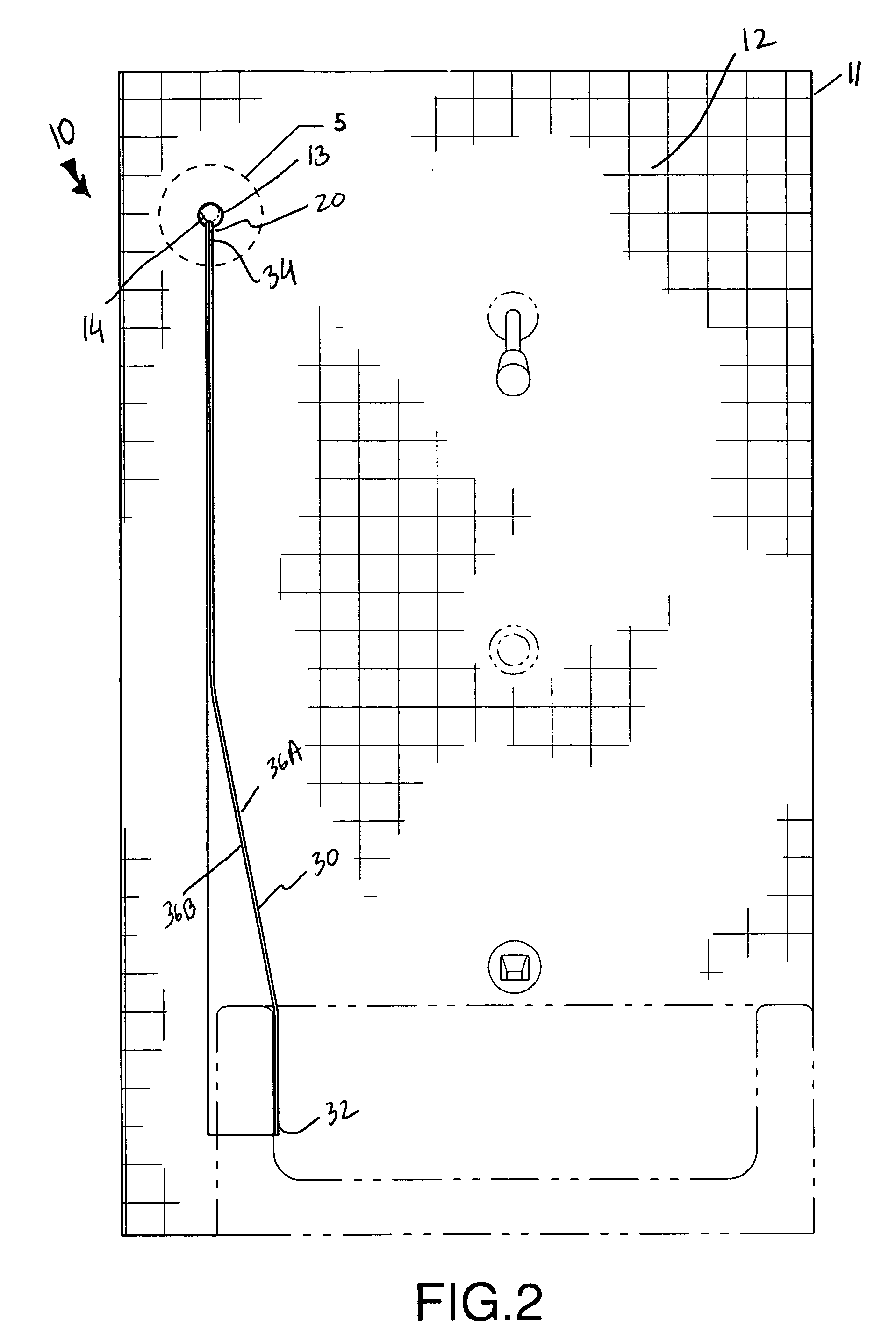

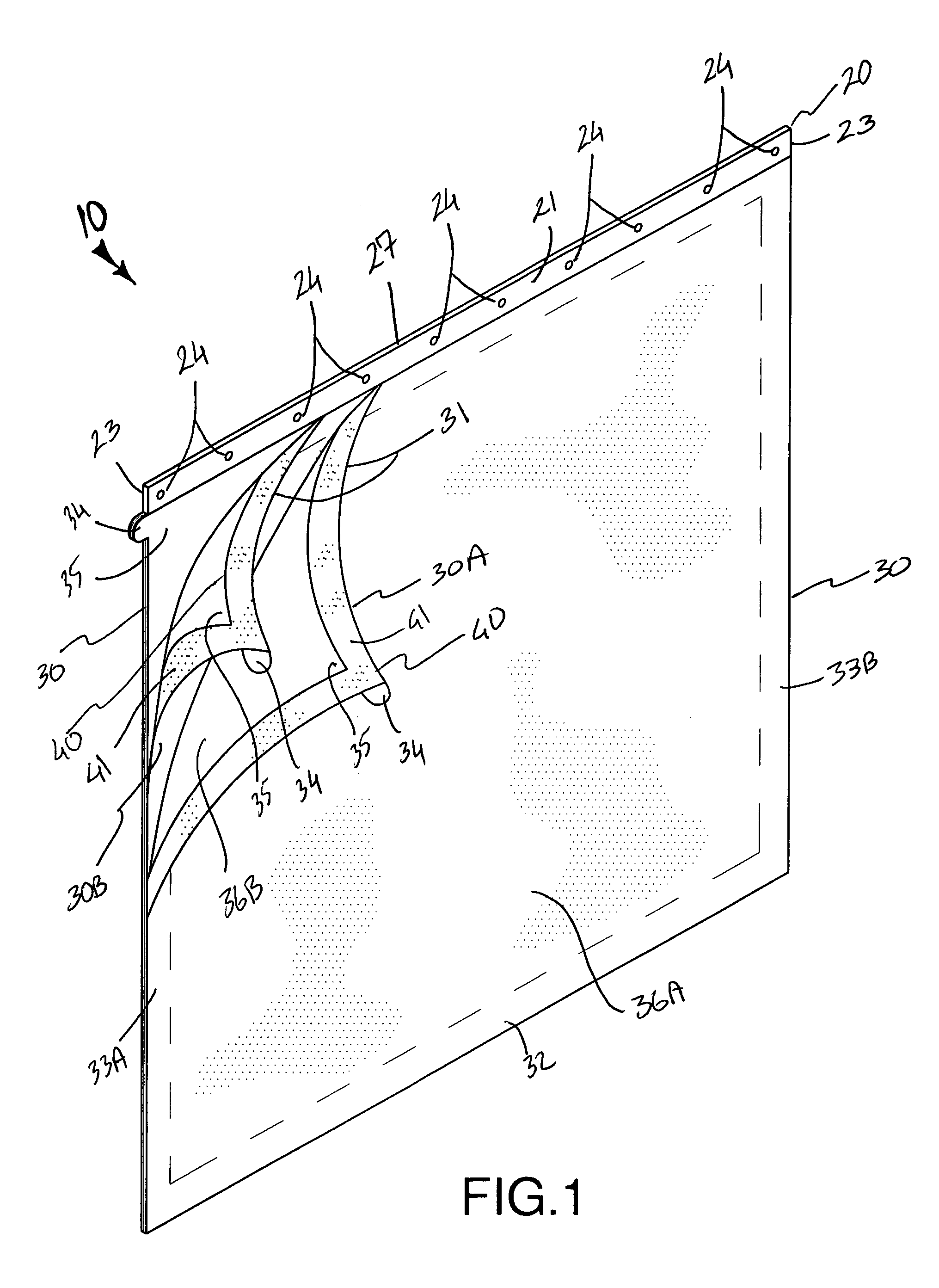

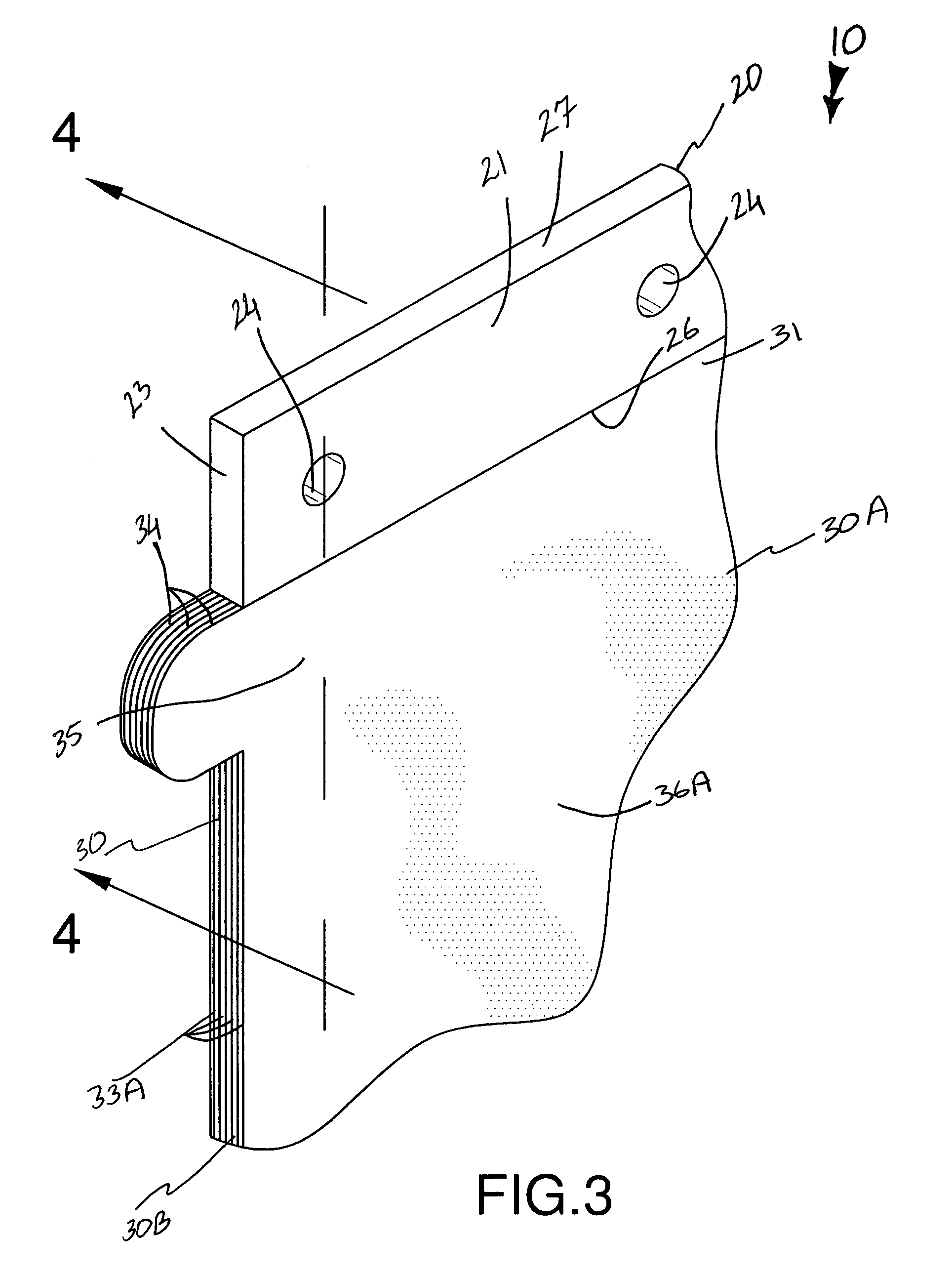

A disposable shower curtain assembly includes an anchor bracket that has planar front and rear faces, and has opposed ends. The anchor bracket is provided with apertures for receiving support rings therethrough and has a notch extending along a length thereof. The notch has an open bottom end that extends towards a top face of the bracket. Disposable water-impermeable shower liners have top edges nested within the notch. Each liner has a bottom-, a left side- and a right side-edge monolithically formed with the top edge, and also has a tab formed therewith that is positioned at a top corner of an associated liner. Adjacent front and back faces of the liners are continuously attached such. A mechanism is included for removably affixing the shower liners together so that a perimeter of an outer liner remains sealed to a perimeter of an adjacent liner.
Patent figures（8）
