Camera lens device for suppressing reflection waves generated by incident waves

US-7567285-B2

Abstract

An optical device for a camera including a lens array for focusing incident optical signals, a window glass positioned in front of the lens array to prevent alien substances from contacting the lens array, and a barrel for retaining the lenses of the lens array, wherein each lens of the lens array is coated with multi-layered thin films to suppress respective reflection waves of incident optical signals having different wavelengths, and of such a thickness that causes the phase of reflection waves reflected through the thin films to be the inverse of the phase of reflection waves reflected at the surface of the lens.

Patent figures（8）

US-7567285-B2 figure 1
1

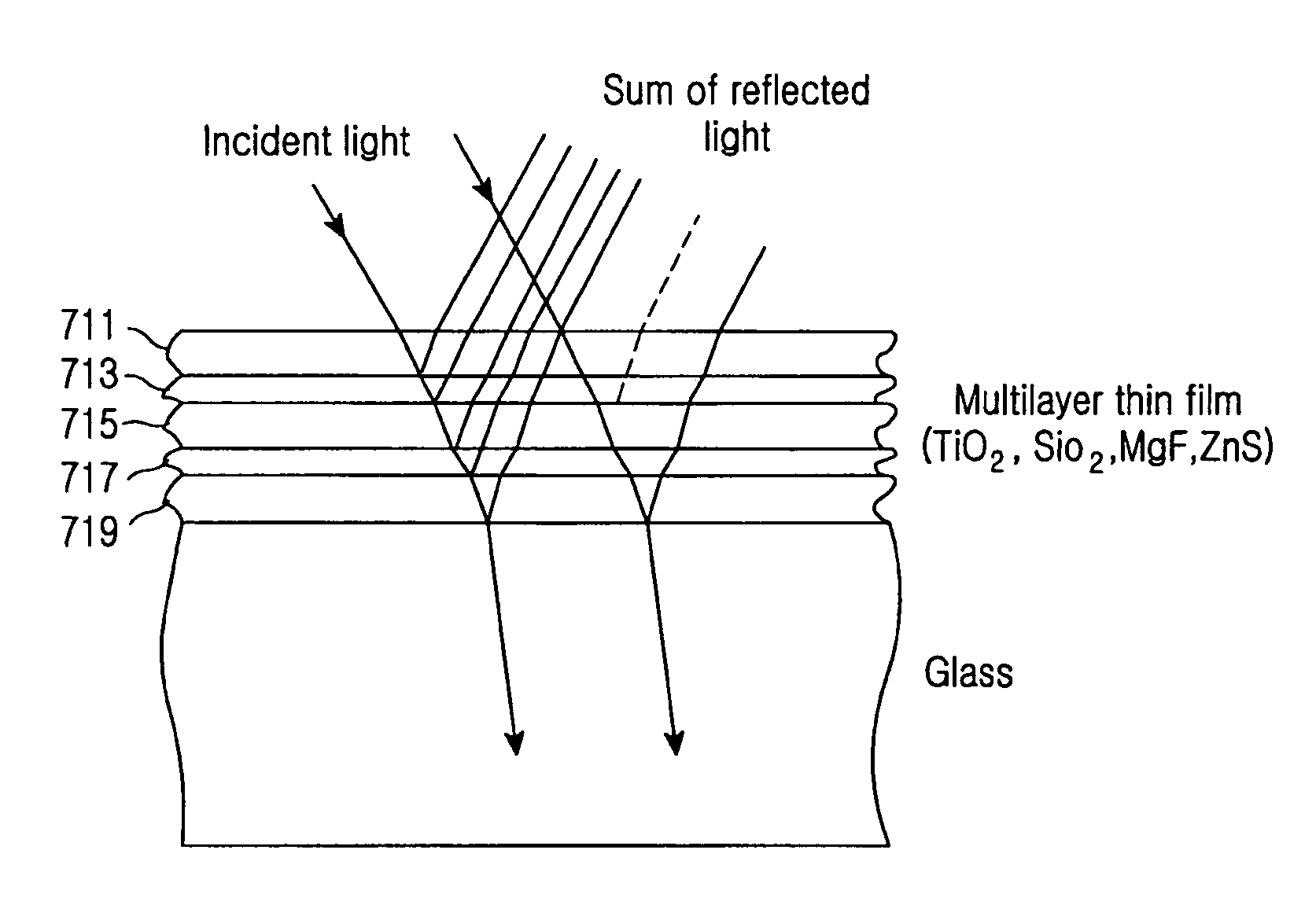

US-7567285-B2 figure 2
2
US-7567285-B2 figure 3
3

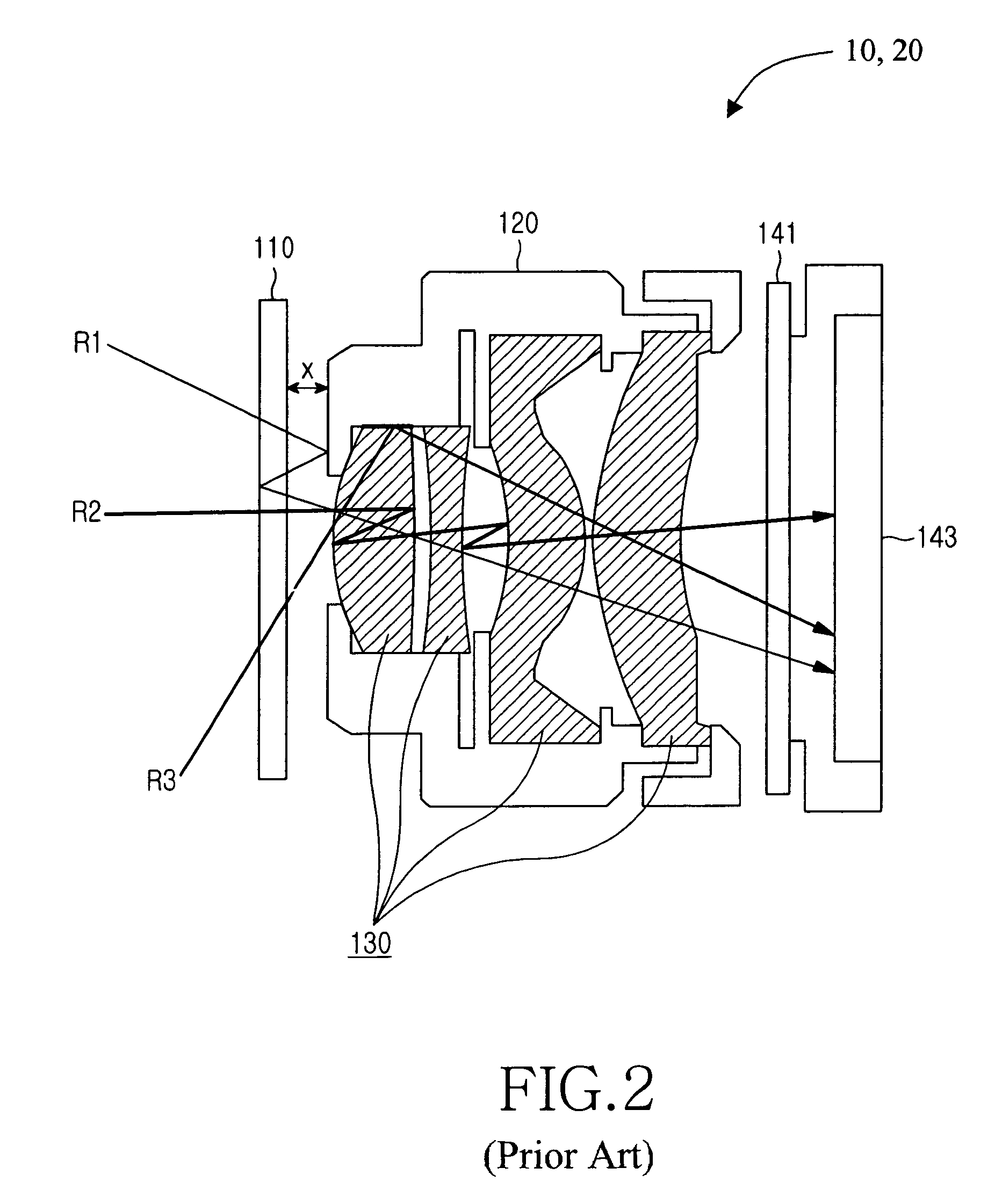

US-7567285-B2 figure 4
4
US-7567285-B2 figure 5
5

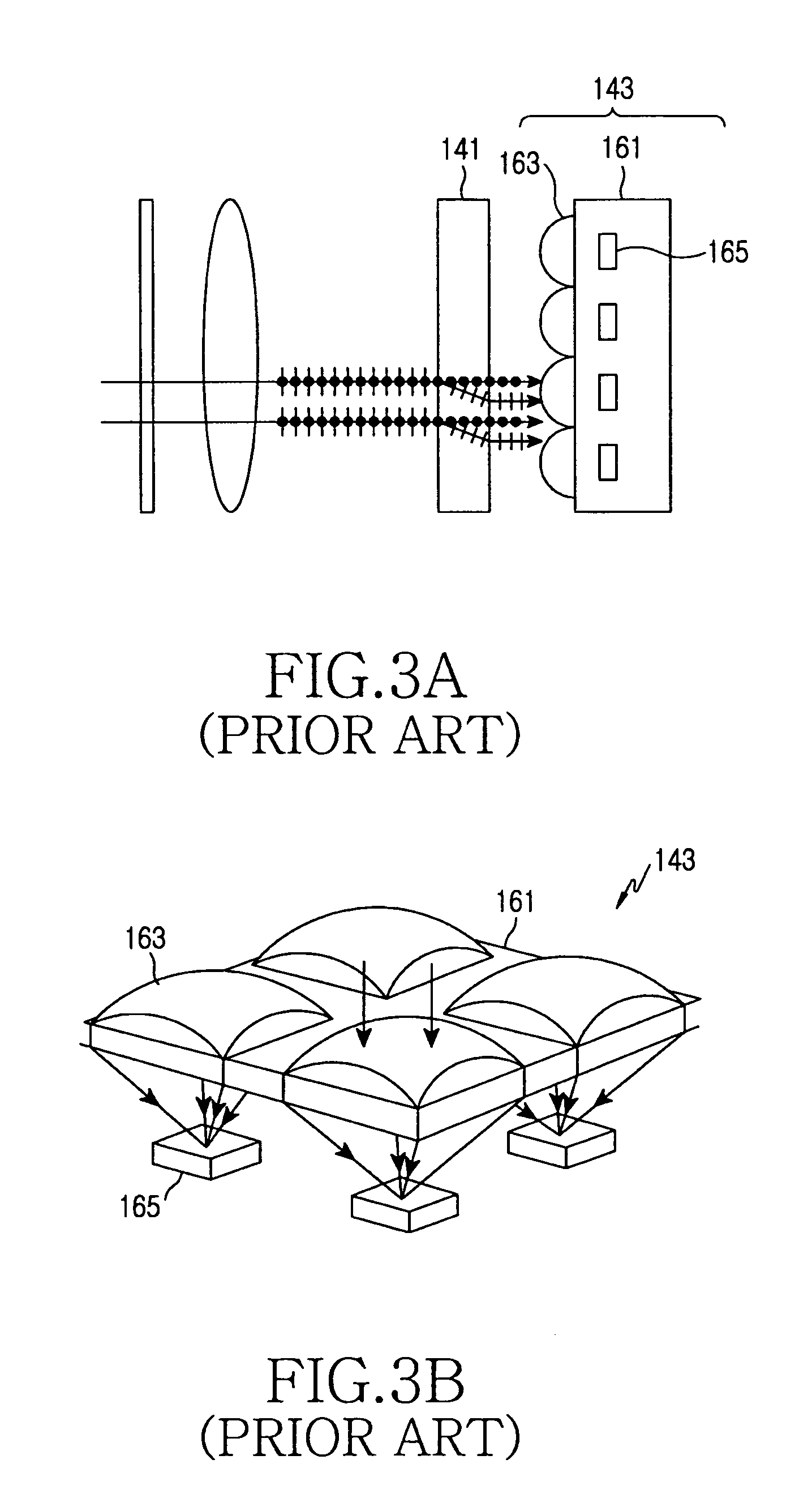

US-7567285-B2 figure 6
6
US-7567285-B2 figure 7
7

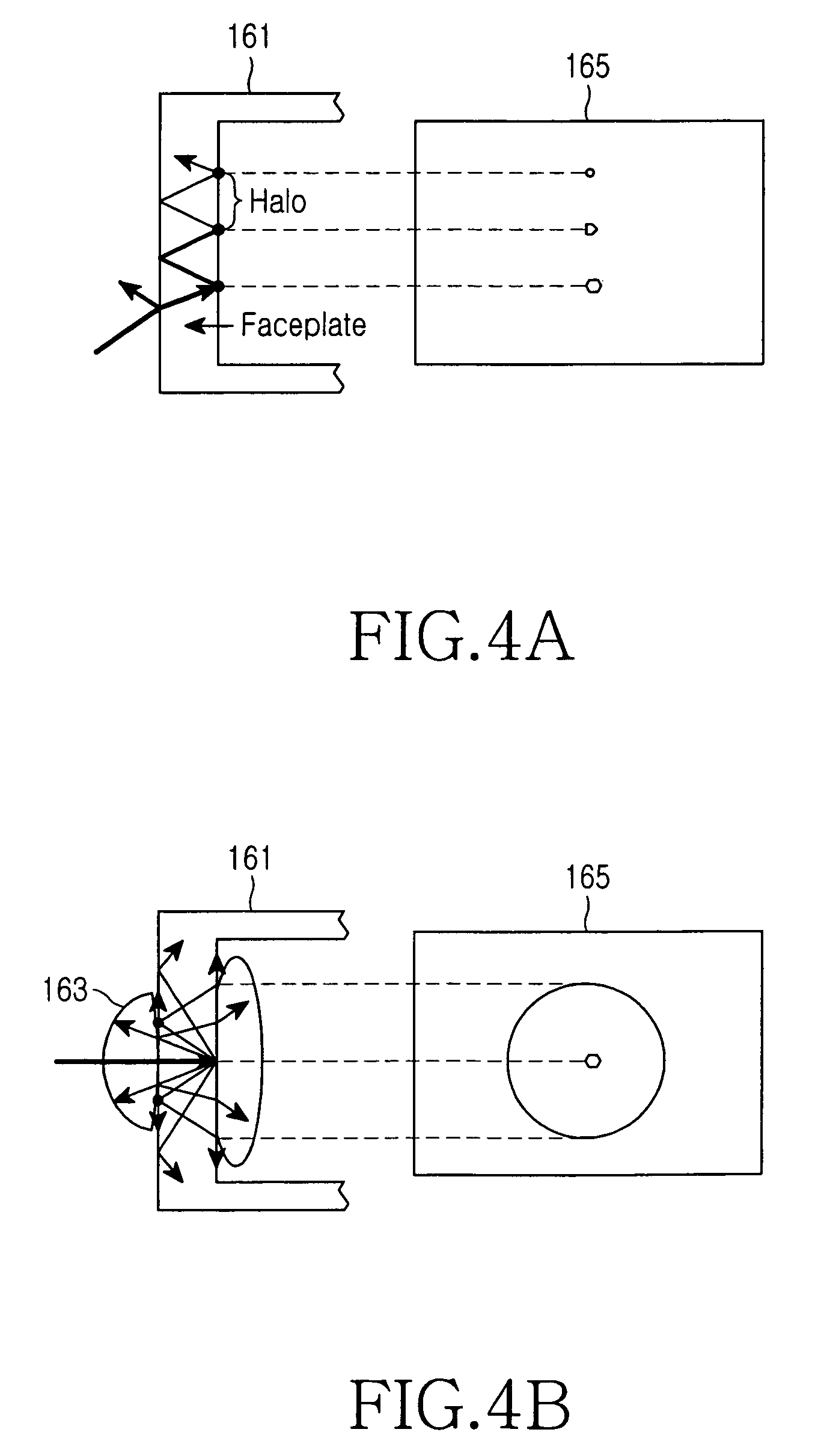

US-7567285-B2 figure 8
8
