Toilet seat gripping apparatus

US-7552485-B1

Abstract

A toilet seat gripping apparatus includes a panel that has a top side, a bottom side, a forward edge and a rear edge. The rear edge is concavely arcuate between opposite ends of the rear edge. The rear edge is contoured to an outer edge of a toilet seat. A pair of gripping members is provided. Each of the gripping members is coupled to the panel and releasably couples the panel to the toilet seat. The panel extends outwardly from the outer edge of the toilet seat.

Patent figures（8）

US-7552485-B1 figure 1
1

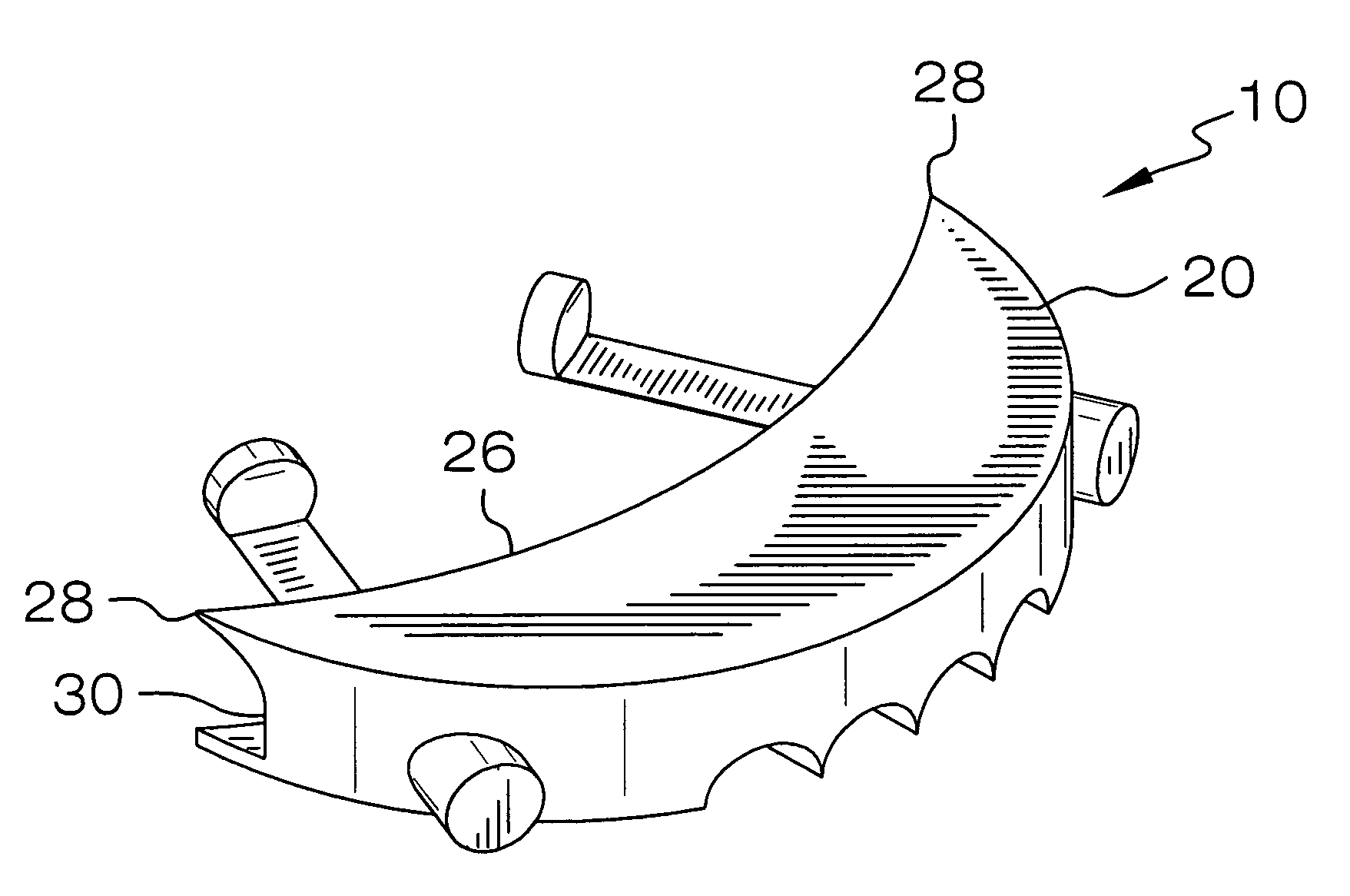

US-7552485-B1 figure 2
2
US-7552485-B1 figure 3
3

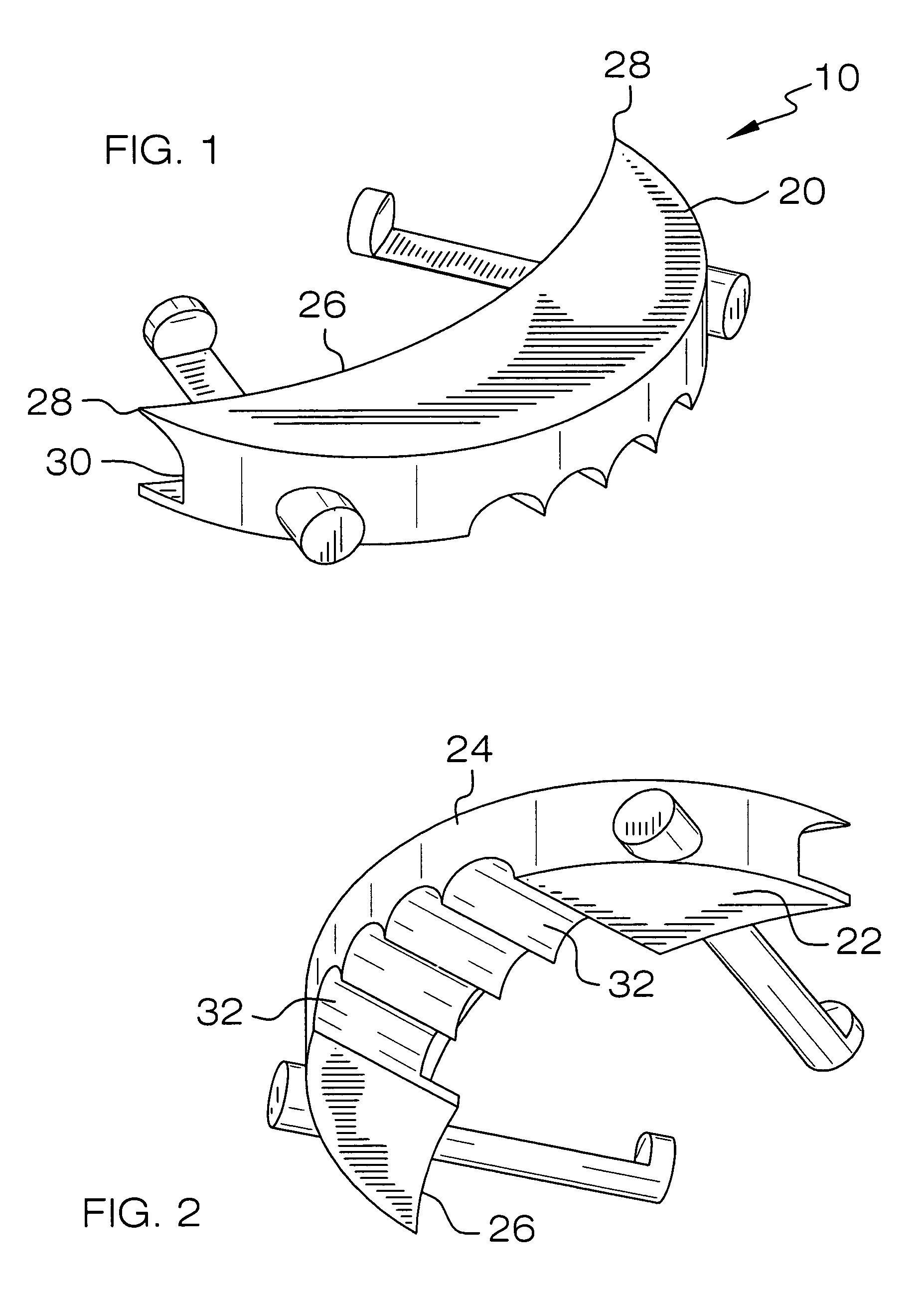

US-7552485-B1 figure 4
4
US-7552485-B1 figure 5
5

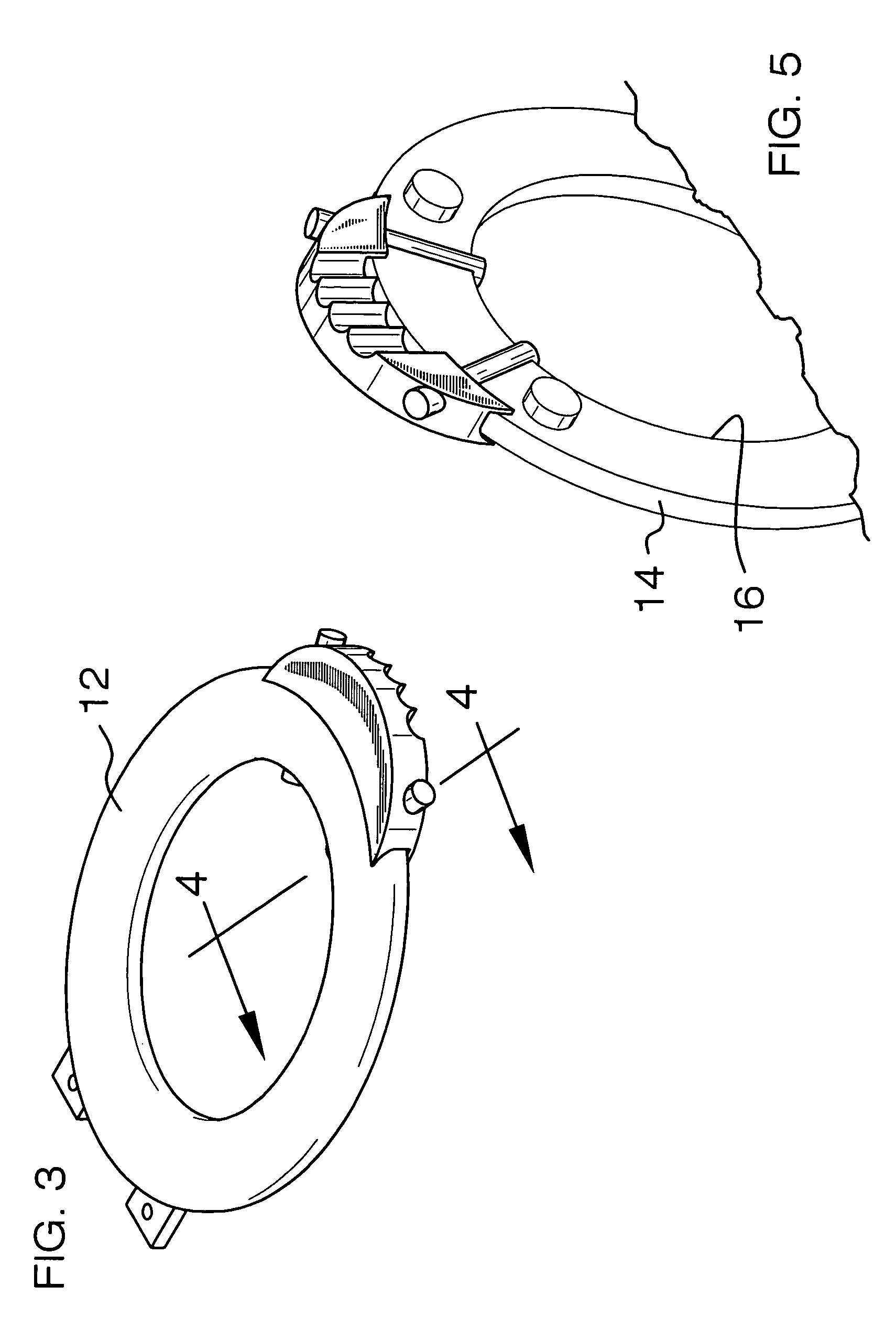

US-7552485-B1 figure 6
6
US-7552485-B1 figure 7
7

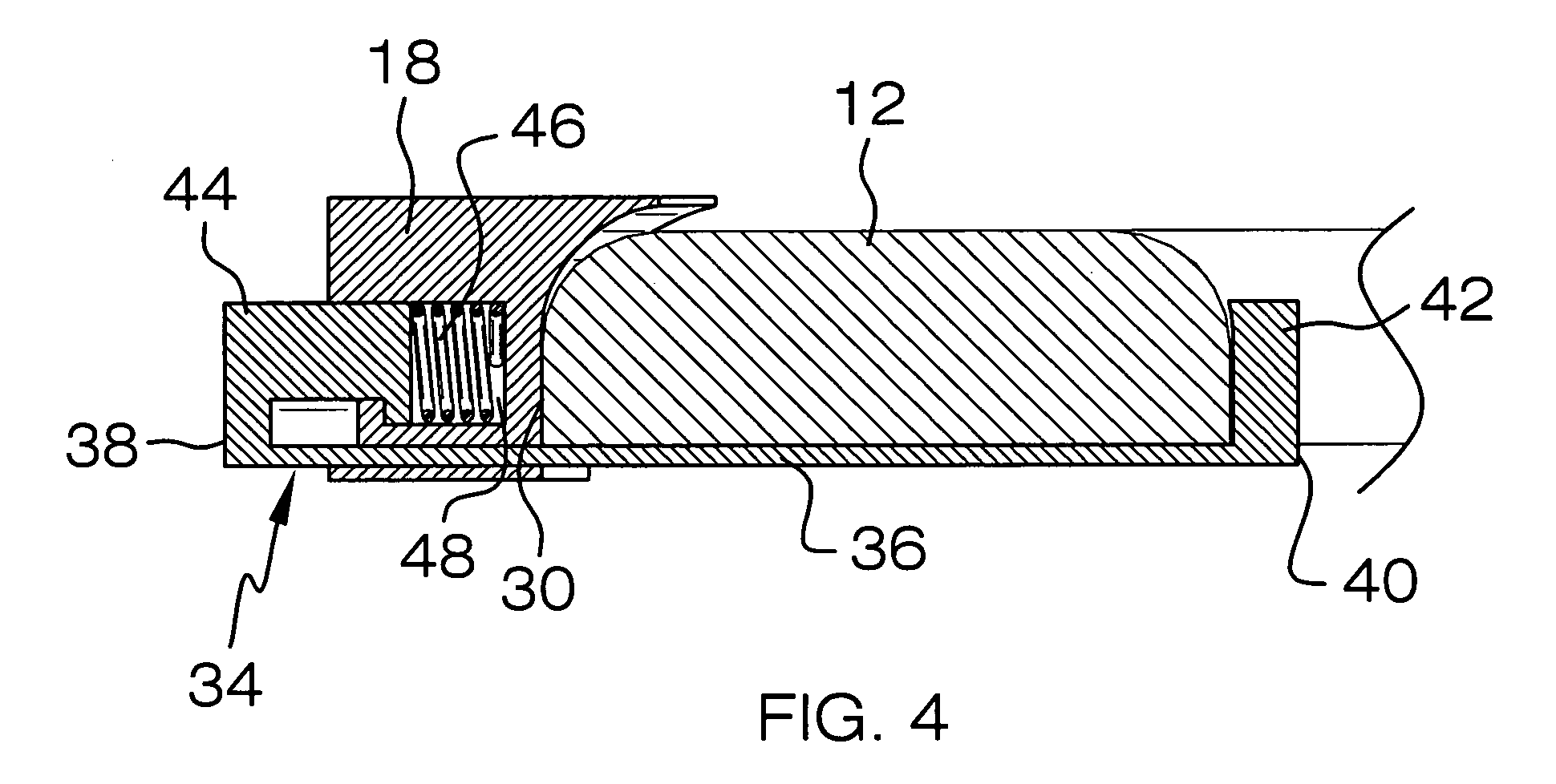

US-7552485-B1 figure 8
8
