Bathtub insert “Take-Five”
US-7472432-B2Abstract

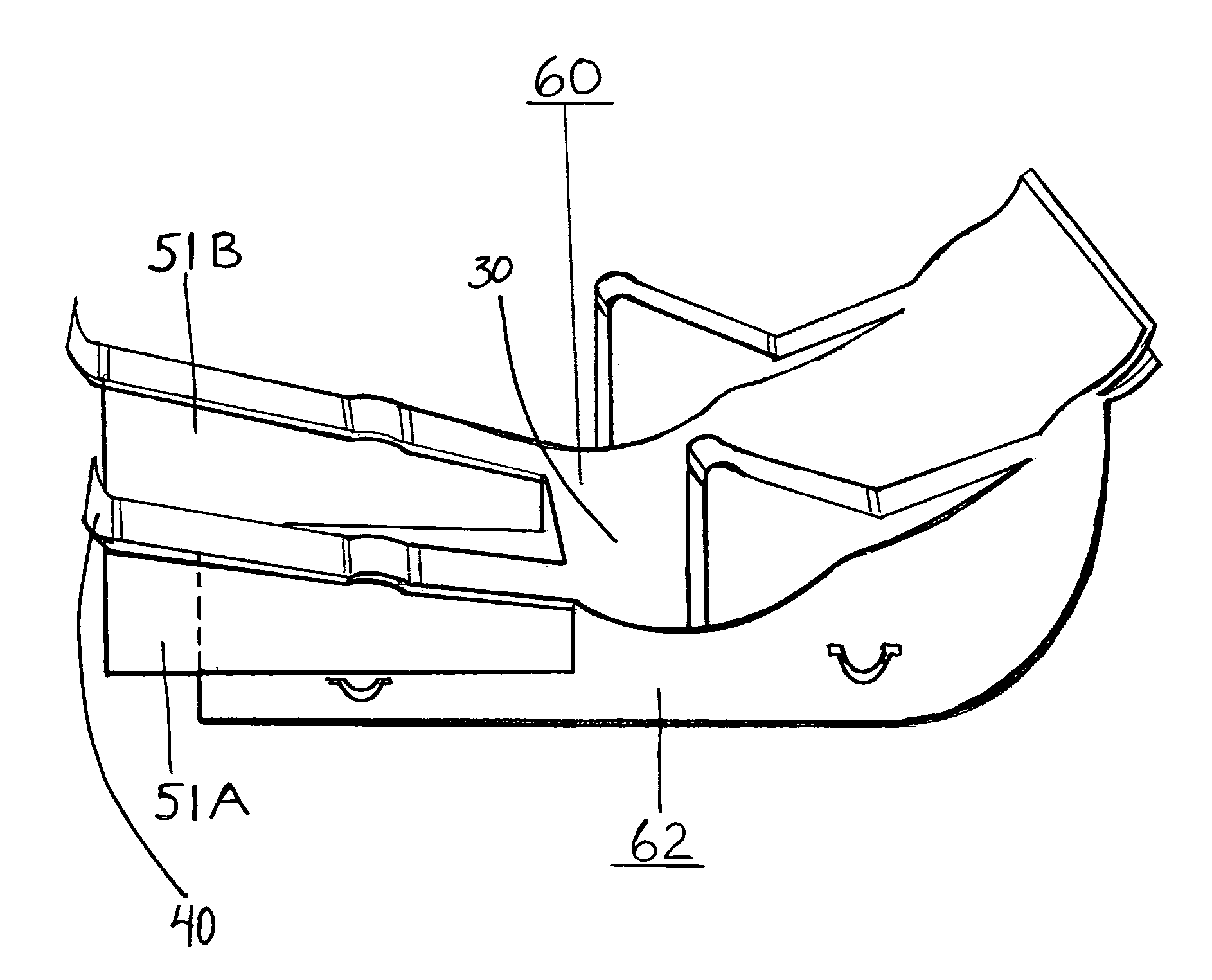

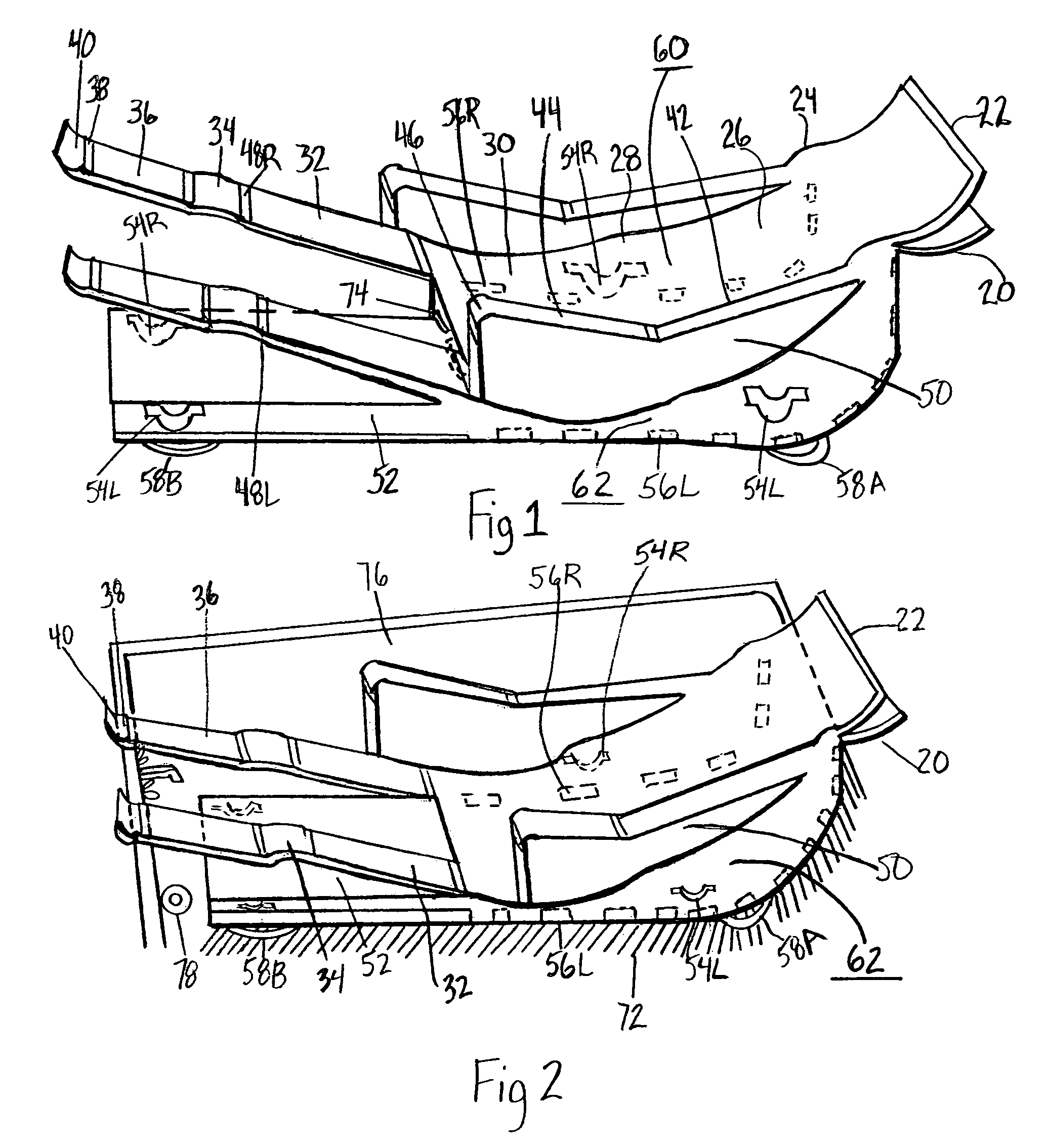

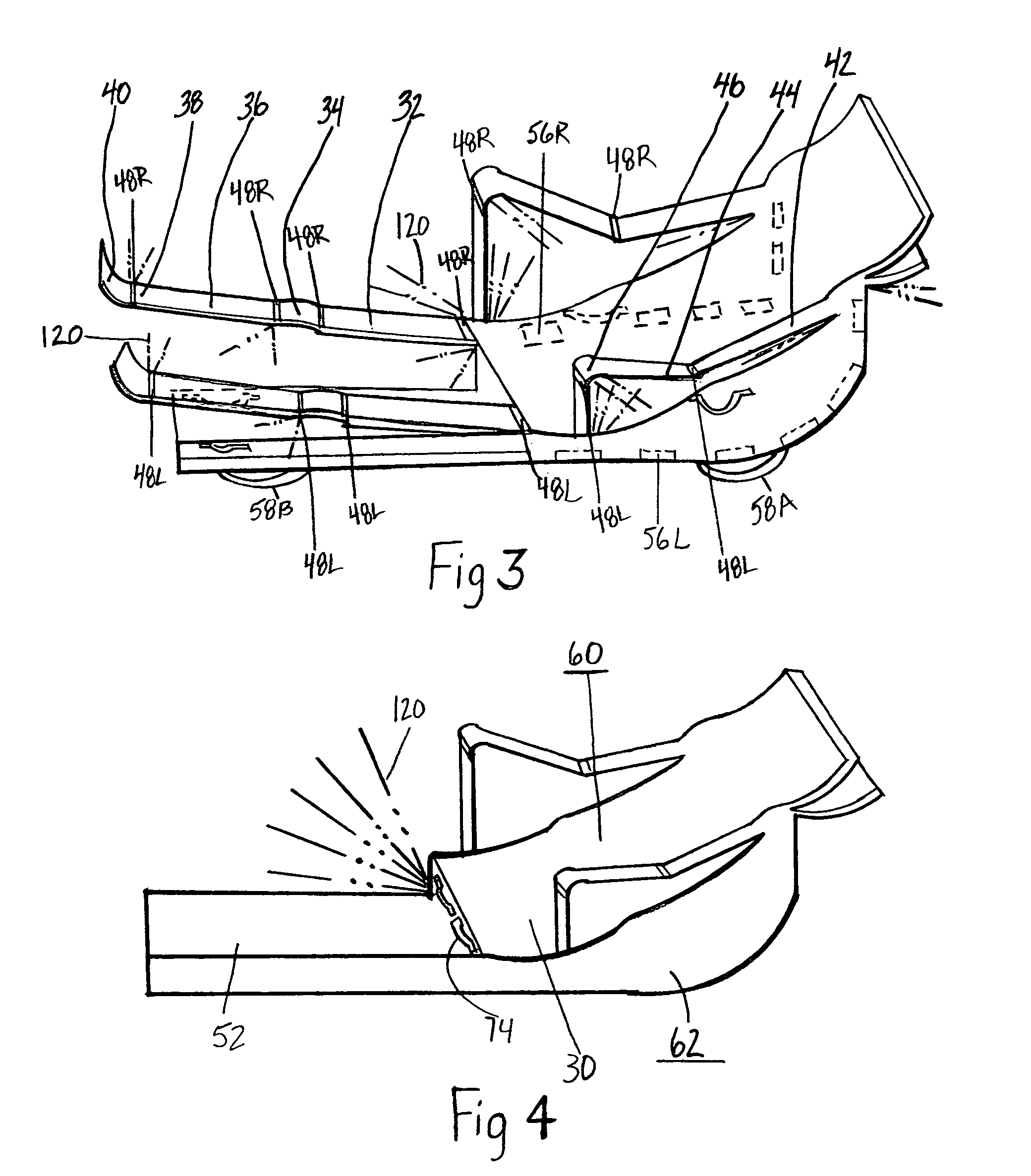

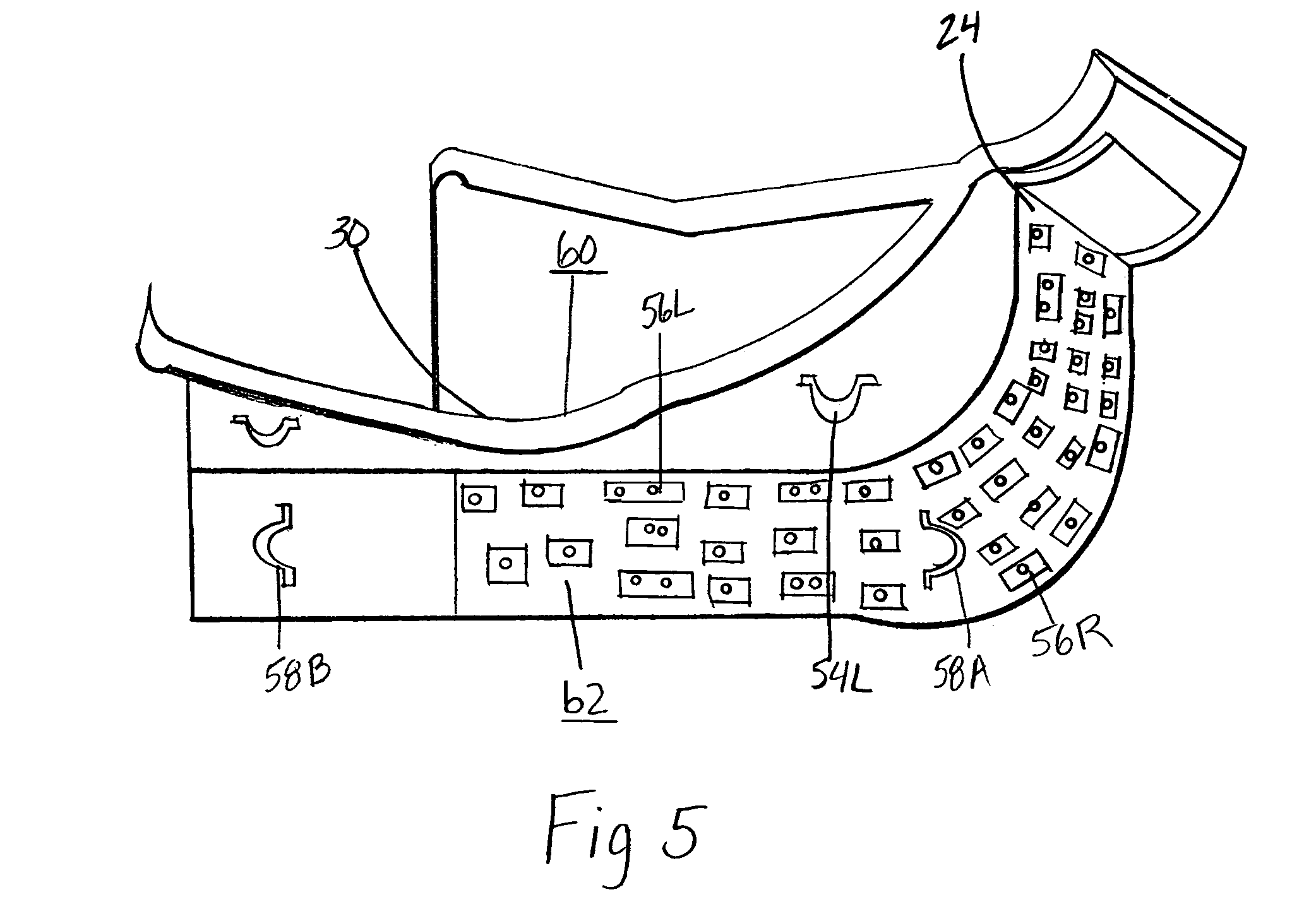

A bathtub insert that is used in combination with a standard bathtub ( 76 ) wherein, a top contour design ( 60 ) in an elongated shape, conforms to the curvature of the human body form. Includes and formed part of design ( 60 ) and a pair of arm rests ( 42 ) ( 44 ) and a hand rest ( 46 ) which is integrally part of upper back support rest ( 26 ), lower back support rest ( 28 ), seat support rest ( 30 ); and pair of leg supports ( 32 ) ( 34 ) ( 36 ) ( 38 ), and a foot rest ( 40 ) that is an extension of rest ( 30 ), which includes a pedestal support ( 51 A/ 51 B). Part of and in adherence to design ( 60 ) is a bottom contour design ( 62 ) that provides support to design ( 60 ) which conforms to the shape of a bathtub surface ( 72 ) in an angled curvature shape. Further providing and in coordination with design ( 62 ) is an entrance and exit area a in/out platform ( 52 ).
Patent figures（8）
