Flower mounting assembly for a headstone

US-7305794-B1

Abstract

A flower mounting assembly for a headstone includes a block that has a top side, a bottom side, a first end, a second end, a first lateral side, a second lateral side. Each of a plurality of hook members is extended into the block. A plurality of discs is provided. Each of a plurality of fasteners is attached to one of the discs for securing a respective one of the discs to a front side, back side or top edge of a headstone. Each of a plurality of clasps is attached to one of the discs. Each of a plurality of bands is attached to and extended between one of the hook members and one of the clasps so that the bottom side of the block is abutted against and secured to the headstone. A plurality of flowers is extended into said top side of said block.

Patent figures（8）

US-7305794-B1 figure 1
1

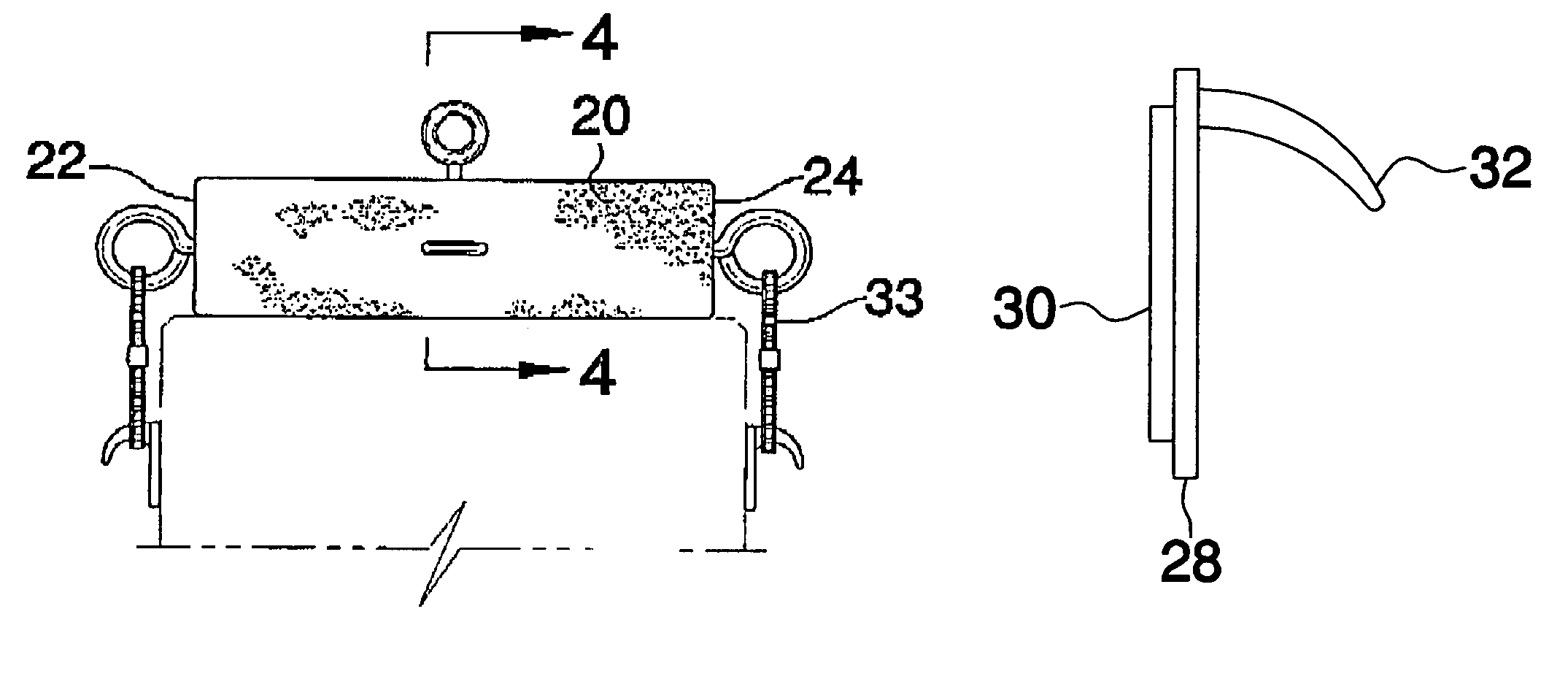

US-7305794-B1 figure 2
2
US-7305794-B1 figure 3
3
US-7305794-B1 figure 4
4
US-7305794-B1 figure 5
5

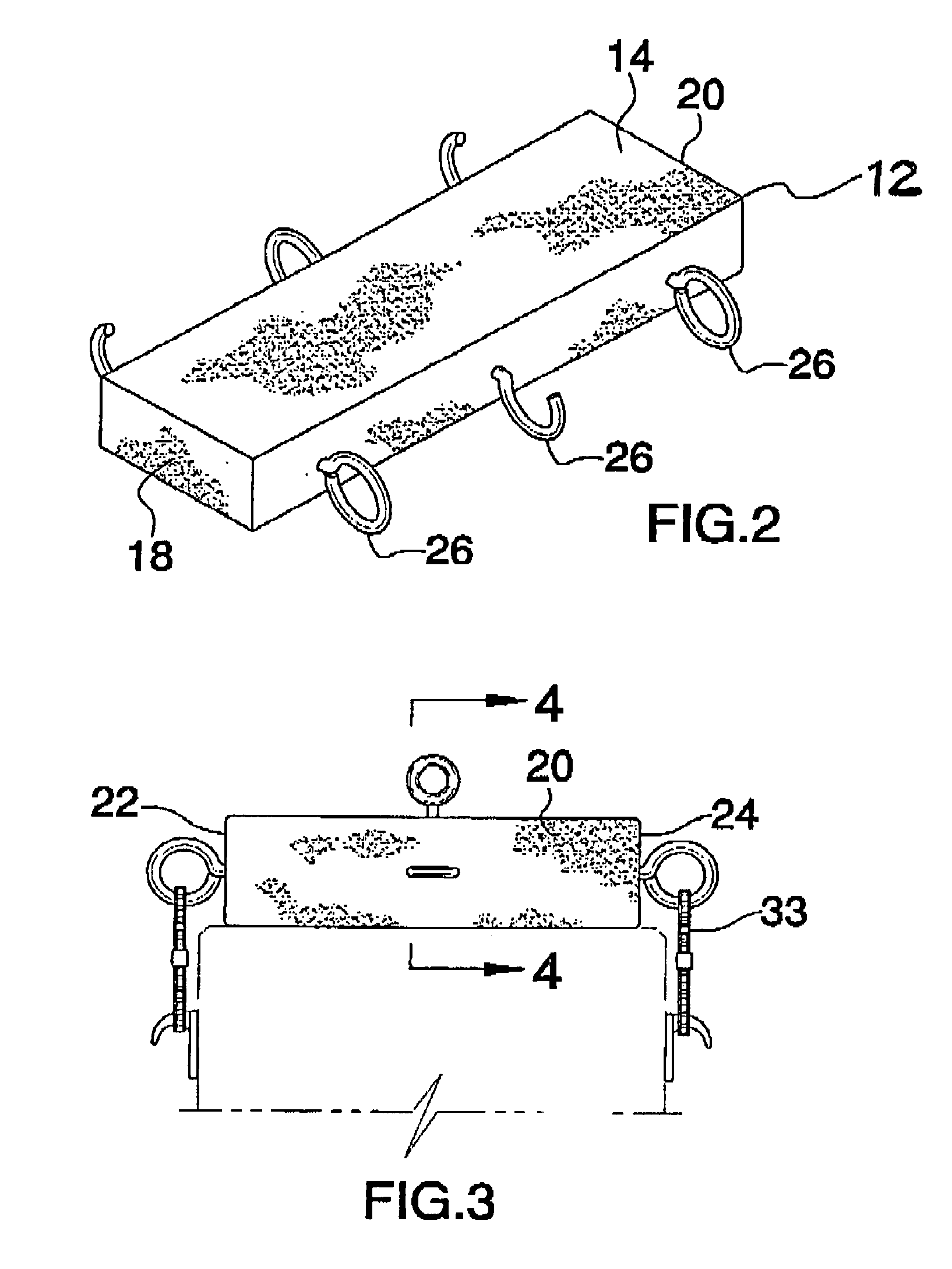

US-7305794-B1 figure 6
6
US-7305794-B1 figure 7
7

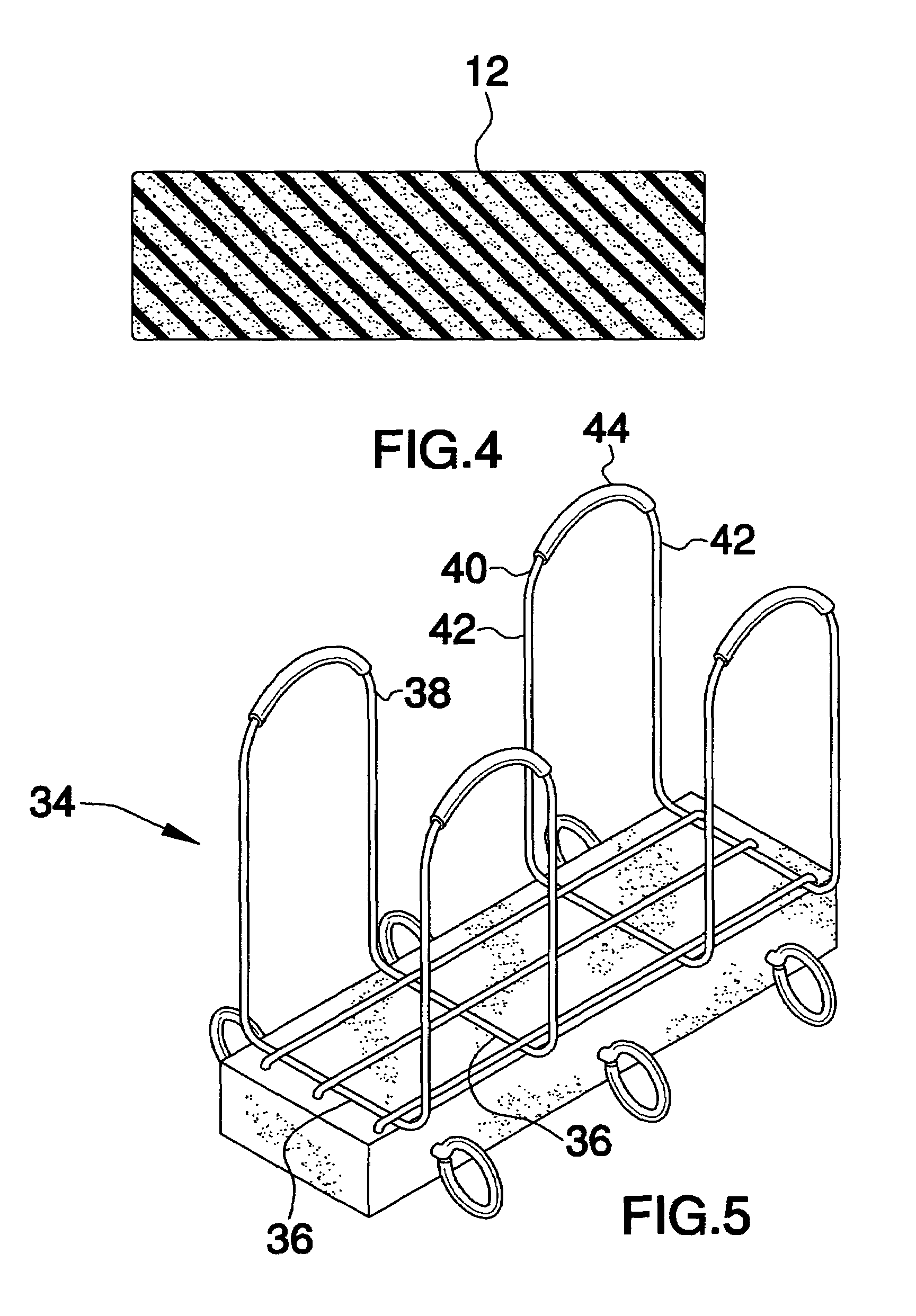

US-7305794-B1 figure 8
8
