信息库厨房器具混合组件
来源记录显示 Expired

混合组件

Blending assembly

US-9173525-B2

用于制备混合食品产品,防止混合时泄漏。

专利摘要

一种制备混合食品产品的方法,包括以下步骤:将食品组合物引入容器中,为容器提供封闭件,该封闭件承载有叶轮;倒置容器,使得带有其混合元件的封闭件位于最下方;驱动混合元件混合组合物以形成混合食品产品。在混合之前,将容器安装在保持器中并夹紧在封闭件与保持器之间,以防止混合过程中泄漏。保持器可以是套筒形式。还提供了一种用于两组混合盖的驱动主机。

Original abstractA method of preparing a blended food product includes the steps of: introducing a composition of food product(s) into a container, providing a closure for the container, the closure carrying an impeller; inverting the container so that the closure with its blending element lies lowermost; and driving the blending element to blend the composition to form a blended food product. Prior to blending, the container is mounted in a holder and clamped in place between the closure and the holder, to prevent leakage during blending. The holder may be in the form of a sleeve. A drive master is also provided for use with two sets of blending lids.

专利附图(8)

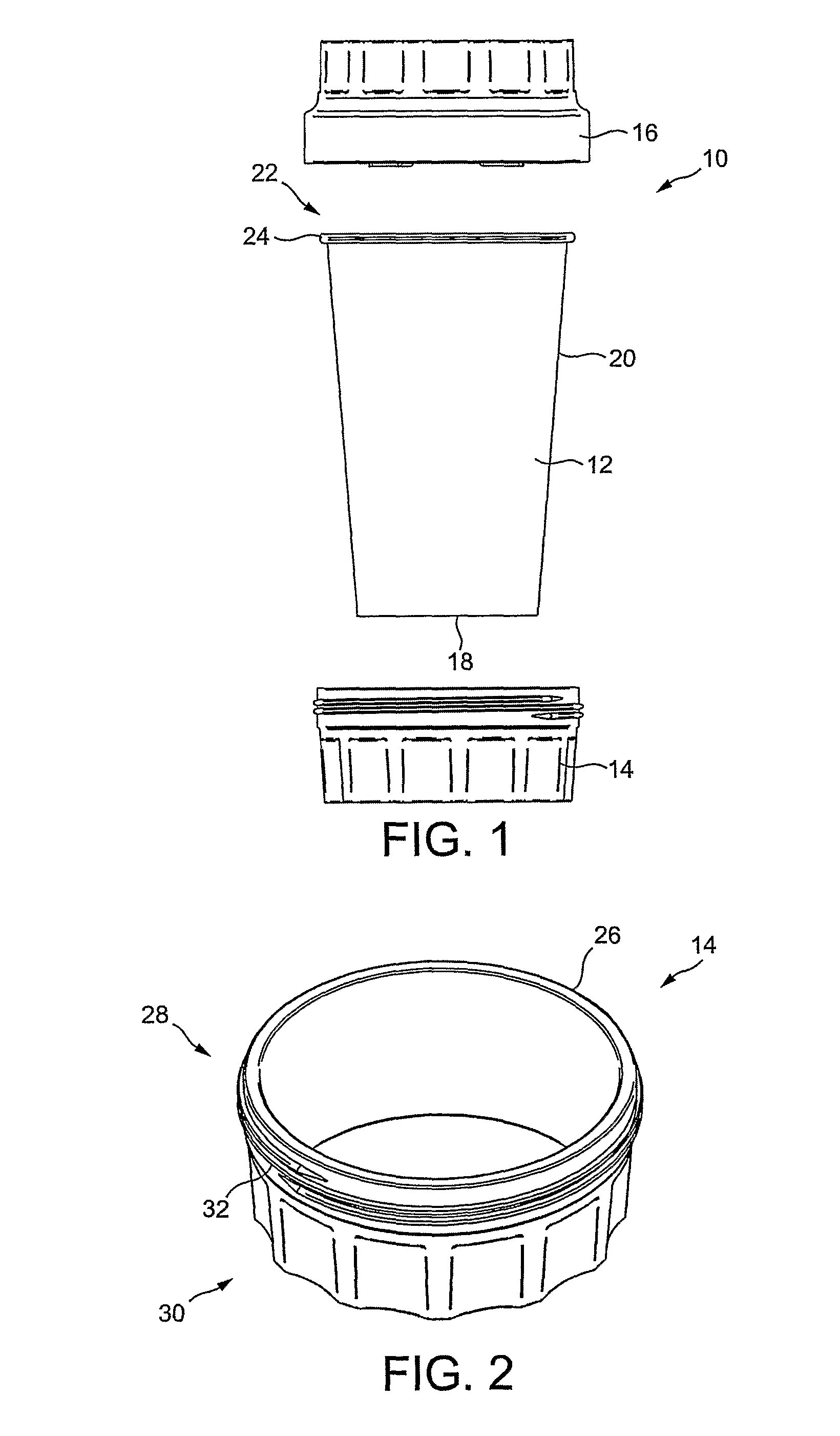

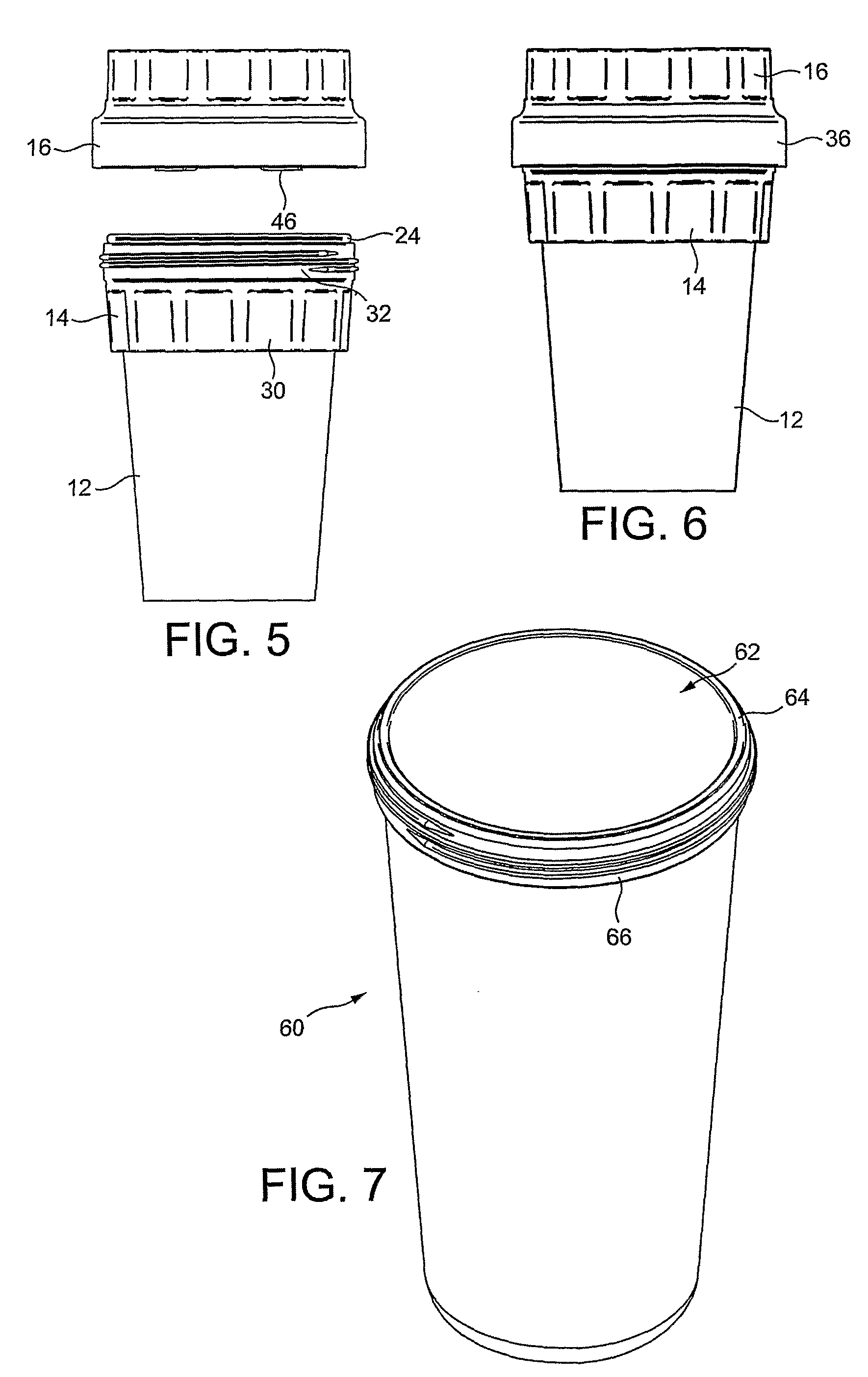

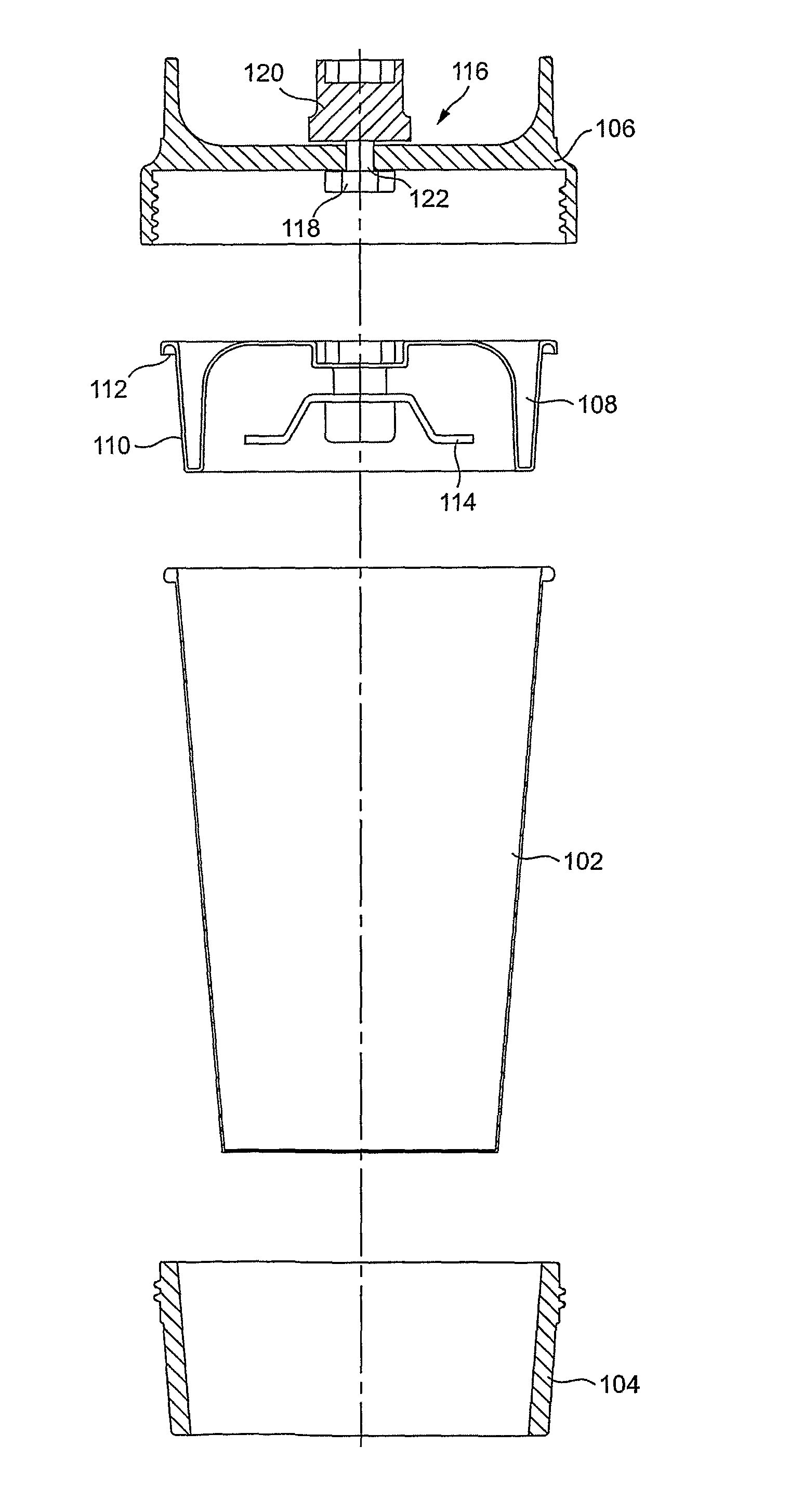

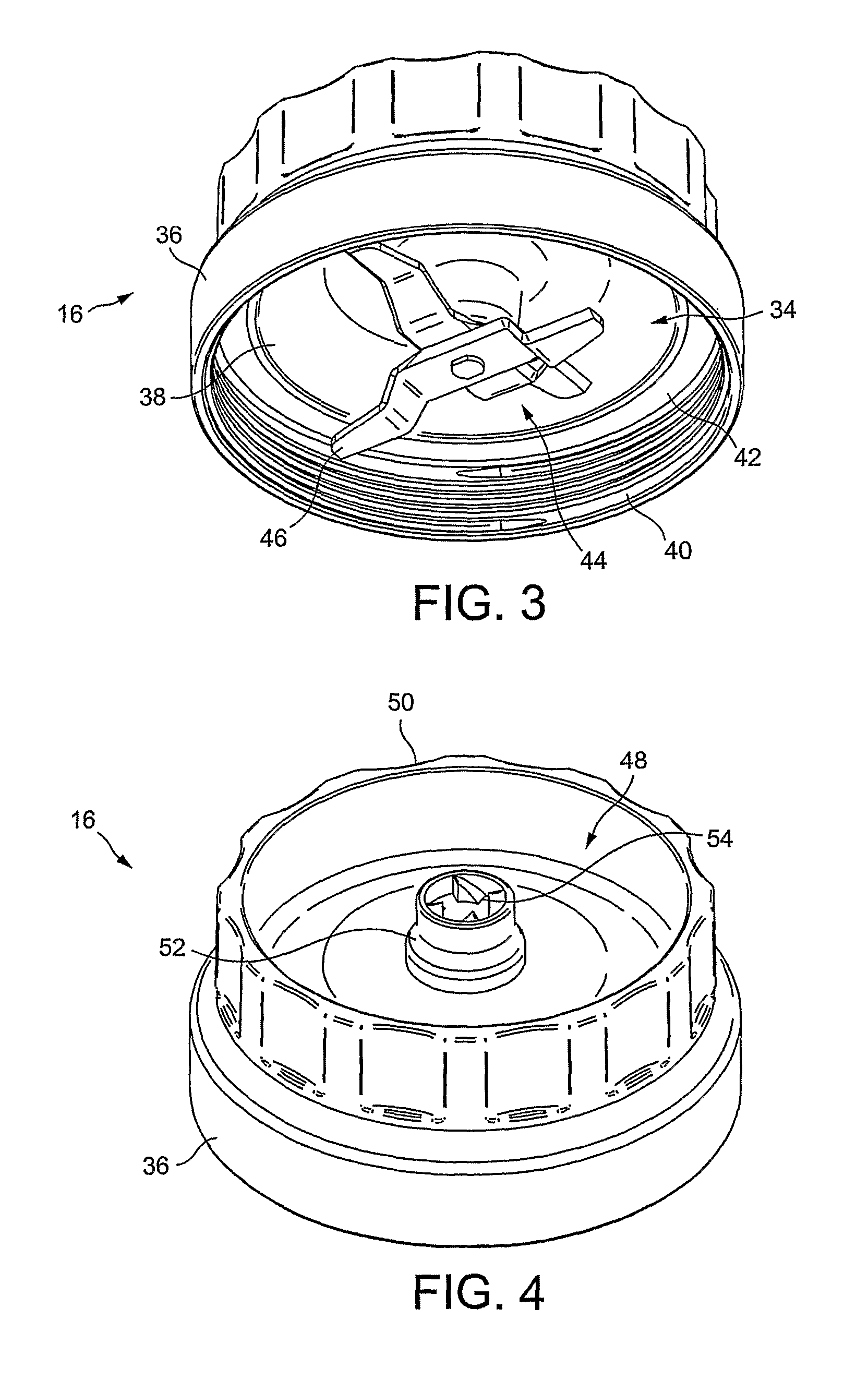

US-9173525-B2 figure 1
1
US-9173525-B2 figure 2
2
US-9173525-B2 figure 3
3
US-9173525-B2 figure 4
4
US-9173525-B2 figure 5
5
US-9173525-B2 figure 6
6
US-9173525-B2 figure 7
7
US-9173525-B2 figure 8
8
