可再填充的柔性片材分配器

Refillable flexible sheet dispenser

US-8573398-B2

用于方便地分配和补充柔性片材如纸巾。

专利摘要

提供一种柔性片材容器，其允许用户快速且容易地馈送引导片材。该容器具有限定存储区域的基部和覆盖基部的顶部。顶部包括通向存储区域的开口，通过该开口分配单个柔性片材。一对相对的翼片在其第一端可枢转地附接到顶部，并且每个翼片以其第二端朝向分配开口延伸。翼片的互补第二端在分配位置共同进一步限定分配开口。翼片朝向存储区域向内枢转以提供通过开口进入存储区域的通路。因此，为了馈送引导柔性片材，用户可以向内旋转翼片，抓住引导柔性片材，并将其拉过开口。在分配期间，翼片向外旋转并保持后续片材。

Original abstractA flexible sheet container is provided that permits a user to quickly and easily feed a leading sheet. The container has a base portion that defines a storage area and a top covering the base portion. The top includes an opening into the storage area through which individual flexible sheets are dispensed. A pair of opposing flaps is pivotally attached to the top at their first ends and each extends toward the dispensing opening with its second end. The complementary second ends of the flaps together further define the dispensing opening while in a dispensing position. The flaps pivot inward toward the storage area to provide access through the opening into the storage area. As such, to feed a leading flexible sheet, a user may rotate the flaps inward, grab a leading flexible sheet, and pull it through the opening. During dispensing, the flaps rotate outward and retain subsequent sheets.

专利附图（共 8 张）

US-8573398-B2 fig 1
1

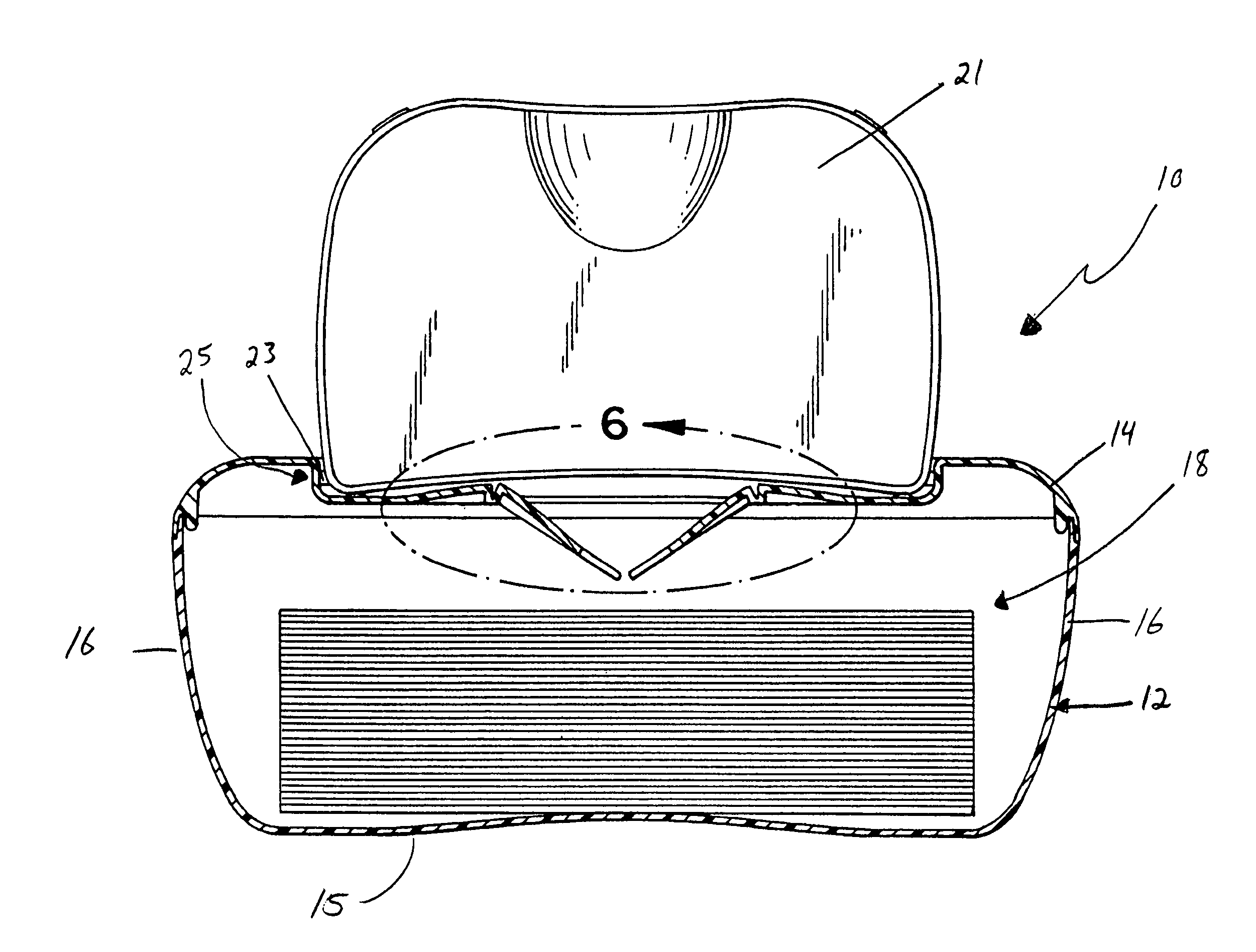

US-8573398-B2 fig 2
2
US-8573398-B2 fig 3
3

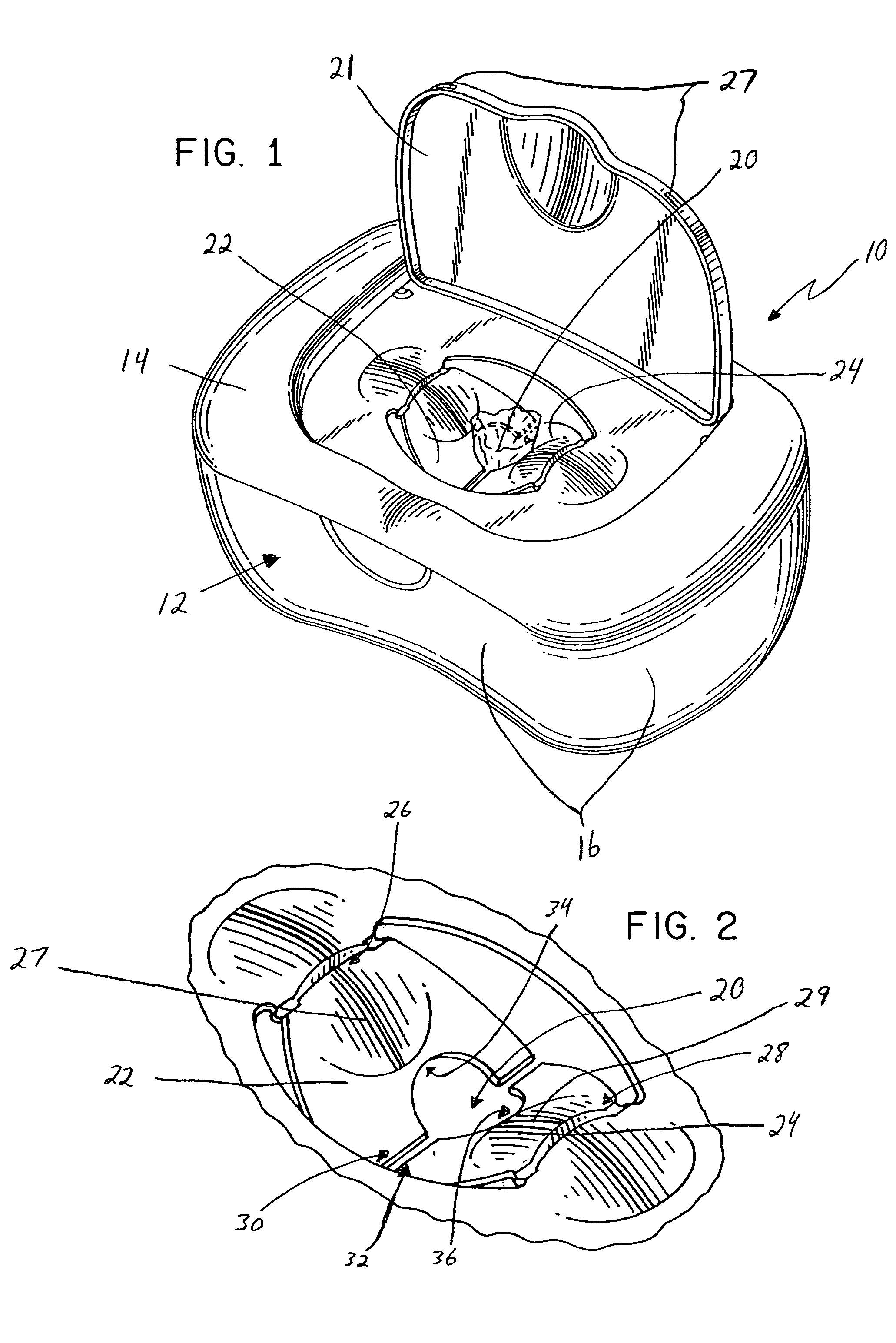

US-8573398-B2 fig 4
4
US-8573398-B2 fig 5
5
US-8573398-B2 fig 6
6
US-8573398-B2 fig 7
7
US-8573398-B2 fig 8
8
