来源记录显示 Expired
用于在瓶子中支撑吸管的吸管支架
Straw holder for supporting a drinking straw in a bottle
US-8505755-B2用于在瓶子中固定吸管的支架
专利摘要
一种吸管支架，用于在装有待饮用饮料的瓶子的瓶口中垂直支撑吸管，并限制吸管相对于瓶子的垂直移动。吸管支架包括一个吸管支撑部分，其尺寸被设计成横跨瓶口放置，并且在该吸管支撑件中限定有孔。该孔容纳吸管，使得吸管穿过该孔设置，吸管的前缘位于瓶子中与饮料连通。该孔的尺寸被设计成一旦选择了期望的垂直位置，就可调节地保持吸管前缘在瓶子中的垂直位置。吸管支架还包括连接到吸管支撑部分的瓶子保持部分，用于将吸管支撑件的位置保持在瓶口上。瓶子保持部分包括至少一个被设计成接合瓶子颈部的圈。
Original abstractA straw holder for vertically supporting a drinking straw in the mouth of a bottle containing a beverage to be consumed and for limiting vertical movement of the straw with respect to the bottle. The straw holder includes a straw support portion dimensioned for placement across the mouth of the bottle and having an aperture defined in the straw support. The aperture receives the drinking straw so that the straw is disposed through the aperture with a leading edge of the straw positioned in the bottle in communication with the beverage. The aperture is dimensioned for adjustably maintaining a vertical position of the leading edge of the straw in the bottle once a desired vertical position is selected. The straw holder also includes a bottle retaining portion coupled to the straw support portion for maintaining the position of the straw support across the mouth of the bottle. The bottle retaining portion includes at least one turn dimensioned for engaging the neck of the bottle.

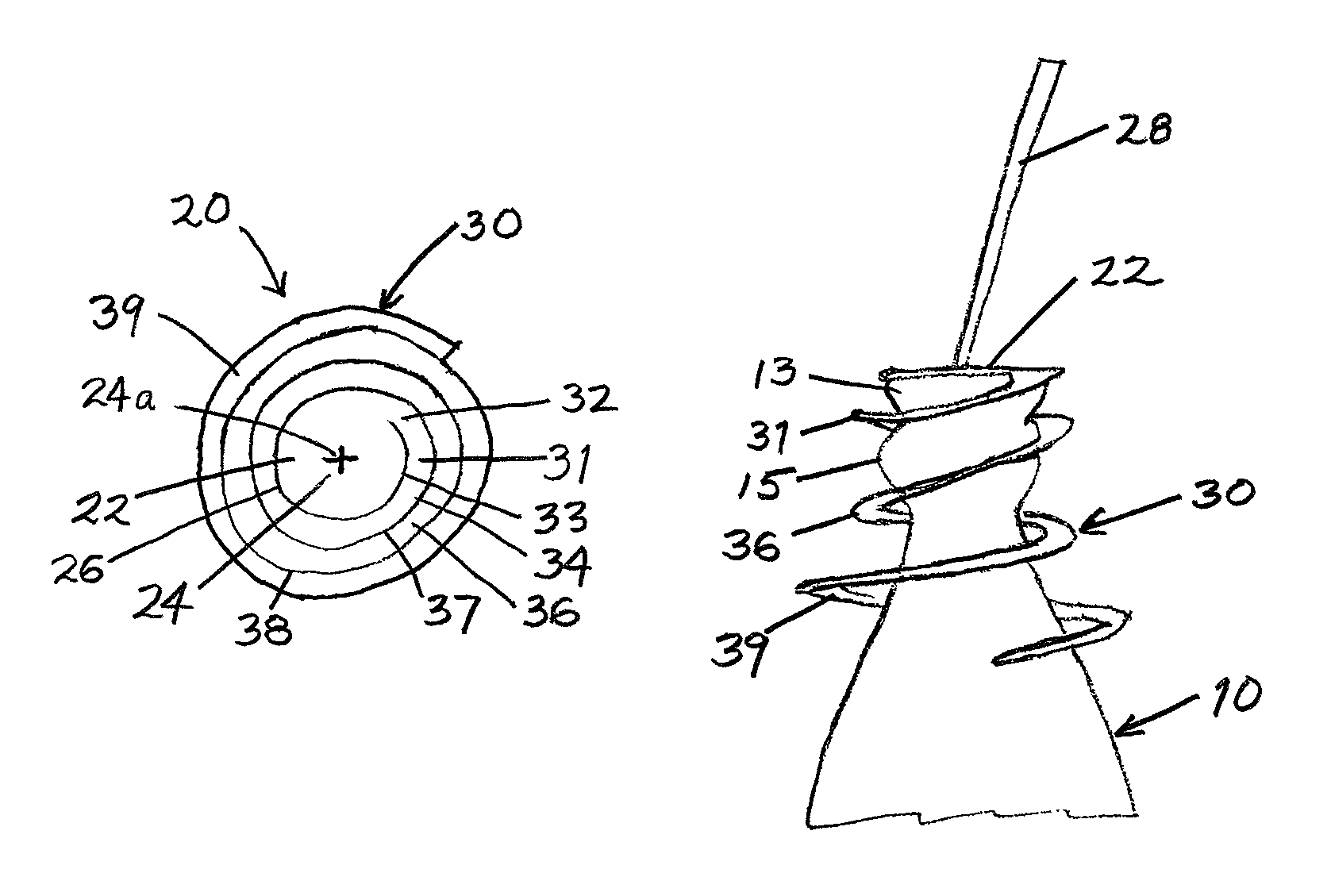

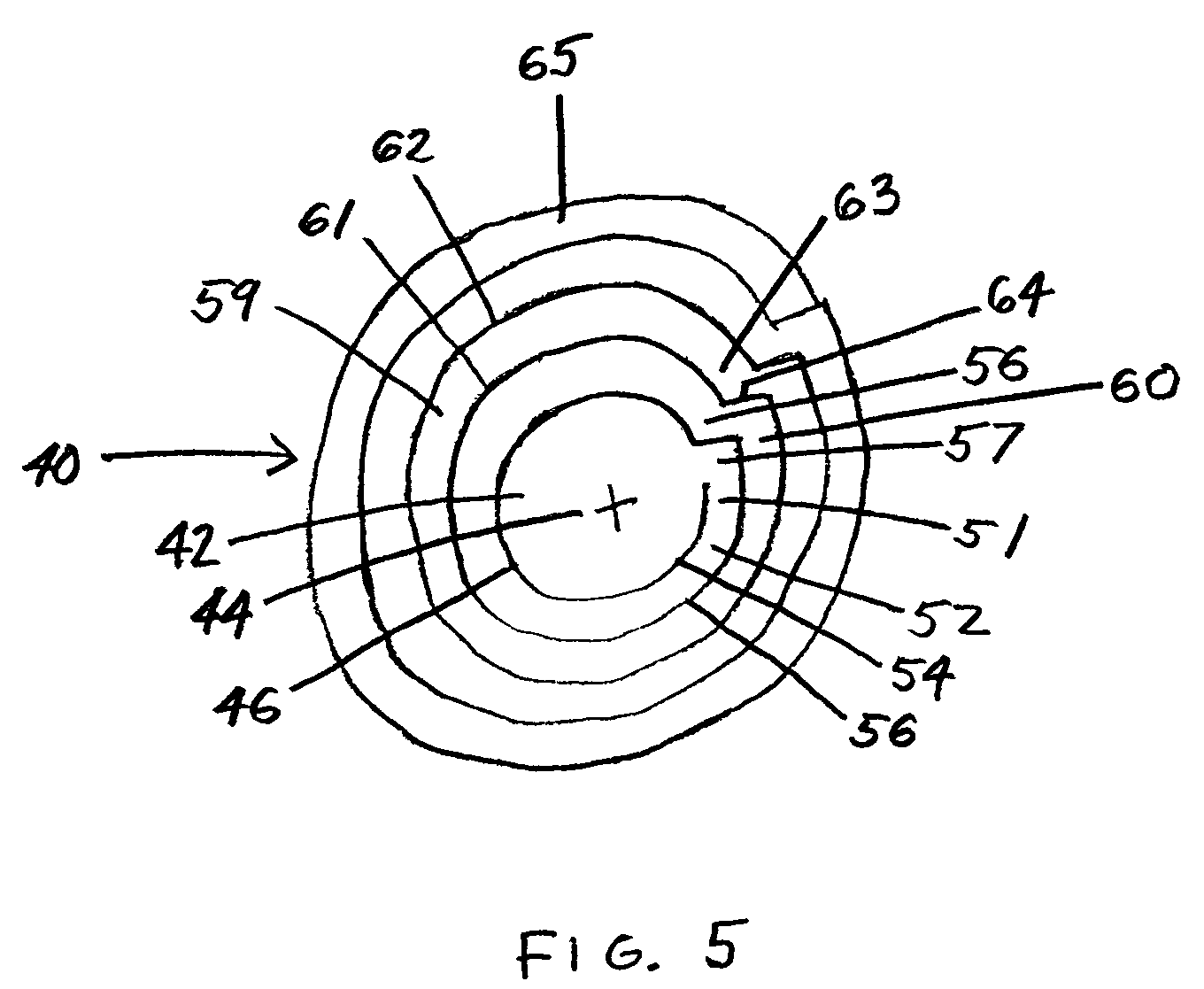

专利附图（4）
