用于儿童如厕训练时定量分配浴巾纸。
专利摘要
描述了各种弹出式浴巾纸分配装置。在一个实施例中，浴巾纸分配器被配置为一次分配一张浴巾纸。为了在如厕训练期间教育儿童使用多少纸巾，分配器内的纸巾片具有足够大的尺寸，使得仅需一张纸即可擦拭。分配器可包括用于将分配器附接到心轴的附接装置，同时仍允许心轴保持常规卷筒浴巾纸。在各种实施例中，纸巾片或分配器可包括设计或其他标记，以在如厕训练期间鼓励儿童或帮助教育儿童。
Original abstractVarious pop-up bath tissue dispensing devices are described. In one embodiment, the bath tissue dispenser is configured to dispense bath tissues one at a time. In order to educate a child during toilet training on how much tissue to use, the tissue sheets contained within the dispenser have a size sufficient such that only one sheet is necessary for wiping. The dispenser can include an attachment device for attaching the dispenser to a spindle while still permitting the spindle to hold a conventional roll of bath tissue. In various embodiments, the tissue sheets or the dispenser may include designs or other indicia to either encourage a child during toilet training or to help educate the child during toilet training.

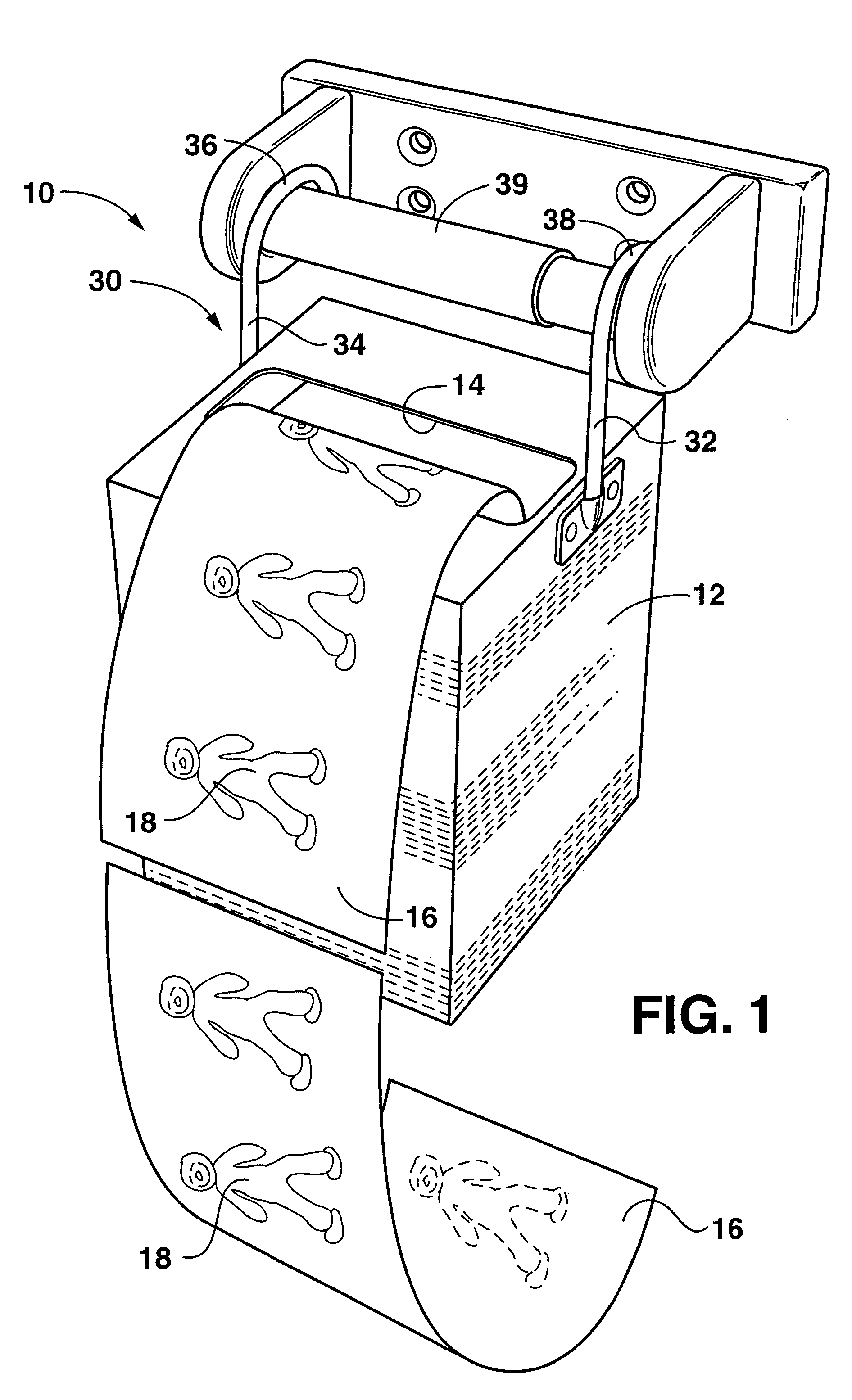

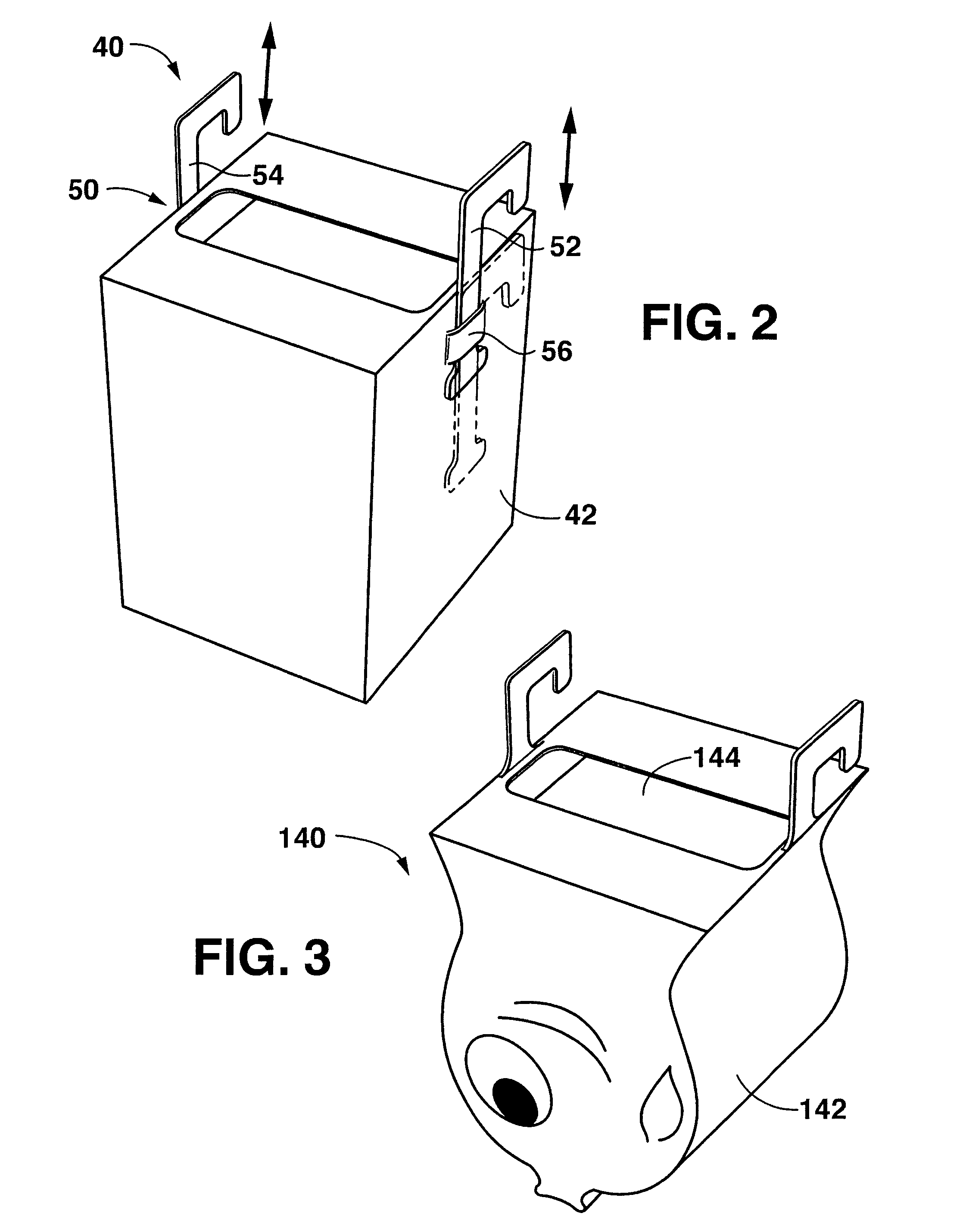

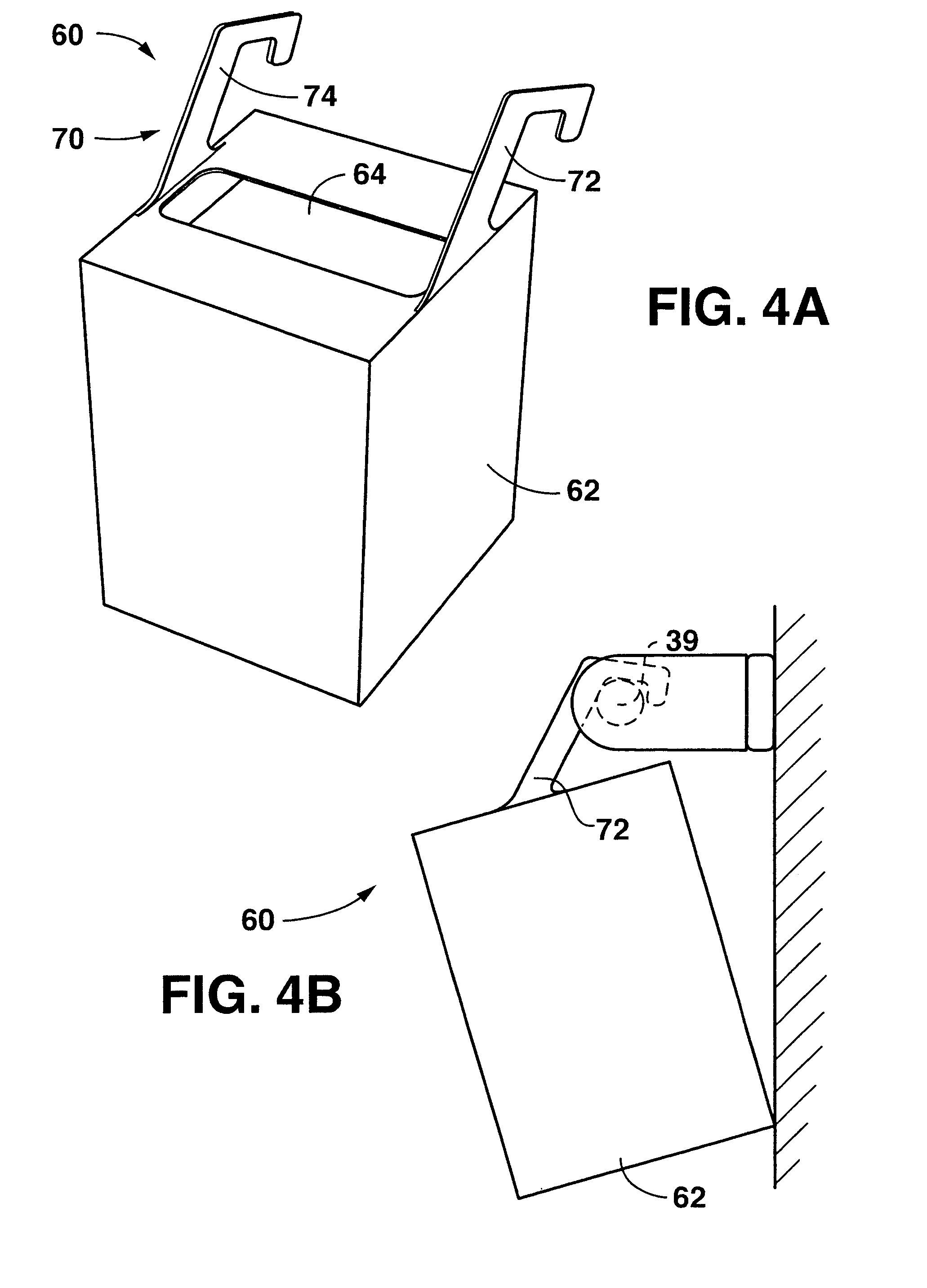

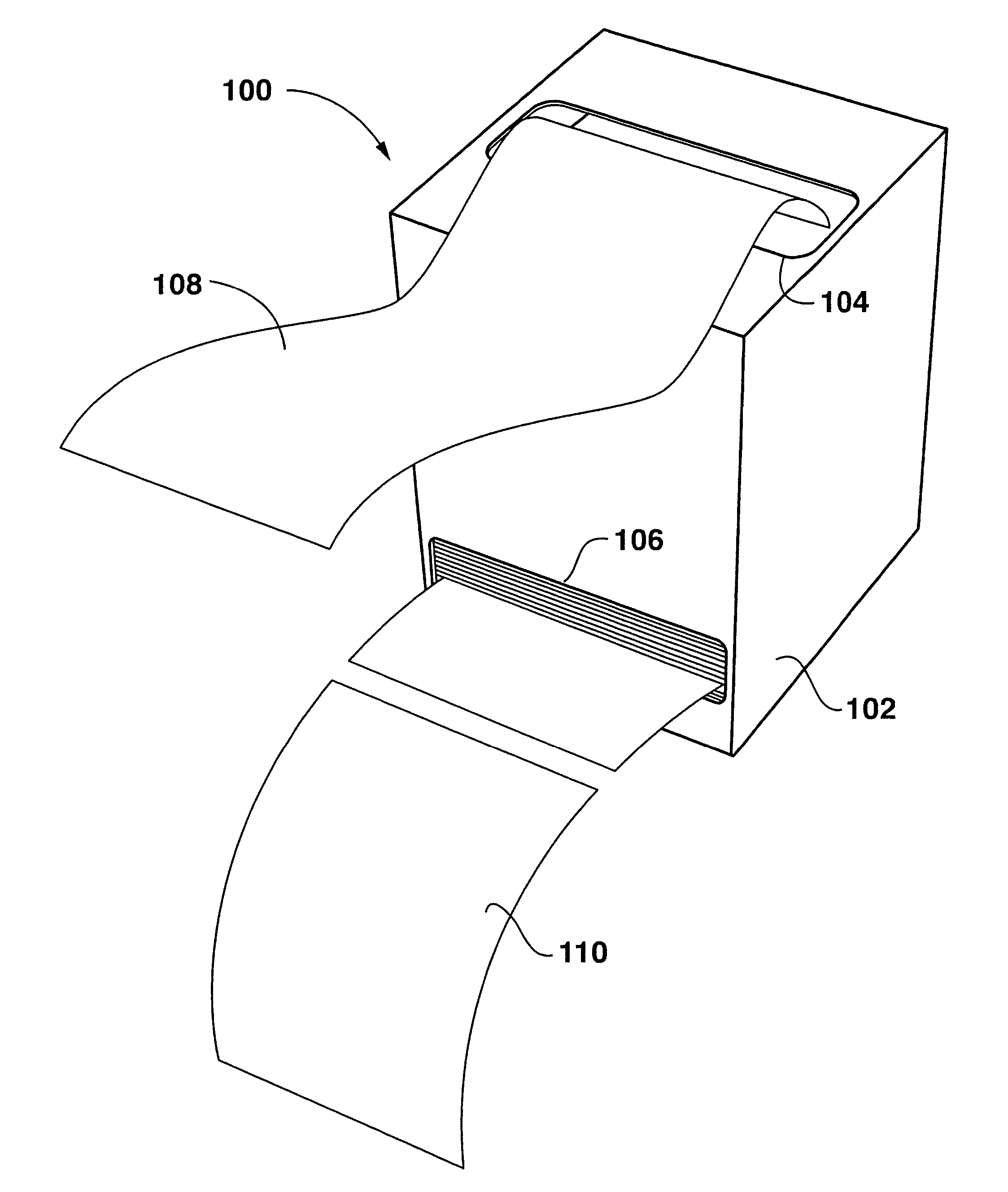

专利附图（共 8 张）
