用于抽屉与柜体的滑动连接。
专利摘要

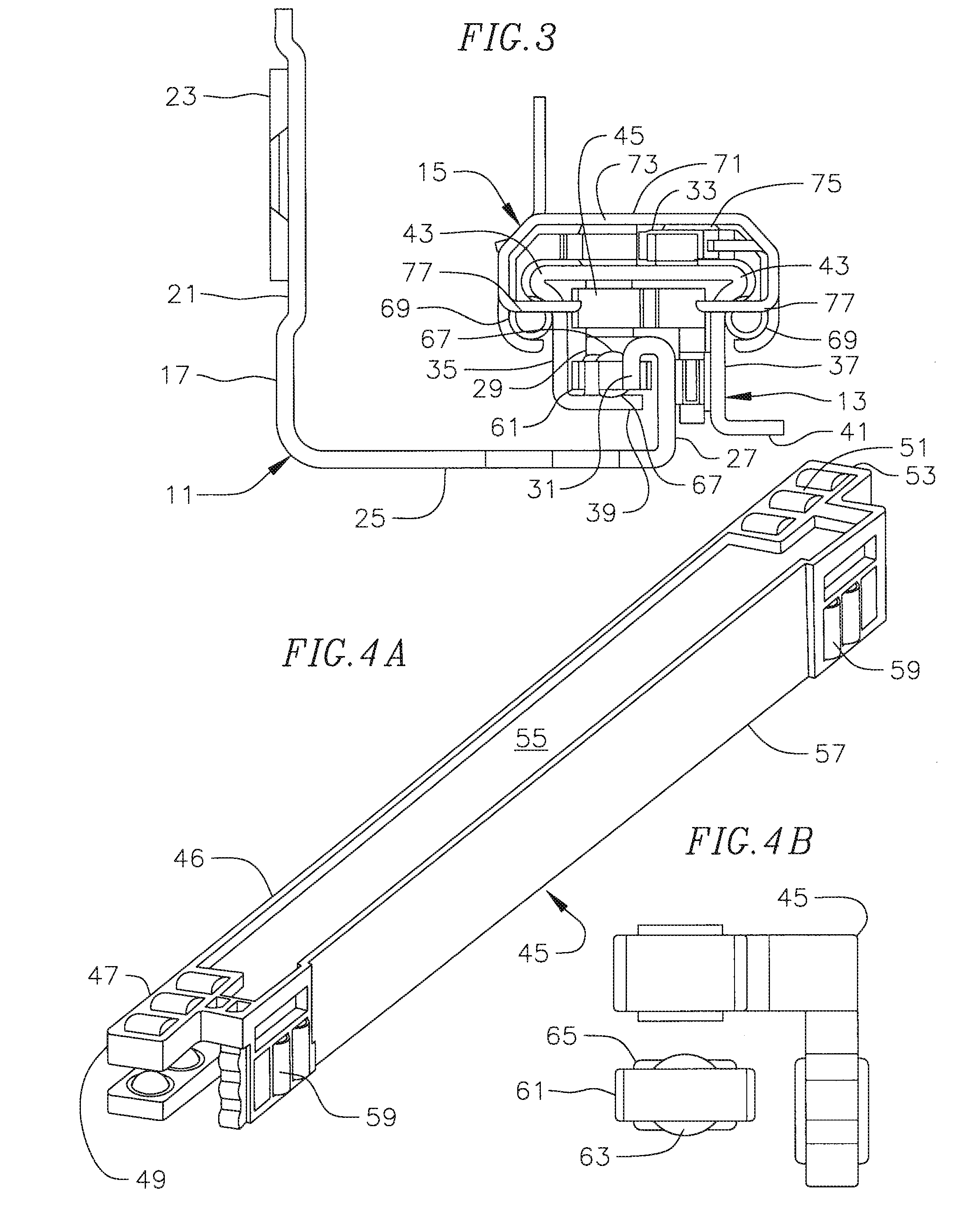

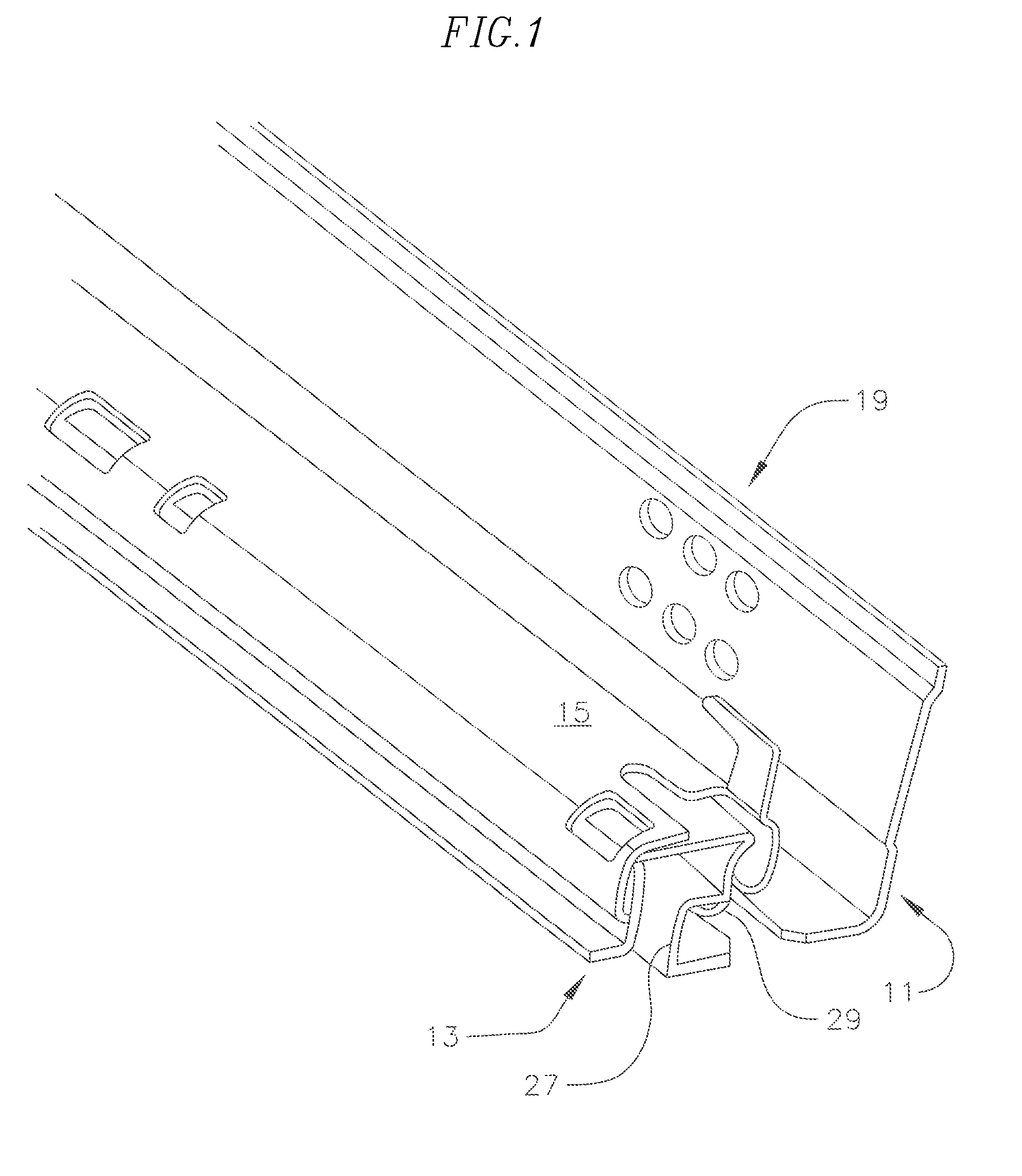

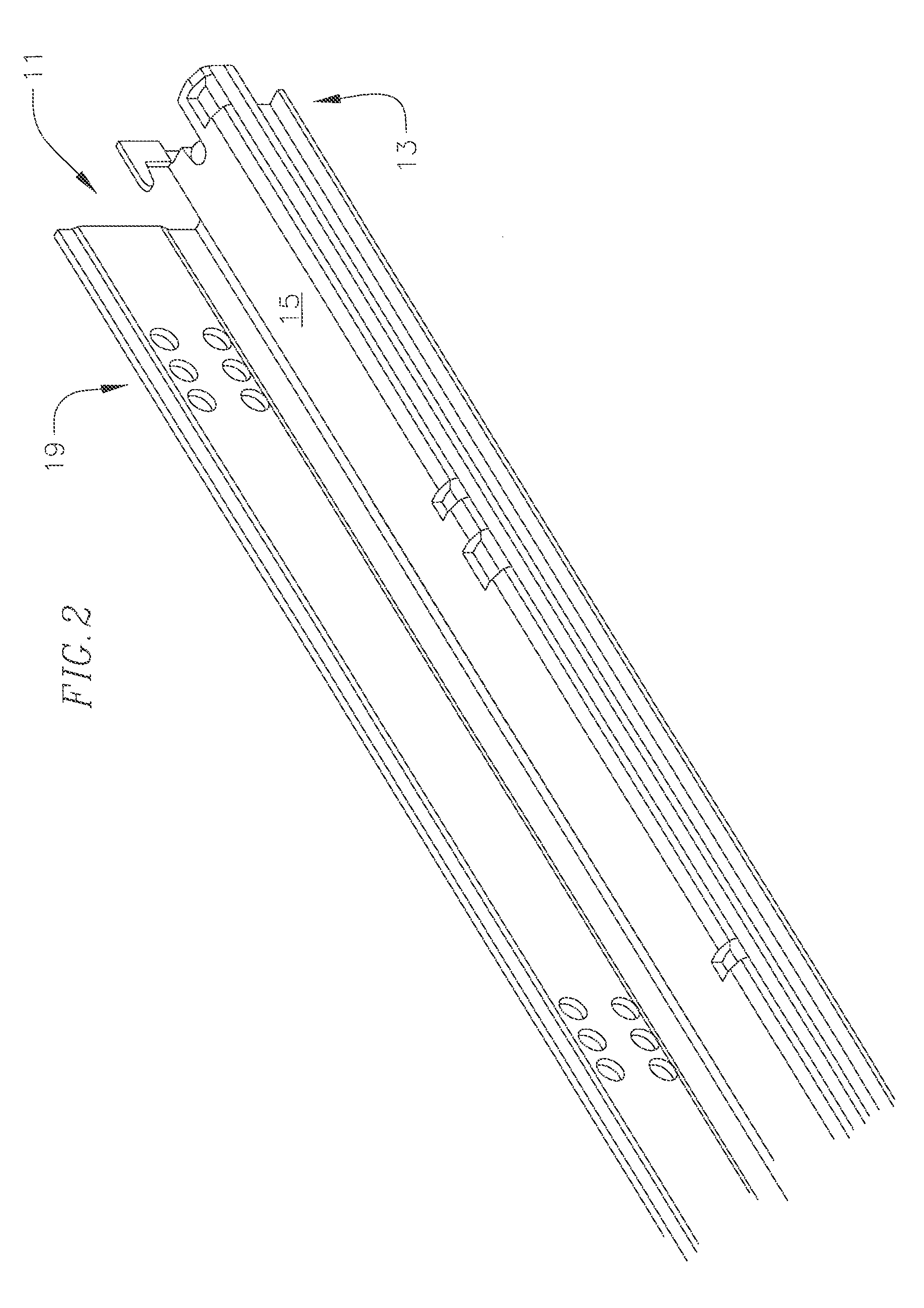

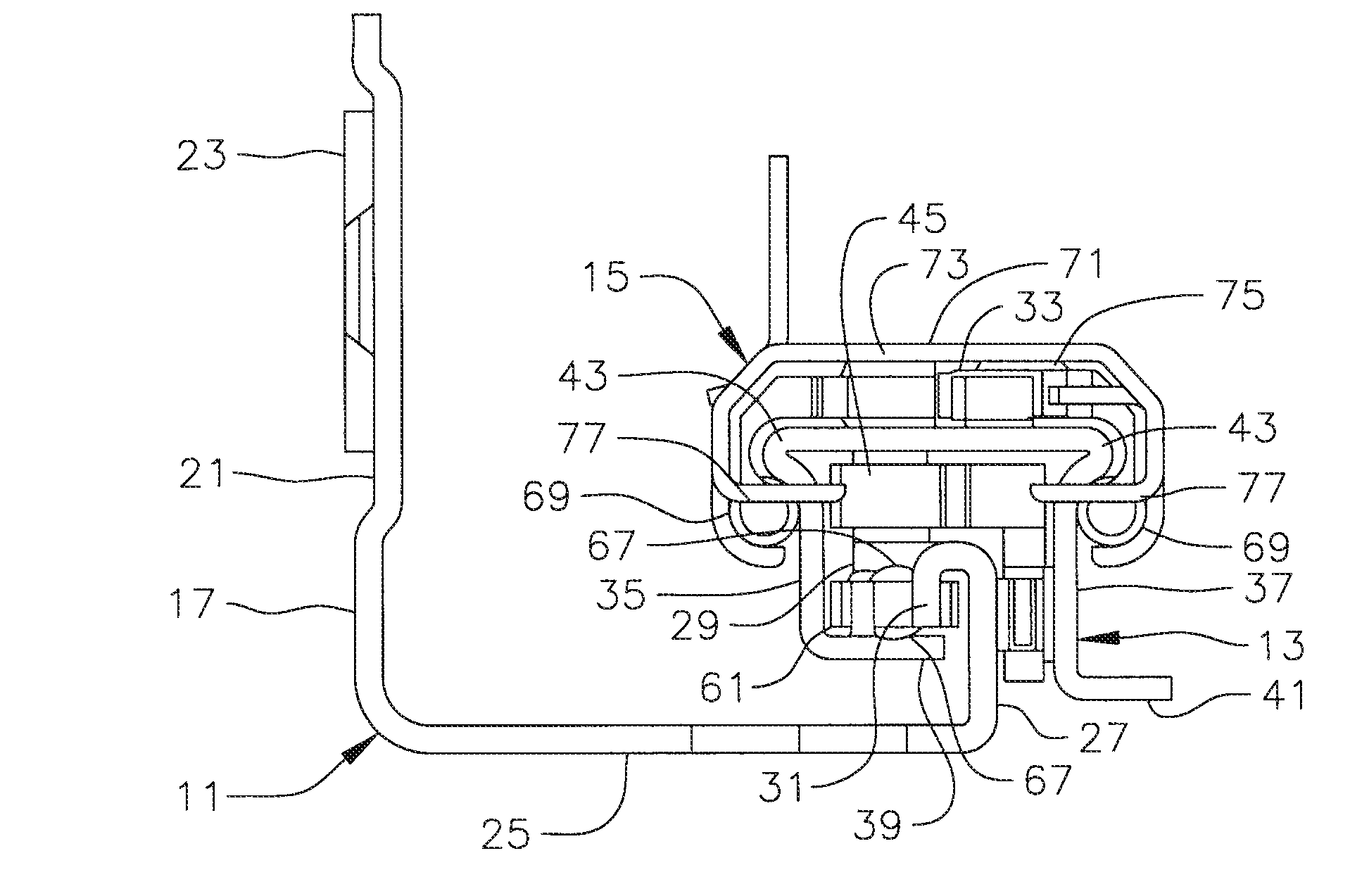

一种用于将抽屉连接到柜体的抽屉滑轨，包括部分容纳在抽屉导轨内的中间导轨以及腹板和连接到腹板的第一和第二支腿。一个凸缘从第一支腿朝向第二支腿延伸。容纳在置于导轨之间的轴承保持架中的轴承允许其间的滑动运动。部分容纳在中间导轨内的柜体导轨包括直立壁和从直立壁远离并朝向第一支腿延伸的凸缘。容纳在轴承保持架中的滚珠和滚柱轴承连接凸缘。凸缘中的凹槽由滚珠轴承接合。容纳在轴承保持架中的滚柱轴承连接中间导轨的腹板和柜体导轨的凸缘，以及中间导轨的第二支腿和柜体导轨的直立壁。
Original abstractA drawer slide for coupling a drawer to a cabinet includes an intermediate rail partially housed within the drawer rail and web and first and second legs which are connected to the web. A flange extends from the first leg toward the second leg. Bearings housed in bearing cages placed between the rails allow sliding movement therebetween. A cabinet rail partially housed within the intermediate rail includes an upright wall and a flange extending away from the upright wall and toward the first leg. Ball and roller bearings housed in bearing cages couple the flanges. Grooves in the flanges are engaged by the ball bearings. Roller bearings housed in bearing cages couple the web of the intermediate rail and the flange of the cabinet rail, and the second leg of the intermediate rail and the upright wall of the cabinet rail.
专利附图（共 8 张）
