用于提供额外储物空间的办公桌。
专利摘要
一种带面板的桌子，其中在顶板和后面板之间形成大的开放空间，使得顶板的后上表面可以被有效利用，并且可选构件可以在有足够余量的情况下安装在该开放空间中。一对左右顶板支撑体的后端部安装在通过左右腿体的上端通过横向连接杆相互连接而形成的框架上，以便突出到横向连接杆的前方，并且顶板由左右顶板支撑体支撑，使得其大部分可定位在横向连接杆的前方。此外，一对左右面板支撑体安装在框架的两侧以便向后延伸，并且竖直方向的后面板由两个面板支撑体在其后端支撑。
Original abstractA desk with panels, wherein a large open space is formed between a top board and a rear panel so that the rear upper surface of the top board can be effectively used and optional members can be installed in the open space with a sufficient allowance. The rear end parts of a pair of right and left top board support bodies are mounted on a frame formed by connecting the upper ends of the right and left leg bodies to each other through a lateral connection lever so as to be projected forward of the lateral connection lever, and the top board is supported by the right and left top board support bodies so that the most part thereof can be positioned forward of the lateral connection lever. Also, a pair of right and left panel support bodies are mounted on both sides of the frame so as to be extended rearward, and the rear panel in the vertical direction is supported by both panel support bodies at their rear ends.

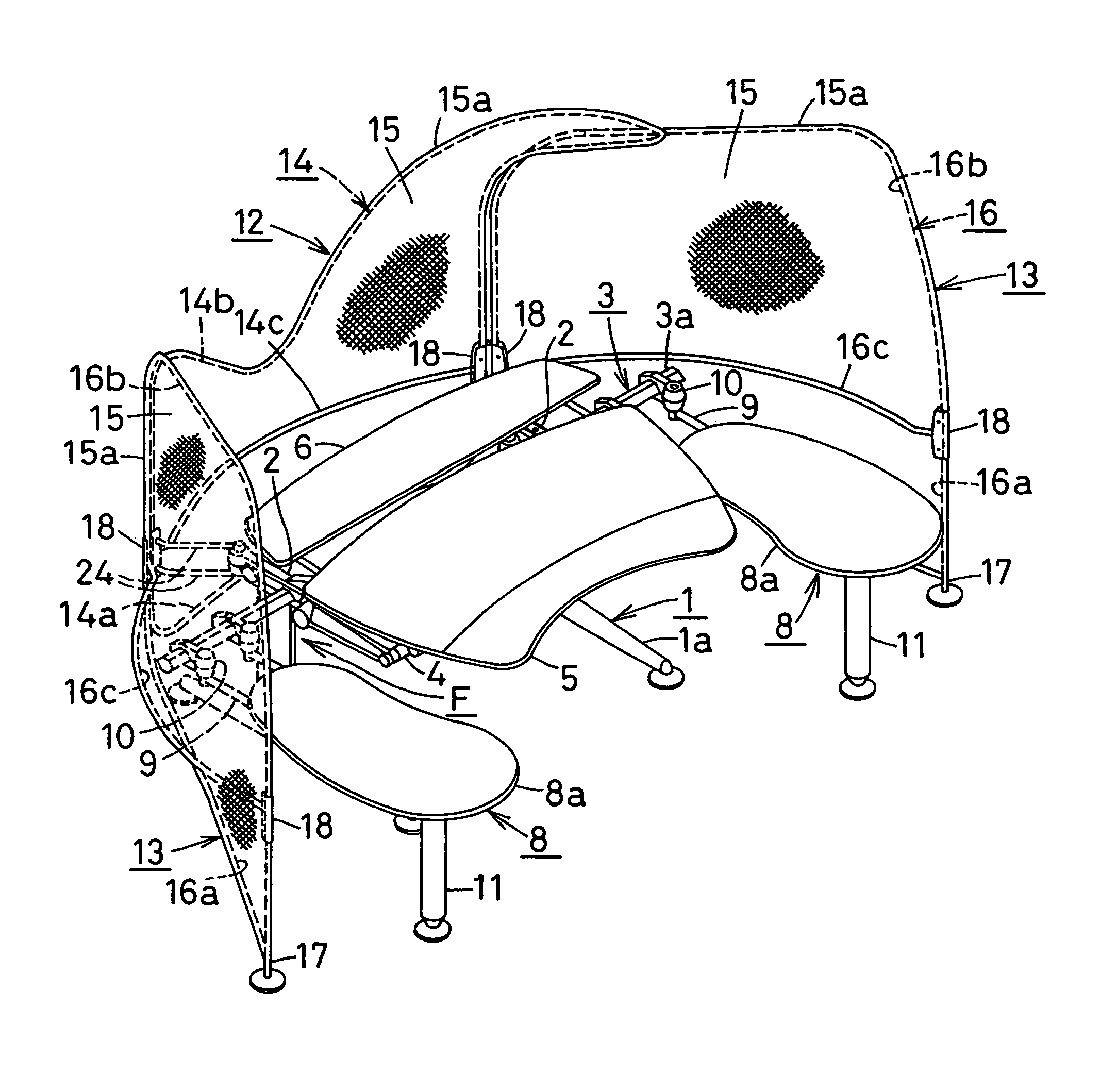

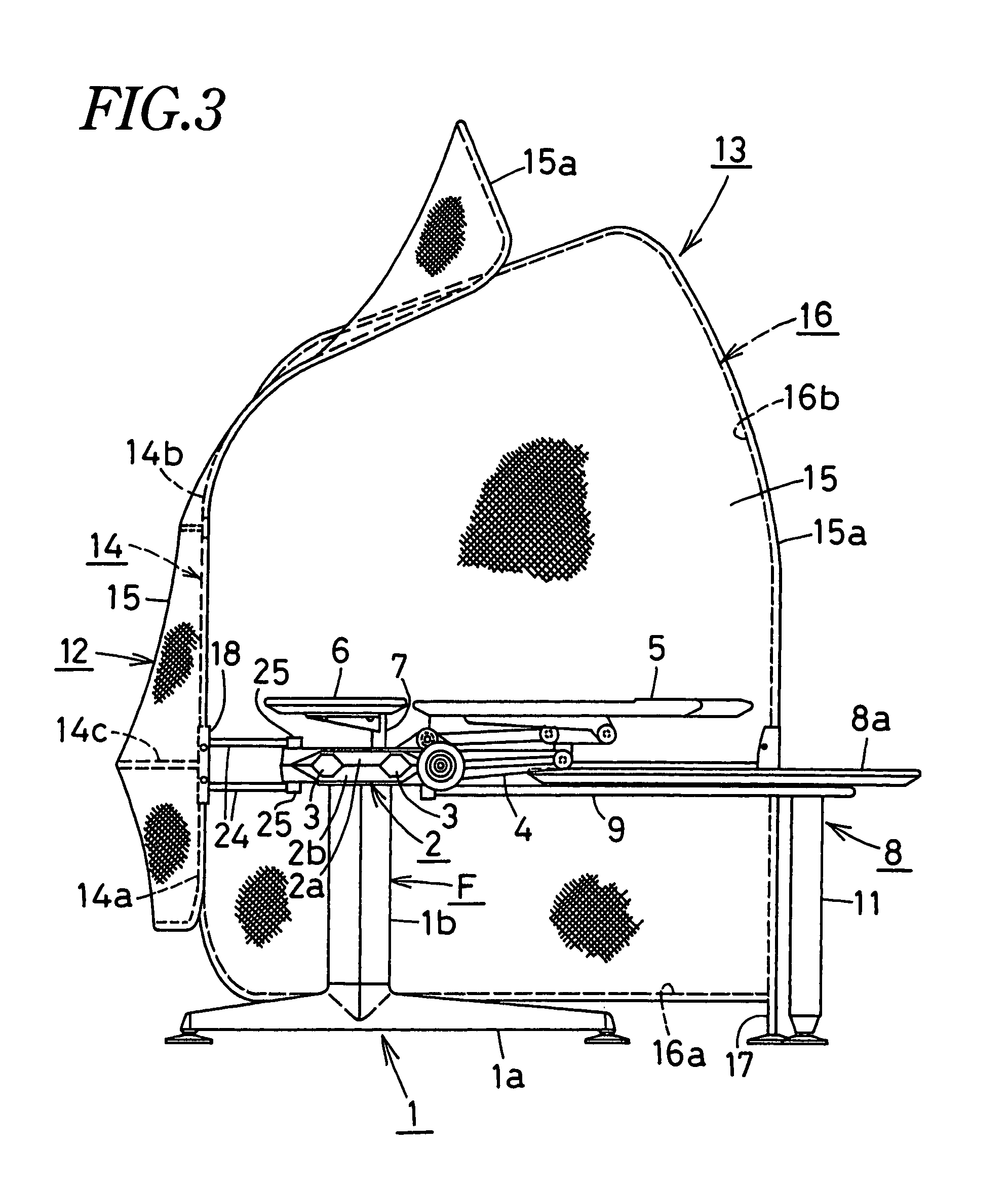

专利附图（共 8 张）
