具有多隔室柜体的柜子
Cabinet with multi-compartment cabinet body
US-8113599-B2一种多隔室柜体、搁板及门安装简化的柜子
专利摘要
一种柜子，其柜体具有至少一列上下叠置的隔室，这些隔室由搁板分隔，并可通过铰接在柜子上的隔室门打开和关闭。本发明简化并大幅降低了零件和安装柜子的成本。因此，一个延伸过柜体高度的连接杆被分配给每一列隔室。搁板由铰链区域中的肩部引导，该铰链区域具有连接杆，并通过凸缘套筒在搁板及其肩部的上侧和/或下侧垂直固定在连接杆上。与隔室高度相匹配的隔室门在其后表面、铰链区域中带有用于凸缘套筒的容纳部，并可用罩盖覆盖。隔室门可通过容纳部安装到朝向隔室搁板的凸缘套筒上，并通过安装在隔室门上的罩盖可枢转地固定在凸缘套筒上。
Original abstractA cabinet provided with a cabinet body having at least one vertical row of superimposed compartments which are separated by shelves and which can be opened and closed with compartment doors articulated on the cabinet. This invention simplifies and substantially reduces the cost of parts and of mounting the cabinet. Thus, a joint rod extending over a height of the cabinet body is assigned to each vertical row of compartments. The shelves are guided by a shoulder in the hinge zone having the joint rod and are fixed vertically on the joint rod by flange sleeves overlooking the upper and/or lower side of the shelves and their shoulder. The compartment doors which are adjusted to the heights of the compartments bear, on their rear surface, in the hinge zone, housings for the flange sleeves and can be covered with a shroud. The compartment doors can be installed, via the housings, on the flange sleeves oriented towards the compartment shelves and can be pivotally fixed on the flange sleeves by shrouds mounted on the compartment doors.

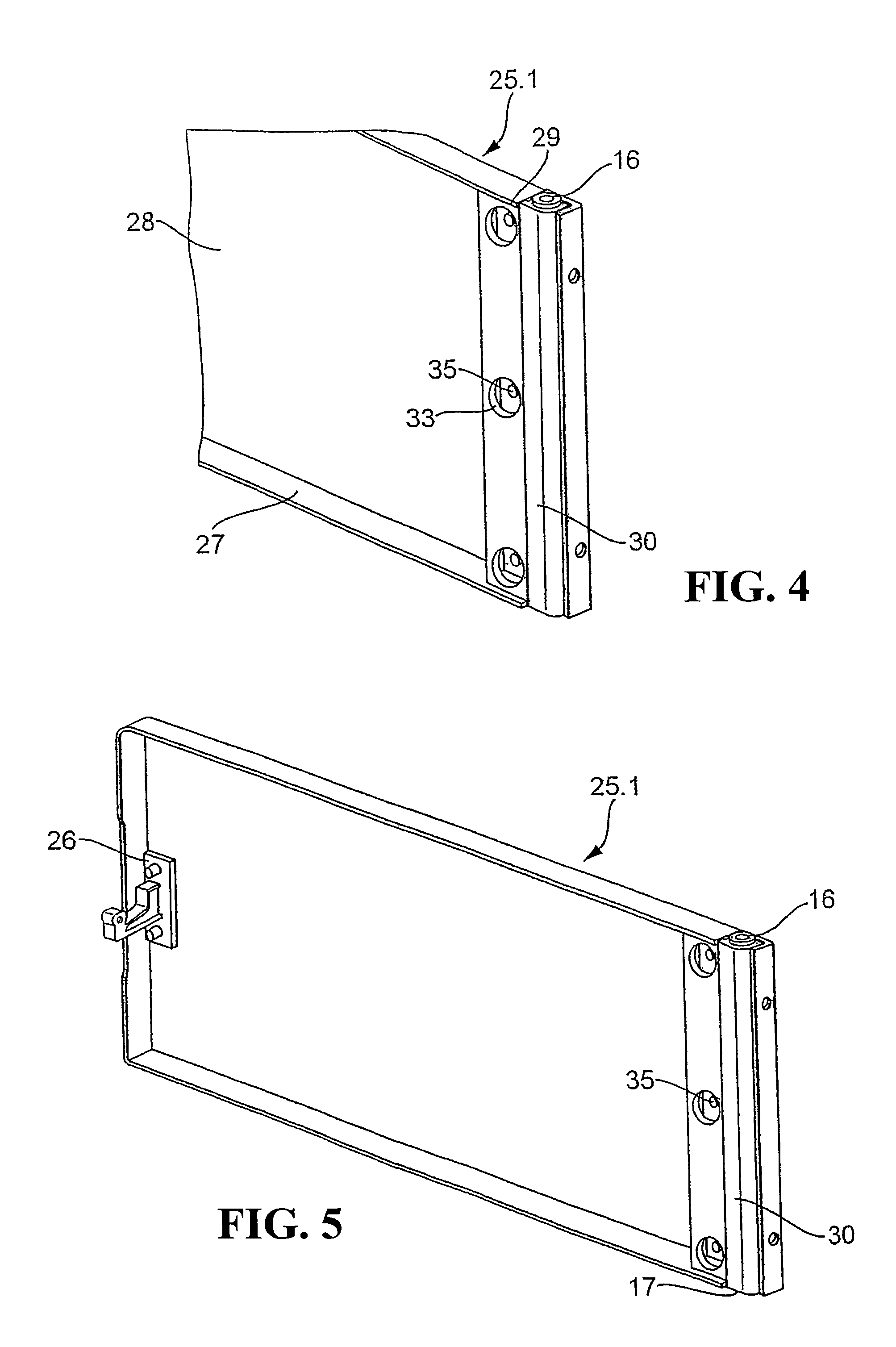

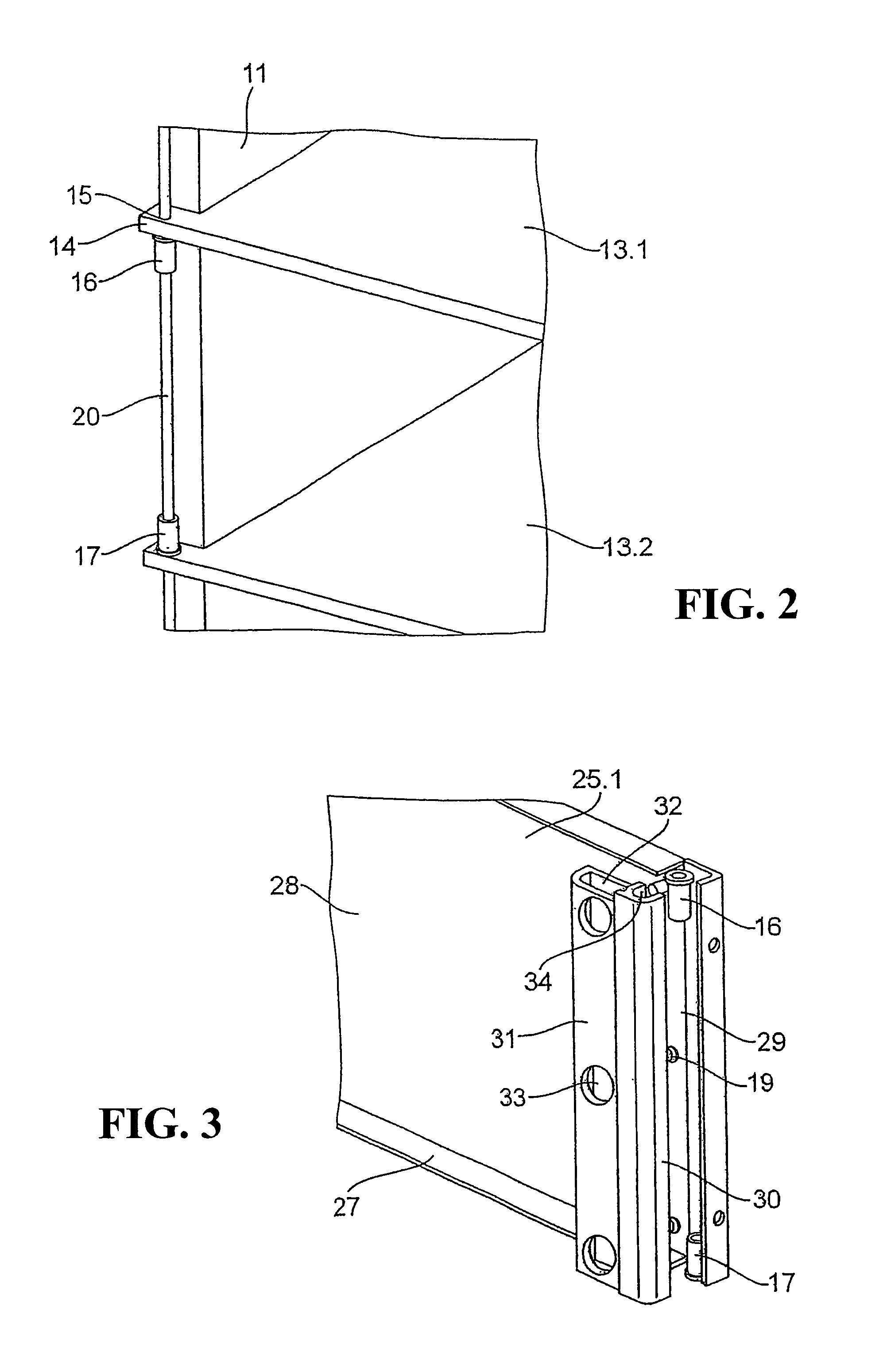

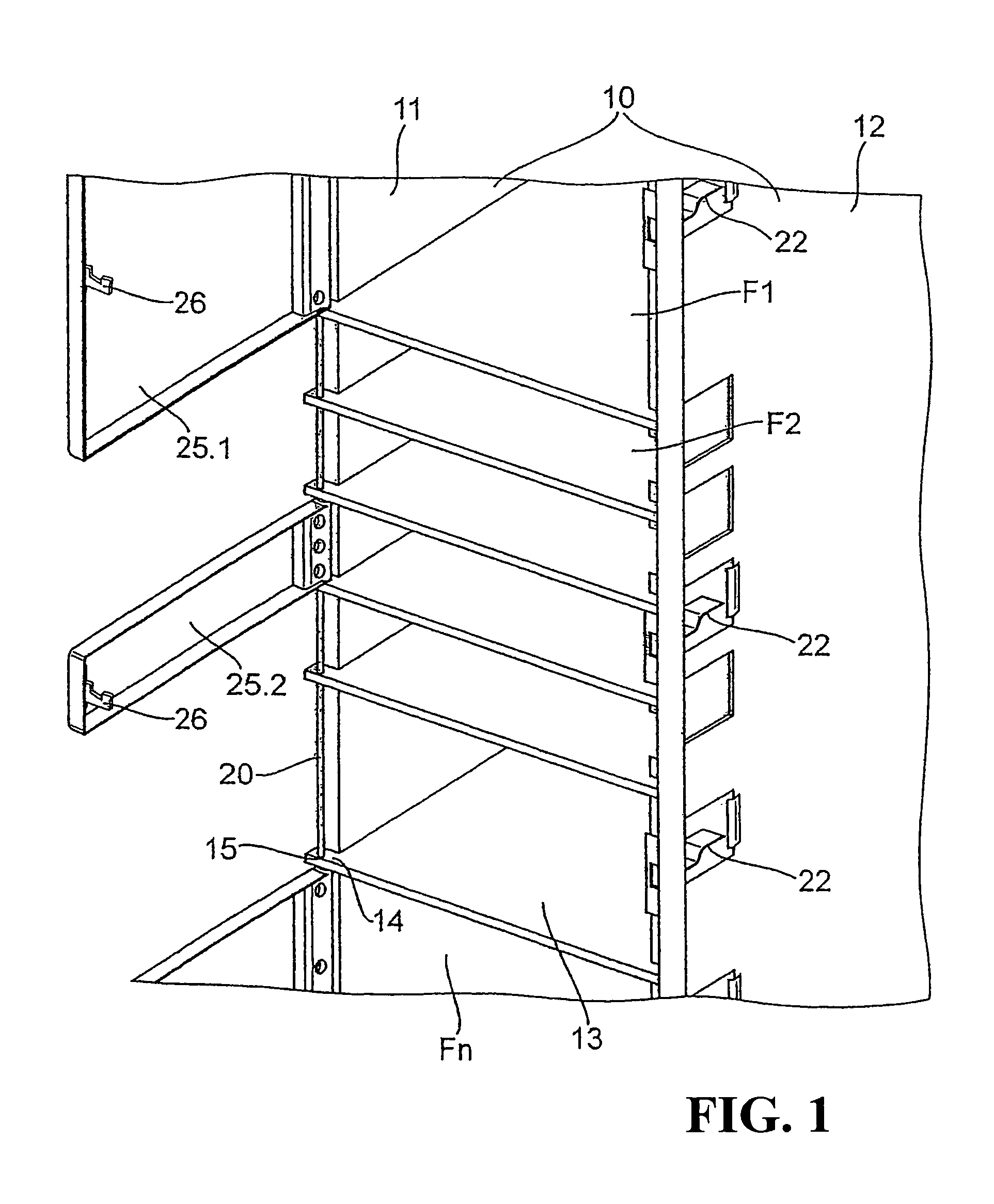

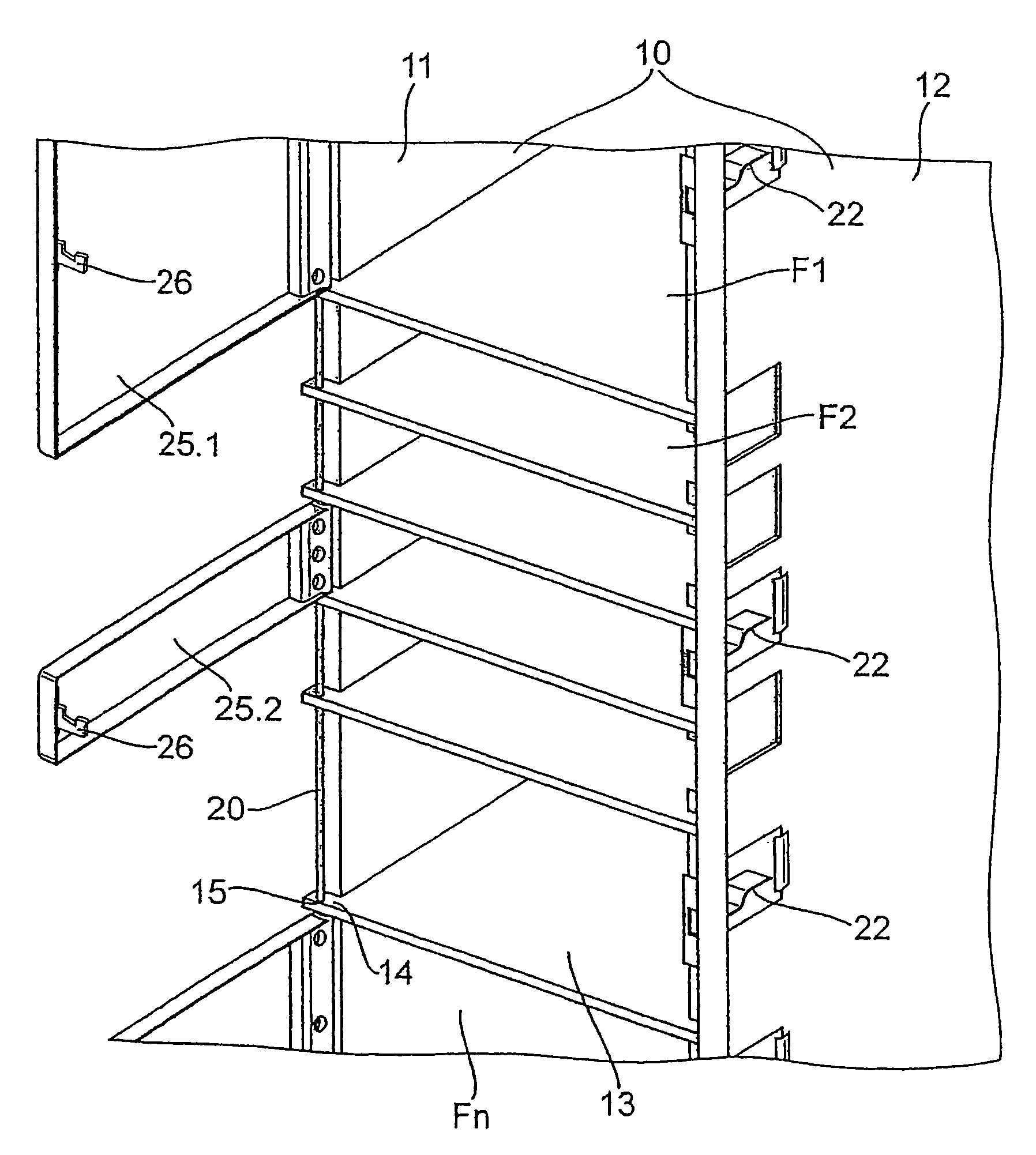

专利附图（8）
