来源记录显示 Expired
用于高度可调桌的负载补偿器
Load compensator for height adjustable table
US-8091841-B2一种用于高度可调桌的负载补偿调节装置
专利摘要
一种用于伸缩子组件内的力调节组件，该伸缩子组件包括第一细长构件和由第一细长构件支撑以沿延伸轴线滑动的第二细长构件，该子组件还包括力均衡器组件，该力均衡器组件包括具有第一端和第二端的绳索，第一端和第二端分别由第二细长构件和第一细长构件支撑，该调节组件包括由第一细长构件和第二细长构件中的至少一个支撑并支撑绳索的至少一部分的预加载器，当第二细长构件处于完全伸出位置时，预加载器通过绳索施加预加载力，以及用于调节预加载器施加的预加载力的调节器。
Original abstractA force adjustment assembly for use within a telescoping subassembly that includes a first elongated member and a second elongated member that is supported by the first elongated member for sliding motion along an extension axis, the subassembly further including a force equalizer assembly that includes a strand having first and second ends that are supported by the second and first elongated members, respectively, the adjustment assembly comprising a preloader supported by at least one of the first and second elongated members and supporting at least a portion of the strand, the preloader applying a preload force via the strand when the second elongated member is in a fully extended position and an adjuster for adjusting the preload force applied by the preloader.

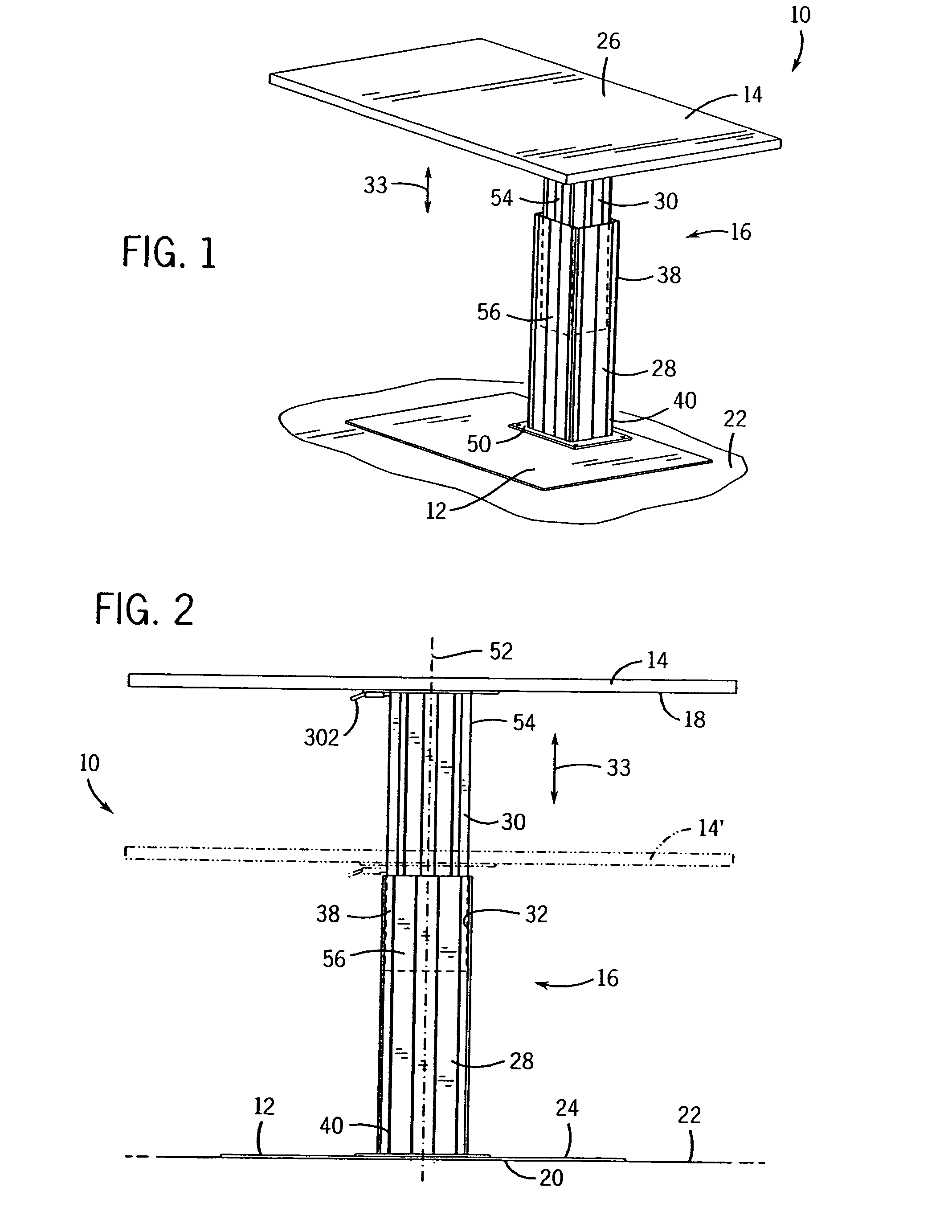

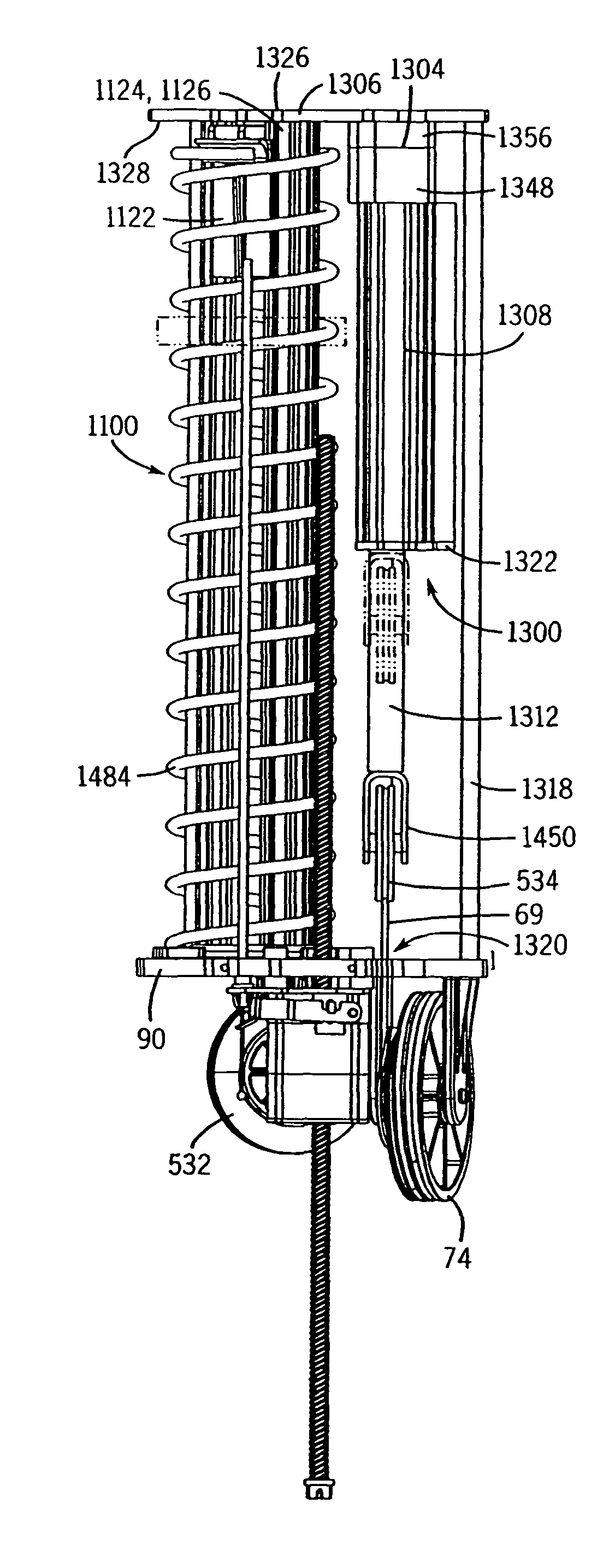

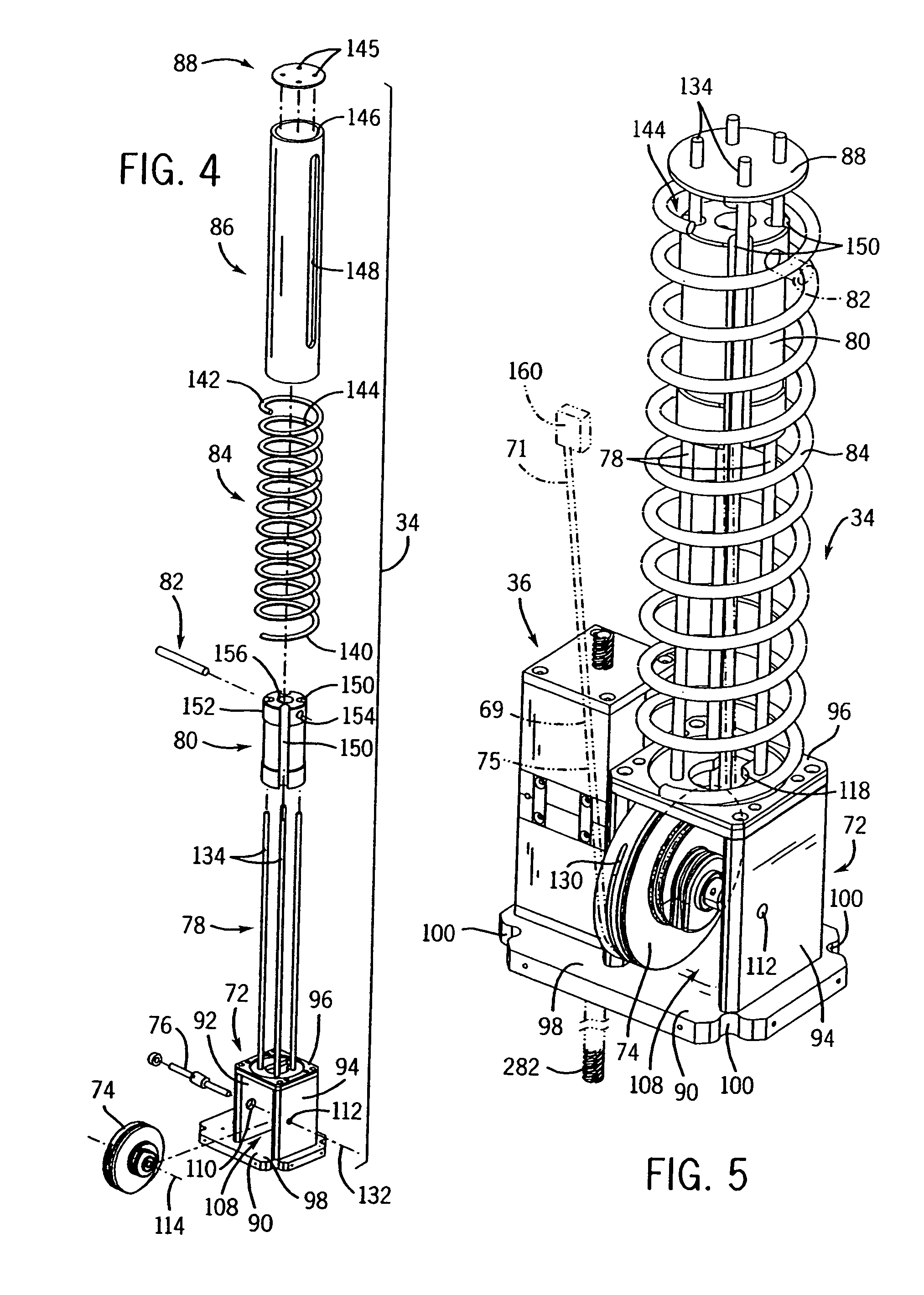

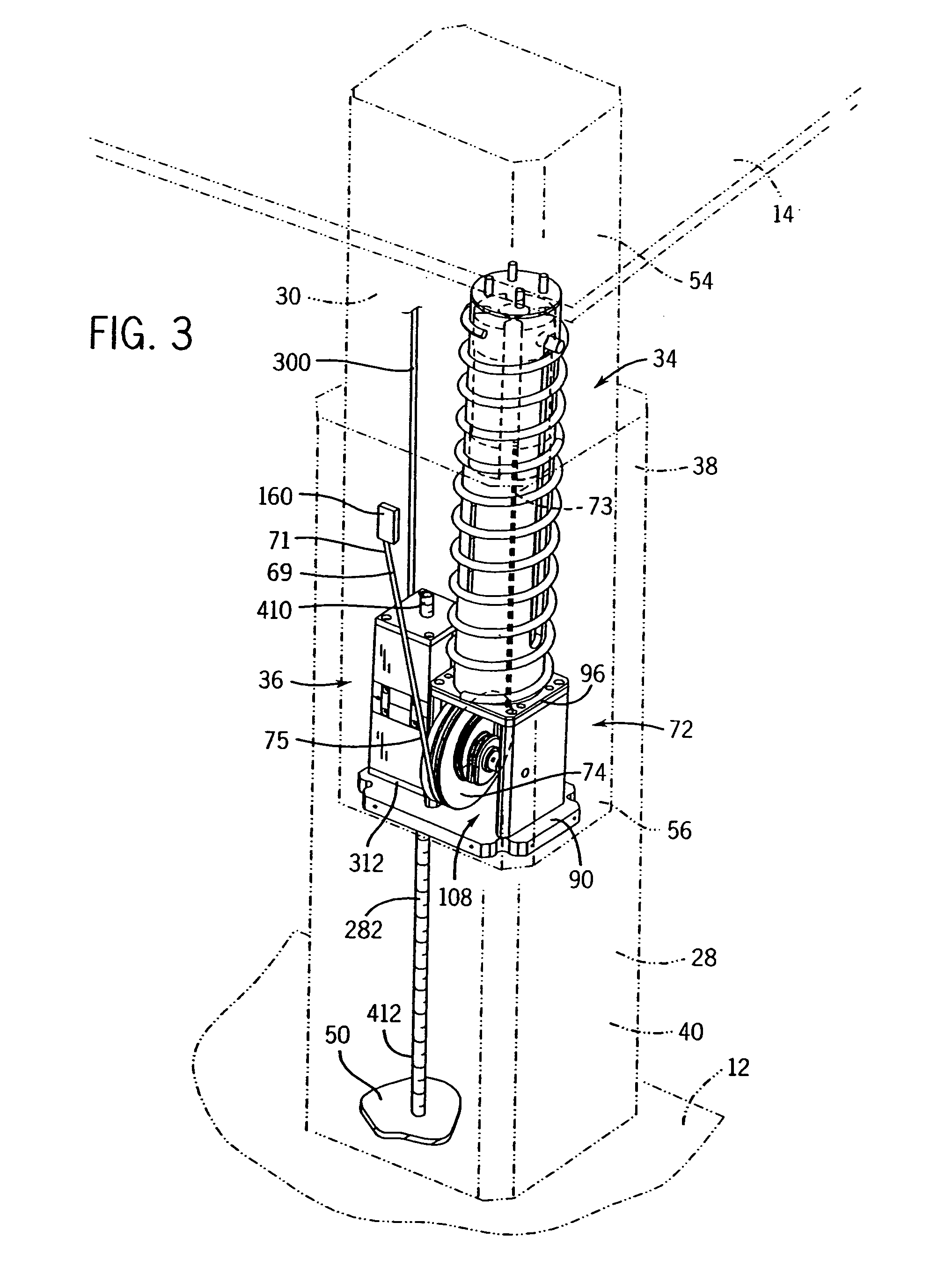

专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
