用于水疗池的音响系统和头枕以及具有音响系统的水疗池

Sound system and a head rest for a spa and a spa having a sound system

US-7941877-B2

一种水疗池用音响系统,集成在头枕中。

专利摘要

公开了一种用于水疗池的音响系统和头枕以及具有音响系统的水疗池。音响系统包括可安装到水疗池的头枕和至少一个电子扬声器。头枕包括发声穿孔,并安装到水疗池,使得水疗池的最上边缘保持基本均匀的高度。电子扬声器安装成通过头枕中的穿孔传输可听声音。头枕还可包括导光插件,该插件被照亮以提供增强的沐浴体验。头枕还可包括流体流动装置,例如用于水的喷嘴。音响系统和头枕可用于向浴缸、水疗池、游泳池、浴盆或淋浴间引入音频,同时对浴缸、水疗池、游泳池、浴盆或淋浴间的制造、存储或运输几乎没有影响。

Original abstractA sound system and a head rest for a spa and a spa having a sound system are disclosed. The sound system includes a head rest mountable to a spa and at least one electronic speaker. The head rest includes sound emitting perforations and is mounted to the spa whereby the uppermost rim of the spa remains at a substantially uniform elevation. The electronic speaker is mounted to transmit audible sound through the perforations in the head rest. The head rest may also include a light-transferring insert that is illuminated to provide an enhanced bathing experience. The head rest may also include a fluid flow device, for example, a nozzle for water. The sound system and head rest can be used to introduce audio to a tub, spa, pool, bath, or shower while imposing little or no impact upon the fabrication, storage, or shipping of the tub, spa, pool, bath, or shower.

专利附图(8)

US-7941877-B2 figure 1
1

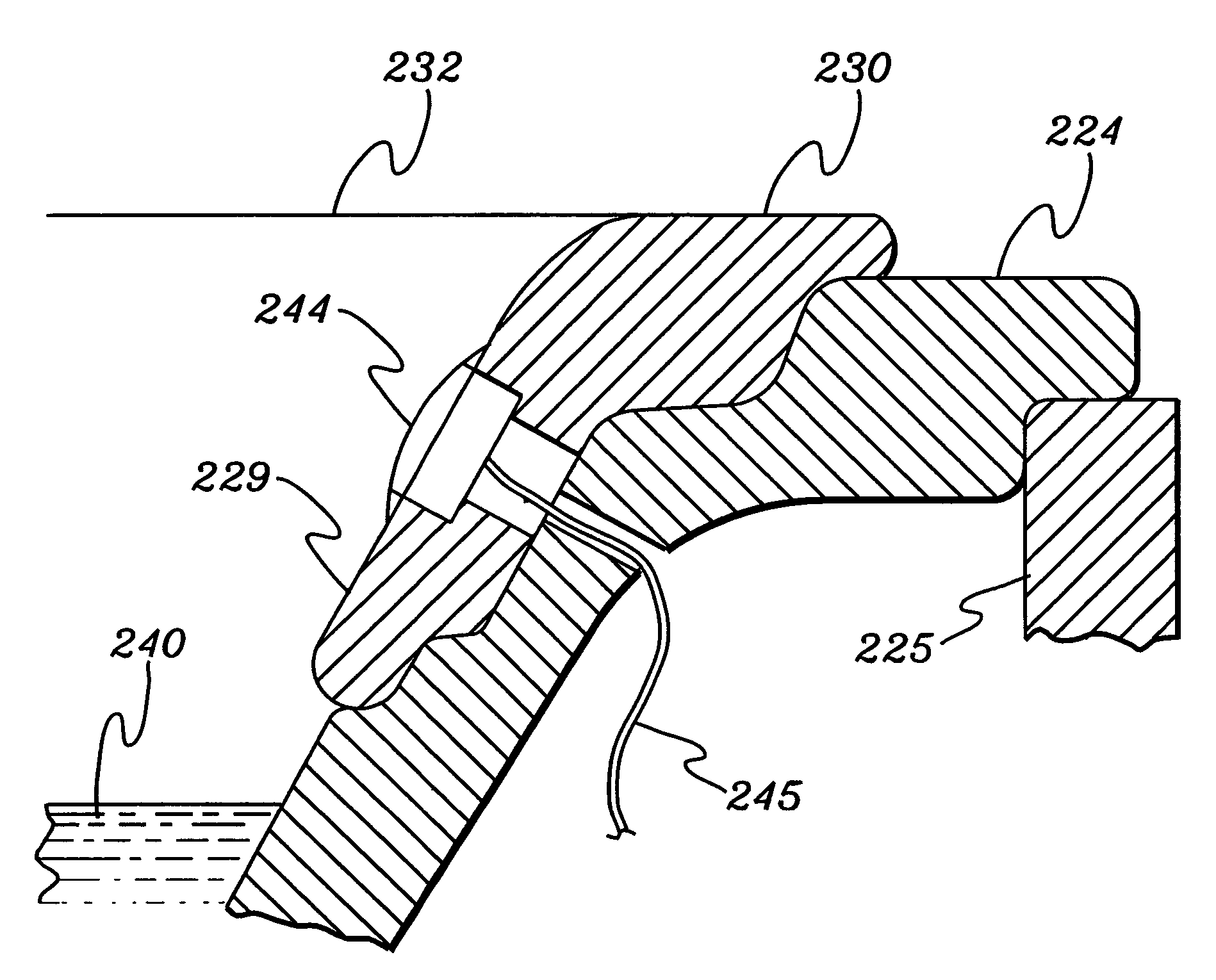

US-7941877-B2 figure 2
2
US-7941877-B2 figure 3
3

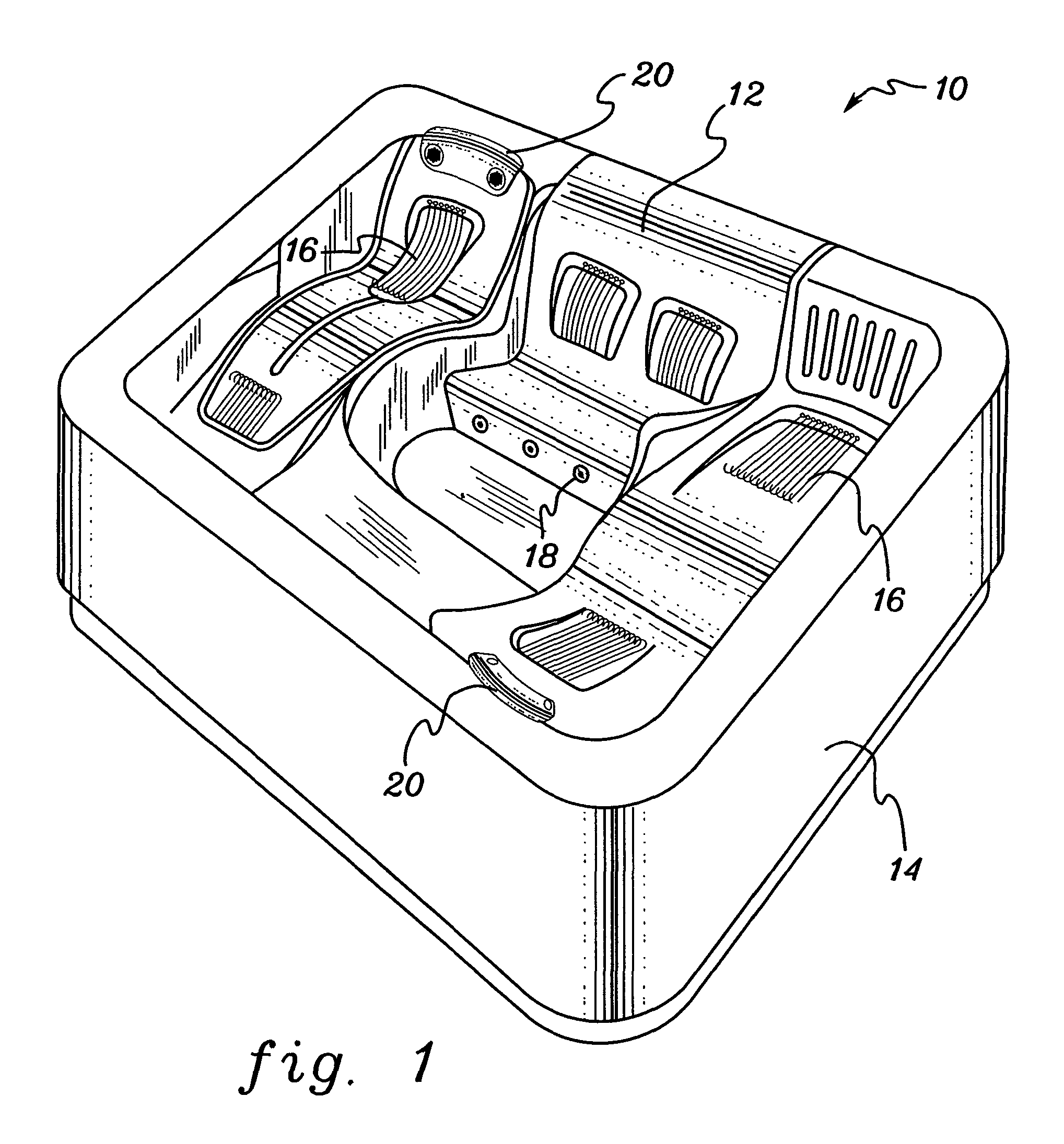

US-7941877-B2 figure 4
4
US-7941877-B2 figure 5
5

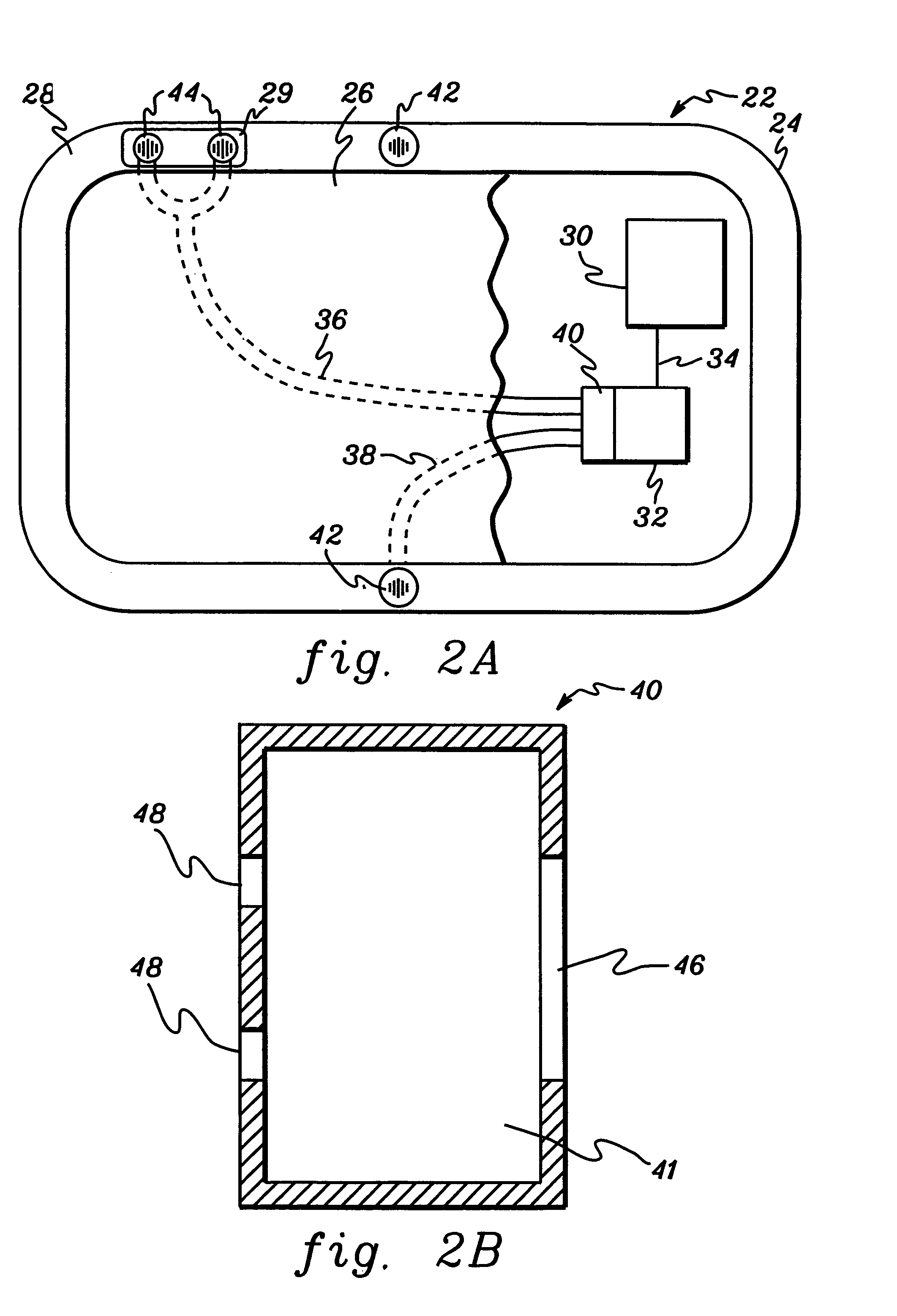

US-7941877-B2 figure 6
6
US-7941877-B2 figure 7
7

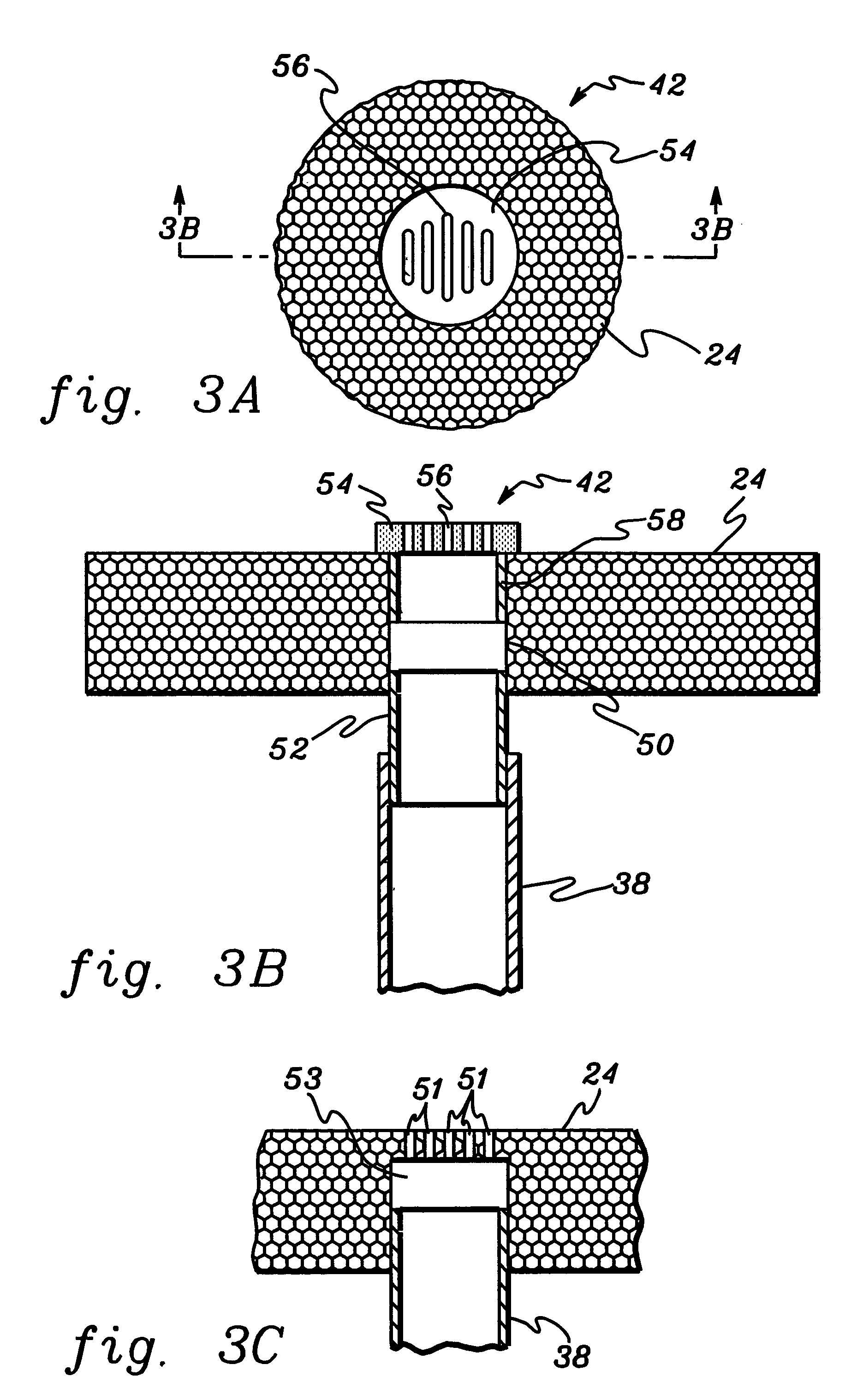

US-7941877-B2 figure 8
8
