来源记录显示 Expired
喷气式身体污垢擦洗工具
Air-injection type tool for scrubbing off the dirt on a body
US-7917987-B2提供一种喷气式擦洗工具，用于身体清洁。
专利摘要
本发明公开了一种喷气式身体污垢擦洗工具，包括：由弹性材料形成的可充气膨胀的储气主体，其外表面包裹有擦洗毛巾；盘状支撑体，设置在储气主体内部，其顶部中心形成有圆柱形联接突起，该圆柱形联接突起内具有往复运动的活塞A，使得活塞A往复运动产生的空气被送入储气主体；以及盖体，通过手柄与支撑体的联接突起螺接而受压，从而与支撑体紧密接触，使储气主体保持气密。

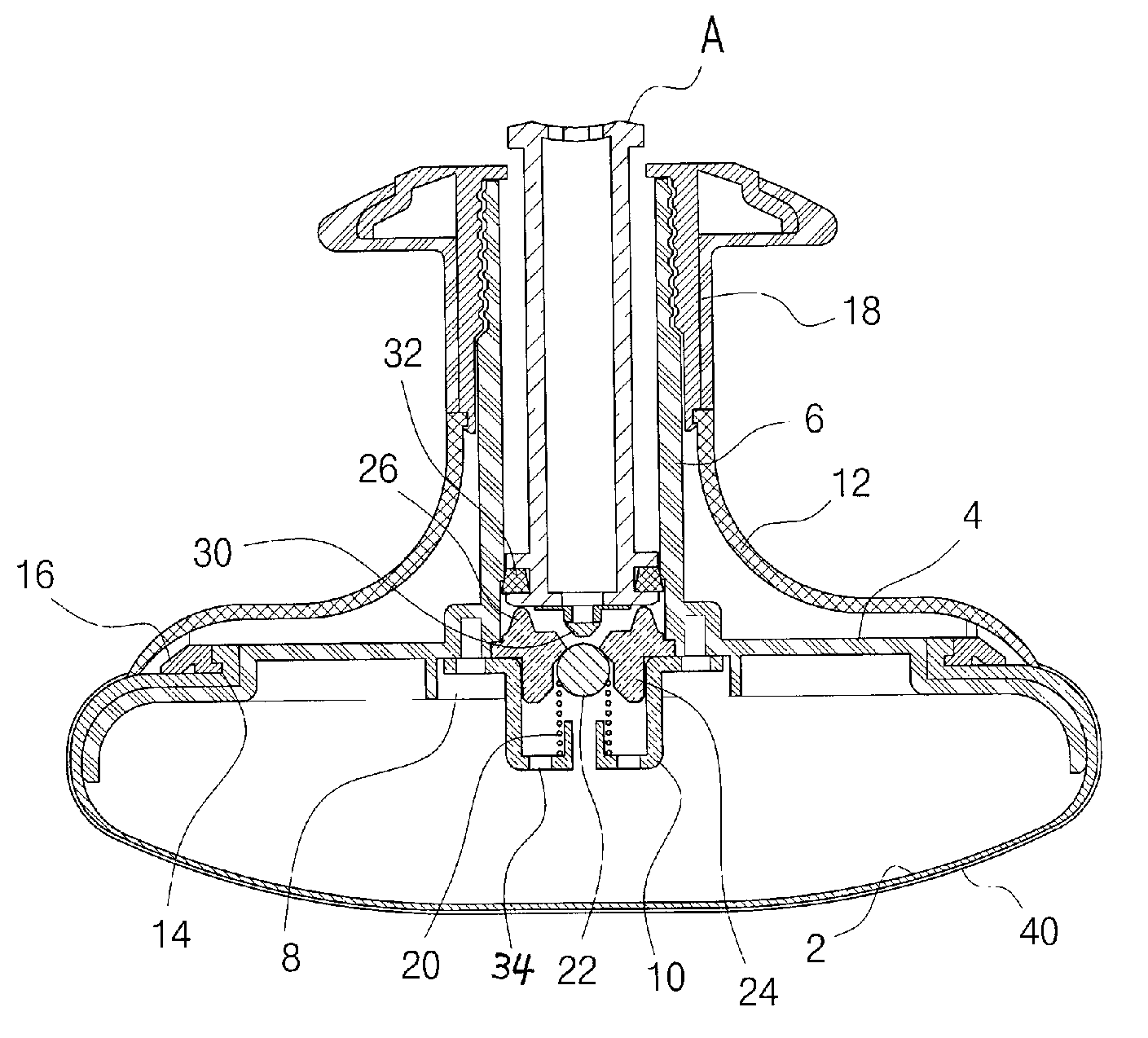

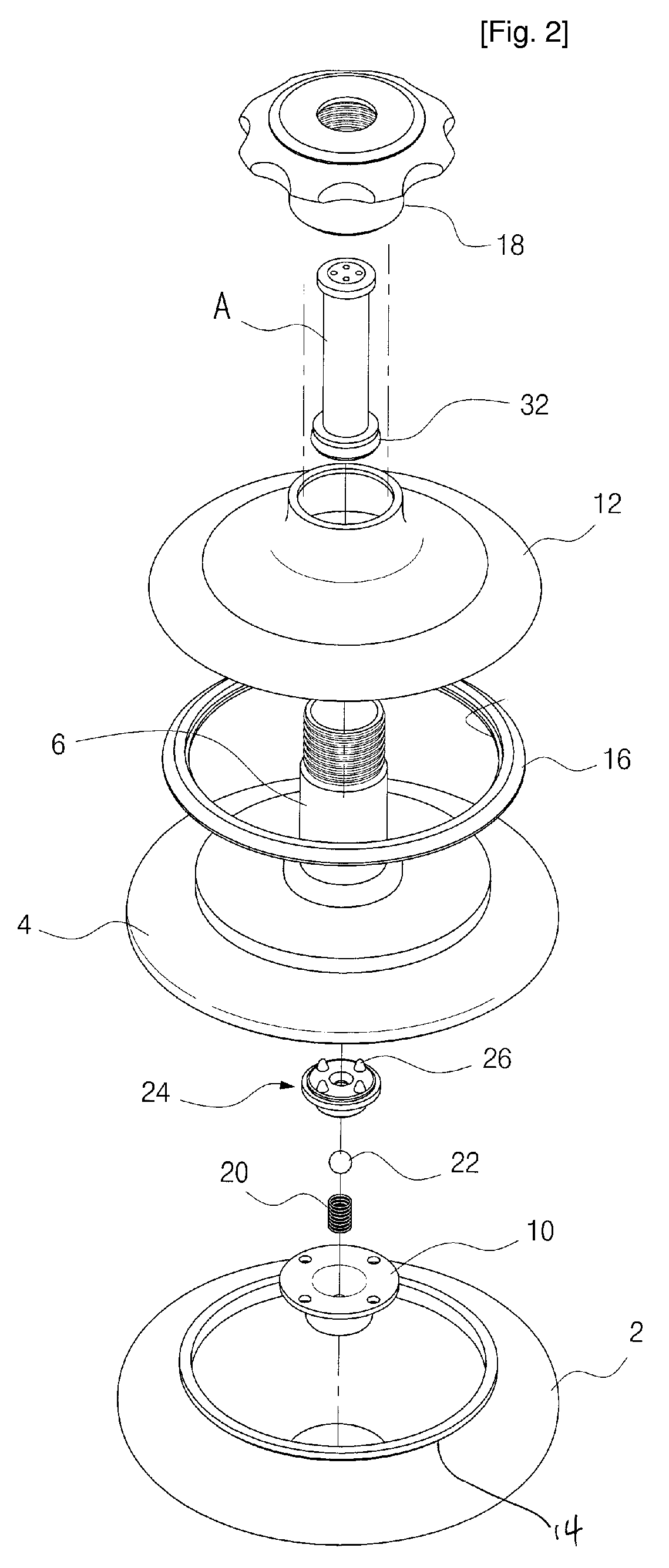

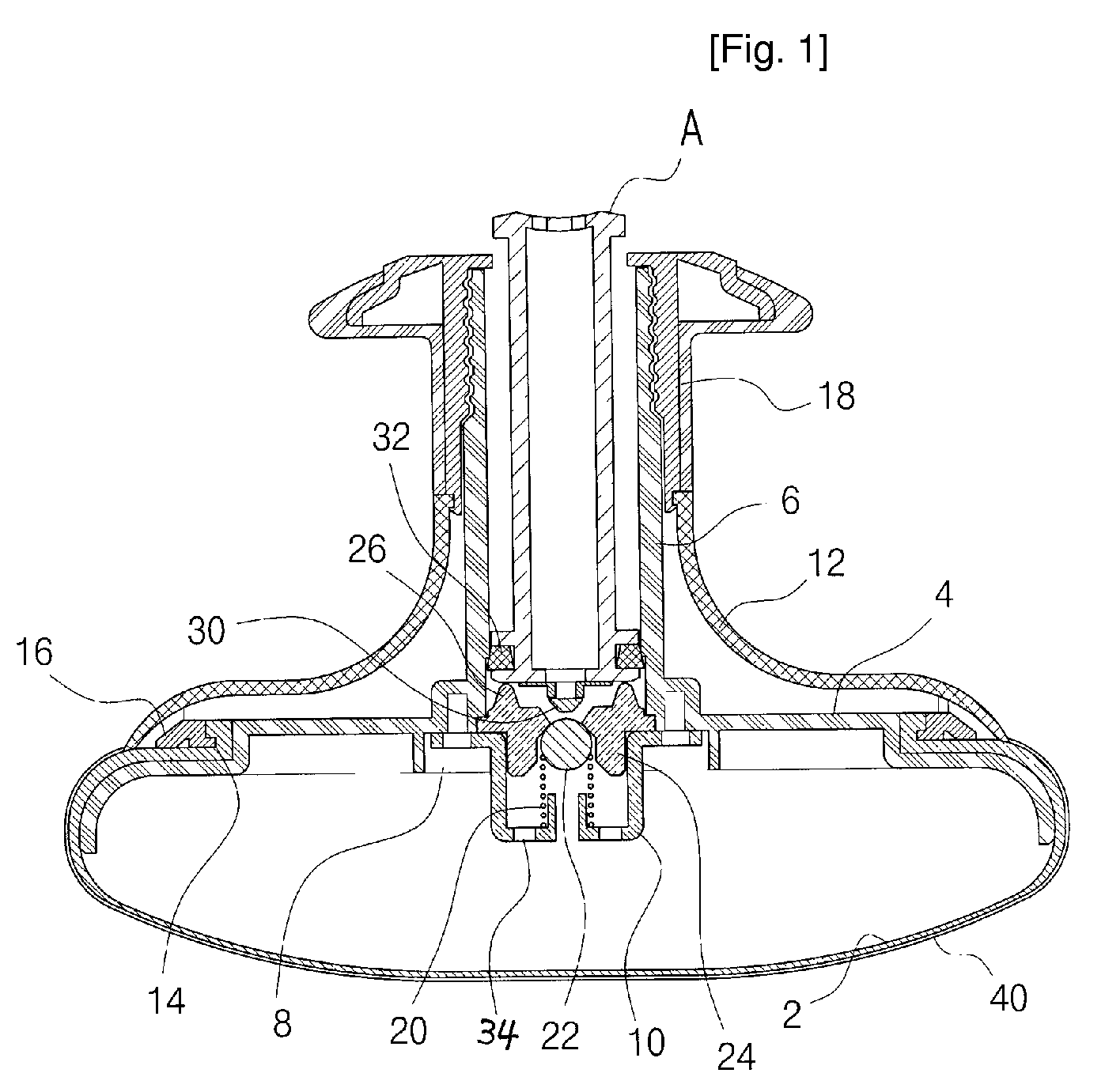

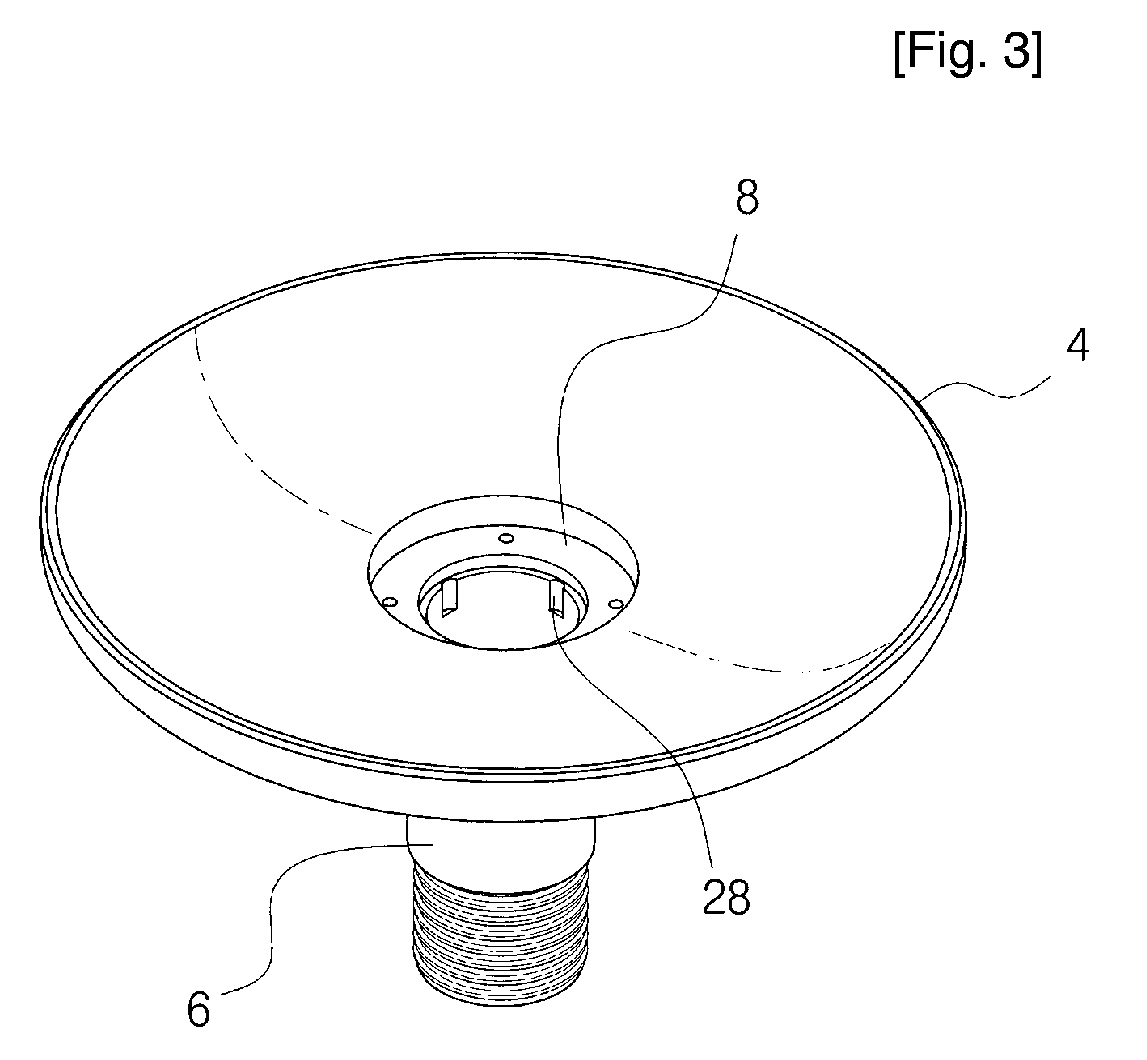

Original abstractThe present invention discloses an air-injection type tool for scrubbing off the dirt on a body including: an air-retaining body 2 formed of an elastic material expandable in an air-injection manner, the air-retaining body 2 having a scrubbing towel 40 encompassed on the external surface thereof; a disc-like support body 4 disposed at the inside of the air-retaining body 2 and having a cylindrical coupling protrusion 6 formed at the top central portion thereof, the cylindrical coupling protrusion 6 having a piston A reciprocated therein such that the air generated by the reciprocating motion of the piston A is sent to the air-retaining body 2 ; and a cover body 12 adapted to be pressurized by a handle 18 screw-coupled with the coupling protrusion 6 of the support body 4 thus to come into close contact with the support body 4 such that the air-retaining body 2 is kept airtight.
专利附图（8）
