用于模块化存储，具有可调节搁板和多种门选项。
专利摘要

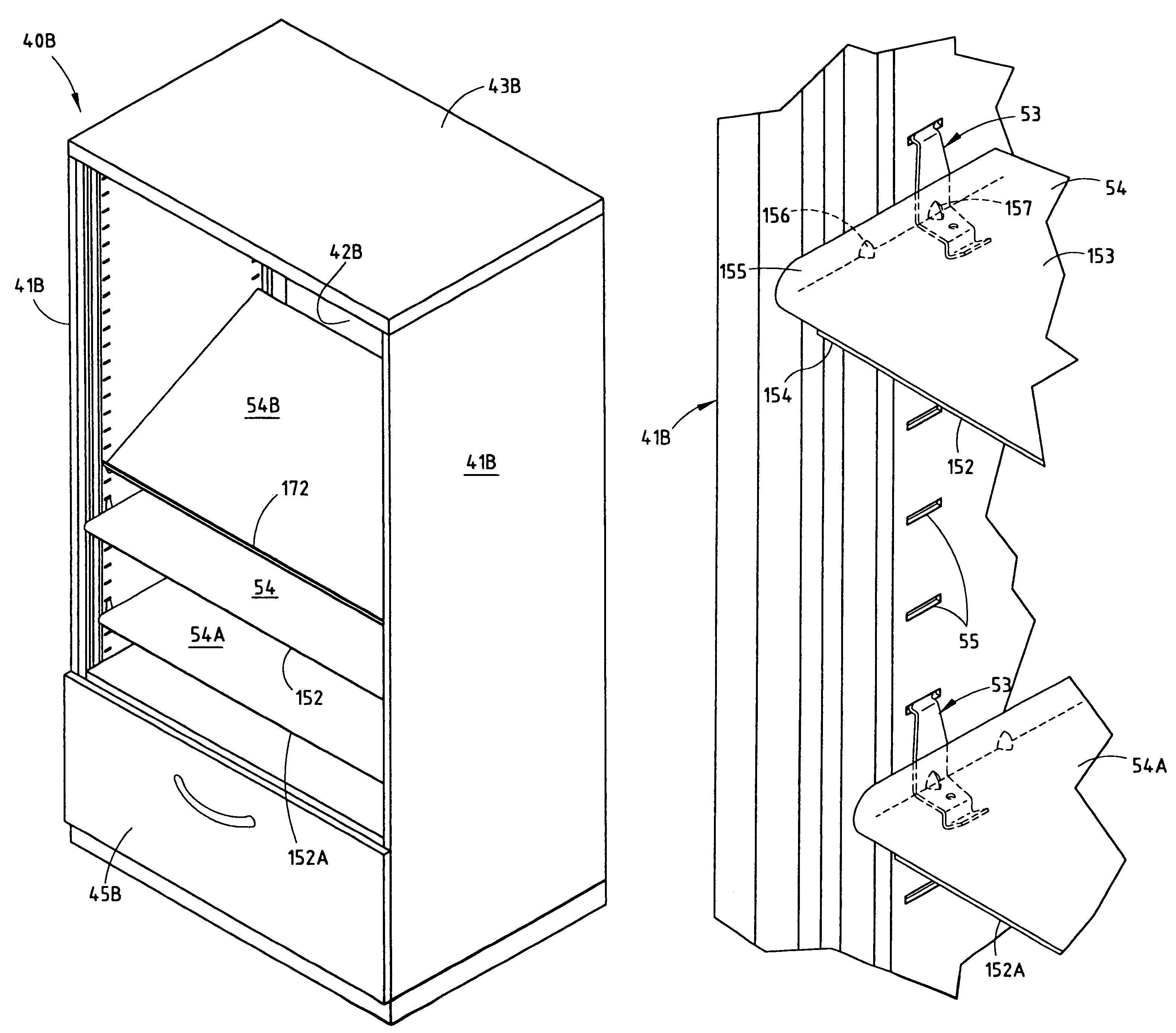

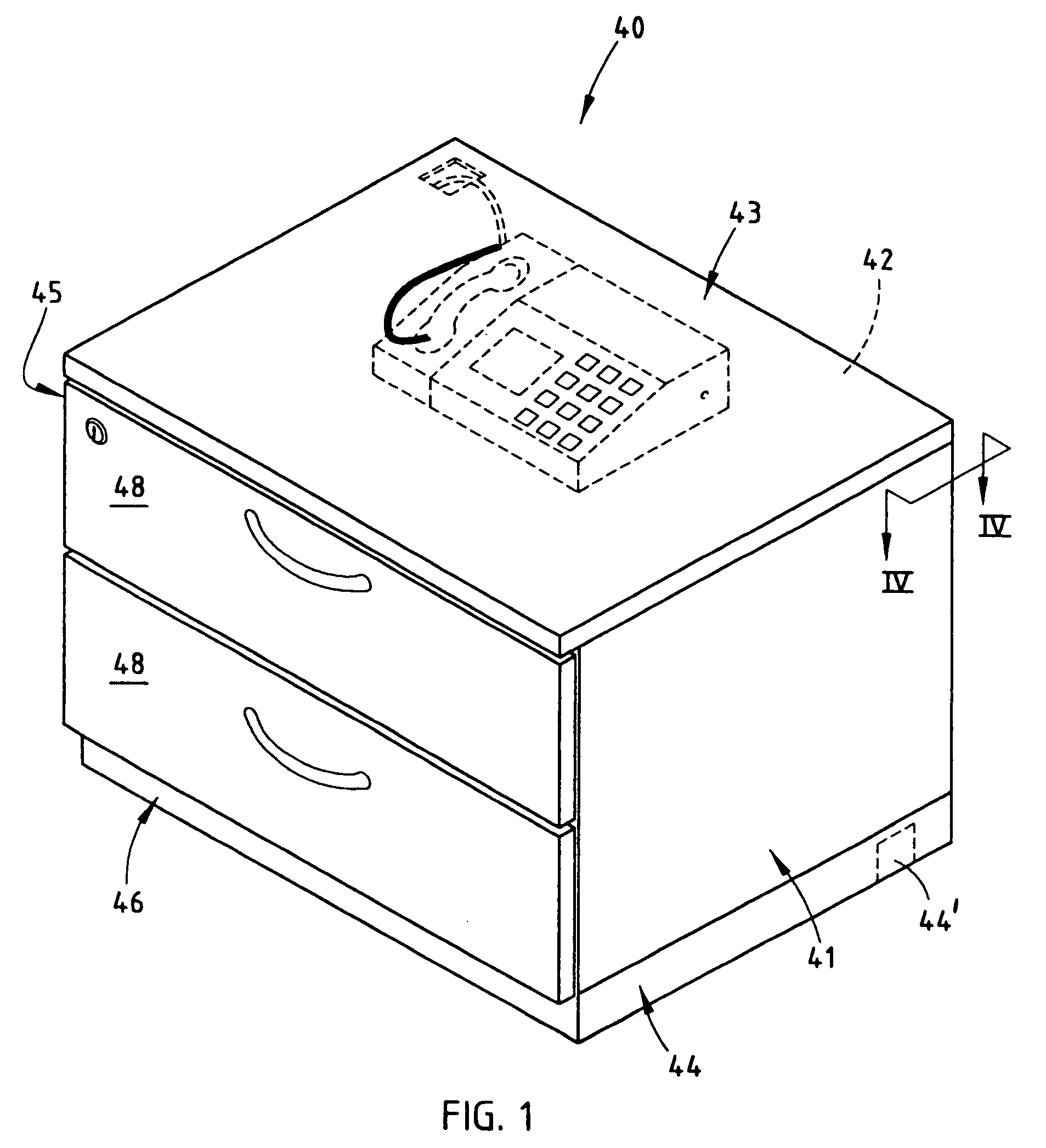

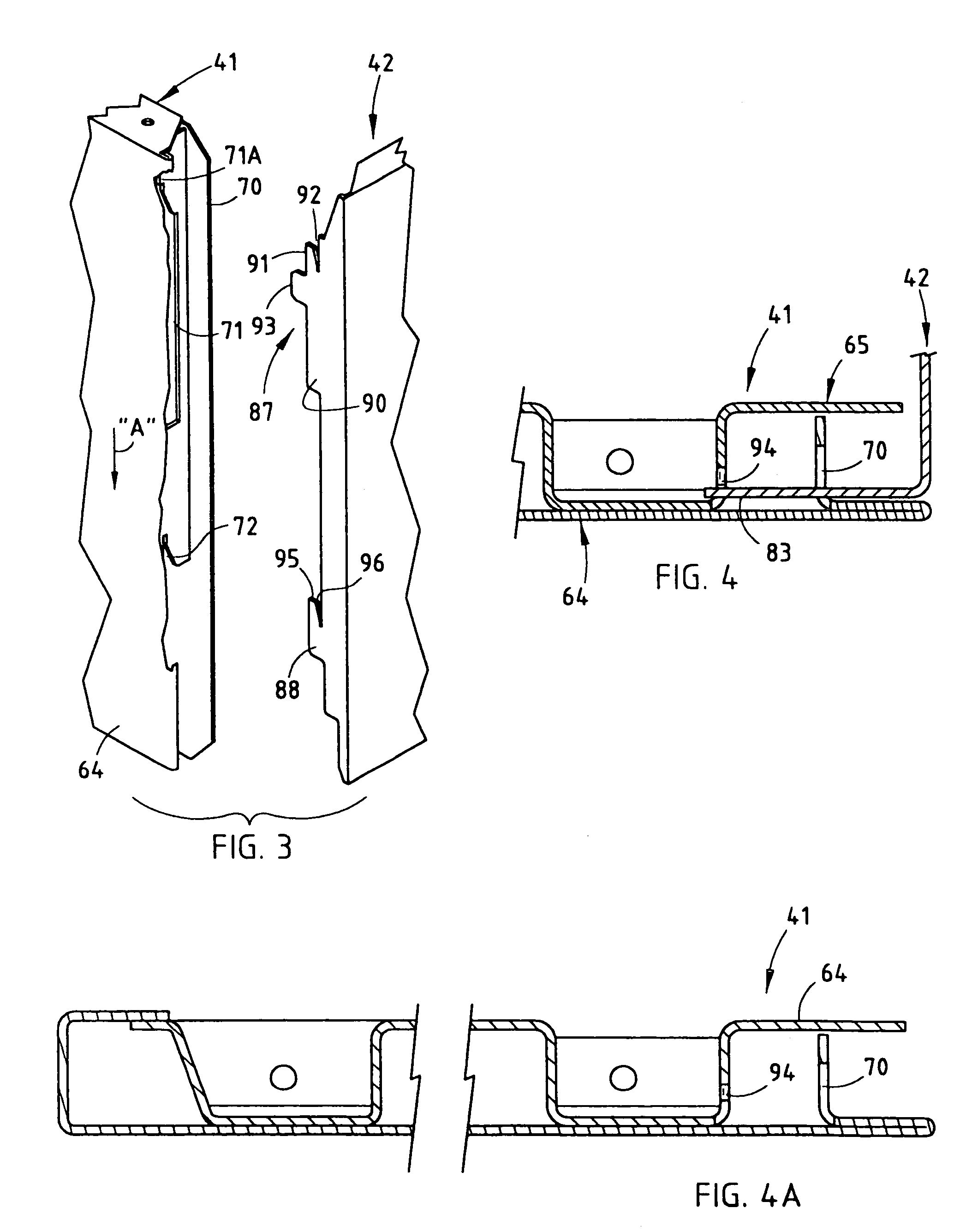

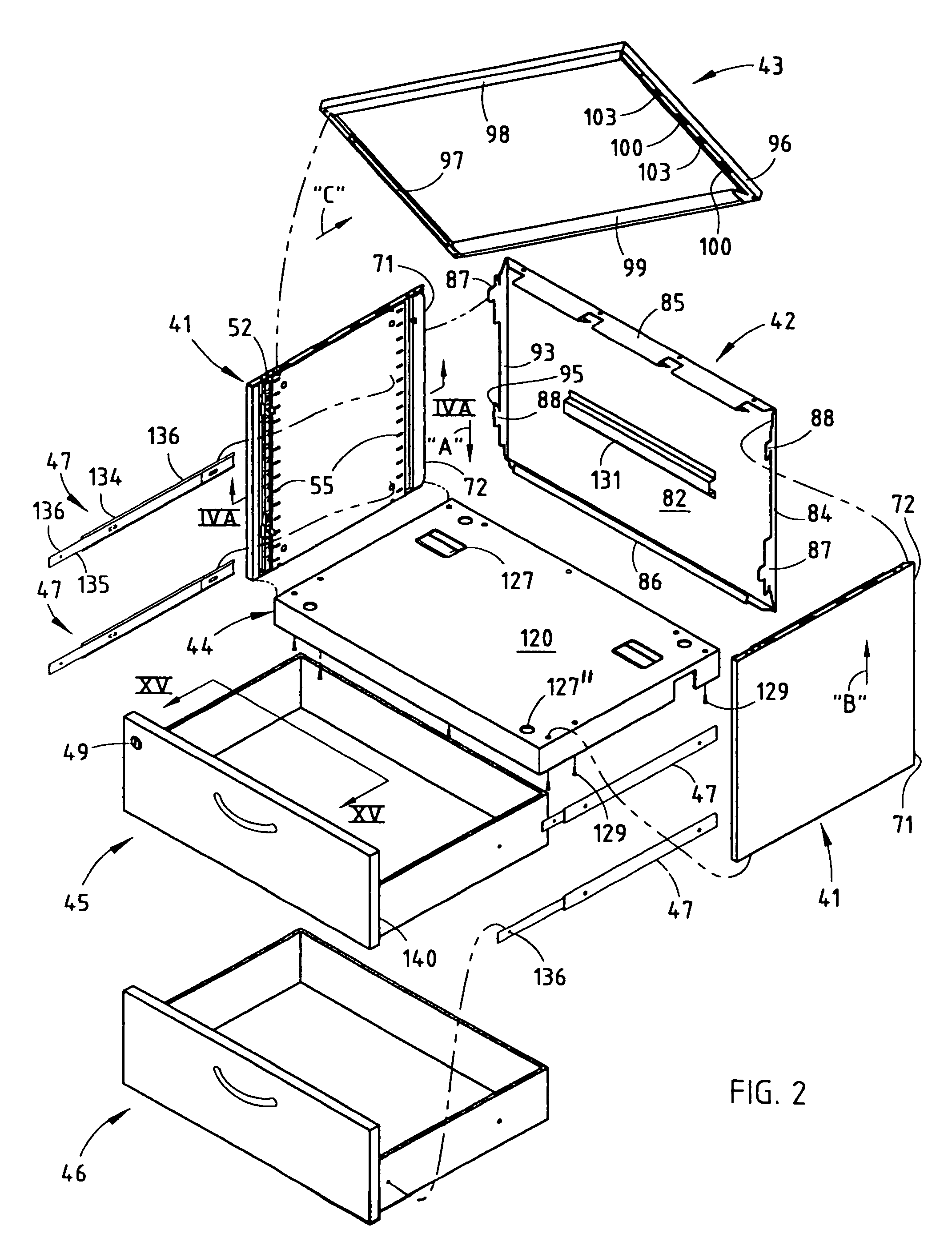

一种柜子包括侧板、背板和顶板，它们通过非侵入式一体形成的连接件摩擦附接在一起。图示的底座通过螺钉附接，并包括用于在柜子内布线线路的开口。支架适于以齐平或内嵌状态支撑柜子中的搁板，并且根据它们接合的柜子槽以及它们在那些槽中的取向，搁板可处于不同高度。透光顶板和顶部搁板可用于在柜子内提供改善的光线。柜子上的铰链支架支撑厚门（带内部存储空间）、凸门或内嵌门。柜子中支撑的抽屉包括在抽屉顶部的锁，用于操作垂直的柜子锁杆。
Original abstractA cabinet includes side panels, a back panel, and a top panel that frictionally-attach together with non-intrusive integrally-formed connectors. The illustrated base is screw-attached, and includes openings for routing wiring within the cabinet. Brackets are adapted to support shelves in the cabinet in either a flush or inset condition, and at different heights based on which cabinet slots they engage and based on their orientation in those slots. A light-transmitting top panel and top shelf can be used to provide improved light within the cabinet. Hinge brackets on the cabinet support either a thick door with internal storage space, a proud door or an inset door. Drawers supported in the cabinet include a lock within the drawer's header for operating a vertical cabinet lock rod.
专利附图（8）
