来源记录显示 Expired
用于擦拭材料卷的保持端件，该擦拭材料卷设置在擦拭材料分配装置上
Retaining end piece for a roll of wiping material that is disposed on a wiping material dispensing device
US-7828241-B2用于保持和引导擦拭材料卷
专利摘要

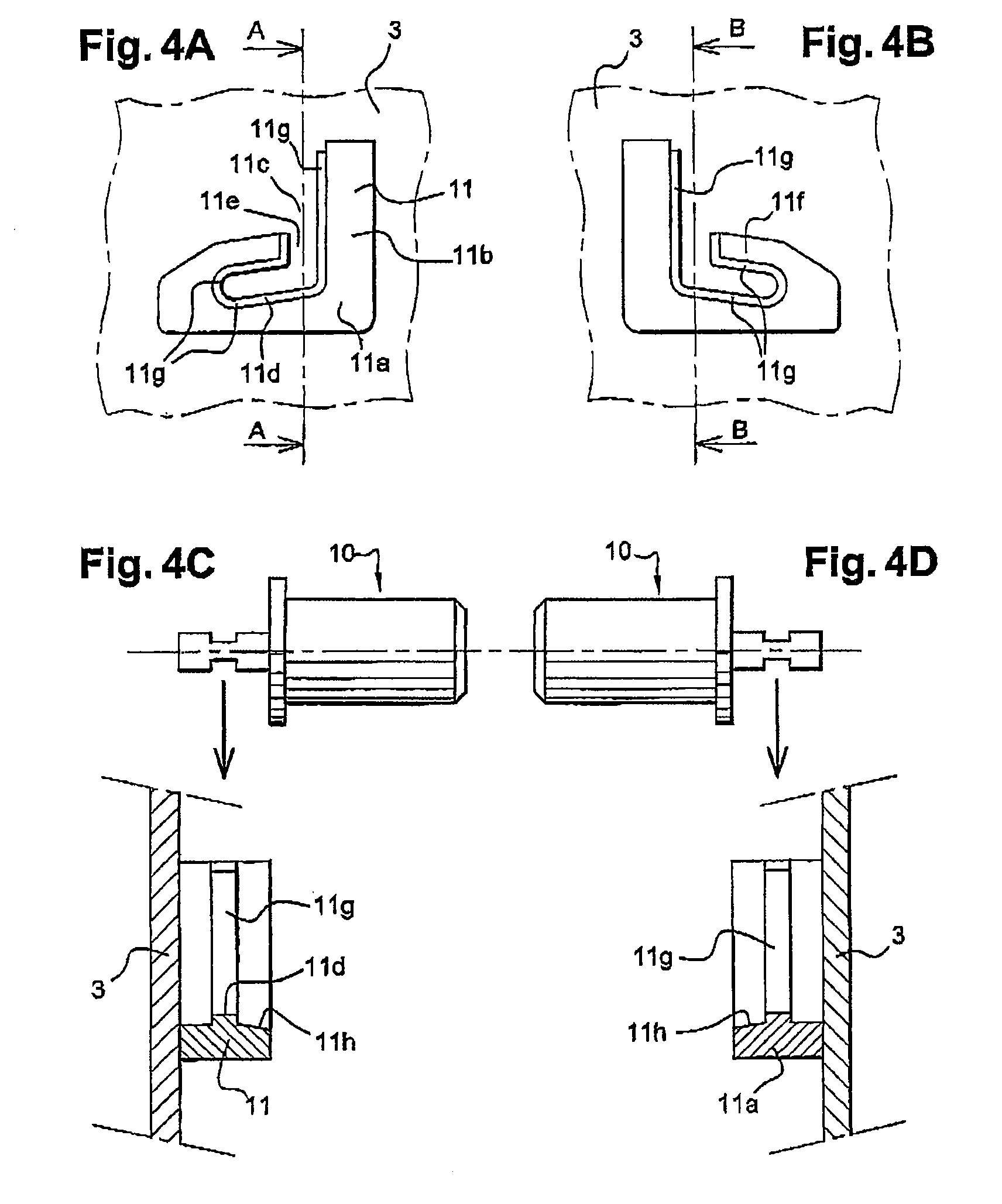

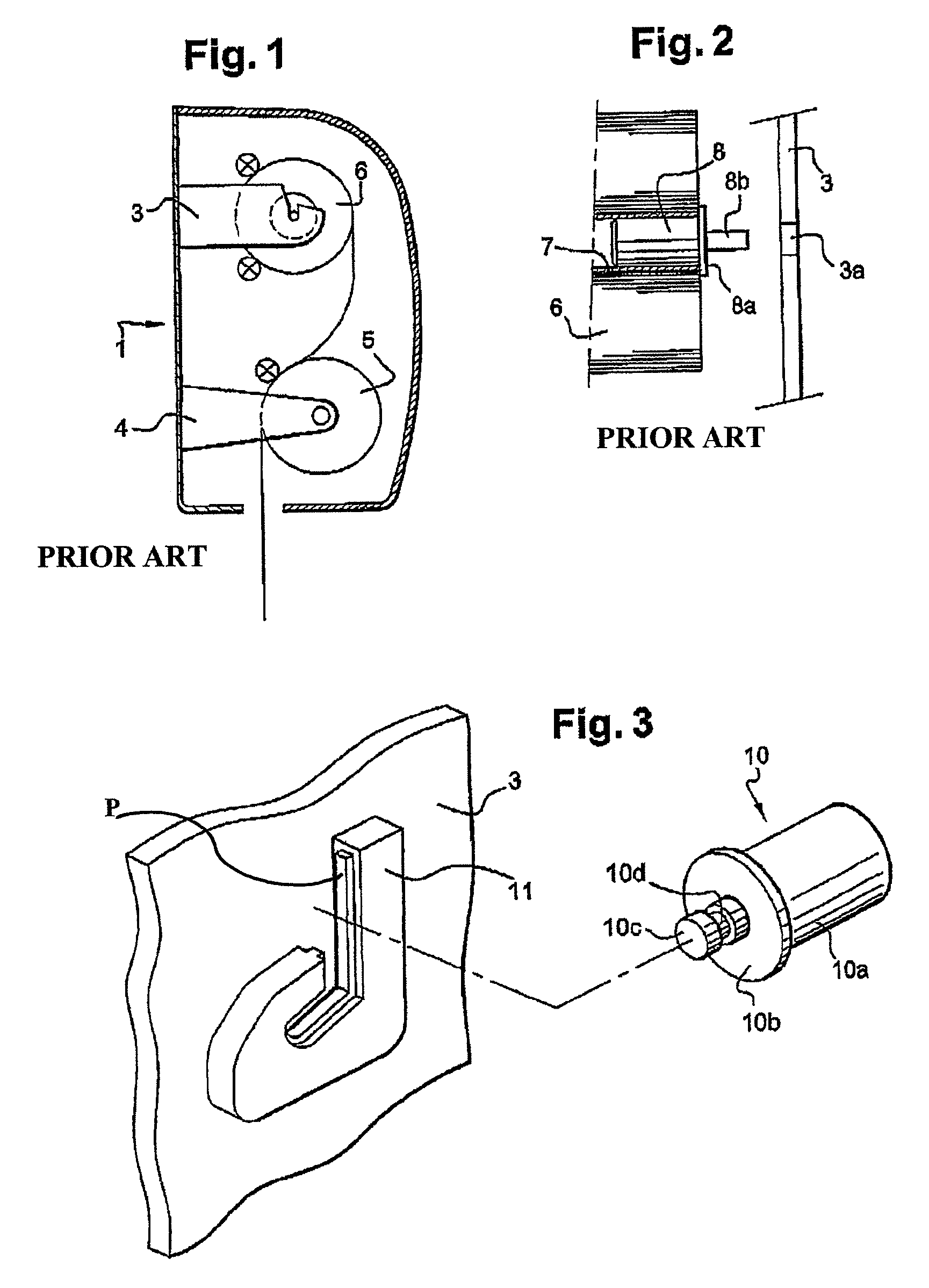

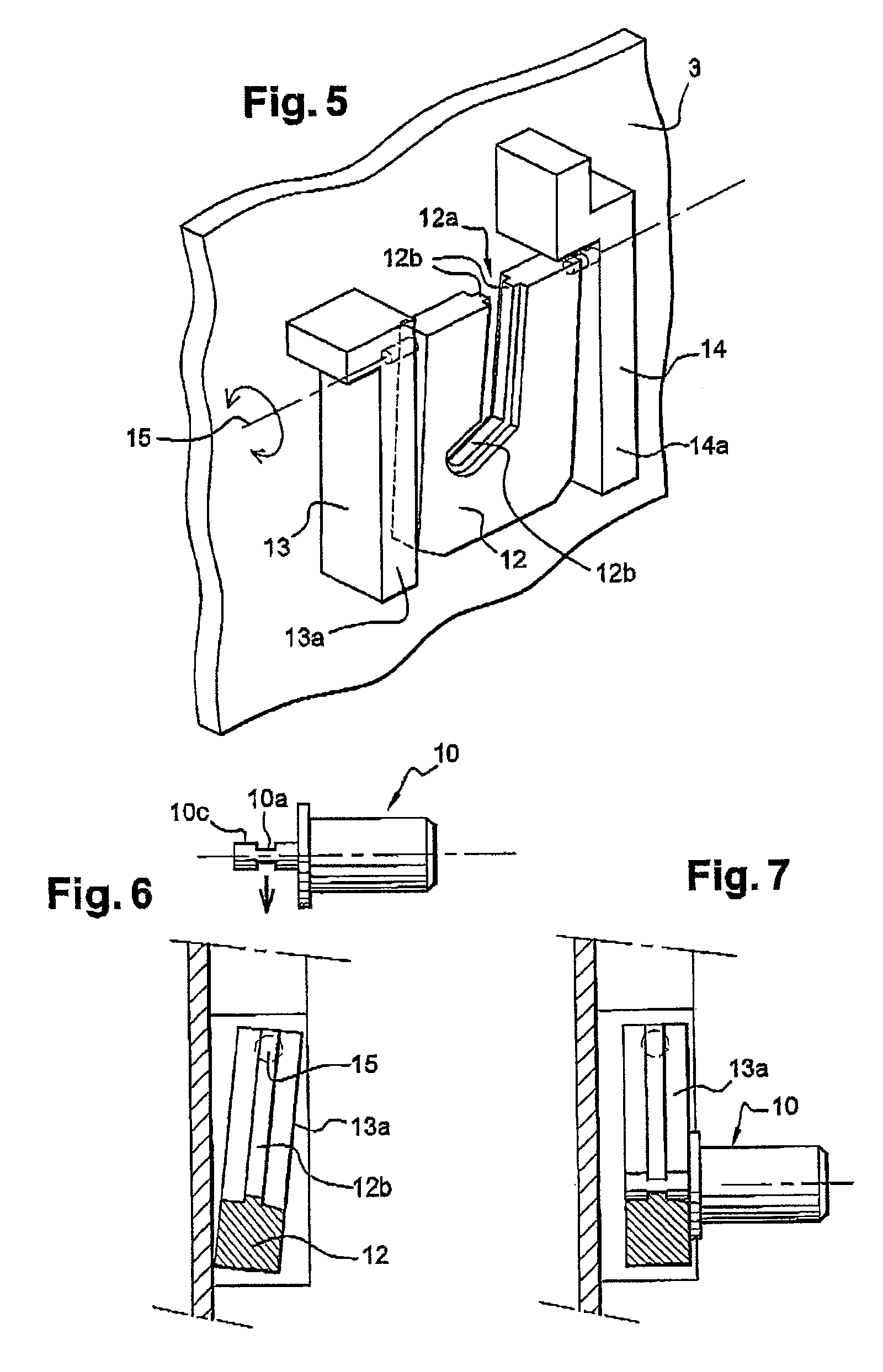

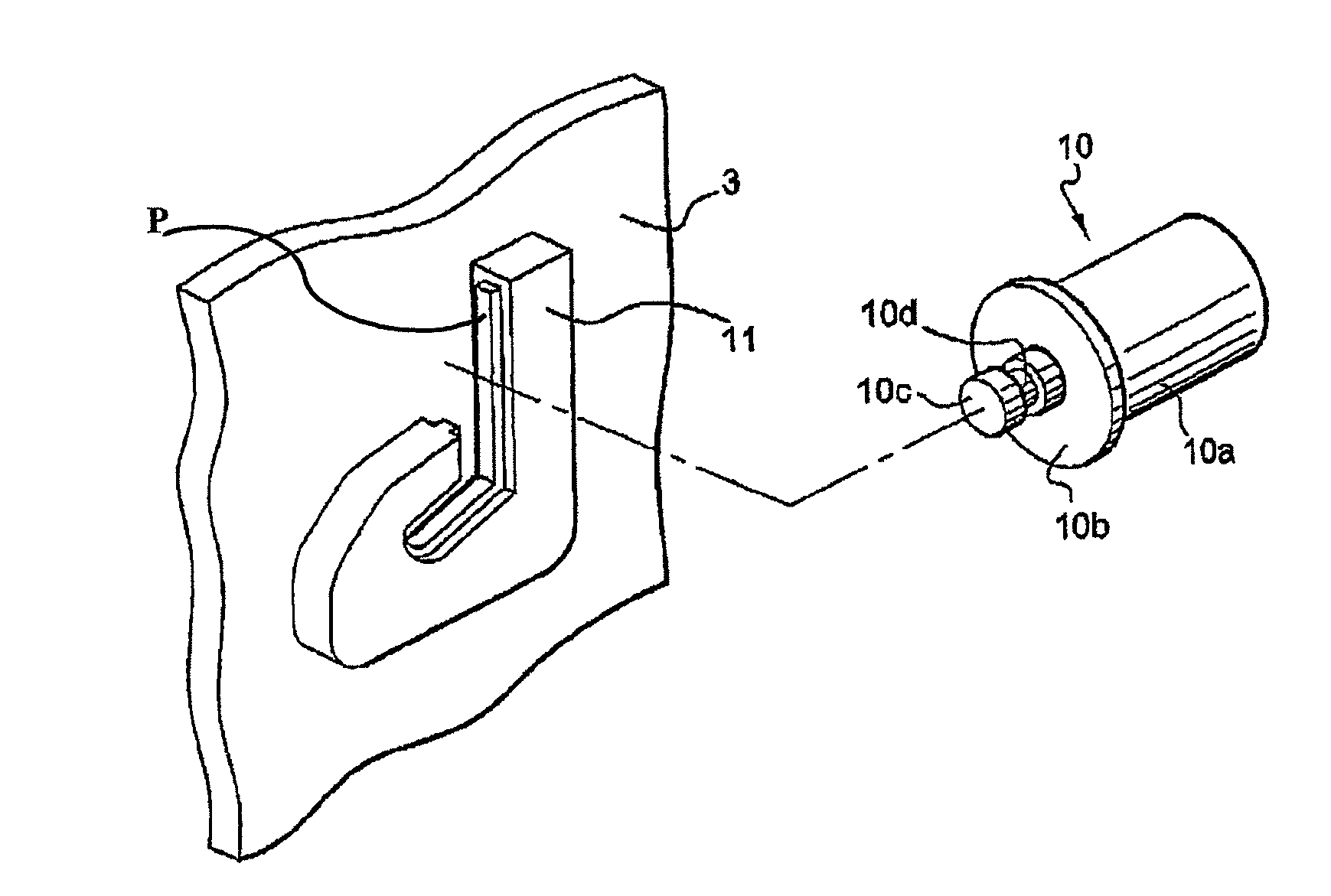

一种端件，其形成用于支撑材料卷的心轴的组成部分，与引导件接合。端件包括可插入心轴的圆柱形部分、抵靠端件面对表面的套环以及突出附件。沿突出附件的长度设置有引导和保持槽以形成引导路径。在支撑材料卷的支架上设置有配合引导件。引导件设置在支架内侧，包括略微突出的平面，这些平面形成并限定通道，以容纳端件的突出附件，从而使端件能够插入并保持在其中。通道延伸到在插入端件后用于接收端件的部分。
Original abstractAn endpiece which forms an integral part of a mandrel used to support a roll of material engages a guide. The endpiece comprises a cylindrical part which can be inserted into the mandrel, a collar which rests against a facing surface of the endpiece, and a projecting attachment. A guiding and retaining groove is provided along the length of the projecting attachment to form a guide path. A cooperating guide is provided on a bracket that supports the roll of material. The guide is disposed on an inner side of the bracket and comprises slightly-projecting flats which form and define a channel to receive the projecting attachment of the endpiece as so enable the endpiece to be inserted and retained therein. The channel extends into a part for receiving the endpiece following the insertion thereof.
专利附图（8）
