一种通过提手联动锁定抽屉的存储单元。
专利摘要

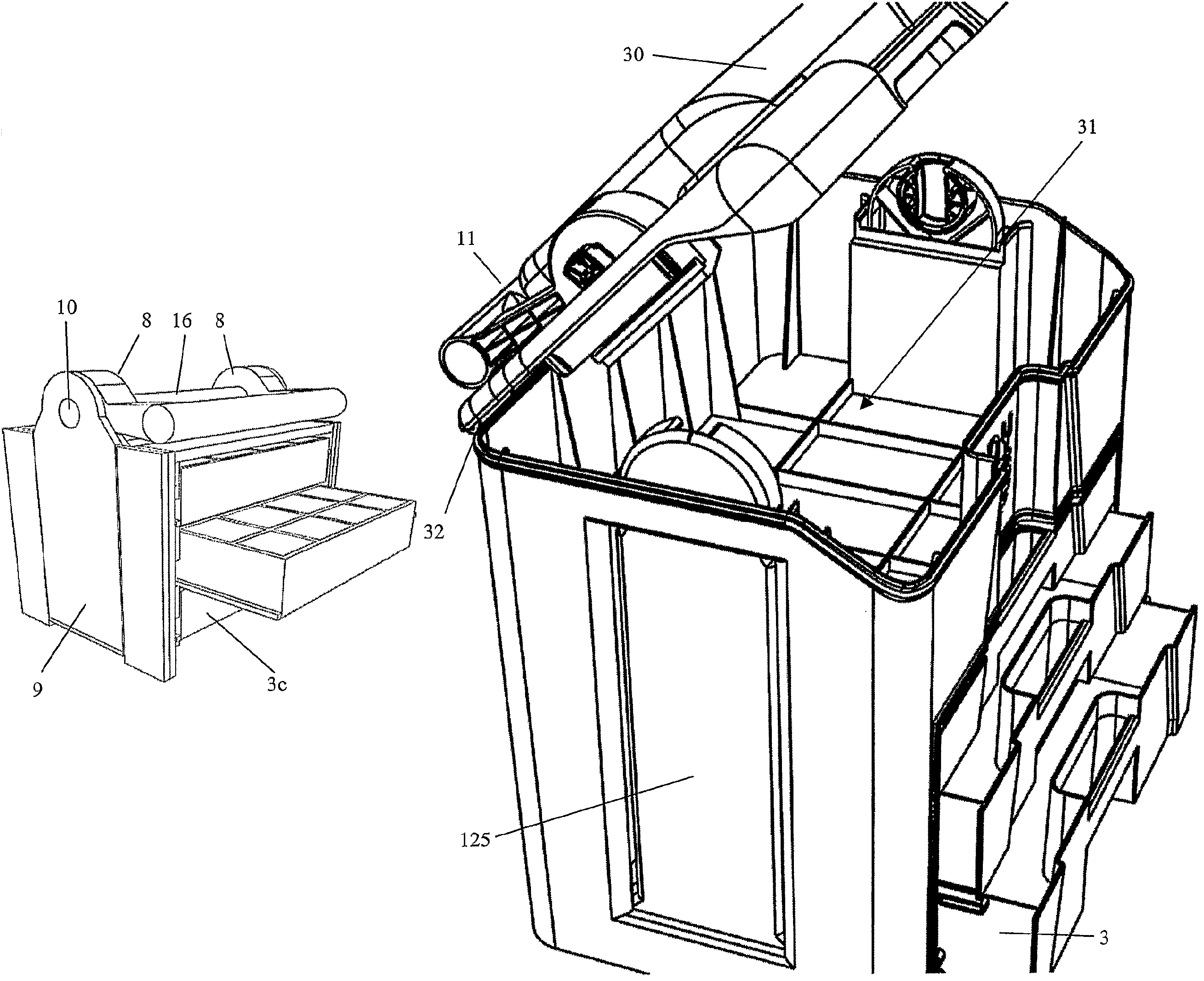

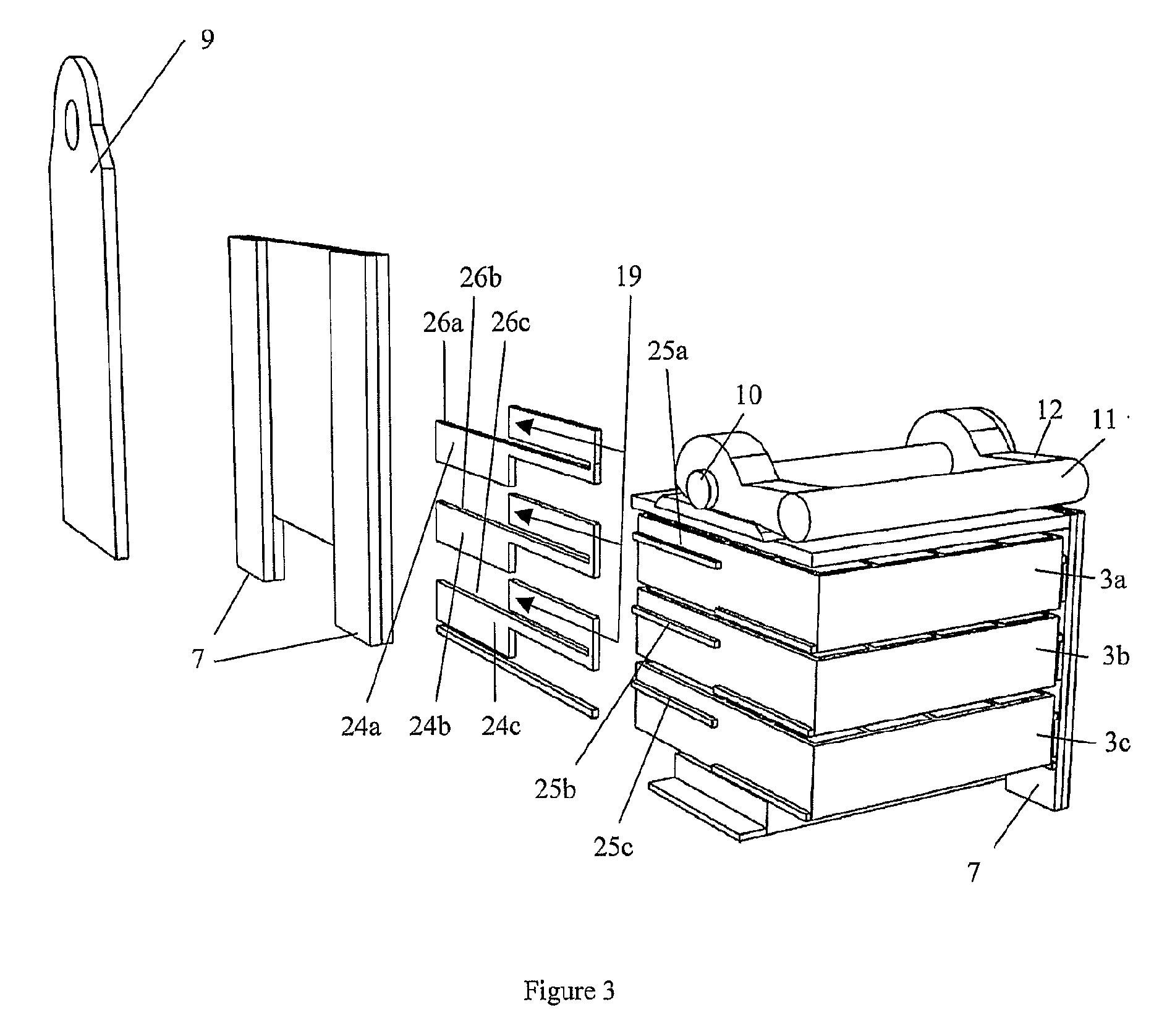

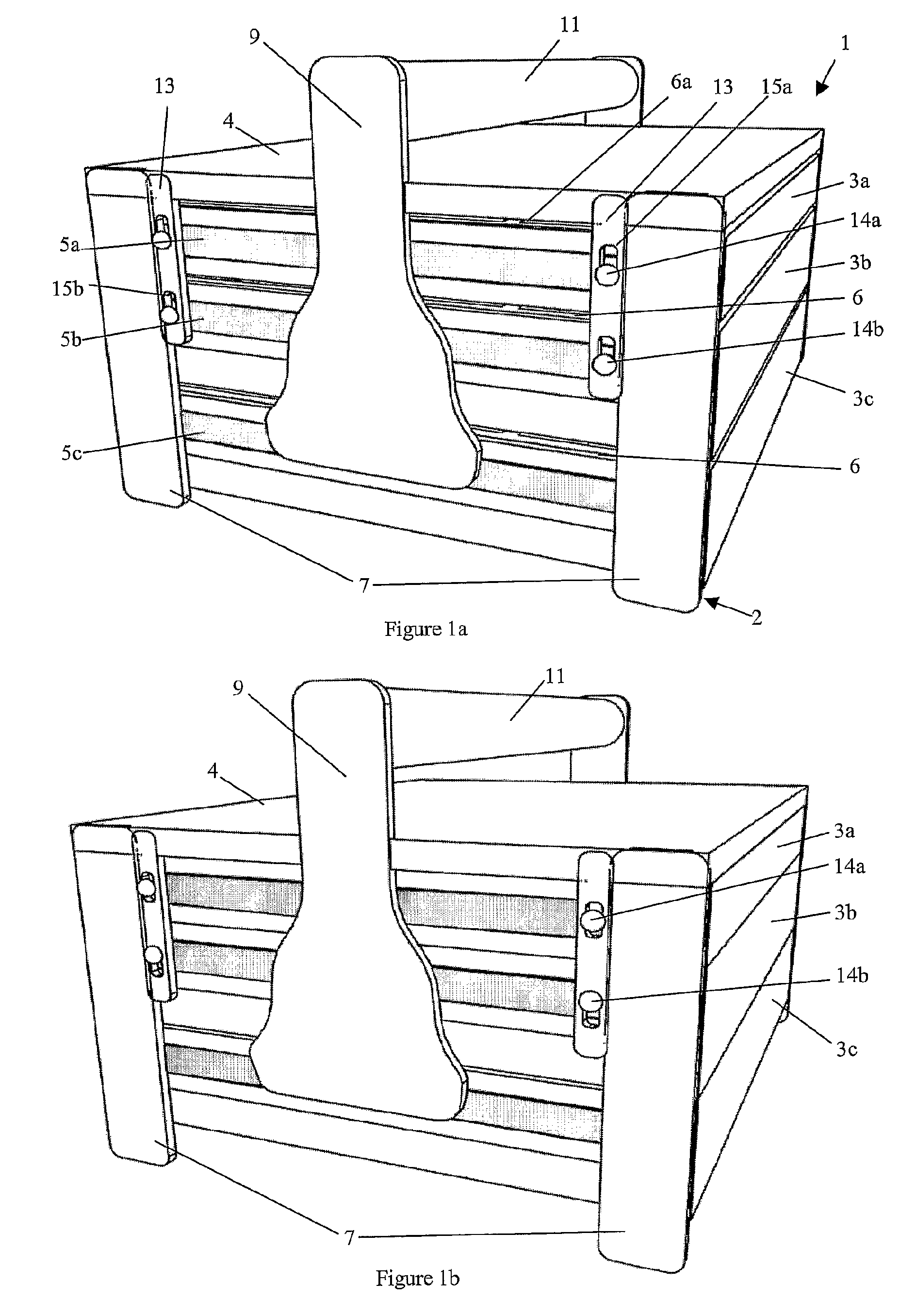

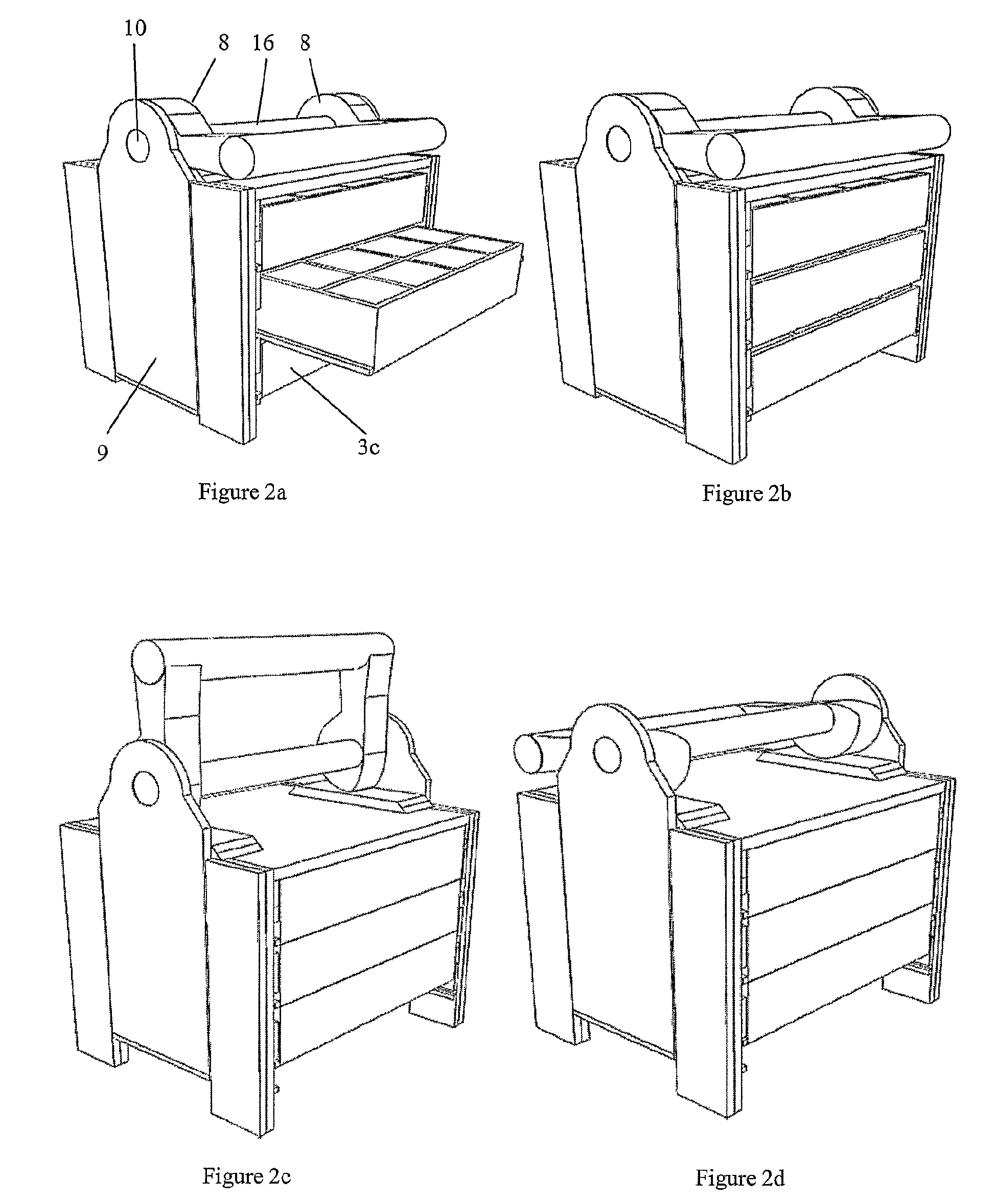

一种存储单元，具有框架、抽屉和提手。当通过提手提起该单元，或者将提手移动到适合提起存储单元的位置时，提手臂提起抽屉堆的底部抽屉，该底部抽屉进而相对于框架提起每个上面的抽屉。随着每个抽屉上升，相邻抽屉之间的间隙减小，并且抽屉移动到锁定位置，在该位置它们被安装在框架内侧的止动件阻挡。在替代实施例（未示出）中，提手连接到抽屉锁定滑块而不是底部抽屉，并且抽屉锁定滑块上的止动件与抽屉接合，以在抽屉锁定滑块相对于框架移动时将抽屉锁定在关闭位置。
Original abstractA storage unit having a frame, drawers and a carrying handle. When the unit is lifted by the handle, or the handle is moved to a position suitable for lifting the storage unit, the handle arms lift the bottom drawer of the stack of drawers which in turn lifts each of the above drawers relative to the frame. As each drawer rises, the clearance gap between adjacent drawers is reduced and the drawers are moved to a locked position where they are blocked by detents mounted on the inside of the frame. In an alternative embodiment (not shown), the handle is coupled to drawer locking slides instead of the bottom drawer and detents on the drawer locking slides engage with the drawers to lock them in the closed position as the drawer locking slides are moved relative to the frame.
专利附图（8）
