用于储存器分配流体的真空释放阀。
专利摘要
针对先前已知装置的这些缺点，本发明提供了一种真空释放阀，其关闭通向储存器的开口，阻止通过，直到在从储存器初始分配流体时在储存器内产生足够的真空。此外，盖优选地适于呈现固有形状。固有形状是当处于关闭位置时，盖将具有固有的偏置以将阴环形座向下推到阳座上以形成密封，并且在真空条件下偏转时呈现打开位置；在释放真空时，盖的固有偏置将导致盖重新呈现该位置。
Original abstractThese disadvantages of previously known devices, the present invention provides a vacuum released valve which closes an opening into a reservoir to passage therethrough until a sufficient vacuum is created with the reservoir as on initial dispensing of fluid from the reservoir. Furthermore a cap is preferably adapted to assume an inherent shape. The inherent shape is a shape such that when in the closed position; the cap will have an inherent bias to urge the female annular seat downwardly onto the male seat to form a seal and when deflected under vacuum conditions, to assume the open position; the inherent bias of the cap, on release of the vacuum, will cause the cap to reassume the position.

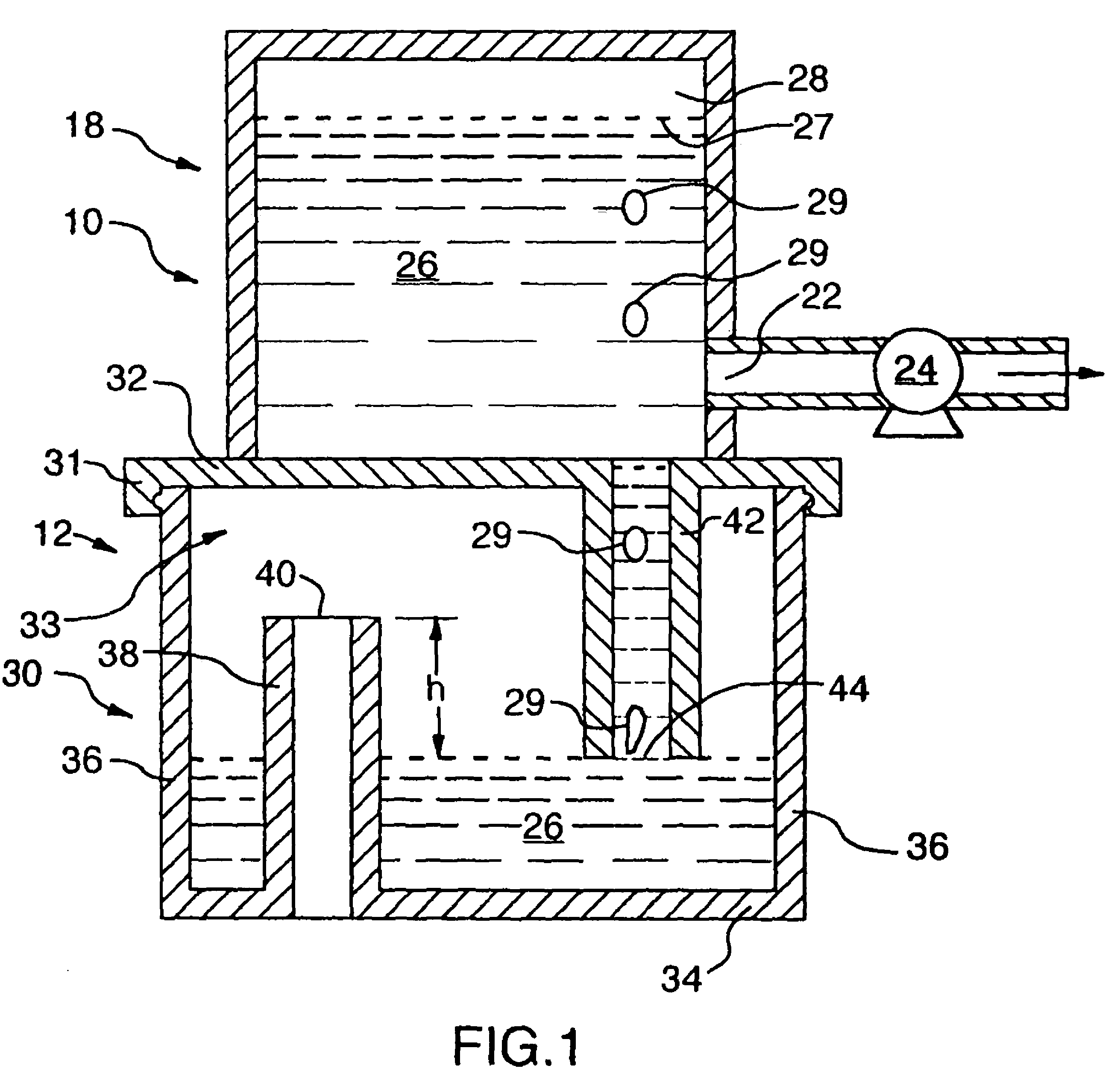

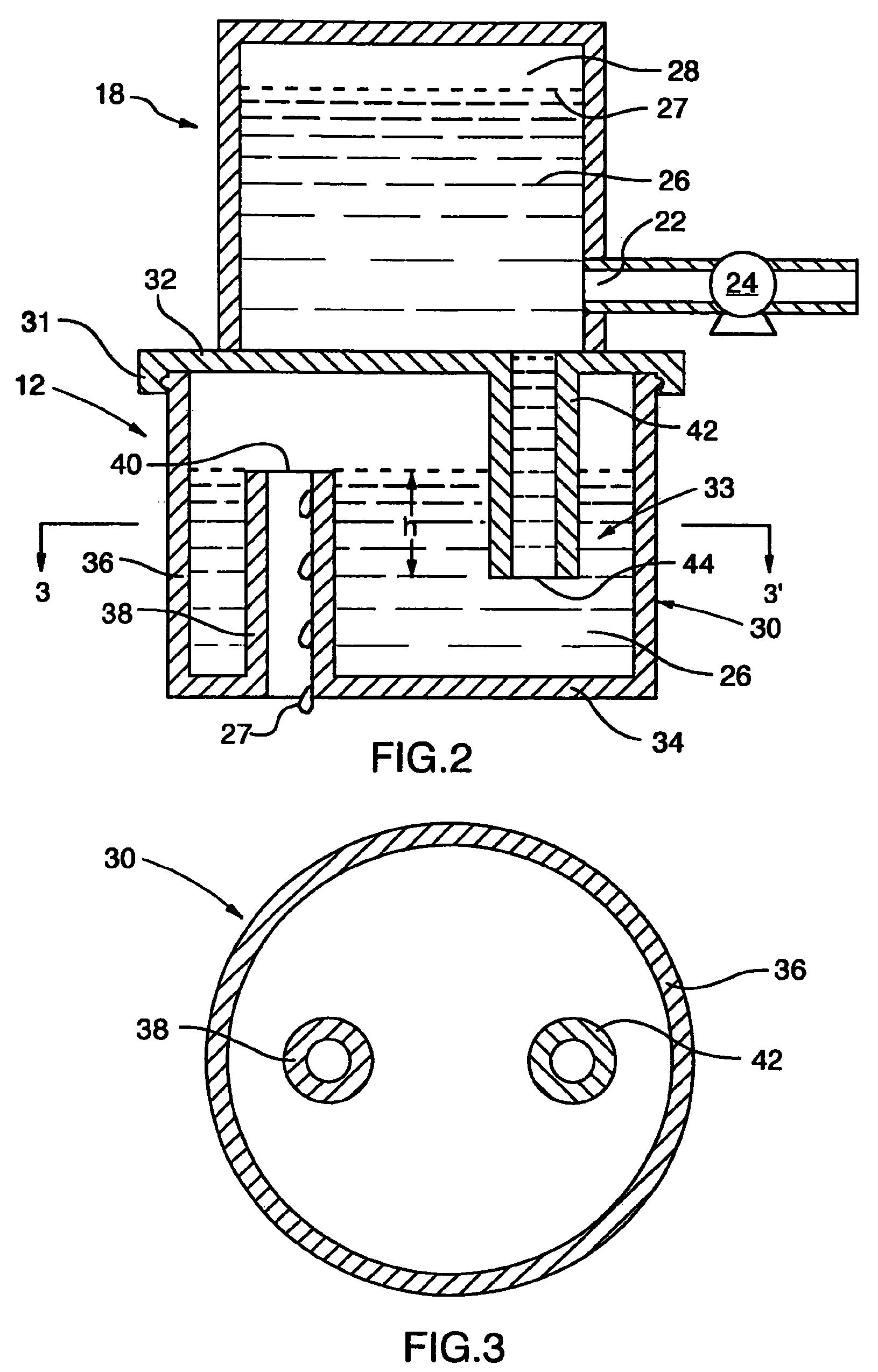

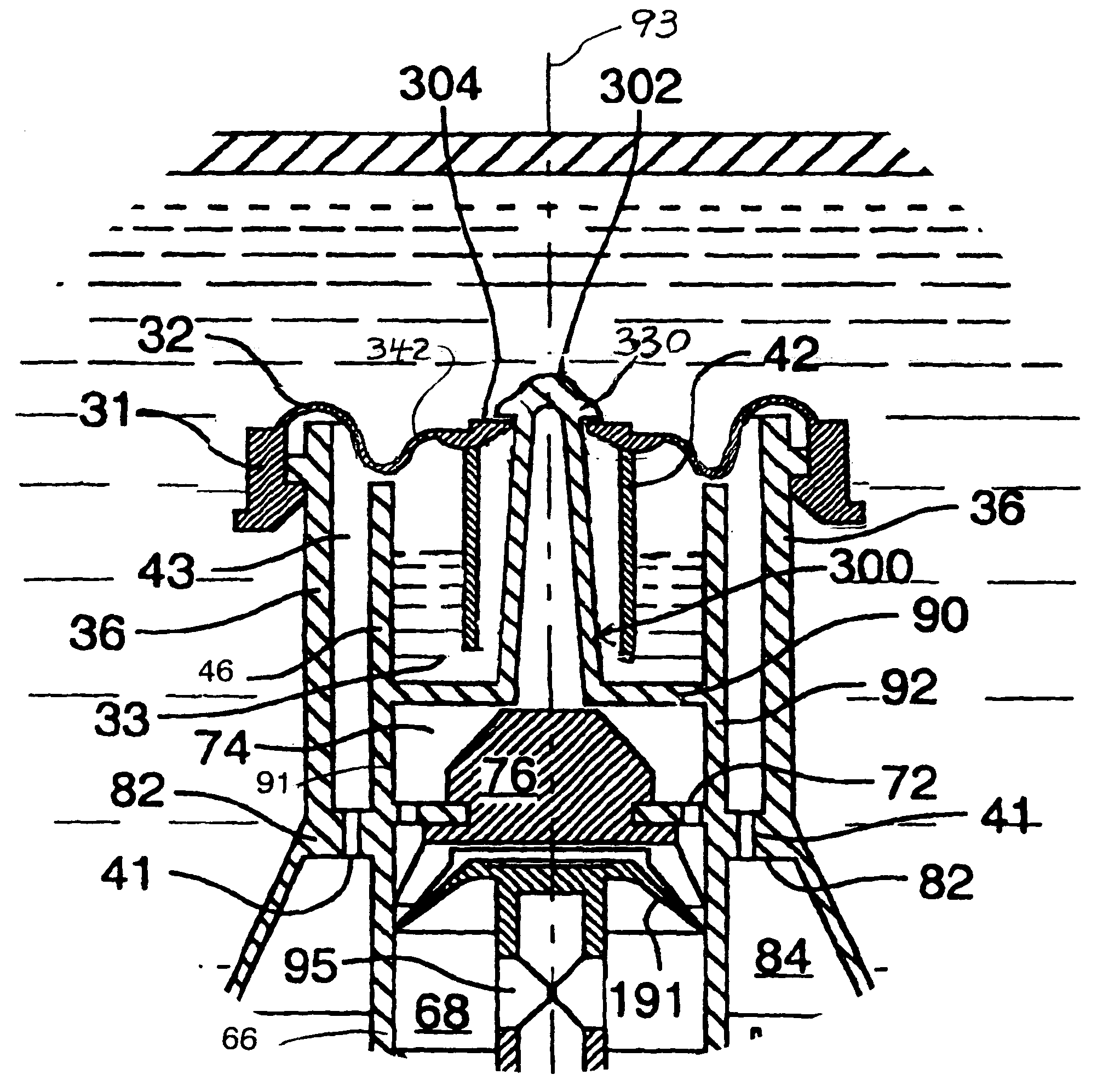

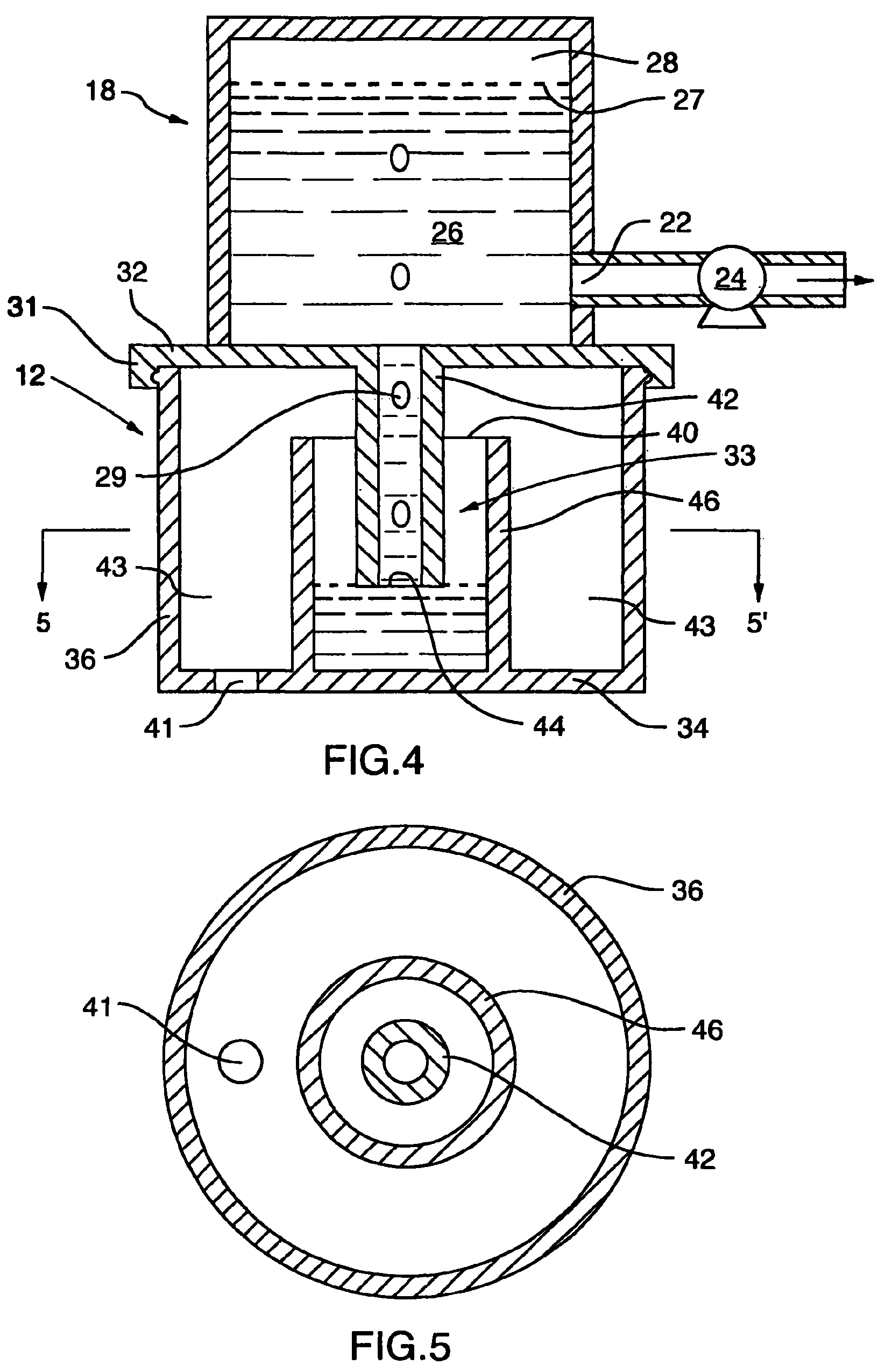

专利附图（8）
