毛巾递送和洗涤机及其操作方法
Towel presenting and washing machine and a method for operating same
US-7814595-B2用于自动递送、洗涤和干燥毛巾。
专利摘要

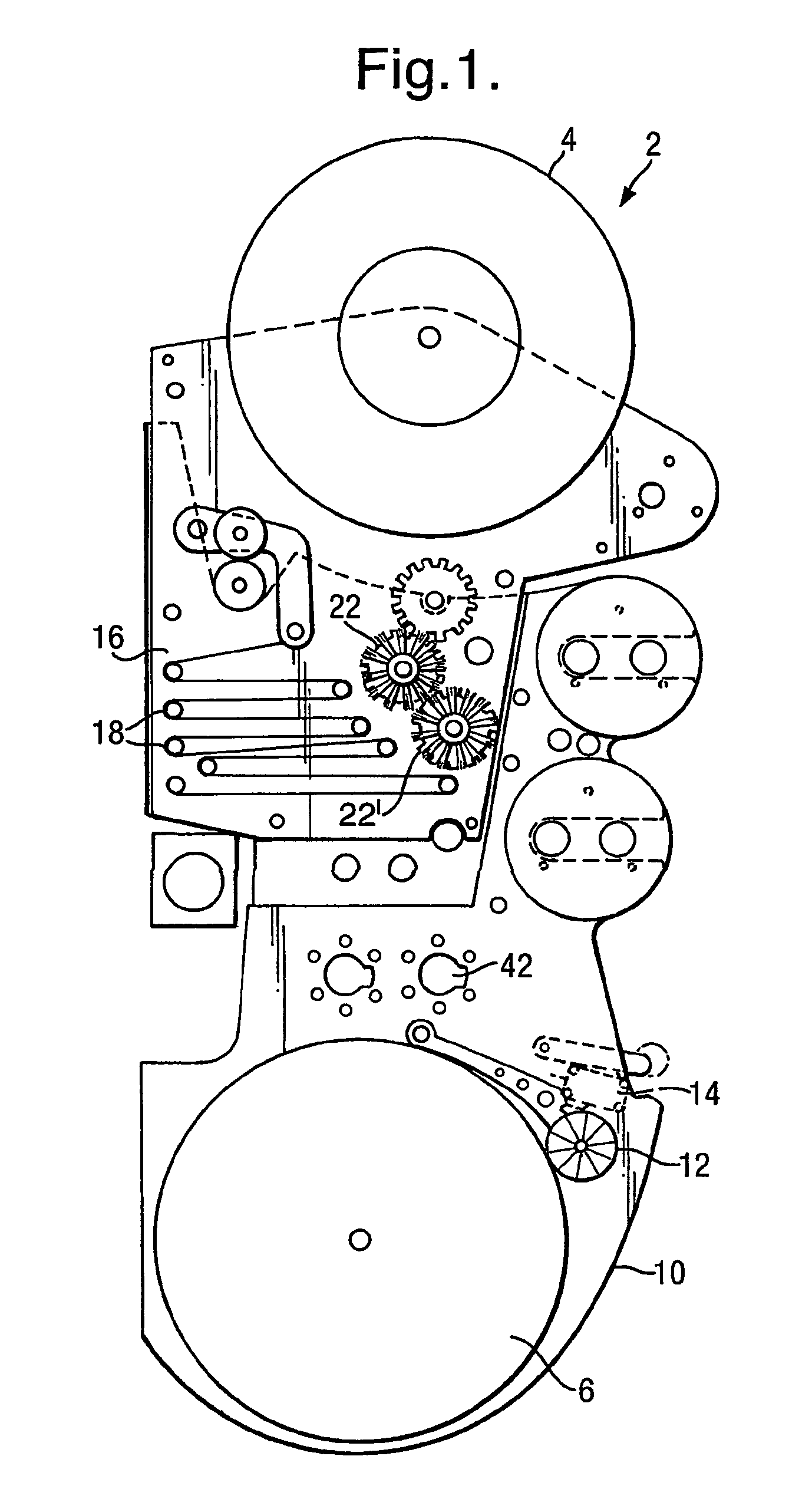

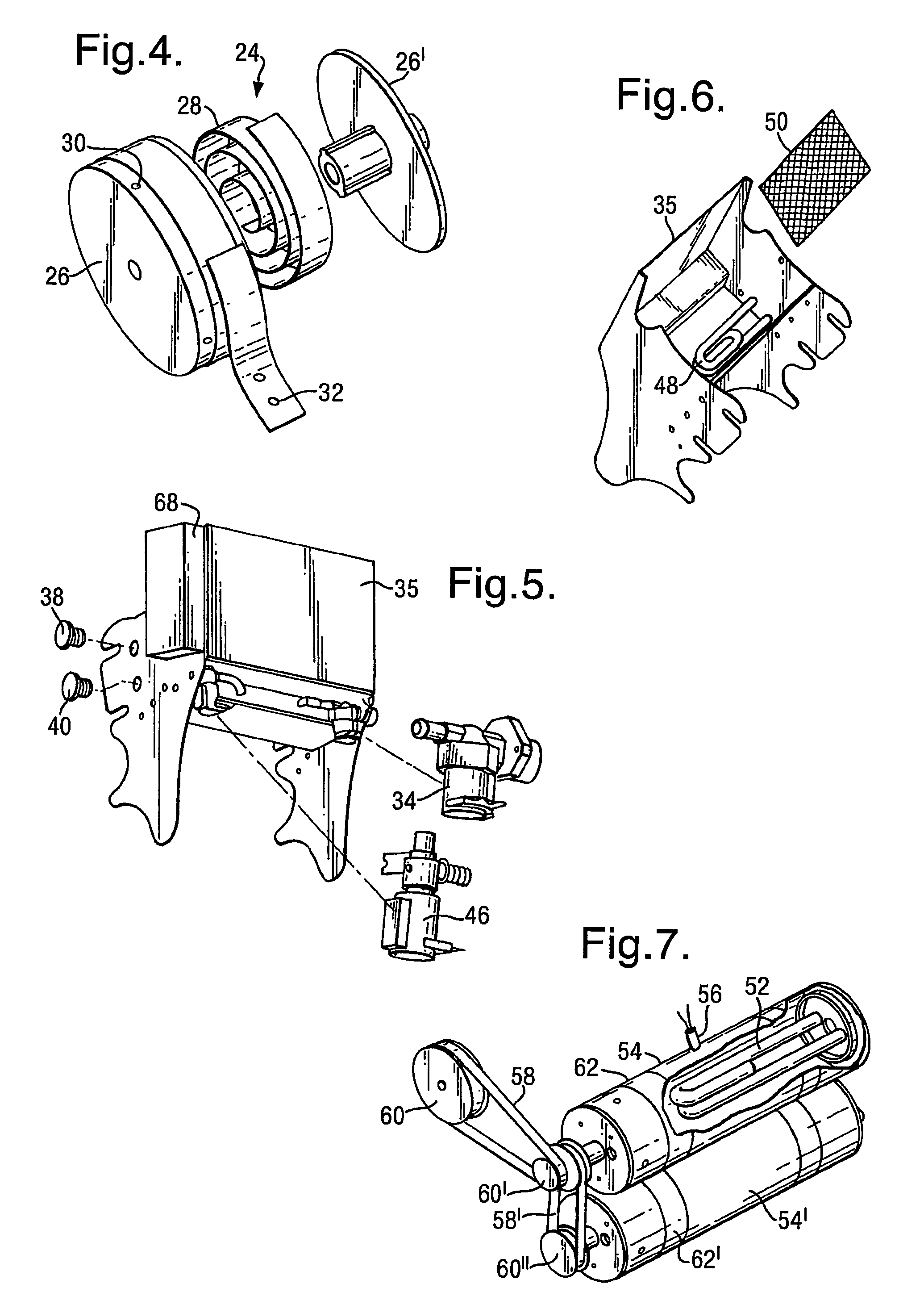

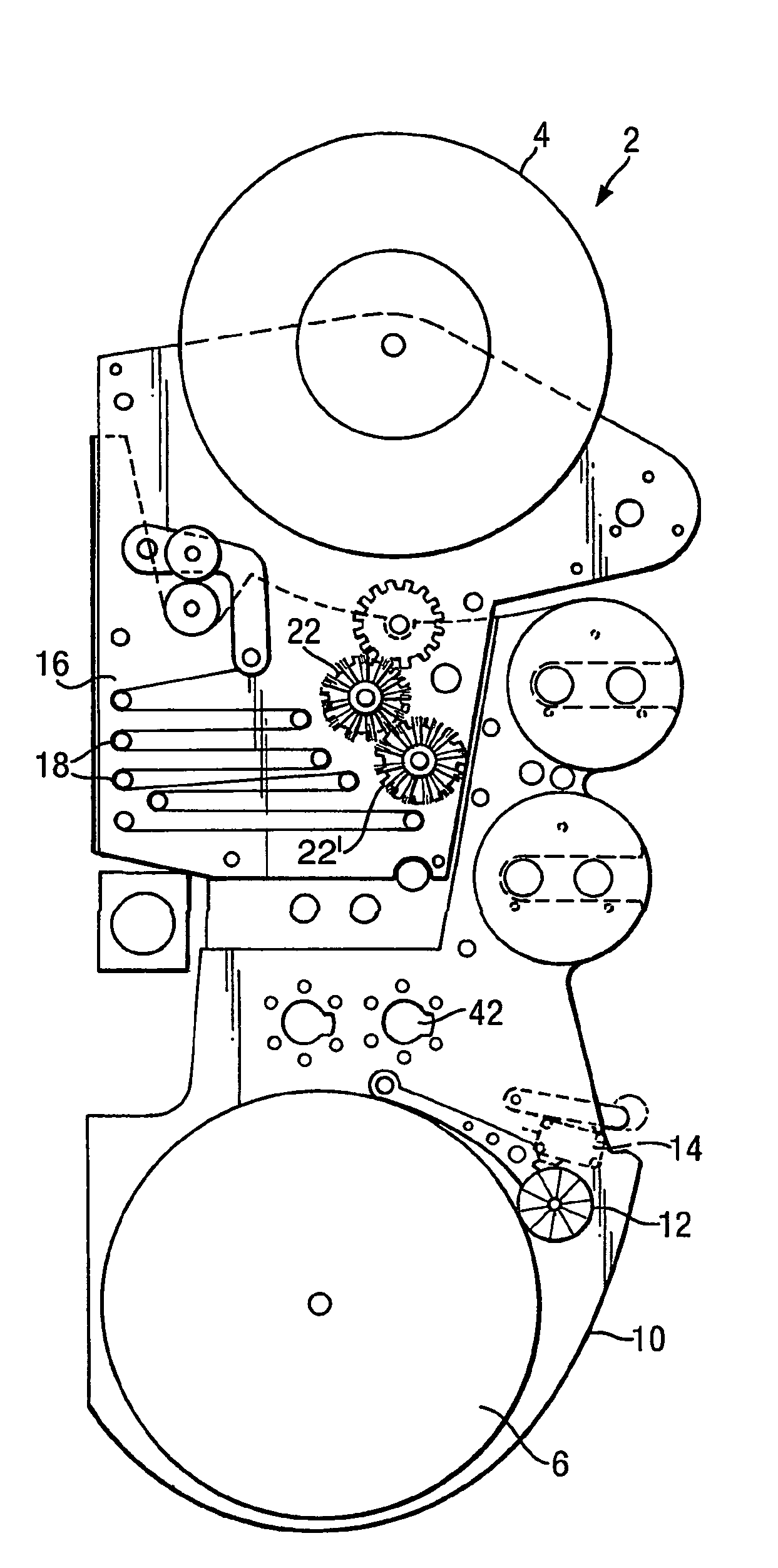

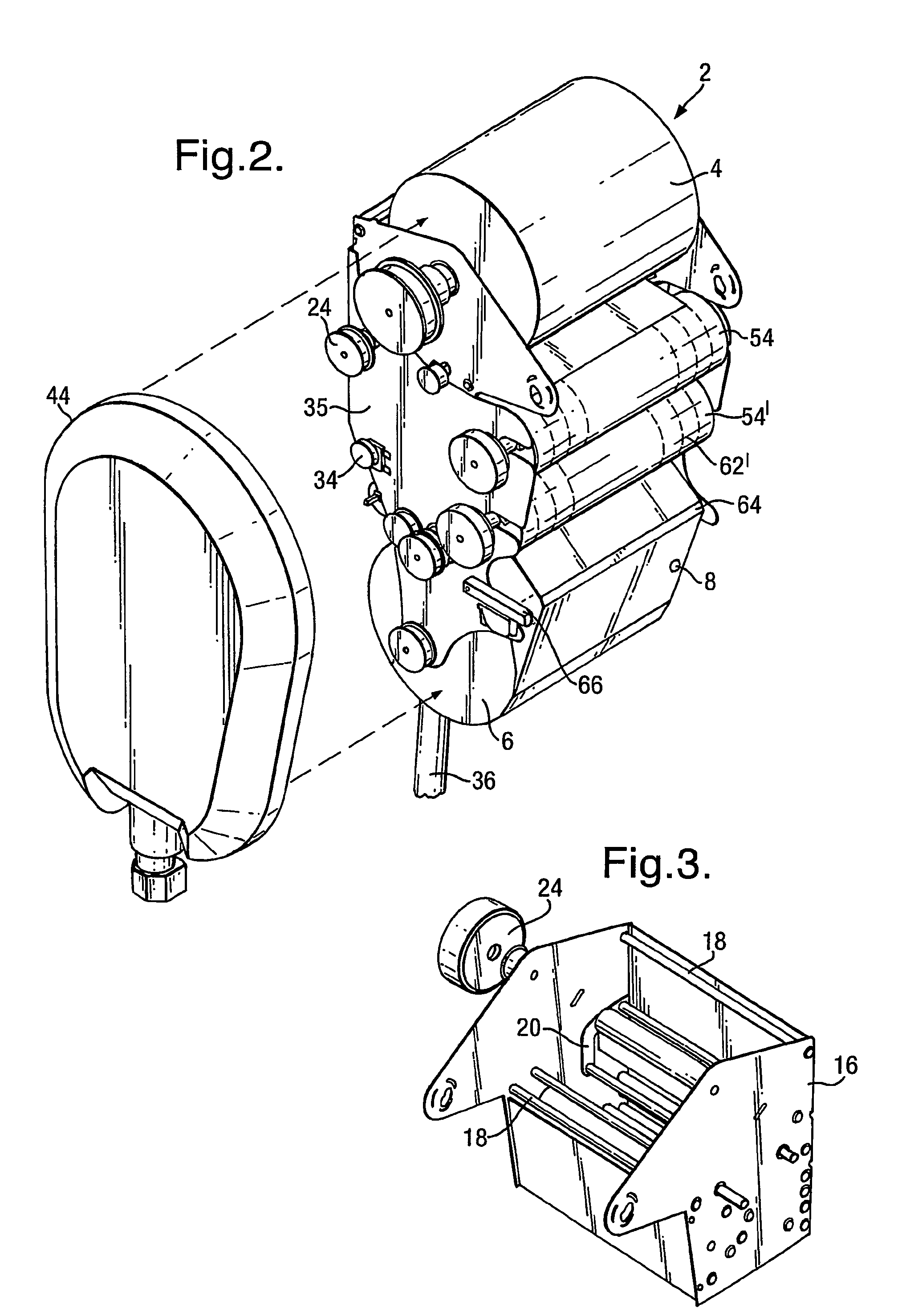

提供了一种毛巾递送、洗涤和干燥机，包括第一和第二间隔开的辊，每个辊可顺时针和逆时针旋转；一个浴槽，具有液体入口和出口，位于辊之间，支撑多个杆构件，用于引导毛巾段在浴槽中以蜿蜒方式移动；用于清洁浴槽中毛巾段的装置；至少一个干燥滚筒，设置在浴槽外部、辊之间；至少一个电机和传动装置，连接到辊和干燥滚筒；以及一个控制器，用于适时选择性地操作每个辊和干燥滚筒。还提供了一种用于在毛巾递送和洗涤机中自动递送干净毛巾段以供干燥以及洗涤和干燥脏毛巾段的方法。
Original abstractThere is provided a towel presenting, washing and drying machine, including first and second spaced-apart rollers each rotatable in a clock-wise and counter-clockwise sense; a bath having liquid inlet and outlet ports located between the rollers supporting a plurality of rod members for guiding a towel section in a meandering fashion in the bath; means for cleaning the towel section in the bath; at least one drying drum disposed outside the bath between the rollers, at least one motor and transmission means coupled to the rollers and the drying drum, and a controller for timely selectively operating each of the rollers and the drying drum. A method for automatically presenting a clean towel section for drying purposes and for washing and drying soiled towel sections in a towel presenting and washing machine, is also provided.
专利附图（8）
