一种儿童浴盆，可加热和循环水。
专利摘要
公开了一种用于儿童的沐浴设备，包括浴盆和摇篮。浴盆可与摇篮嵌套，并包括底壁和至少一个侧壁，每个壁具有内表面和外表面。底壁包括用于将热量从外表面传导到内表面的导热装置。摇篮包括浴盆容纳部分和底座。浴盆容纳部分适于与浴盆嵌套接合，并还包括发热装置。当浴盆与摇篮嵌套时，发热装置与浴盆的导热装置物理接触，从而允许热量传递到浴盆。电开关电连接在加热元件和电源之间。电开关优选为恒温器，用于当浴盆中的水达到选定温度时停用发热装置。优选地包括喷水装置，其可被致动以使水从浴盆循环，通过泵，通过喷嘴，并返回浴盆。
Original abstractDisclosed is a bathing apparatus for a child that comprises a tub and a cradle. The tub is nestable with the cradle and includes a bottom wall and at least one side wall, each wall having an inside and an outside surface. The bottom wall includes a heat conductive means for conducting heat from the outside surface to the inside surface thereof. The cradle comprises a tub receiving portion and a base. The tub receiving portion is adapted for nestable engagement with the tub and further includes a heat generating means. When the tub is nested with the cradle, the heat generating means makes physical contact with the heat conductive means of the tub so as to allow heat transmission thereto. An electric switch is located electrically between the heating element and a power source. The electric switch is preferably a thermostat for deactivating the heat generating means when the water in the tub reaches a selected temperature. A water spraying means is preferably included that may be actuated to circulate water from the tub, through the pump, through the spray nozzle, and back into the tub.

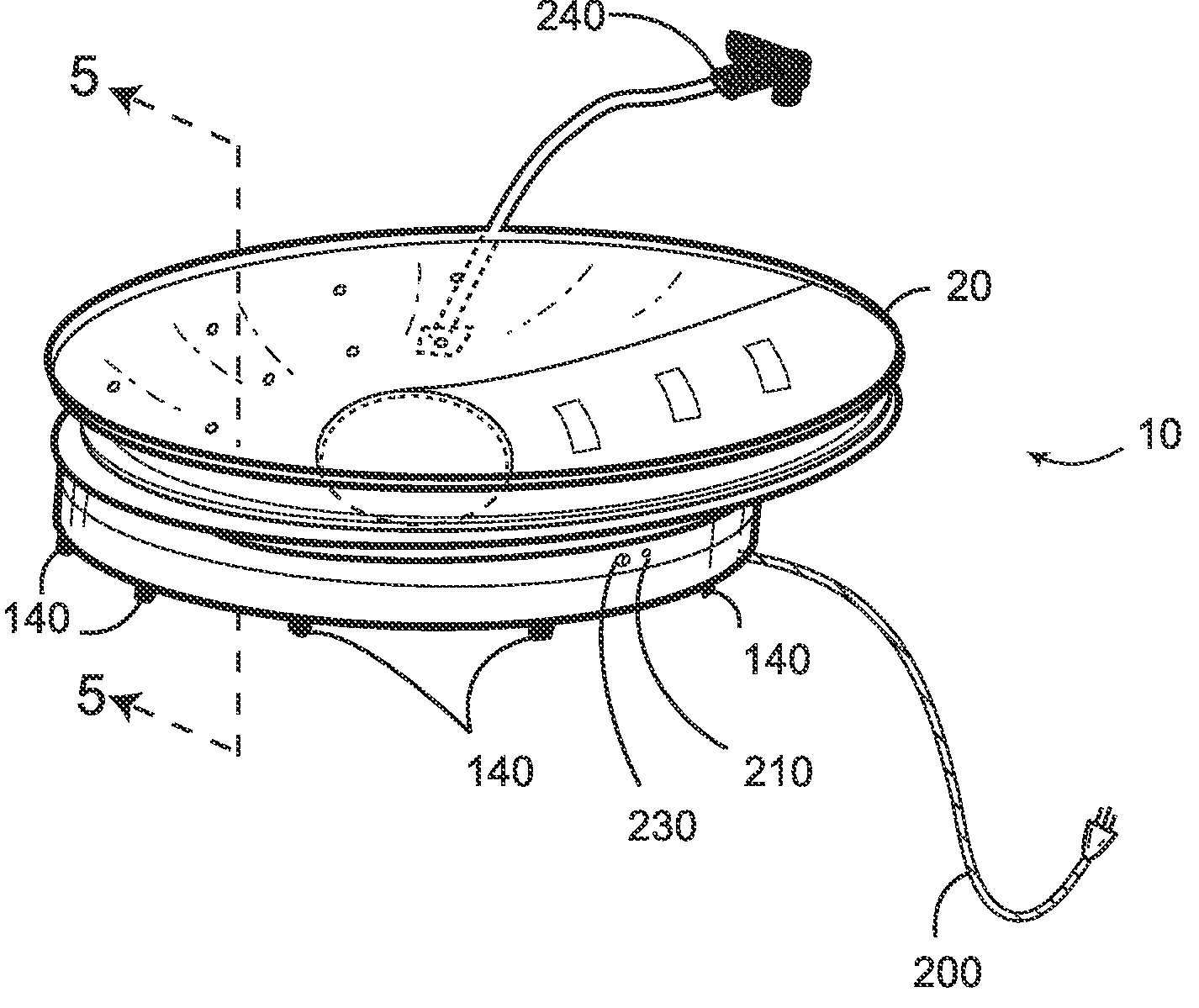

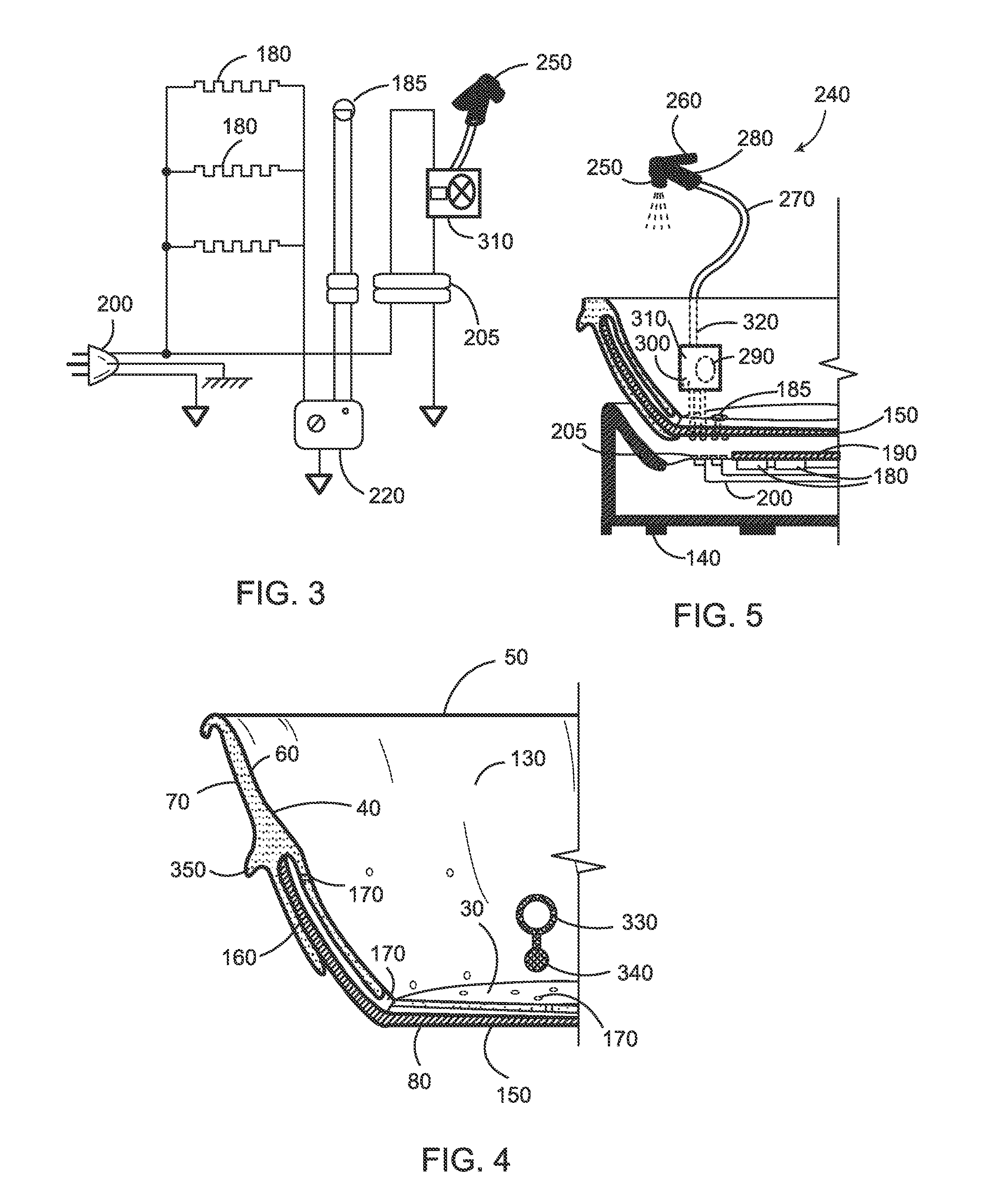

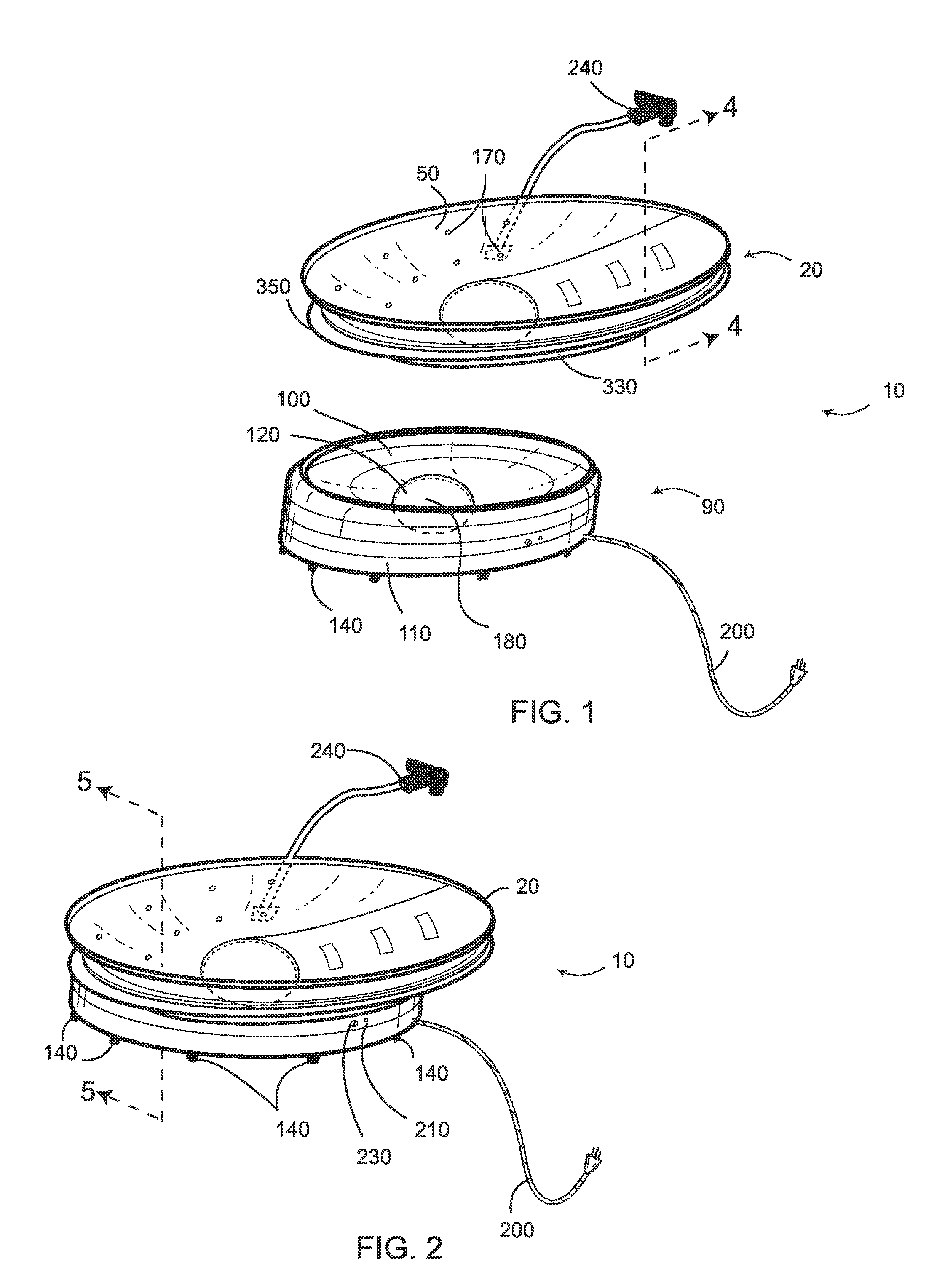

专利附图（6）
