信息库卫浴用品可伸缩旋转的温泉扬声器系统
来源记录显示 Expired

可伸缩旋转的温泉扬声器系统

Retractable rotating spa speaker system

US-7814583-B2

用于温泉的隐藏式可旋转扬声器,提供音频。

专利摘要

一种温泉扬声器装置,具有其中安装有扬声器的壳体,其中扬声器可相对于壳体伸出和缩回,并且扬声器还可在壳体内旋转。还公开了一种用于向温泉提供音频的系统。该系统包括具有壁的温泉和安装到温泉壁的至少一个扬声器单元。每个扬声器单元能够接收音频信号,并朝向温泉的 occupants 产生声音。每个扬声器单元包括一个扬声器,该扬声器可单独缩回以隐藏在温泉壁后面,并可从温泉壁伸出。每个扬声器还可在温泉壁内旋转以引导扬声器声音。

Original abstractA spa speaker apparatus having a housing with a speaker mounted therein, wherein the speaker can be extended and retracted with respect to the housing and the speaker is also rotatable within the housing. A system for providing audio to a spa is also disclosed. The system comprises a spa having walls and at least one speaker unit mounted to a spa wall. Each of the speaker units is capable of receiving an audio signal, and generating sound towards the occupants of the spa. Each of the speaker units comprises a speaker that is individually retractable to be hidden behind the spa wall and extendible from the spa wall. Each of the speakers is also rotatable within the spa wall to direct the speaker sound.

专利附图(8)

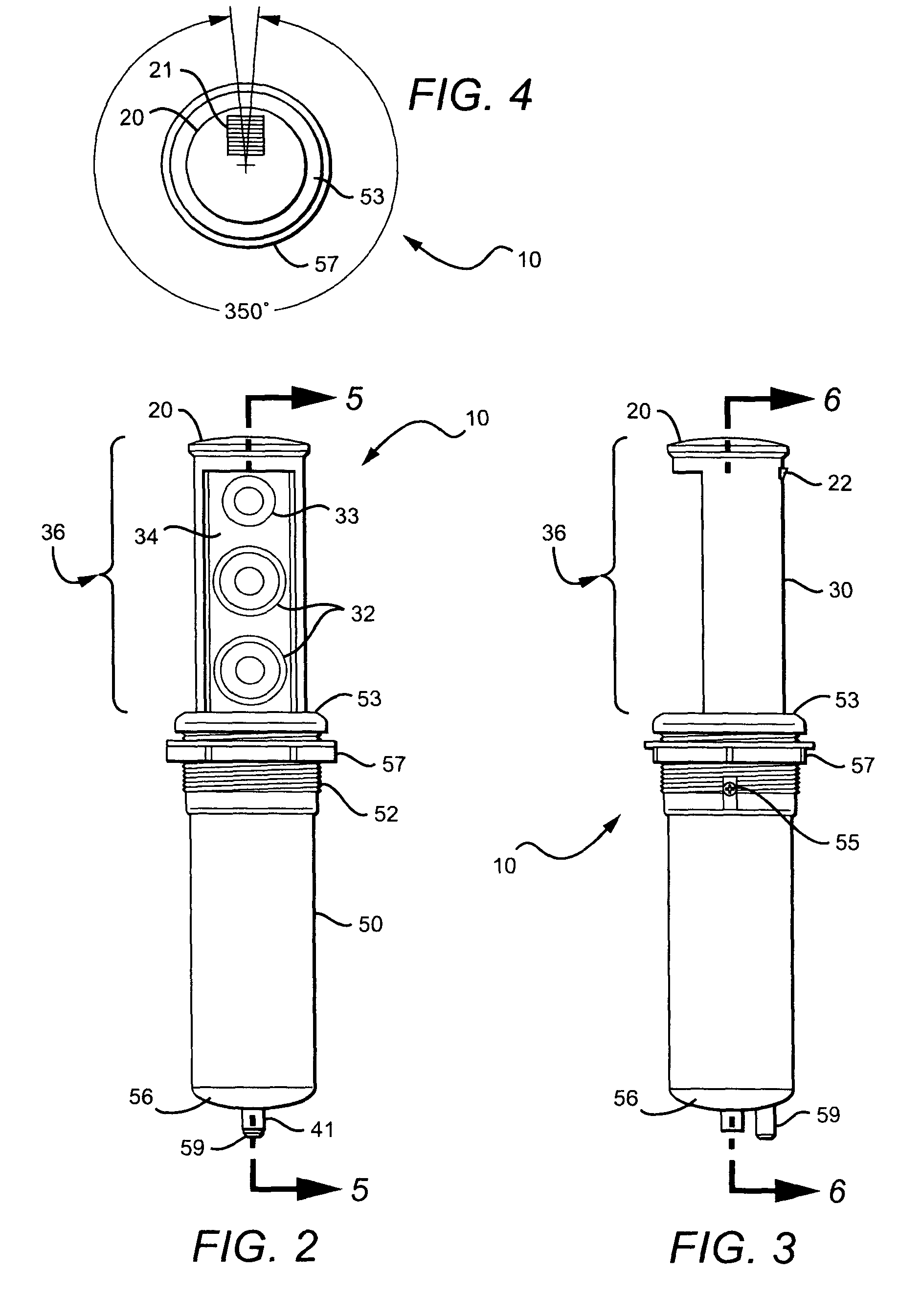

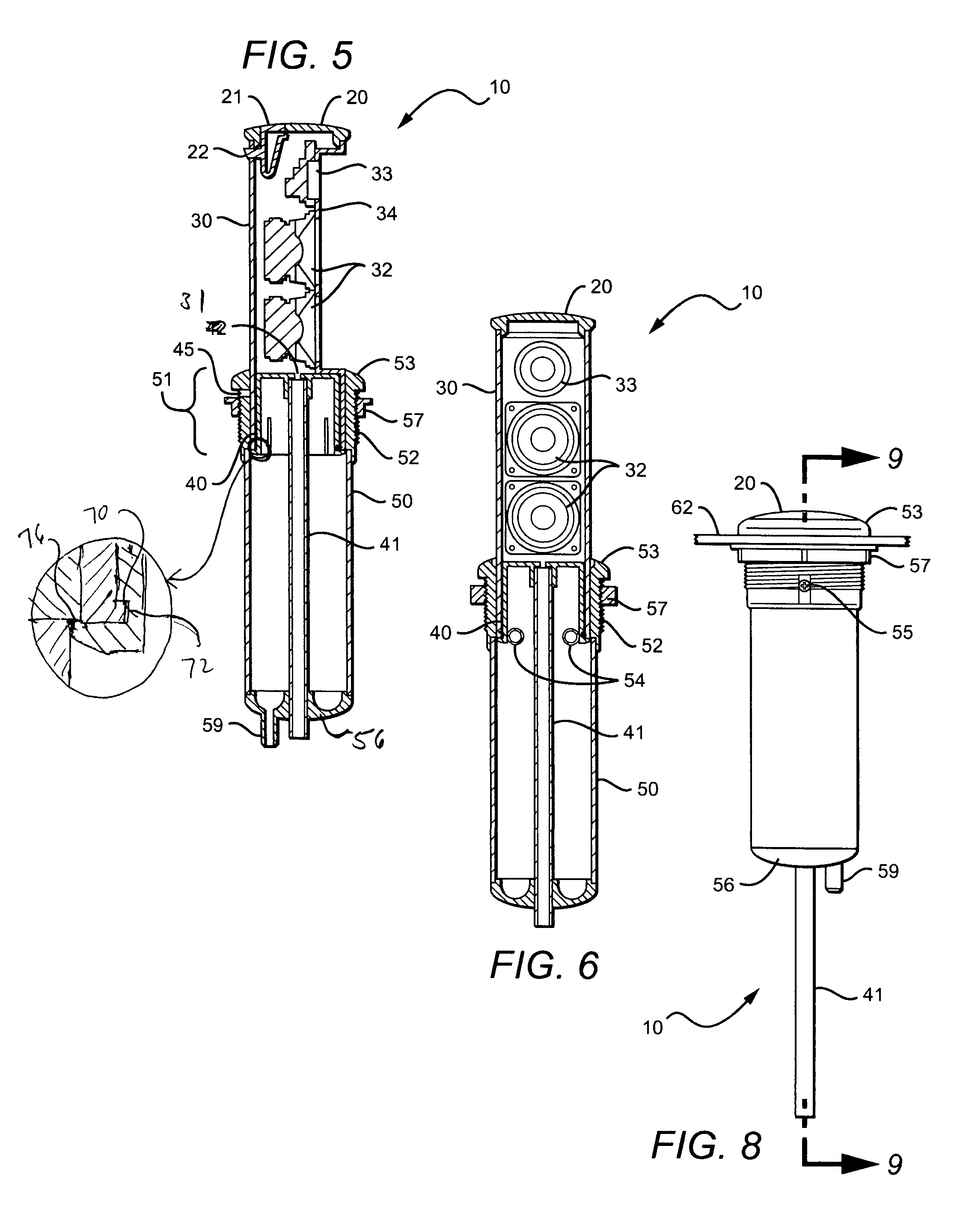

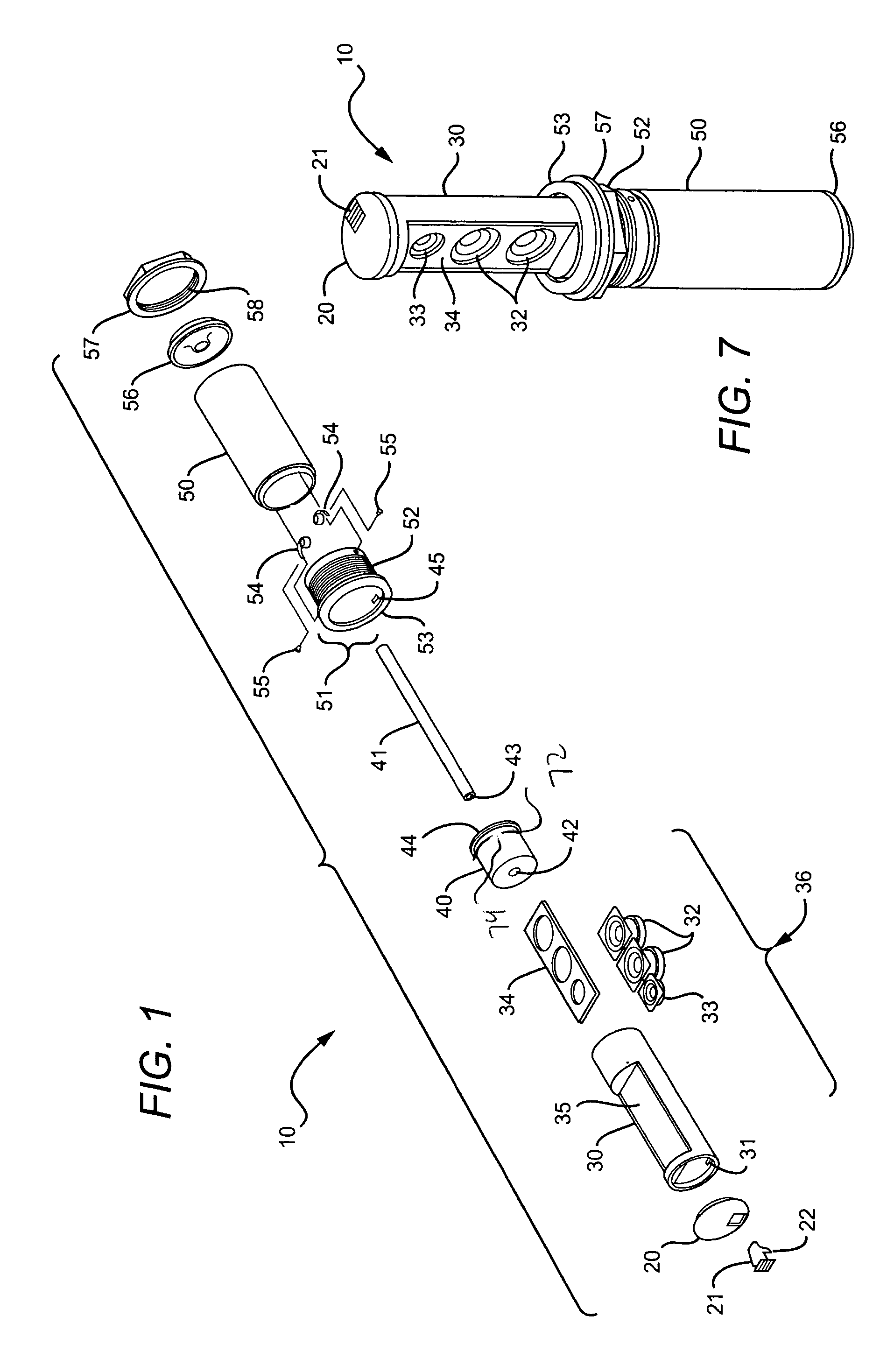

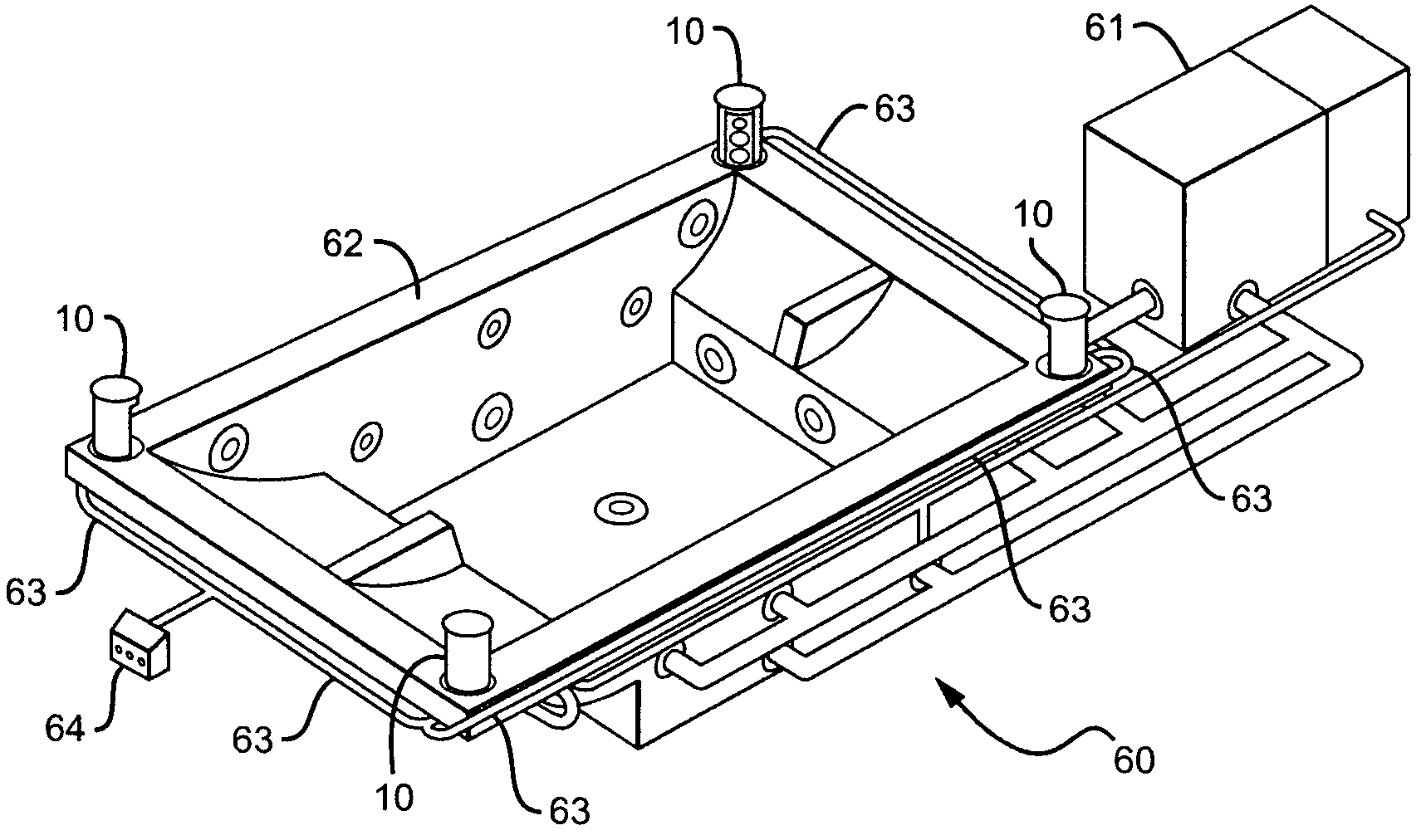

US-7814583-B2 figure 1
1
US-7814583-B2 figure 2
2
US-7814583-B2 figure 3
3
US-7814583-B2 figure 4
4
US-7814583-B2 figure 5
5
US-7814583-B2 figure 6
6
US-7814583-B2 figure 7
7
US-7814583-B2 figure 8
8
