用于患者房间的移动式马桶，方便清洁和移动。
专利摘要
一种用于患者房间的自包含便携式马桶，包括可移动柜体，其具有底座和底座上的多个轮子以及用于移动和将柜体固定到选定位置的制动器。柜体还包括水箱、马桶盆，马桶盆在其底部具有开口，设置在柜体中预定高度处。在马桶盆中的开口下方提供排泄物抽屉，并且导管提供来自水箱的水用于清洁患者和/或盆。柜体还包括水位指示器，用于指示水箱和排泄物抽屉中的水量。抽屉还包括用于接收废物的开口和弹簧偏压元件，用于当抽屉从柜体移除时关闭开口。
Original abstractA self-contained portable toilet for a patient's room includes a movable cabinet having a base and a plurality of wheels on the base and a brake for moving and securing the cabinet to a selected location. The cabinet also includes a water tank, a toilet bowl having an opening in the bottom portion thereof disposed in the cabinet at a pre-selected height. An excrement drawer is provided below the opening in the toilet bowl and a conduit provides water from the tank for cleaning a patient and/or the bowl. The cabinet also includes water level indicators for indicating the amount of water in the tank and in the excrement drawer. The drawer also includes an opening for receiving waste and a spring biased element for closing the opening when the drawer is removed from the cabinet.

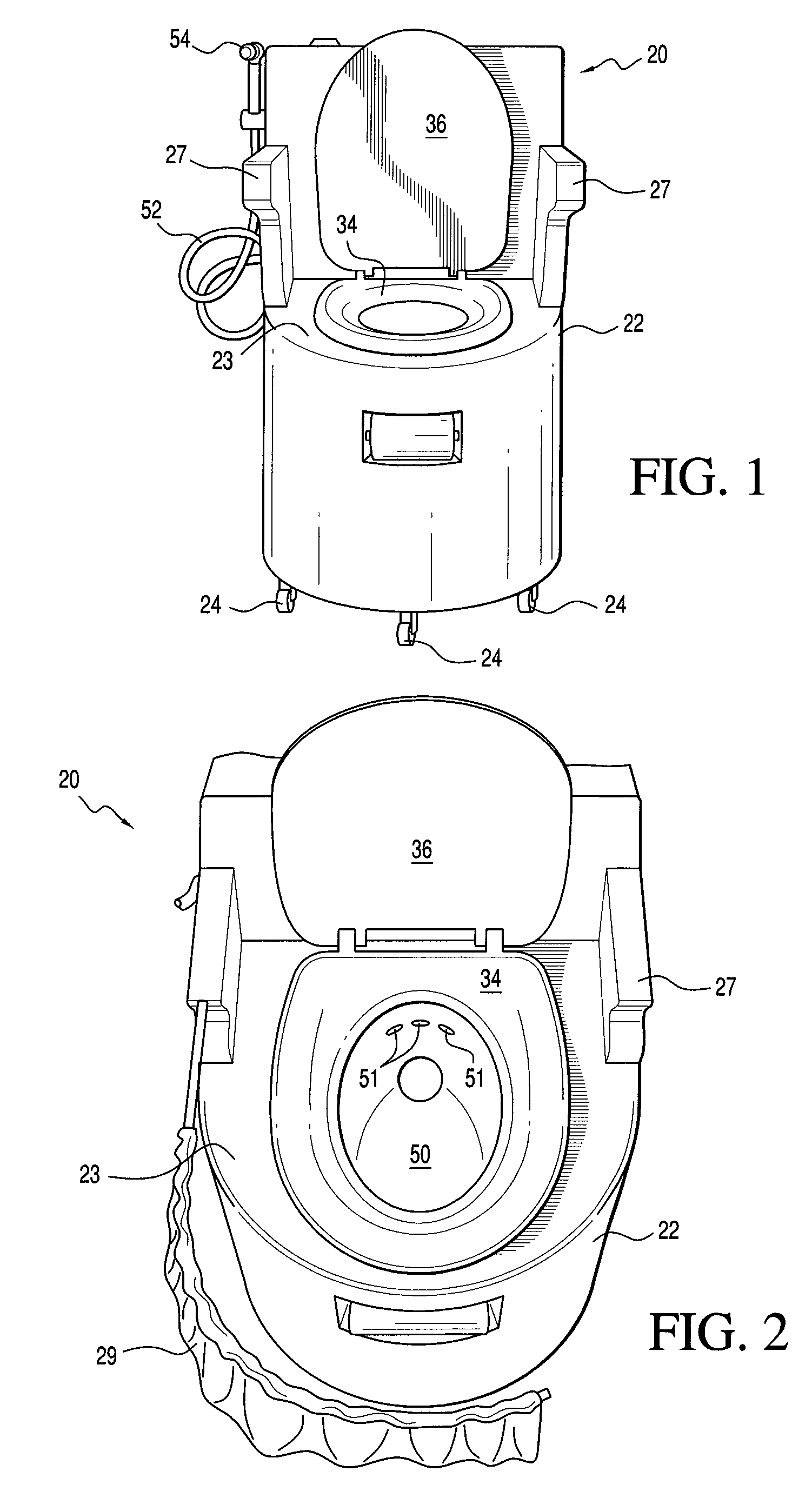

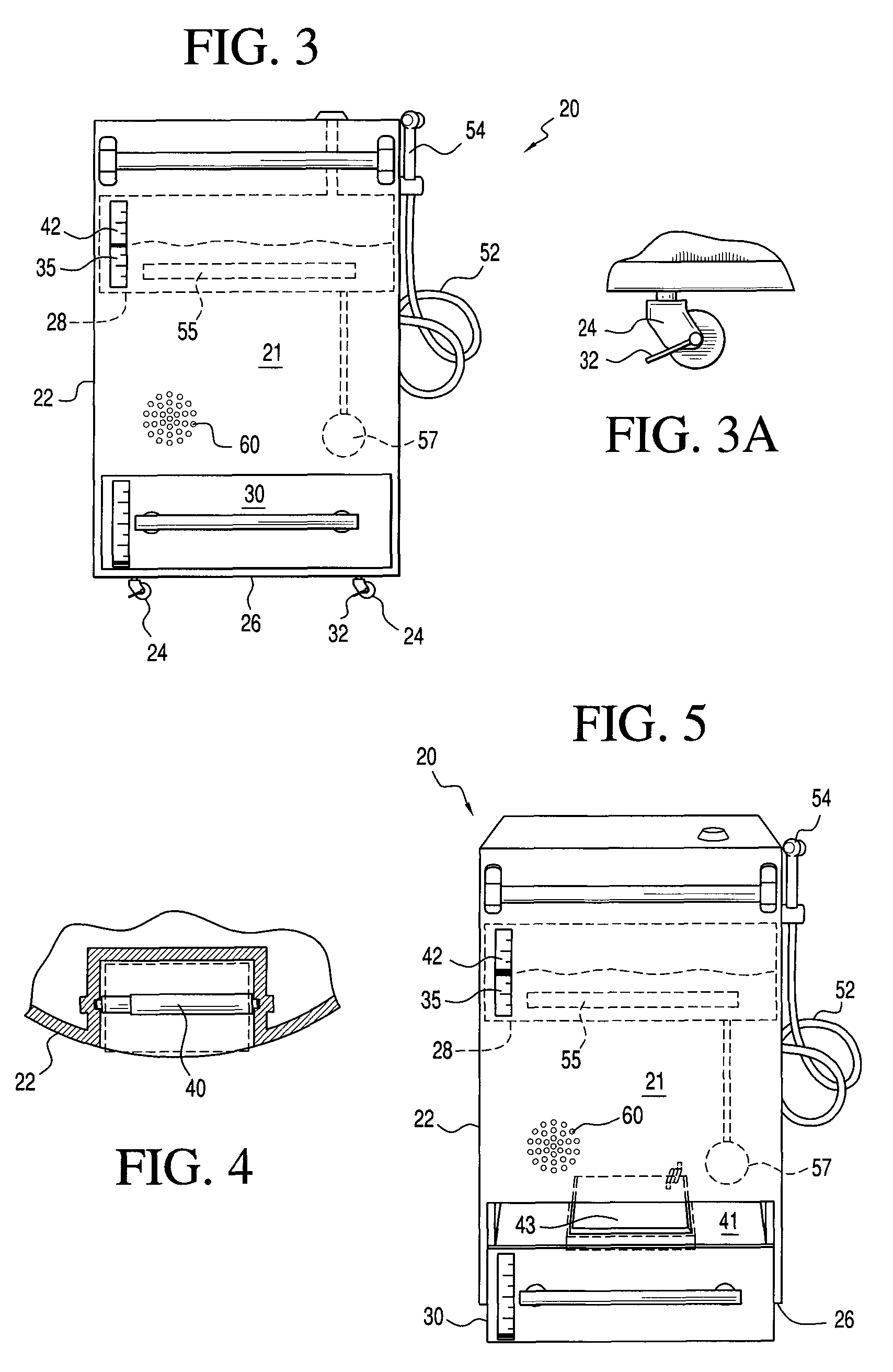

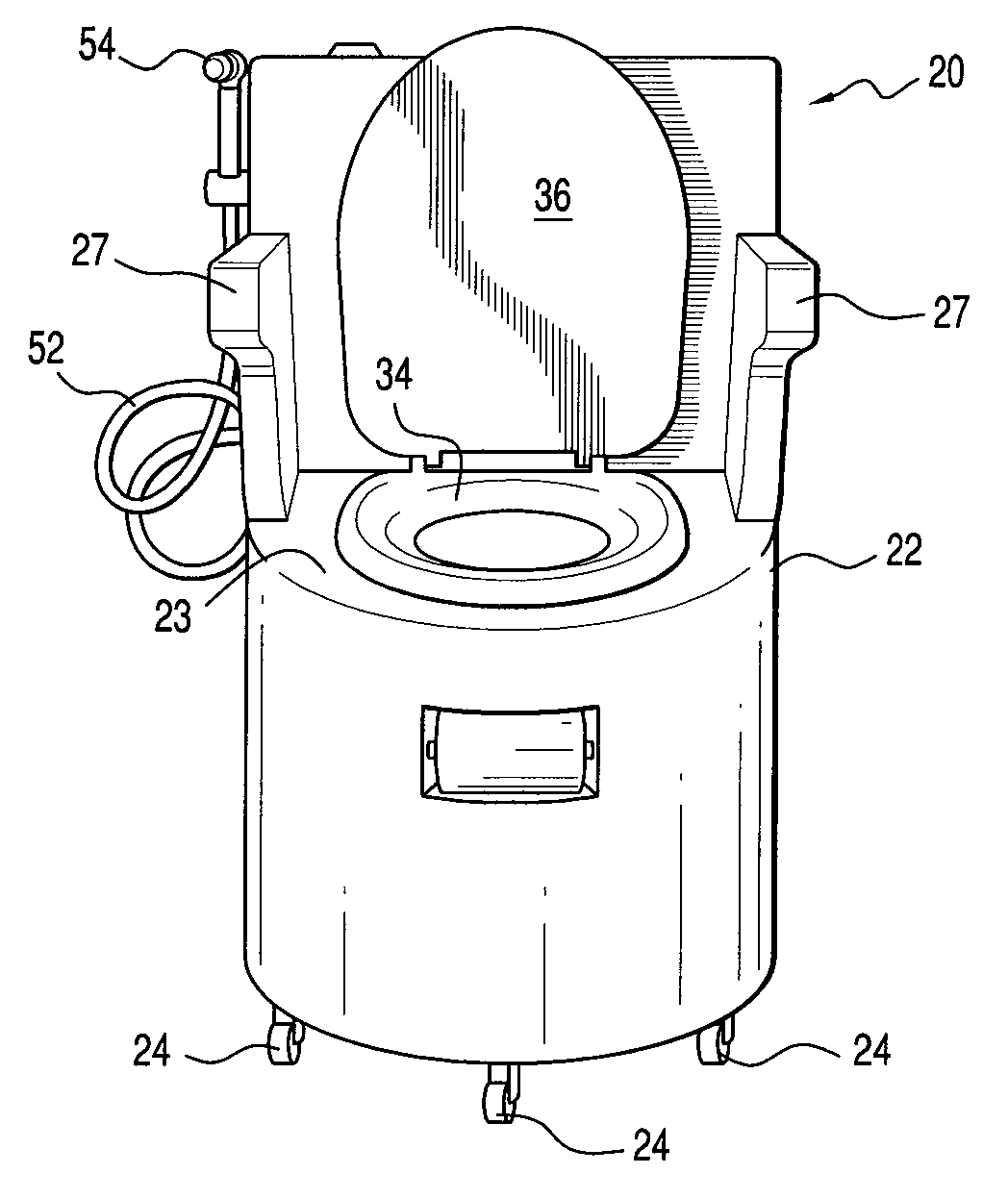

专利附图（6）
