用于整理衣物配件的旋转挂架，便于取用。
专利摘要
公开了一种用于整理衣物的装置，包括具有可转动地安装到其上的第一和第二滚筒的外壳。驱动系统用于使皮带围绕第一和第二滚筒旋转。皮带包括多个用于悬挂物品的挂钩。在一个实施例中，该装置安装在衣柜杆上，并进一步包括后端，其具有可调节伸缩套筒以将安装的装置稳定靠在墙上。该装置可以包括可拆卸电池组，安装在装置的下侧。可拆卸电池组上可以安装灯泡以照亮挂钩上物品的选择。在另一个实施例中，该装置包括杆安装装置，其长度防止或最小化悬挂在装置上的物品与附近悬挂的其他物品的缠绕。
Original abstractAn apparatus for organizing articles of clothing is disclosed, including a housing having first and second drums rotatably mounted thereto. A drive system is used for rotating a belt around the first and second drums. The belt includes a plurality of hooks for hanging articles thereon. In one embodiment, the apparatus mounts on a closet rod and further includes a posterior end with an adjustable telescoping sleeve to stabilize the mounted apparatus against a wall. The apparatus can include a removable battery pack mounted to the underside of the apparatus. The removable battery pack can have a light bulb mounted on it to illuminate the selection of articles on the hooks. In another embodiment, the apparatus includes a rod-mounting apparatus that has a length that prevents or minimizes entanglement of articles hanging on the apparatus with other articles hanging near the apparatus.

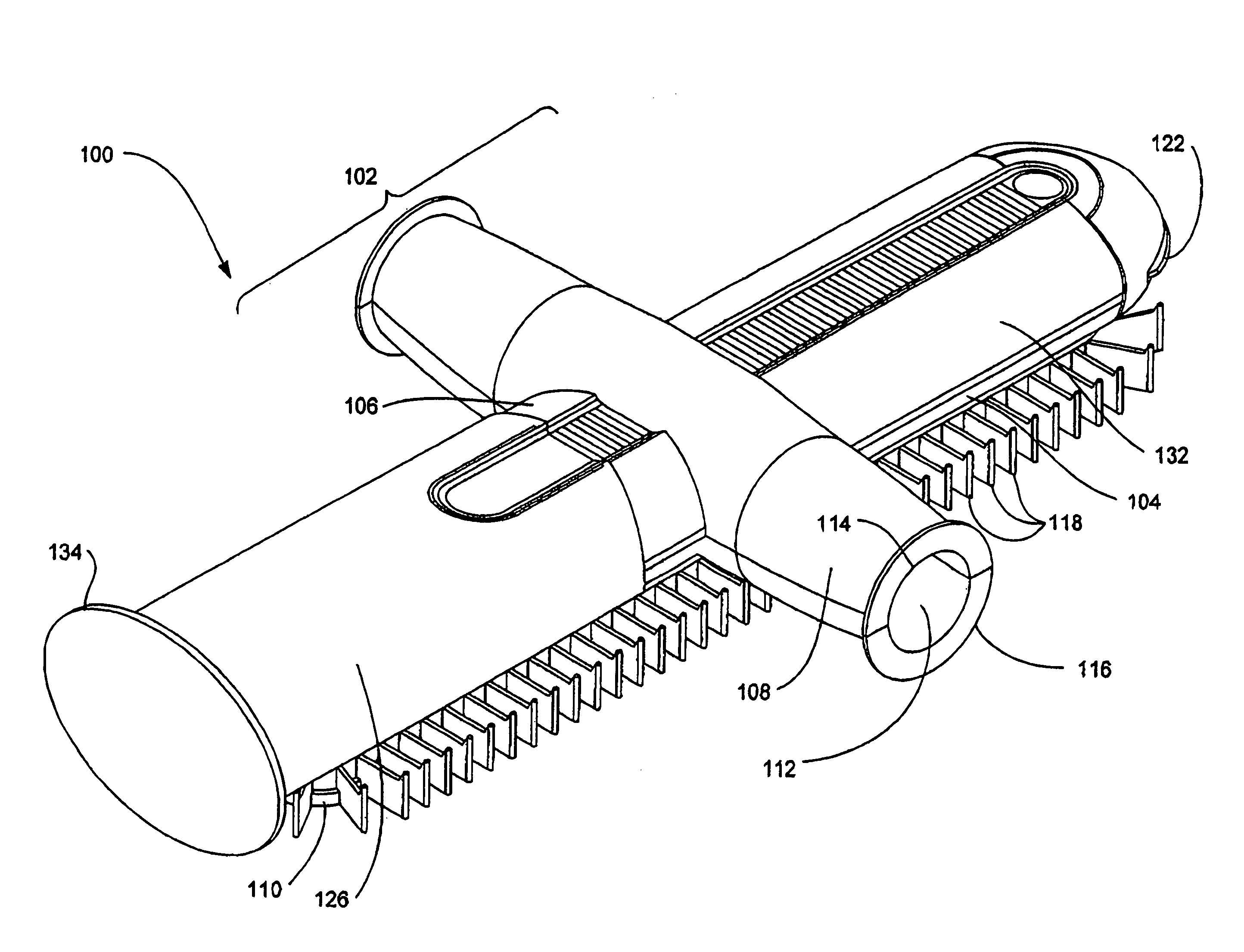

专利附图（8）
