一种提供宽敞腿部空间的桌子结构。
专利摘要

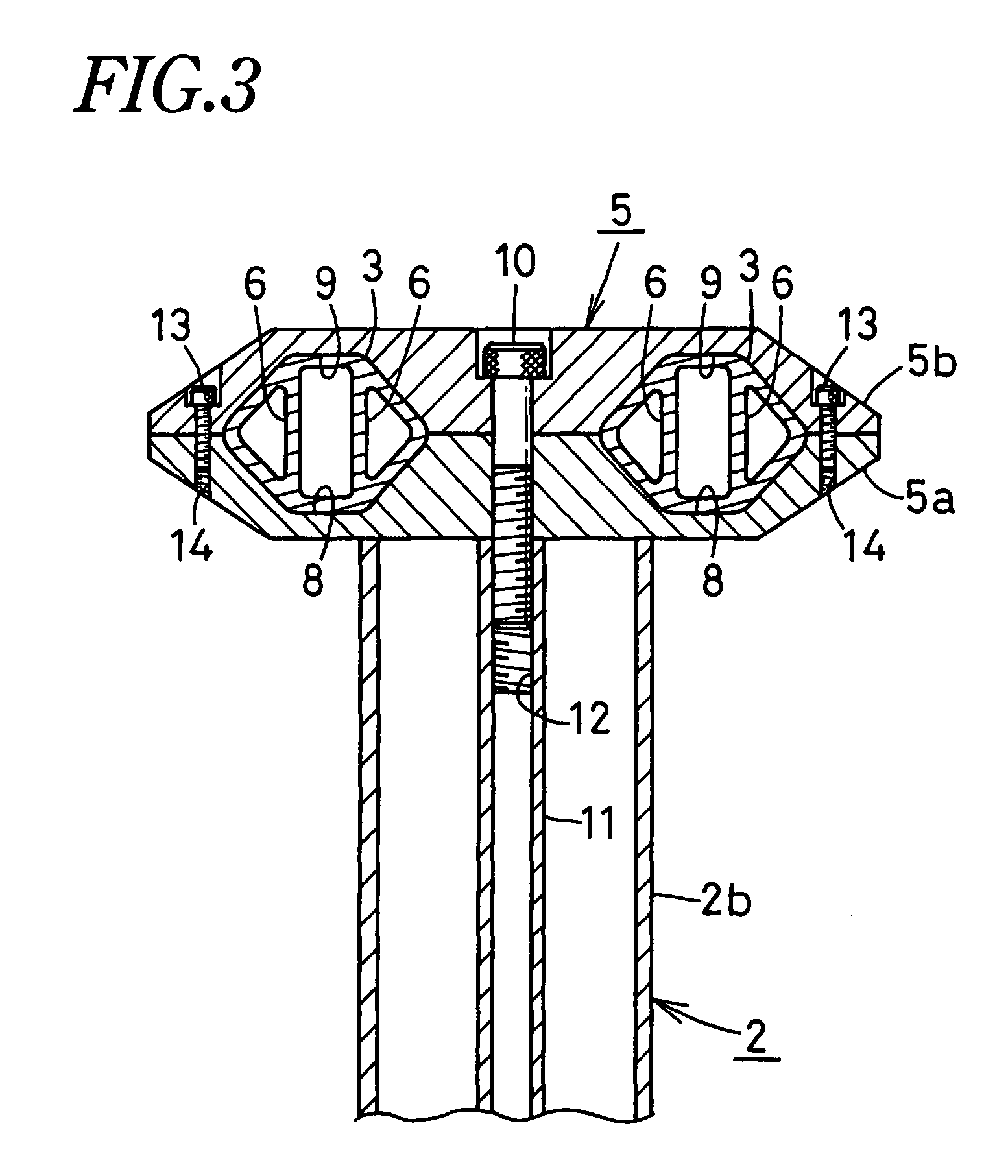

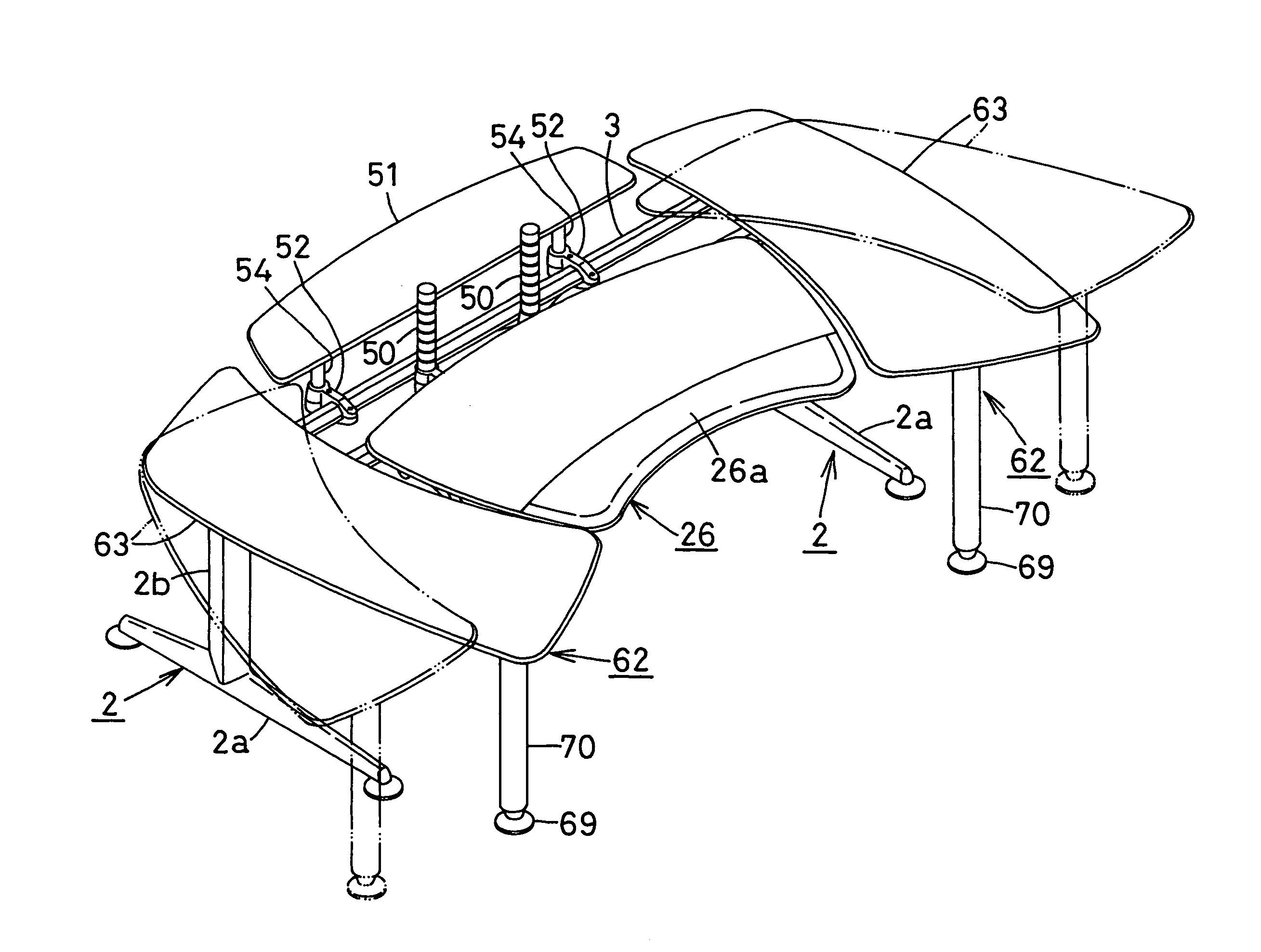

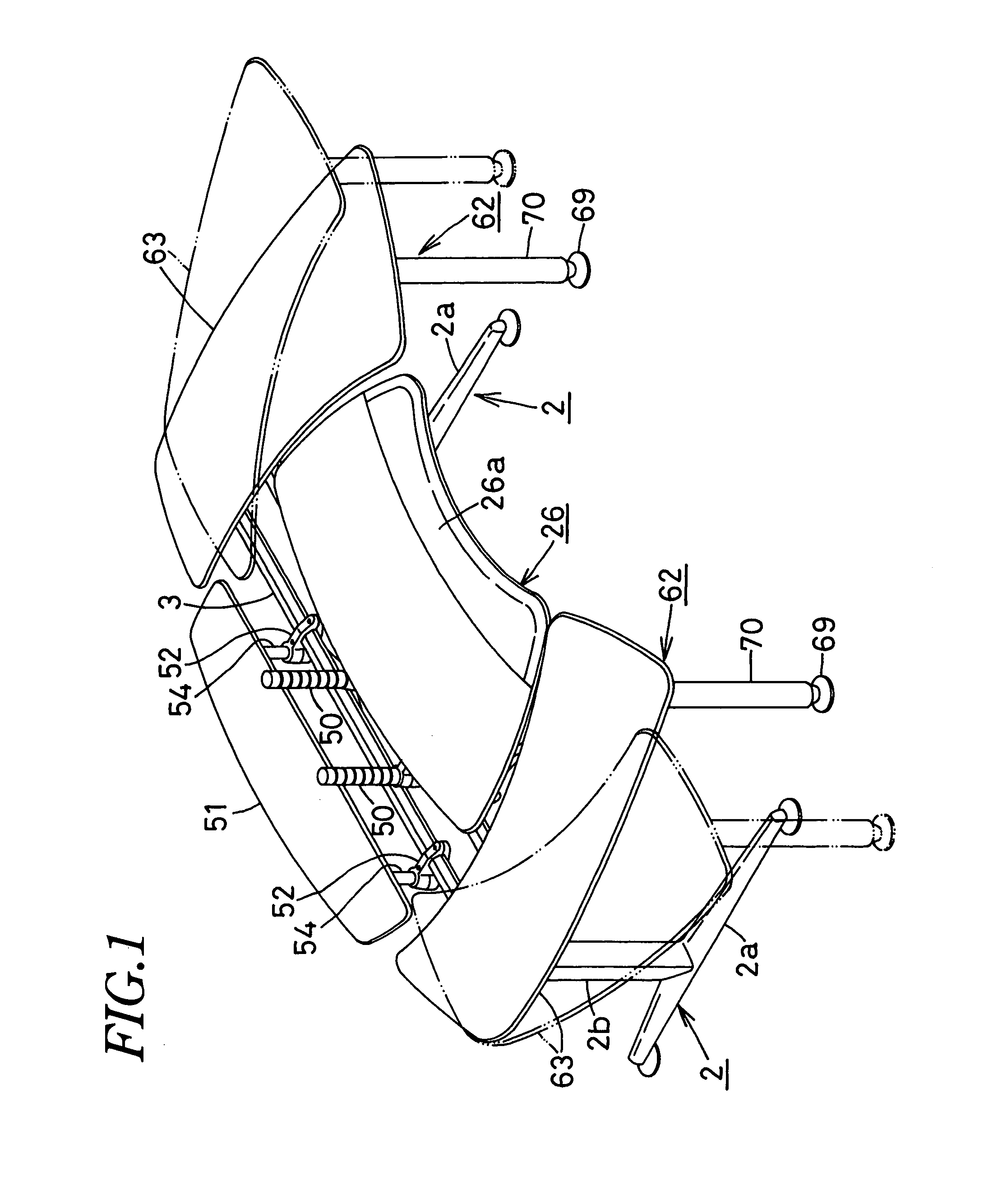

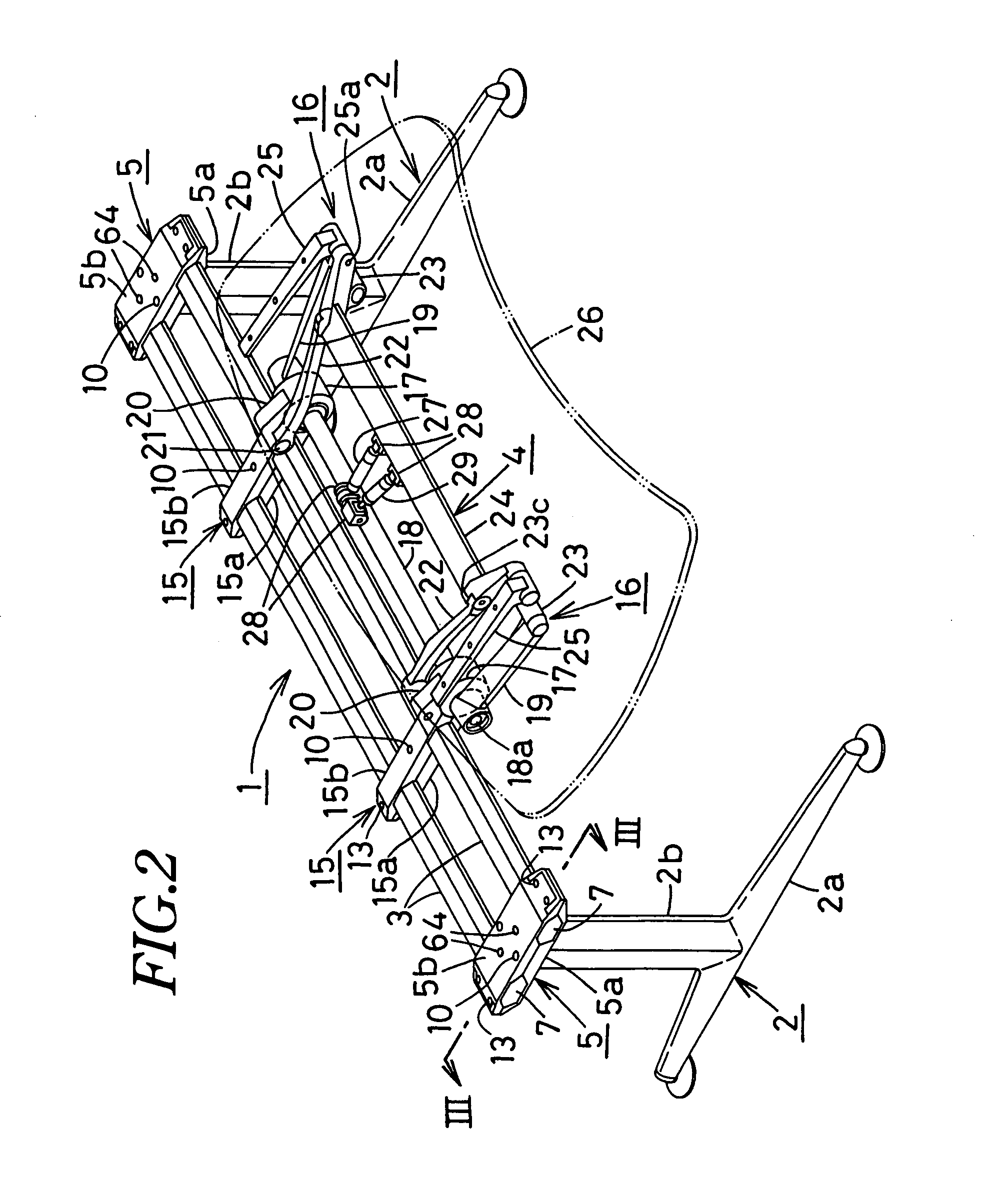

顶板被支撑成大大突出于腿体前方，从而在顶板下方形成大的腿部空间。左右腿体（2）的下端具有沿前后方向延伸的底腿（2a），其上端通过沿左右方向延伸且具有非圆形横截面的横向连接杆（3）连接。至少一对沿前后方向延伸的顶板支撑体（4）的后端部固定到横向连接杆（3）上并向前突出。顶板（26）的下表面安装在顶板支撑体（4）上，使得顶板（26）的大部分位于横向连接杆（3）的前方。
Original abstractA top plate is supported while being greatly projected forward of leg bodies, which forms a large lower leg space under the top plate. Upper ends of left and right leg bodies ( 2 ) having, at their lower ends, base legs ( 2 a ) that are directed in a front-rear direction are connected by lateral connection rods ( 3 ) that are directed in a left-right direction and have a non-circular cross-section. Rear end sections of at least a left and right pair of top plate support bodies ( 4 ) directed in the front-rear direction are fixed to the lateral connection rods ( 3 ) so as to project forward. The lower surface of the top plate ( 26 ) is installed on the top plate support bodies ( 4 ) such that the most part of the top plate ( 26 ) is located forward of the lateral connection rods ( 3 ).
专利附图（8）
