用于柜子中可升降储物箱的提升机构，方便取物。
专利摘要
一种用于储物箱的提升机构，位于具有台面的柜子中。提升机构具有适于支撑在柜子中的底座、可操作地连接到底座的可移动构件、连接到可移动构件的支撑构件以及由支撑构件支撑的储物箱。可移动构件可在第一位置和第二位置之间移动，在第一位置，储物箱适于放置在柜子内，在第二位置，储物箱被提升使得其适于移出柜子。当储物箱被提升时，储物箱的顶部适于靠近台面定位。
Original abstractA lifting mechanism for a storage bin is positioned in a cabinet having a countertop. The lifting mechanism has a base adapted to be supported in the cabinet, a moveable member operably connected to the base, a support member connected to the moveable member, and a storage bin supported by the support member. The moveable member is moveable between a first position, wherein the storage bin is adapted to be positioned within the cabinet, and a second position wherein the storage bin is raised such that the storage bin is adapted to be positioned out of the cabinet. When the storage bin is raised, a top of the storage bin is adapted to be positioned proximate the countertop.

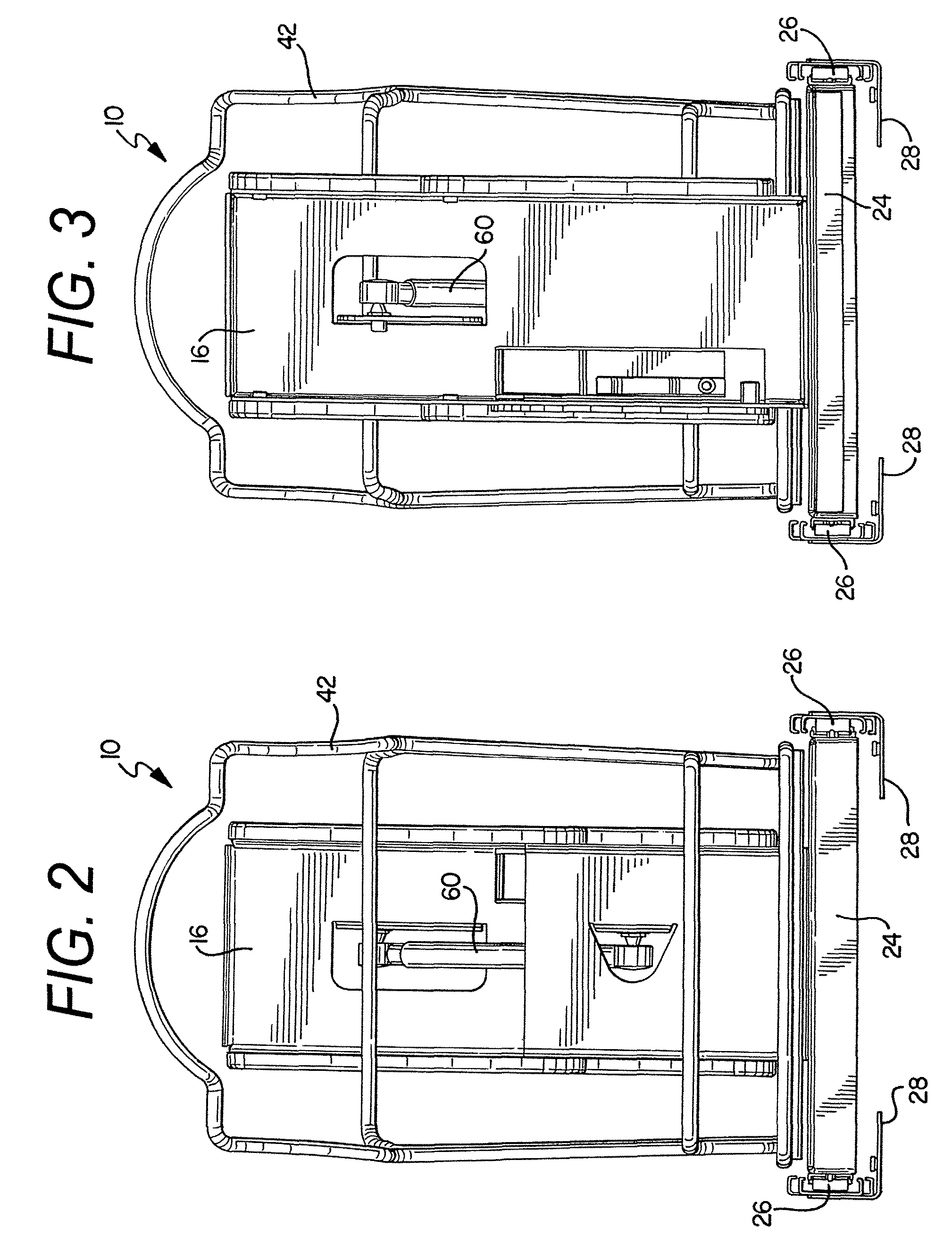

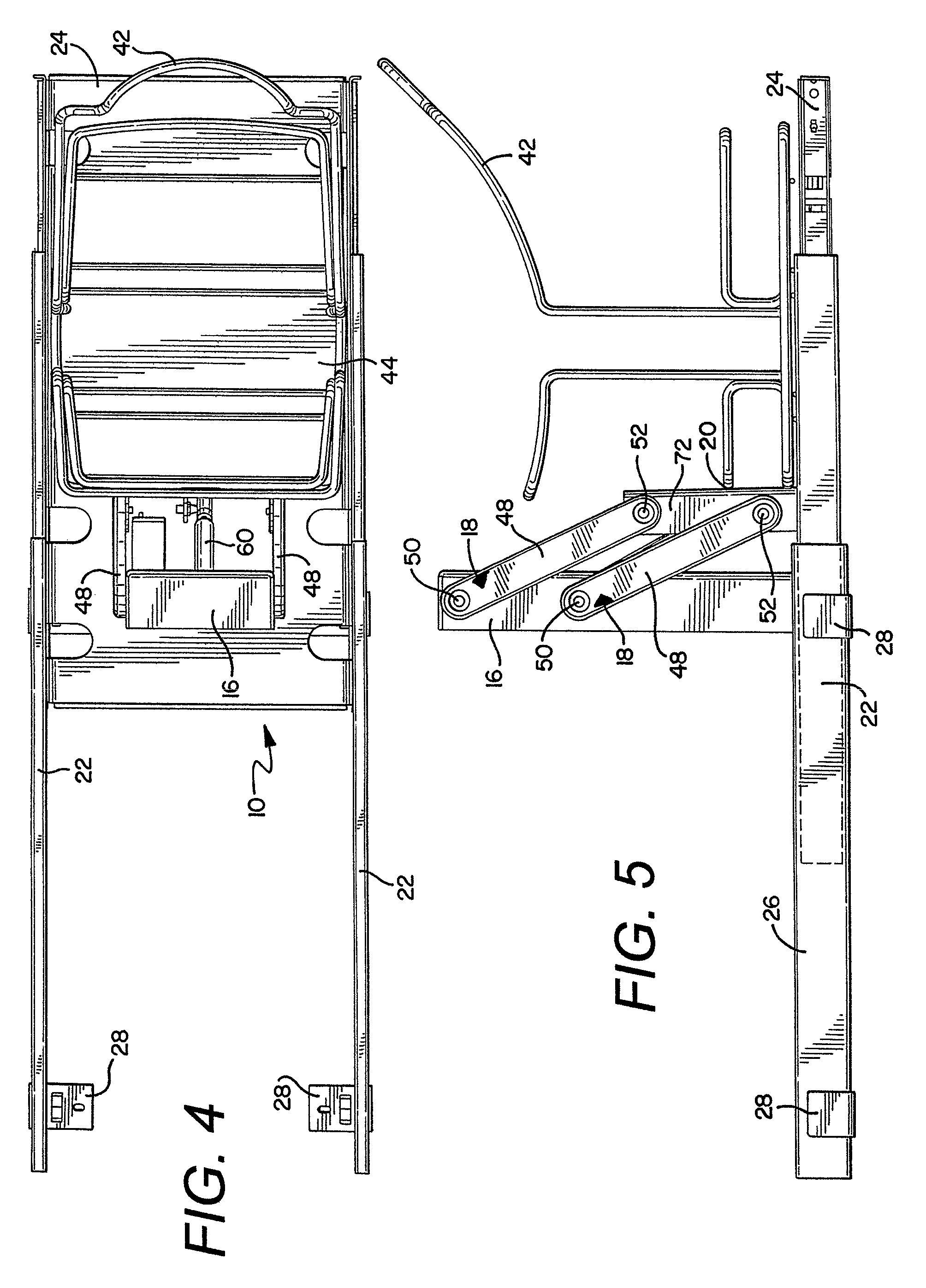

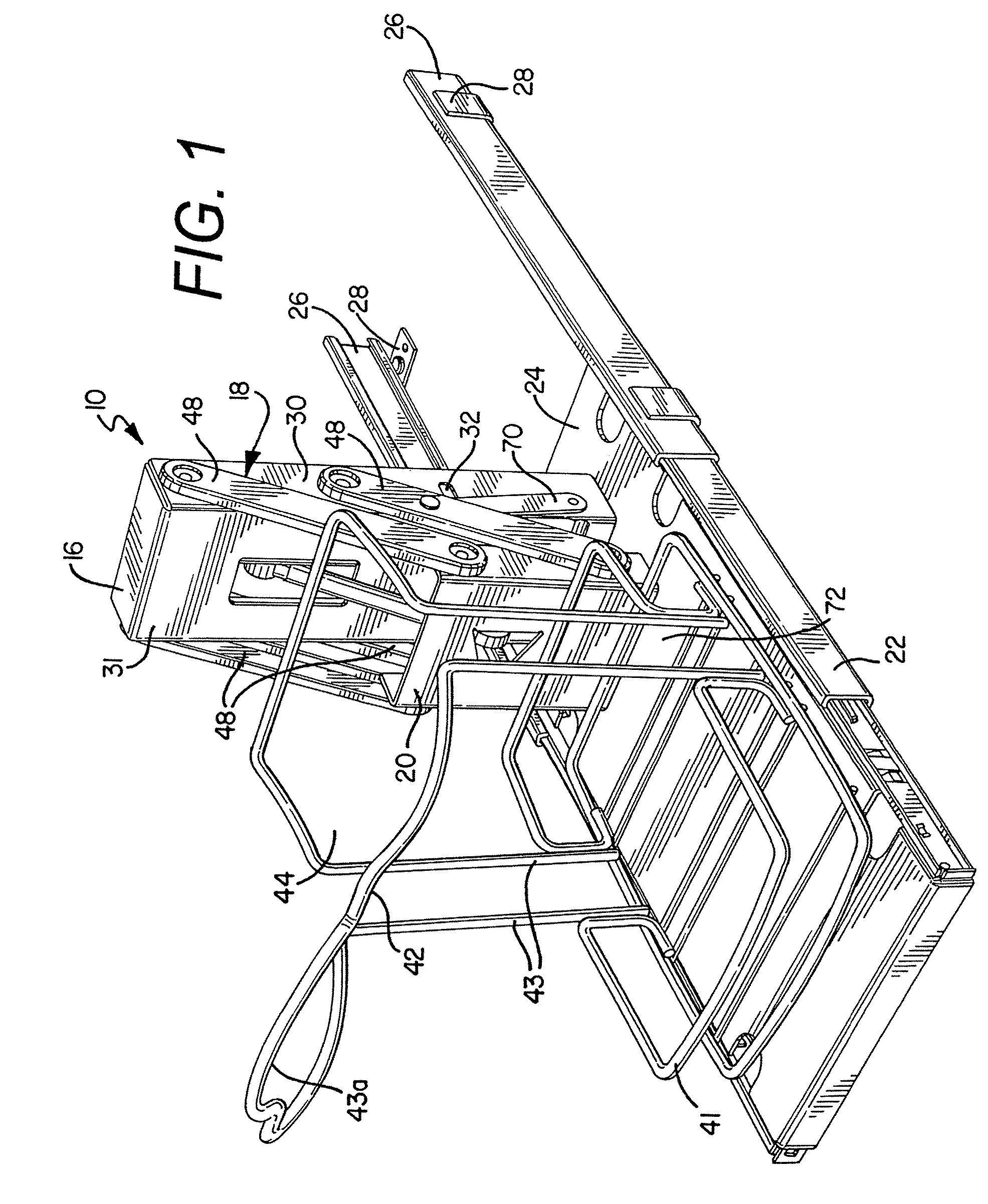

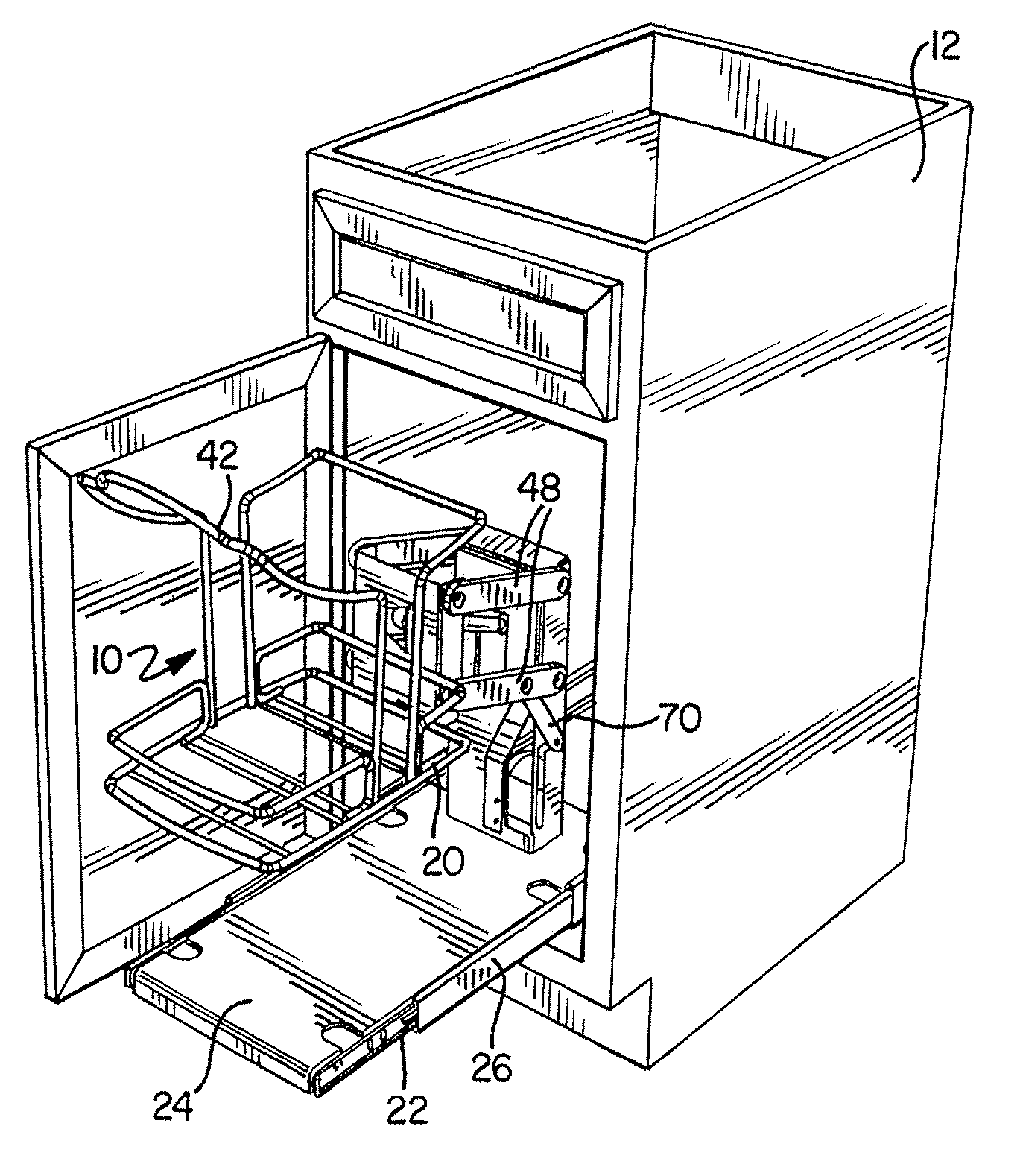

专利附图（8）
