防止碎屑进入吸管的饮用吸管。
专利摘要

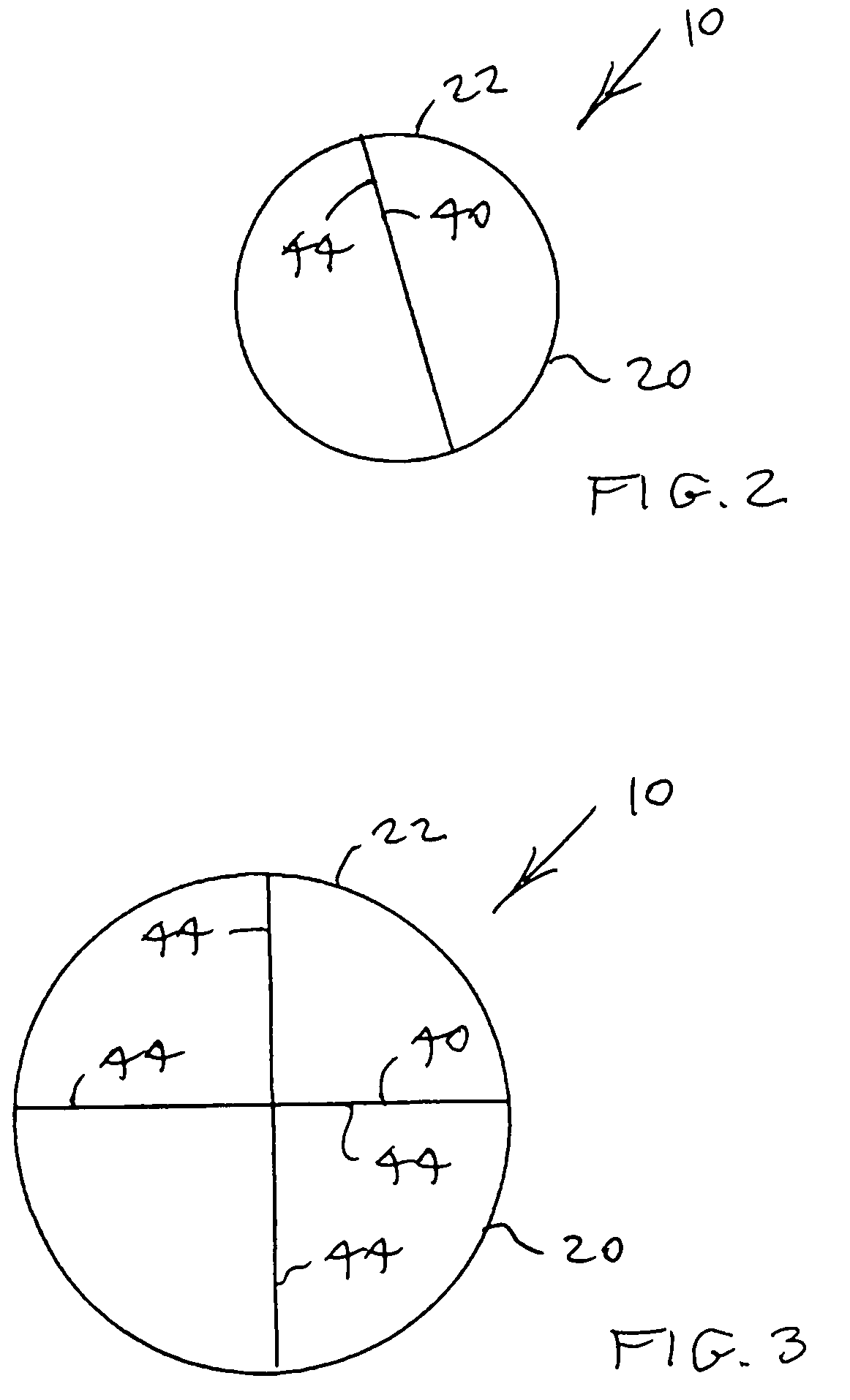

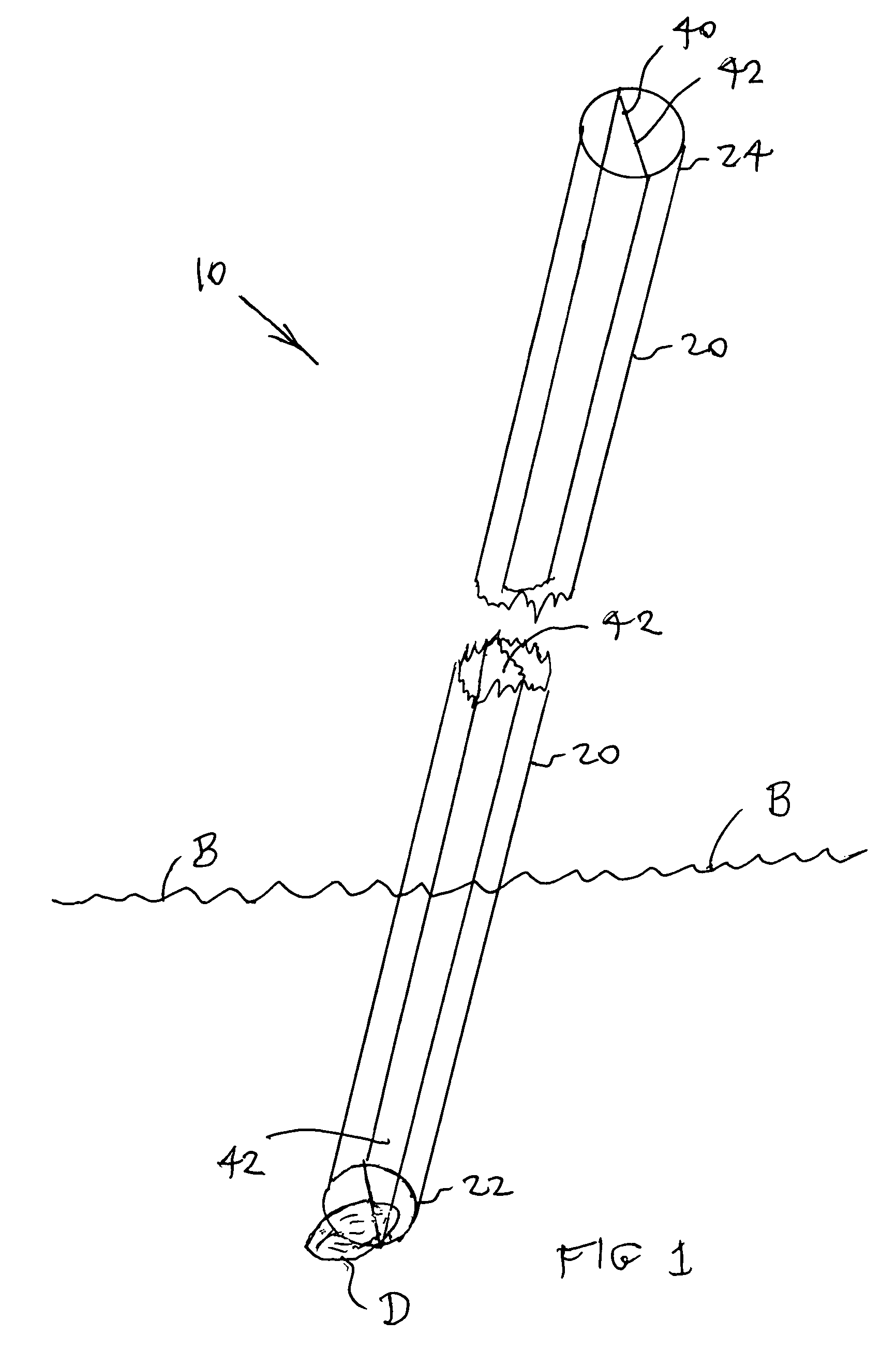

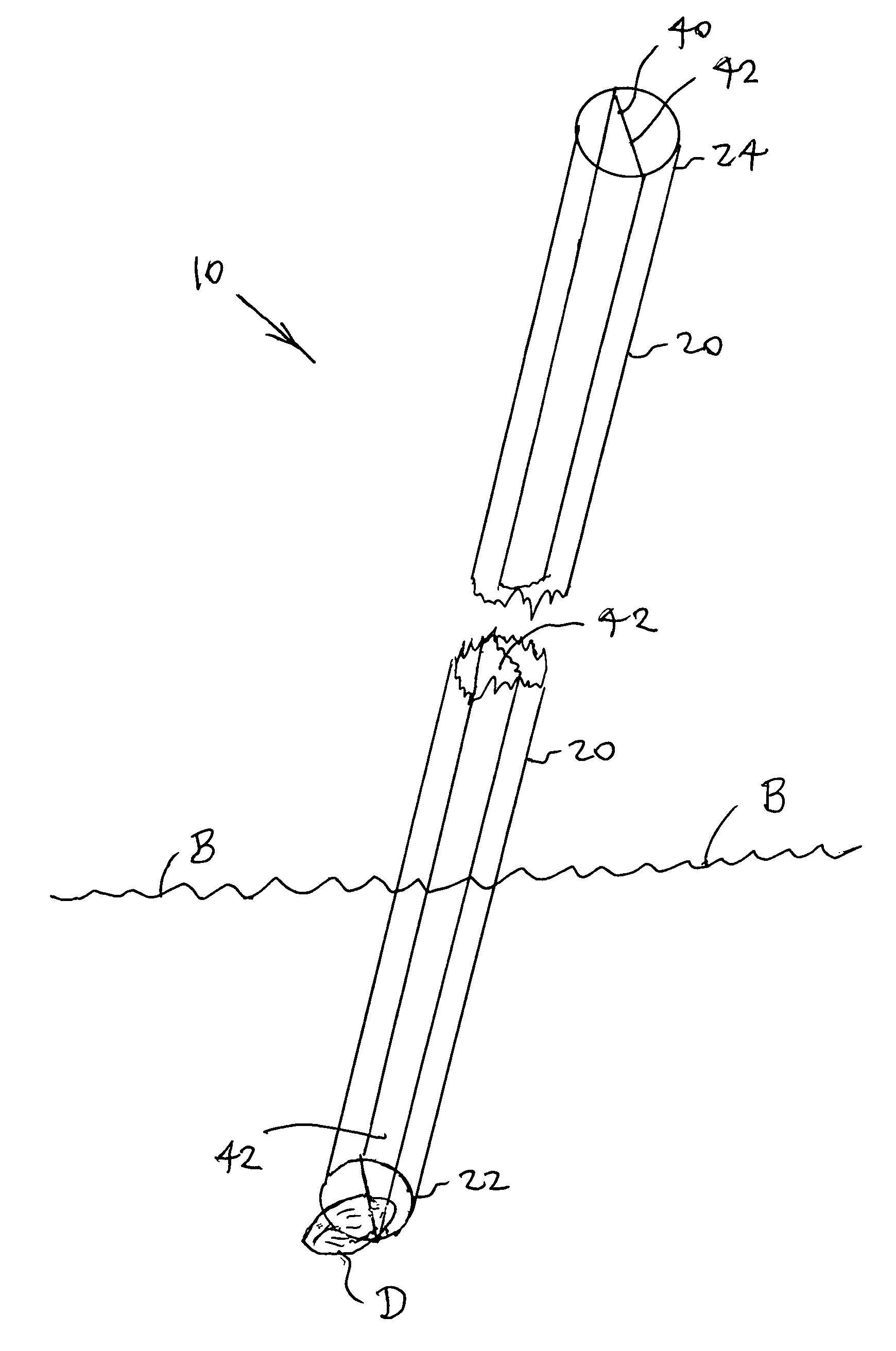

一种安全饮用吸管包括饮料输送管,其具有用于插入饮料中的管第一端和用于放置在用户嘴唇之间的管第二端;以及基本上在管第一端的碎屑阻挡结构,允许饮料自由流过输送管,同时防止选定最小目标尺寸的碎屑进入输送管;从而碎屑阻挡结构防止碎屑进入输送管,并因此防止碎屑在输送管内滞留并成为障碍物。碎屑阻挡结构优选包括至少一根横跨输送管内部基本在管第一端的线,或者替代地包括至少一个管隔板或至少两个纵向串联安装并固定在输送管内的管筒。
Original abstractA safety drinking straw includes a beverage delivery tube having a tube first end for insertion into a quantity of beverage and a tube second end for placement between user lips; and a debris blocking structure substantially at the tube first end permitting a free flow of the beverage through the delivery tube while preventing entry of debris of a selected minimum target size into the delivery tube; so that the debris blocking structure prevents debris from entering the delivery tube and thus prevents debris from lodging and becoming an obstruction within the delivery tube. The debris blocking structure preferably includes at least one cord extending across the interior of the delivery tube substantially at the tube first end, and alternatively includes at least one tube partition or at least two tubular barrels fitted longitudinally and in tandem inside and secured within the delivery tube.
