来源记录显示 Expired
包括连接节点和支柱的支撑框架、连接节点、用于在支撑框架的连接节点和支柱之间产生对角连接的连接元件以及用于产生用于平面元件的保持装置的连接元件
Supporting framework comprising connection nodes and struts, connection nodes, connection element for producing a diagonal connection between a connection node and struts of a supporting framework, and connection element for producing a holding device for a flat element
US-7780371-B2用于构建可拆卸框架结构的连接节点系统。
专利摘要
一种具有连接节点和支柱的支撑框架，具有至少两个支柱容纳元件，每个支柱容纳元件居中地布置在连接节点的假想立方体面上。臂从支柱容纳元件延伸，平行于假想立方体面的边缘延伸，并延伸到垂直于臂的假想立方体面的边缘。一个支柱容纳元件的臂与相邻的与其正交布置的支柱容纳元件的臂相遇，并形成至少一个环。连接元件可钩入环中以产生对角连接。
Original abstractA supporting framework with connection node and struts has at least two strut receiving elements, each strut receiving element being arranged centrally on an imaginary cube face of the connection node. Arms extend from the strut receiving elements and run parallel to the edges of the imaginary cube face and extend up to an edge of the imaginary cube face that is perpendicular to the arms. The arms of one strut receiving element meet arms of an adjacent strut receiving element arranged orthogonal thereto and form at least one loop. A connection element can be hooked into the loop for producing a diagonal connection.

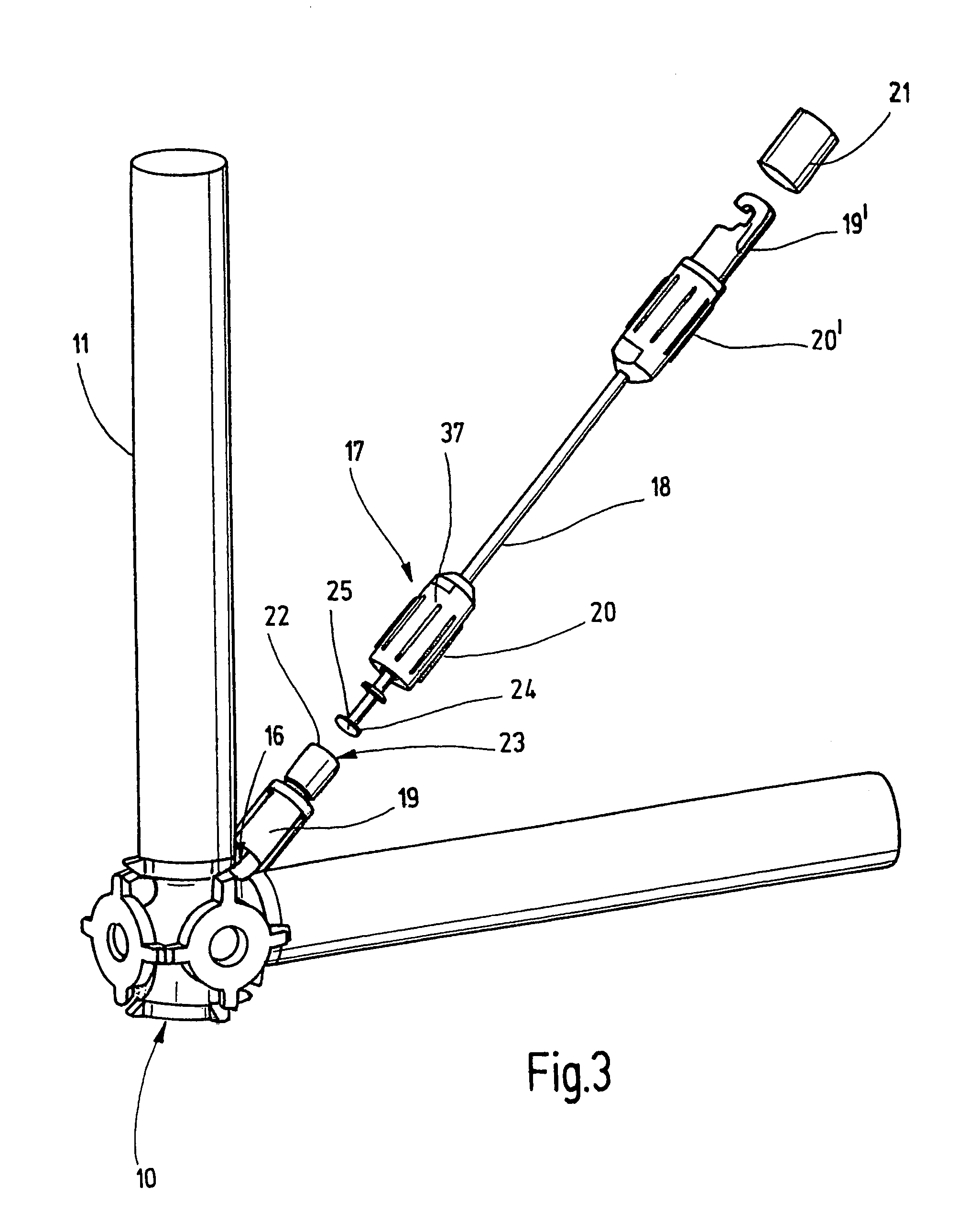

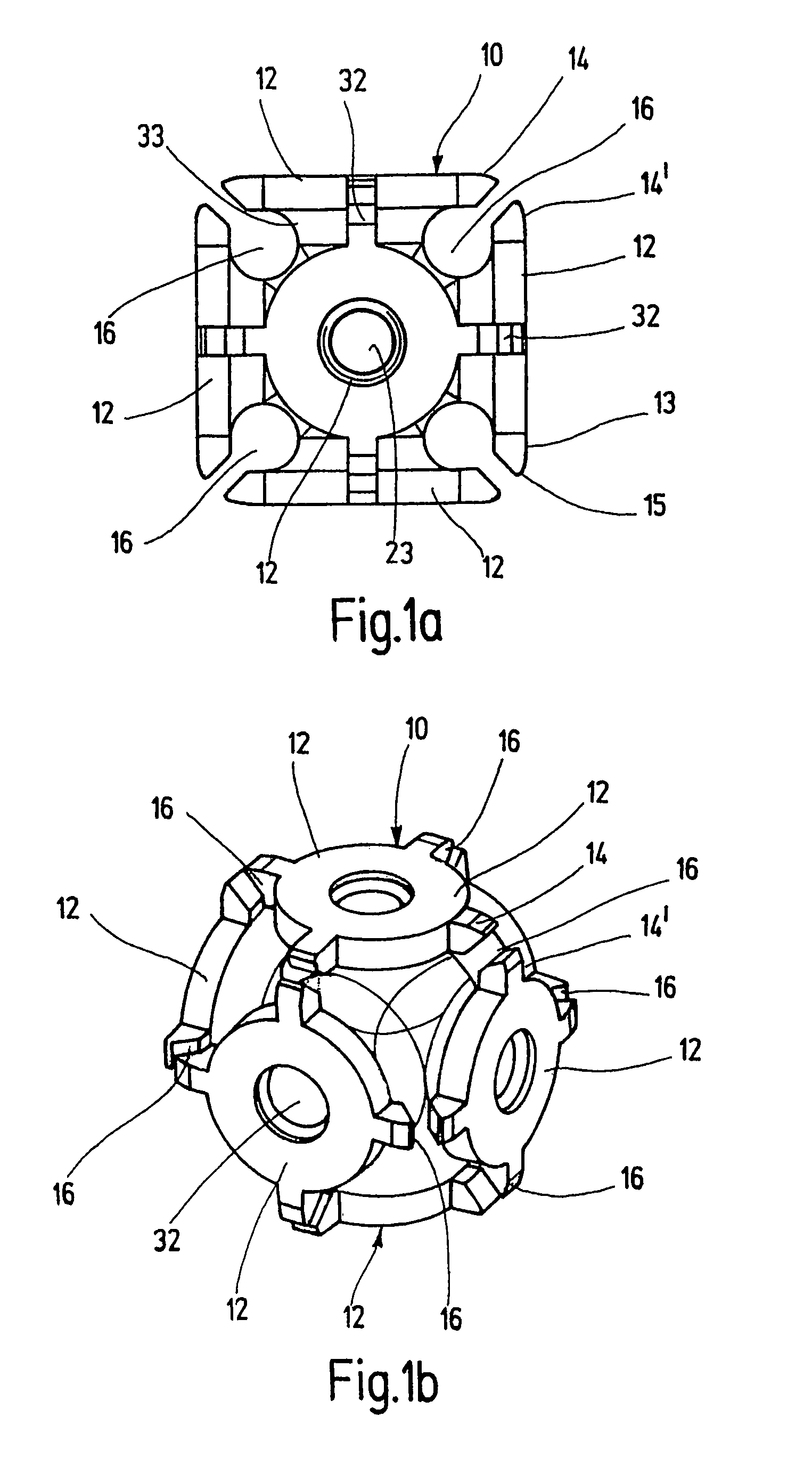

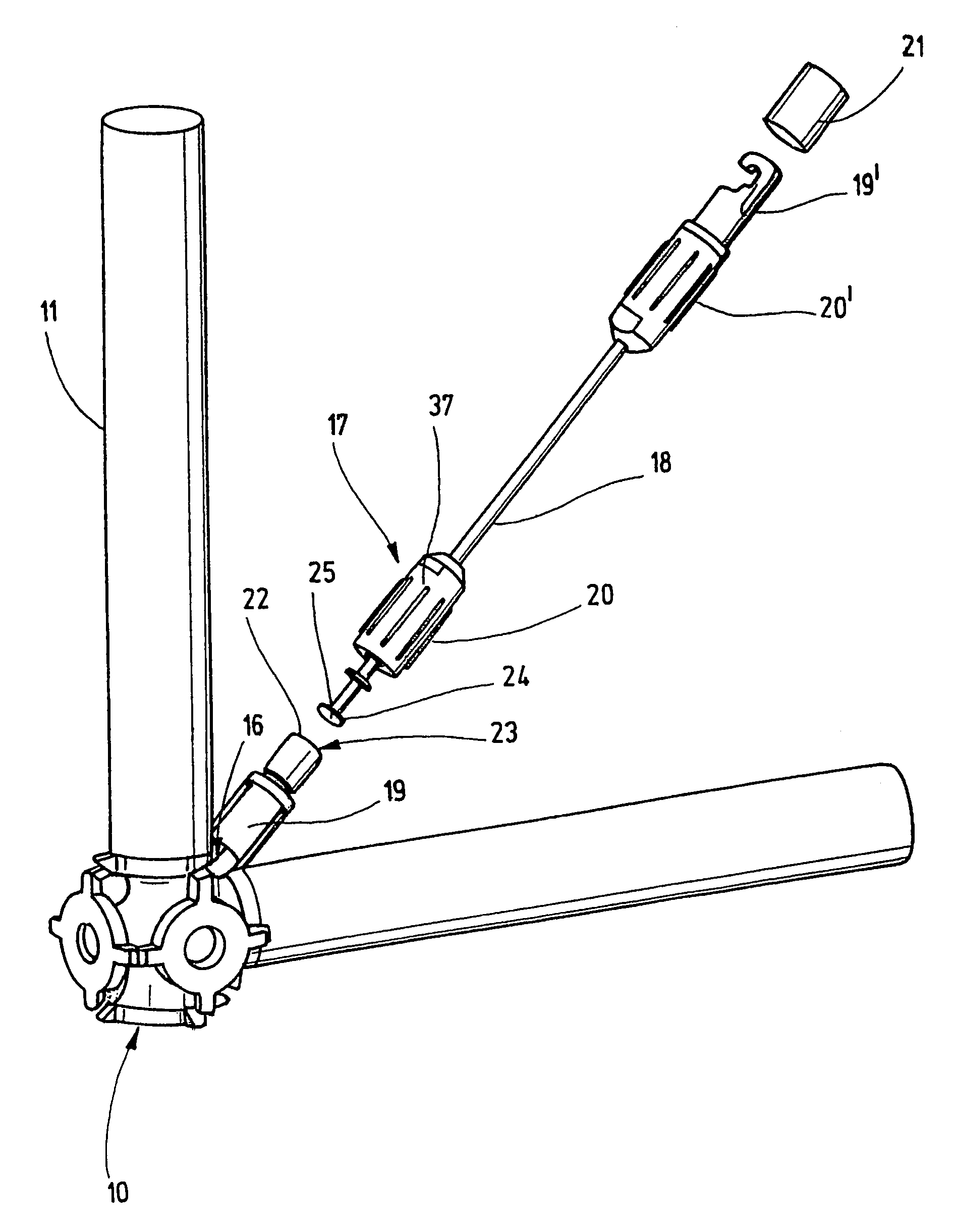

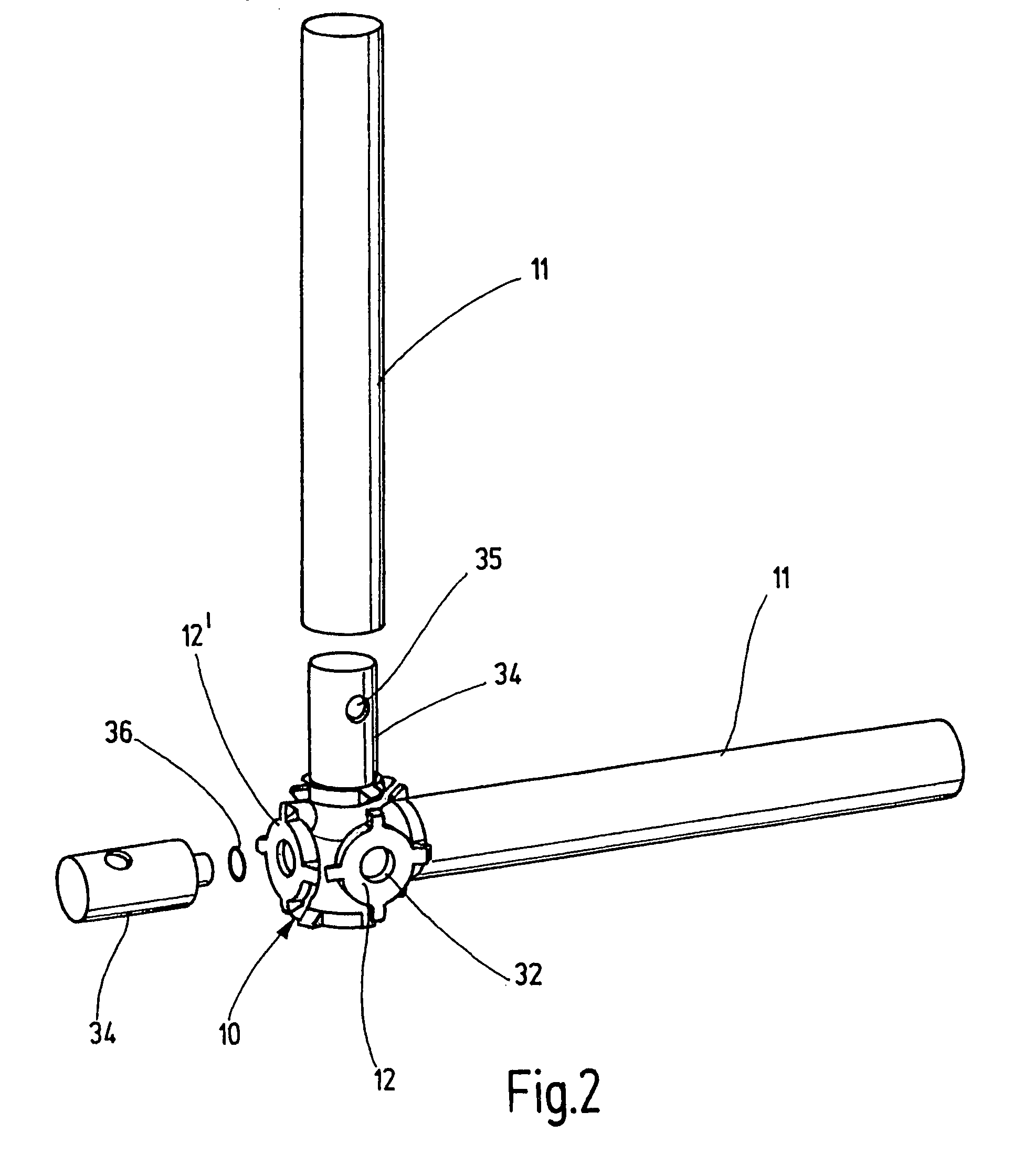

专利附图（8）
