一种自动喷洒清洁剂的装置，用于清洁浴室墙壁。
专利摘要

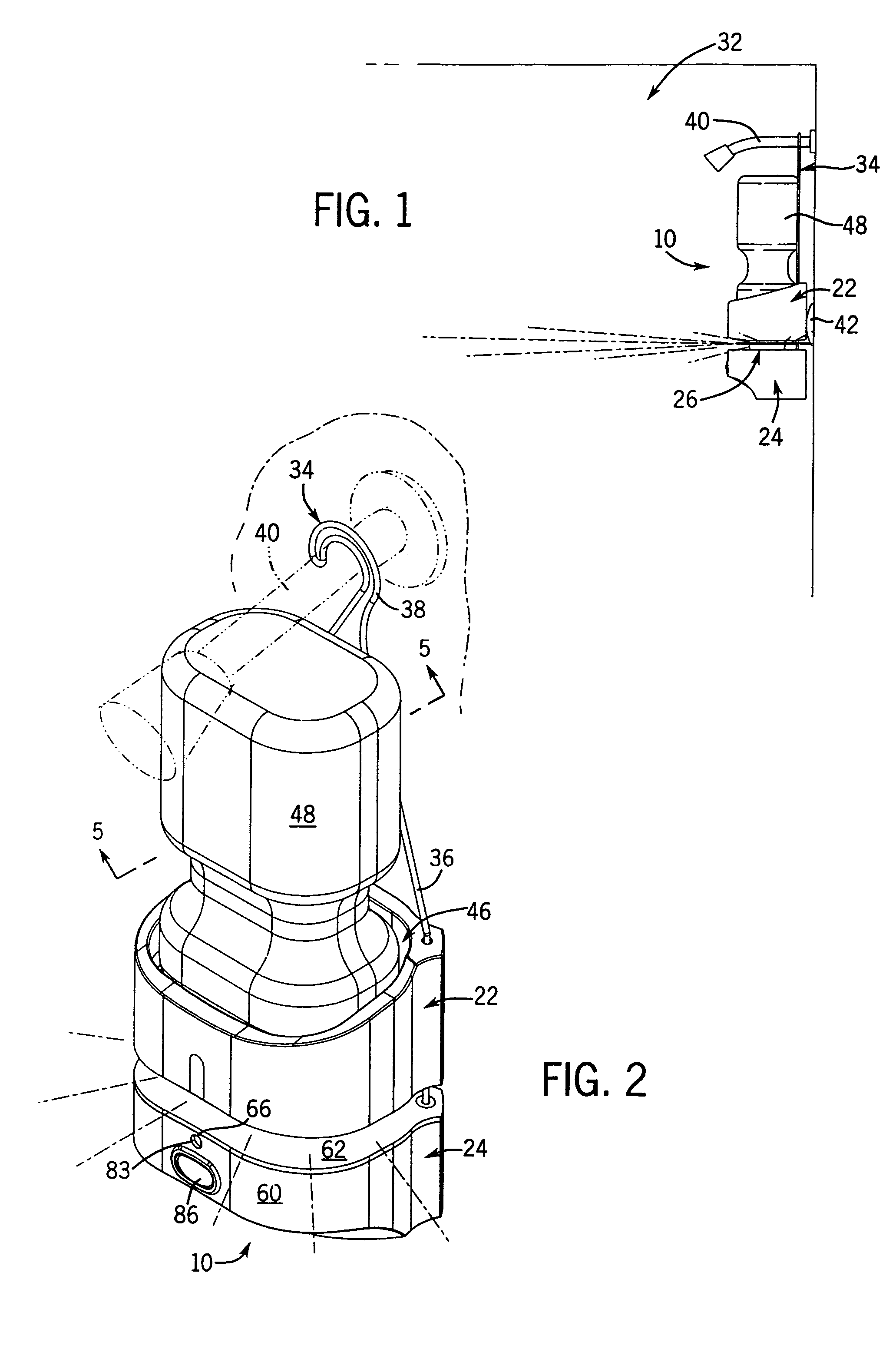

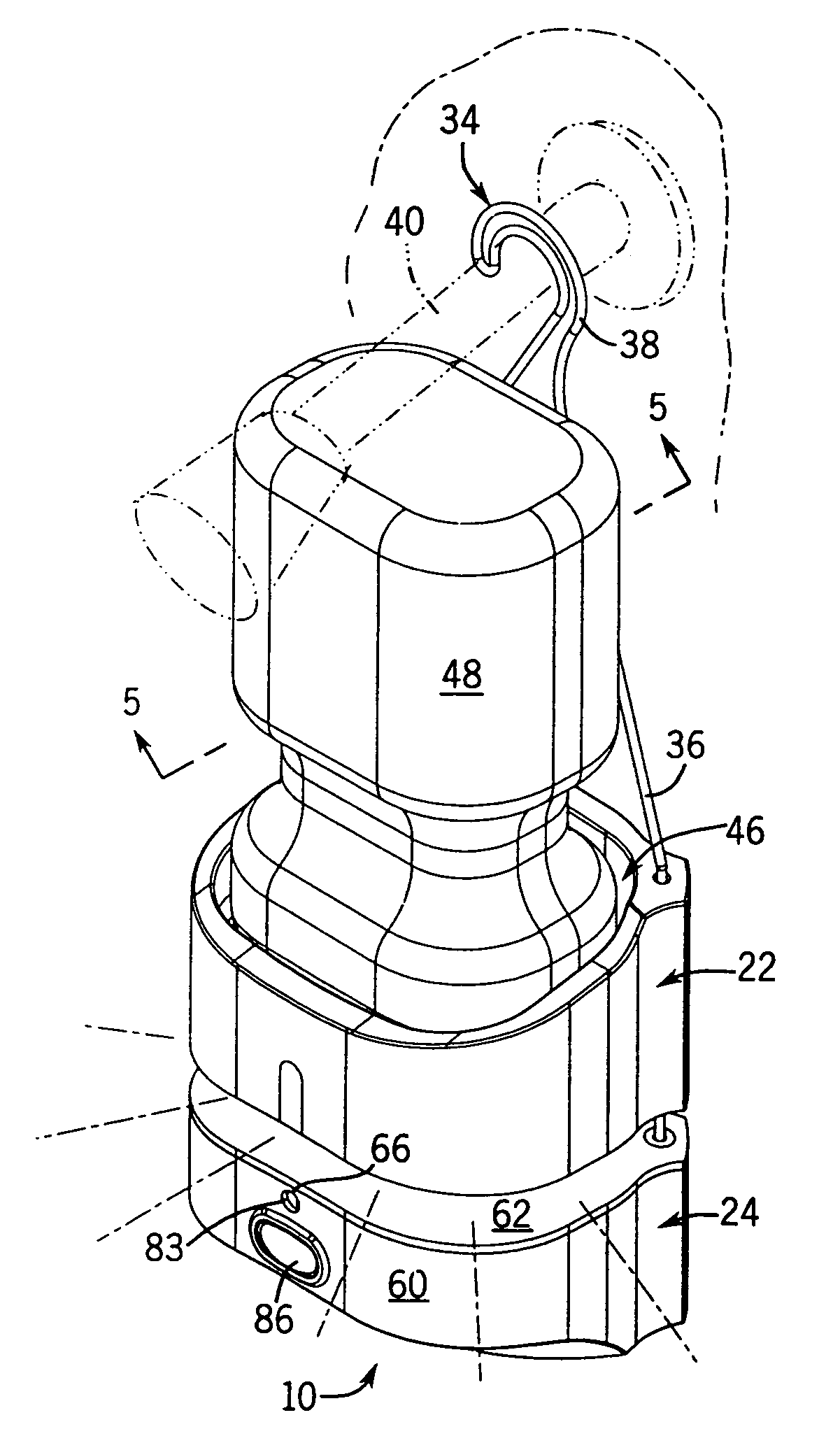

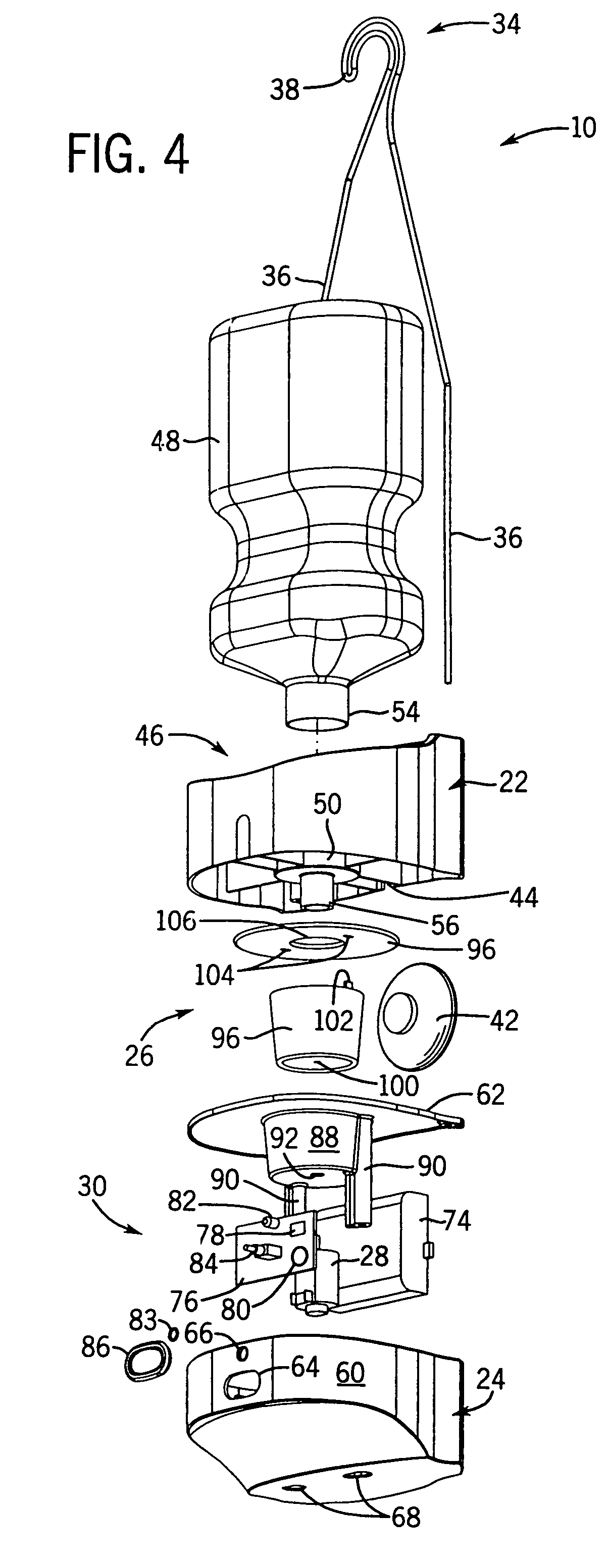

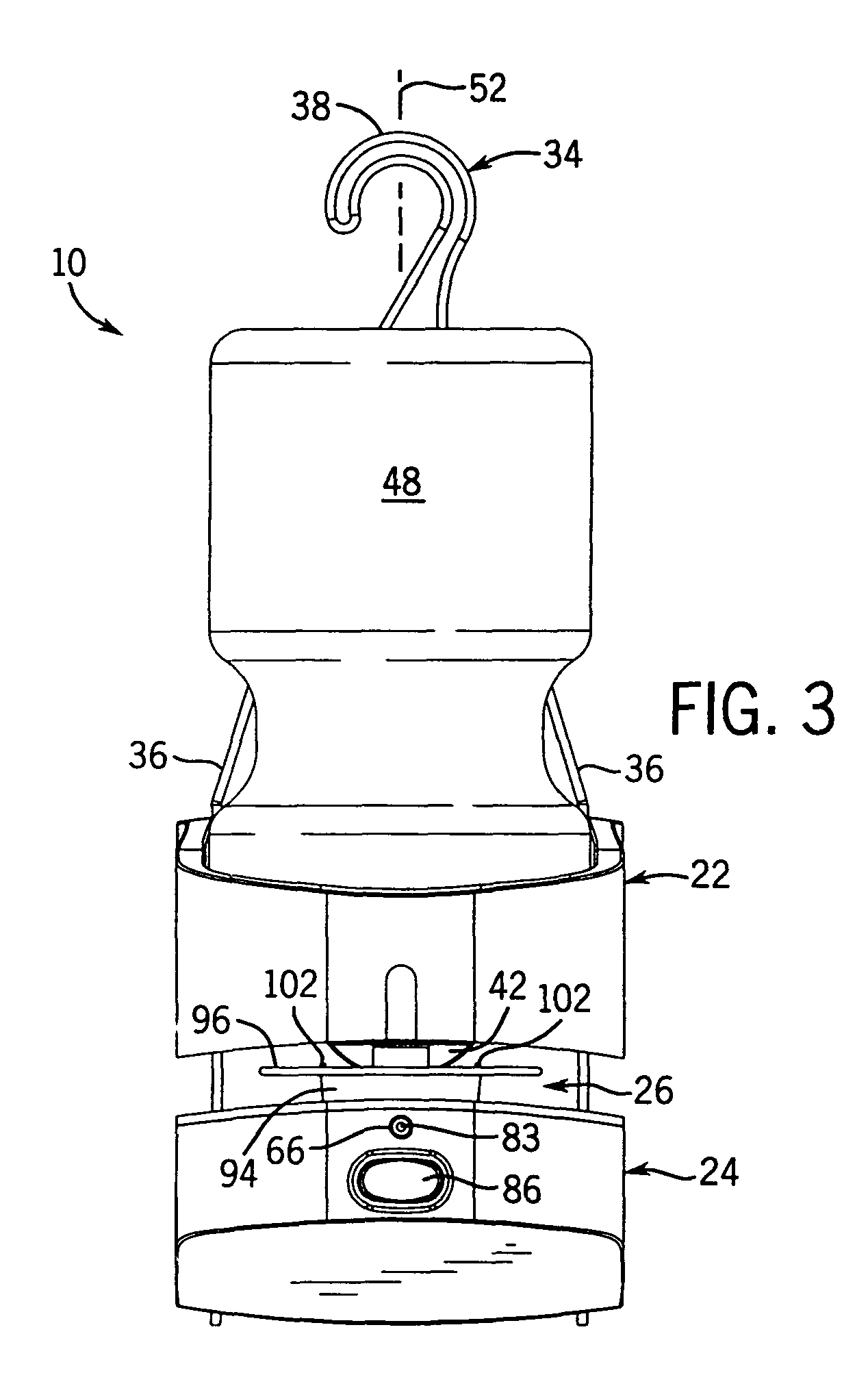

本发明涉及一种自动喷雾器，用于向浴缸和淋浴间的墙壁喷洒清洁剂。喷雾器具有可安装在淋浴间内的壳体，其限定一个托盘，用于存放倒置的清洁剂瓶。托盘的底部具有沿纵向轴线向下延伸的管，清洁剂可通过该管通过。设置在管下方的电动头可围绕轴线旋转，用于从瓶中计量清洁剂并向外喷洒清洁剂。喷雾器包括定时电路，其将喷雾开始延迟设定时间，并在预定时间段后自动停止喷雾。喷雾器还包括用于发信号通知喷雾循环开始的系统，包括音频和视觉警报。本发明专注于使用这种设备的方法，以及用于供应这种设备的容器。
Original abstractThe invention relates to an automated sprayer for spraying the walls of a bath and shower enclosure with a cleanser. The sprayer has a housing that can be mounted inside the shower enclosure and that defines a tray in which an inverted bottle of cleanser is stored. The bottom of the tray has a tube extending downwardly along a longitudinal axis through which the cleanser can pass. A motorized head disposed beneath the tube can be rotated about the axis for metering cleanser from the bottle and spraying cleanser outward. The sprayer includes timer circuitry that delays commencement of a spray for a set time and automatically stops spraying after a predetermined period. The sprayer also includes a system for signaling the beginning of a spray cycle including audio and visual alarms. The invention focuses on methods of using such equipment, as well as a container for supplying such equipment.
专利附图（8）
