确保悬挂物品保持水平。
专利摘要
一种水平悬挂系统，用于诸如画框、镜子或其他要水平悬挂在墙上的物品。该悬挂系统包括两个墙钩，水平安装在墙上；两个悬挂元件，包括两个垫圈、两条等长的链条和两个羊眼螺钉。这两个悬挂元件安装在框架的两侧，距框架顶部精确距离。两个墙钩在墙上水平间隔，距离与框架背面悬挂元件的距离相同。当悬挂系统完成时，将悬挂系统的一个垫圈放在墙上的相应墙钩上。悬挂的物品将始终保持水平。
Original abstractA Hang Level Suspension System, hereafter known as Suspension System, for articles such as frames for pictures, mirrors, or other articles to be supported on a wall in a level attitude. The Suspension System for the frame includes two wall hangers, which are attached to a wall in a level attitude, two suspension elements comprising two washers, two equal lengths of chain and two eye-screws. These two suspension elements are mounted, one on each side of the frame, at a precise distance from the top of the frame. Two hangers are spaced apart, on the wall in a level attitude, the same distance as the suspension elements attached to the back of the frame. When the Suspension System is completed, a washer of the Suspension System is placed on the corresponding wall hanger on the wall. The suspended article will hang level at all times.

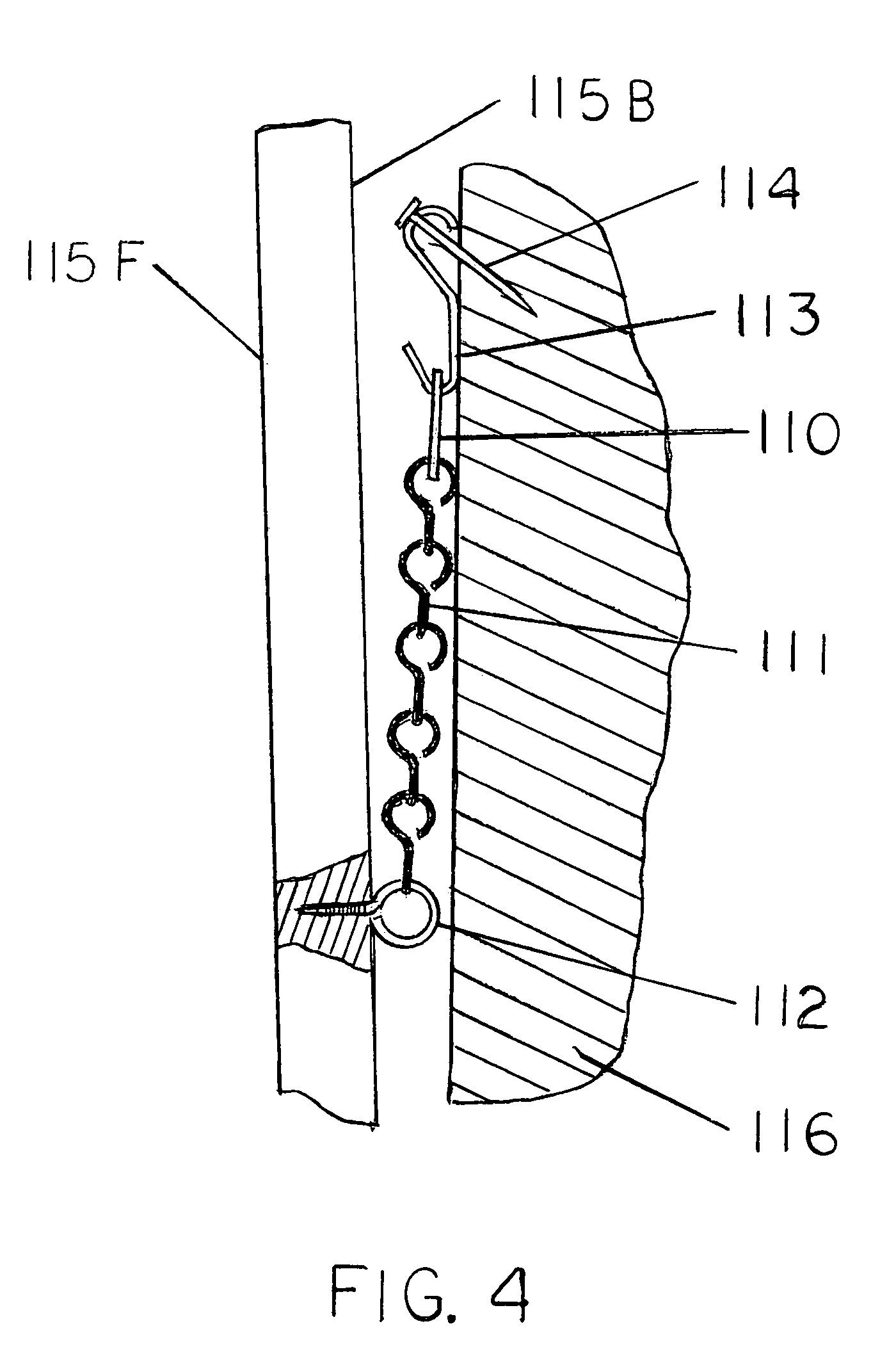

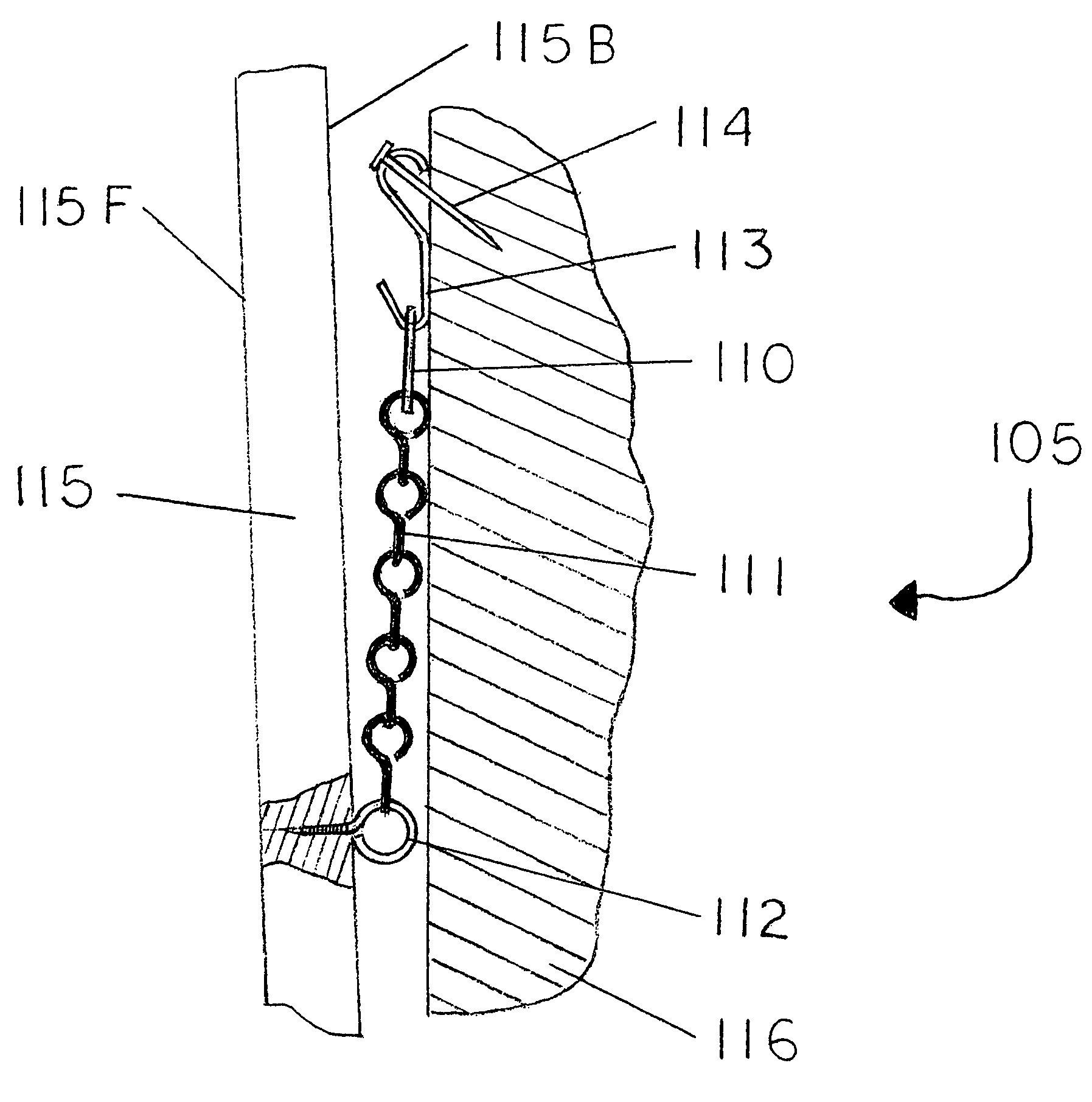

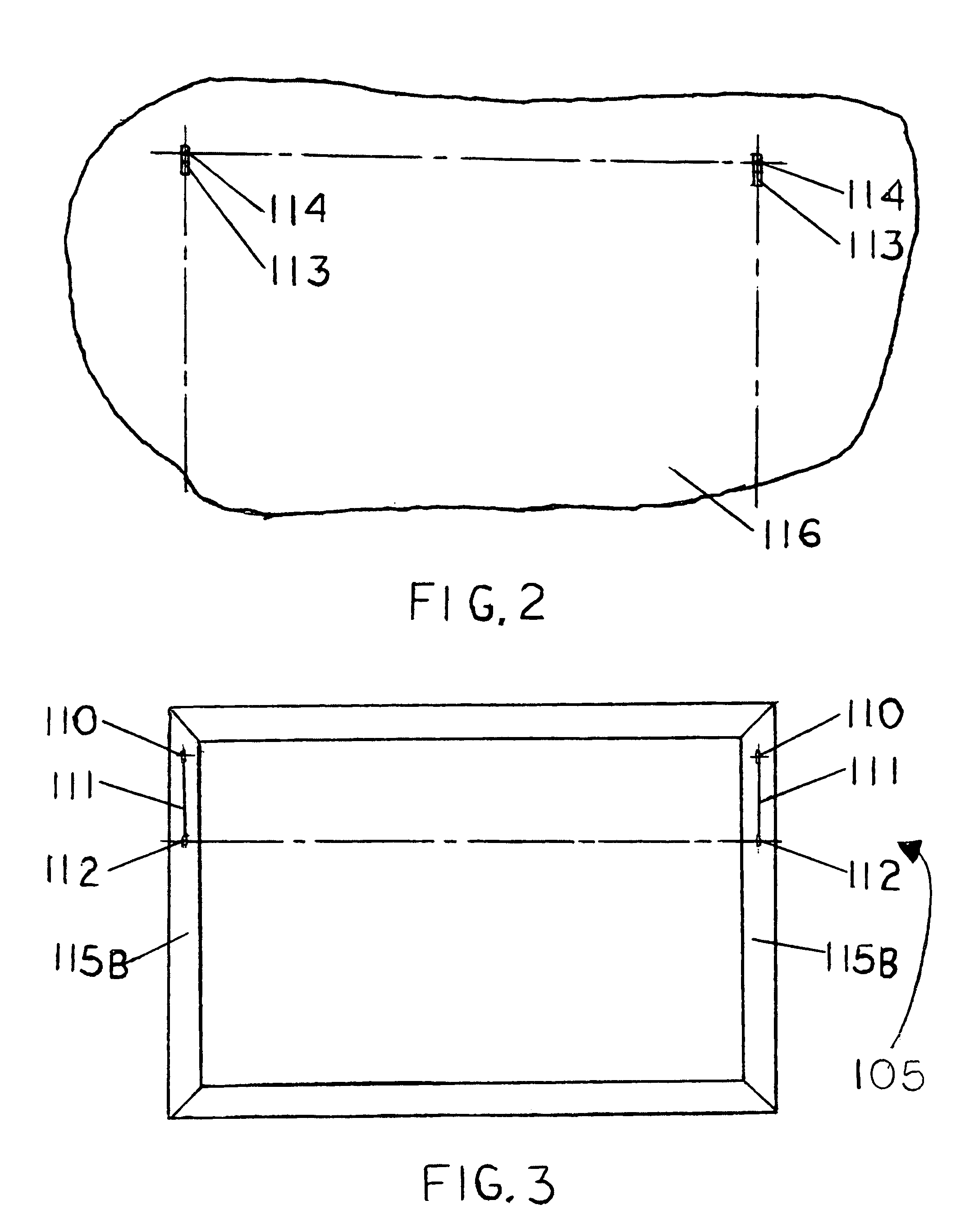

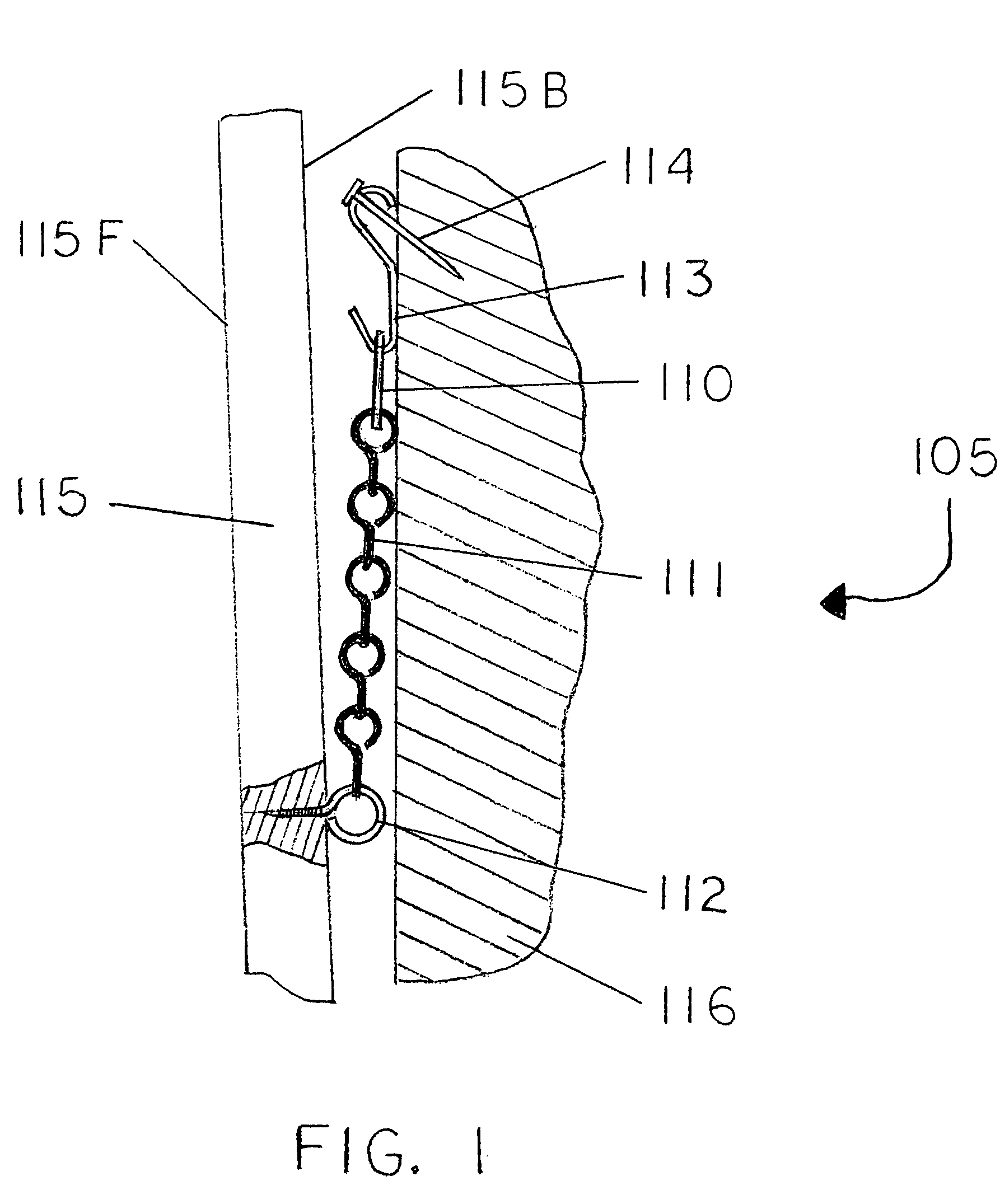

专利附图（8）
