搁架组件

Shelf assembly

US-7757615-B2

用于车辆内的可收放搁架

专利摘要

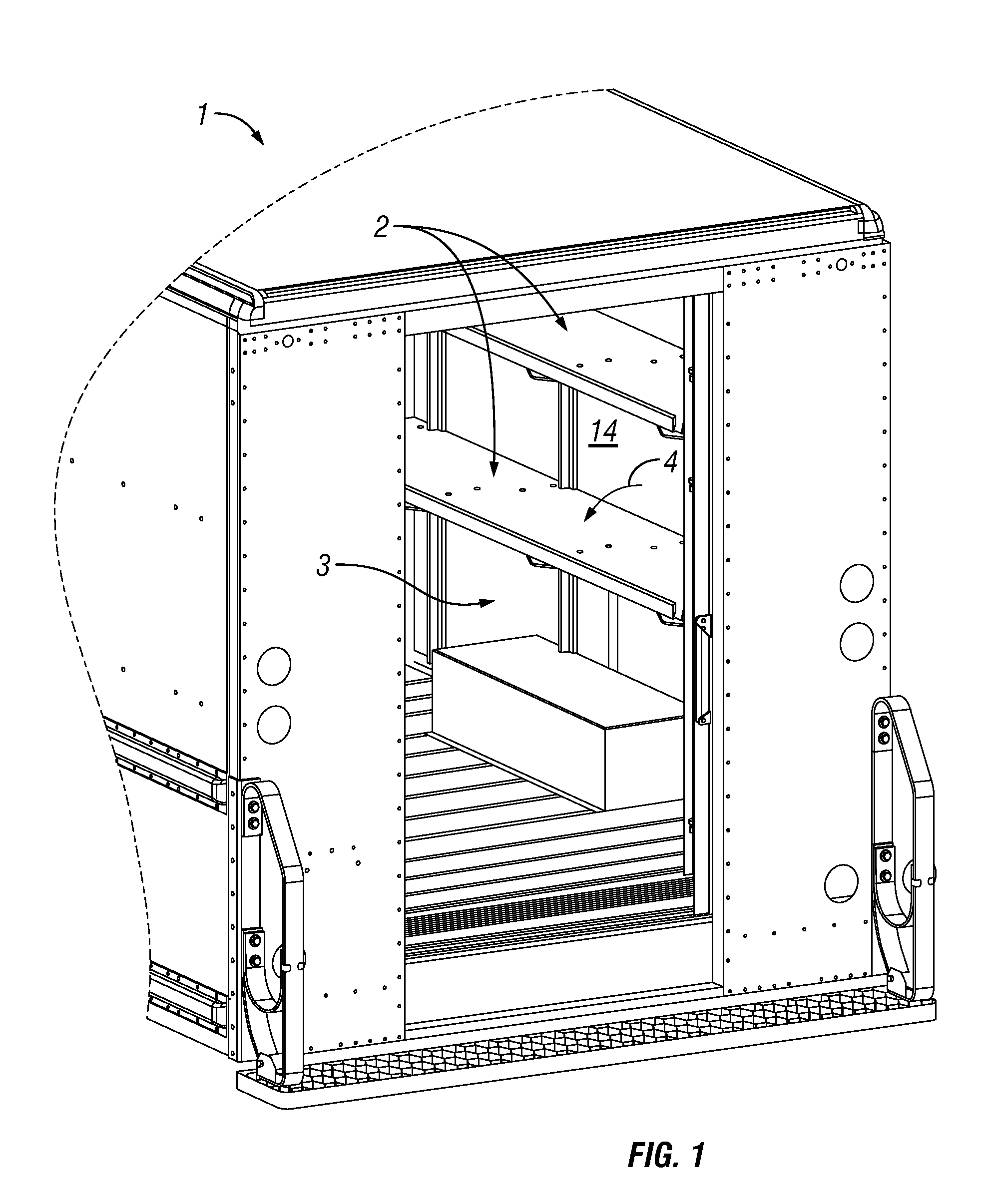

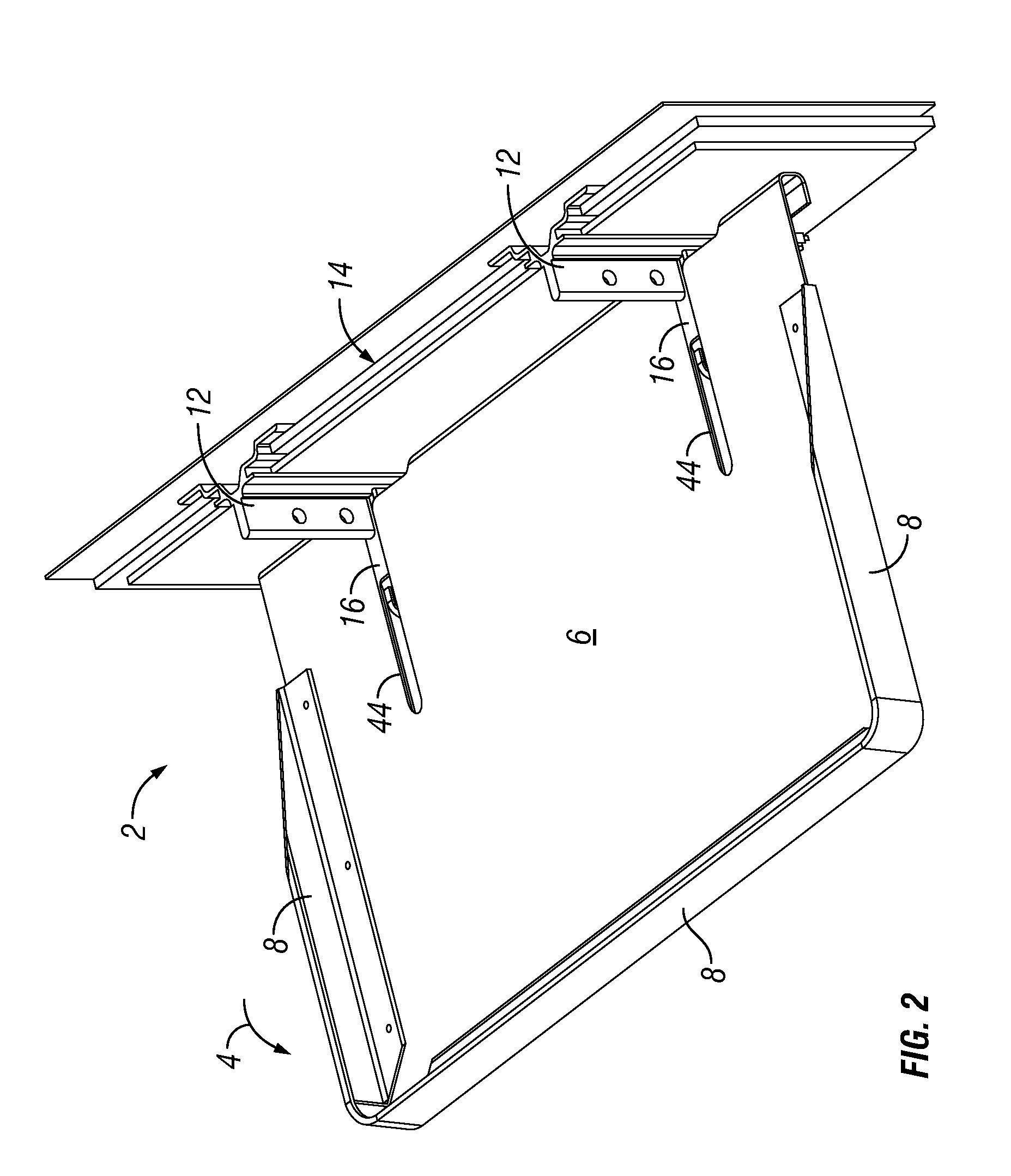

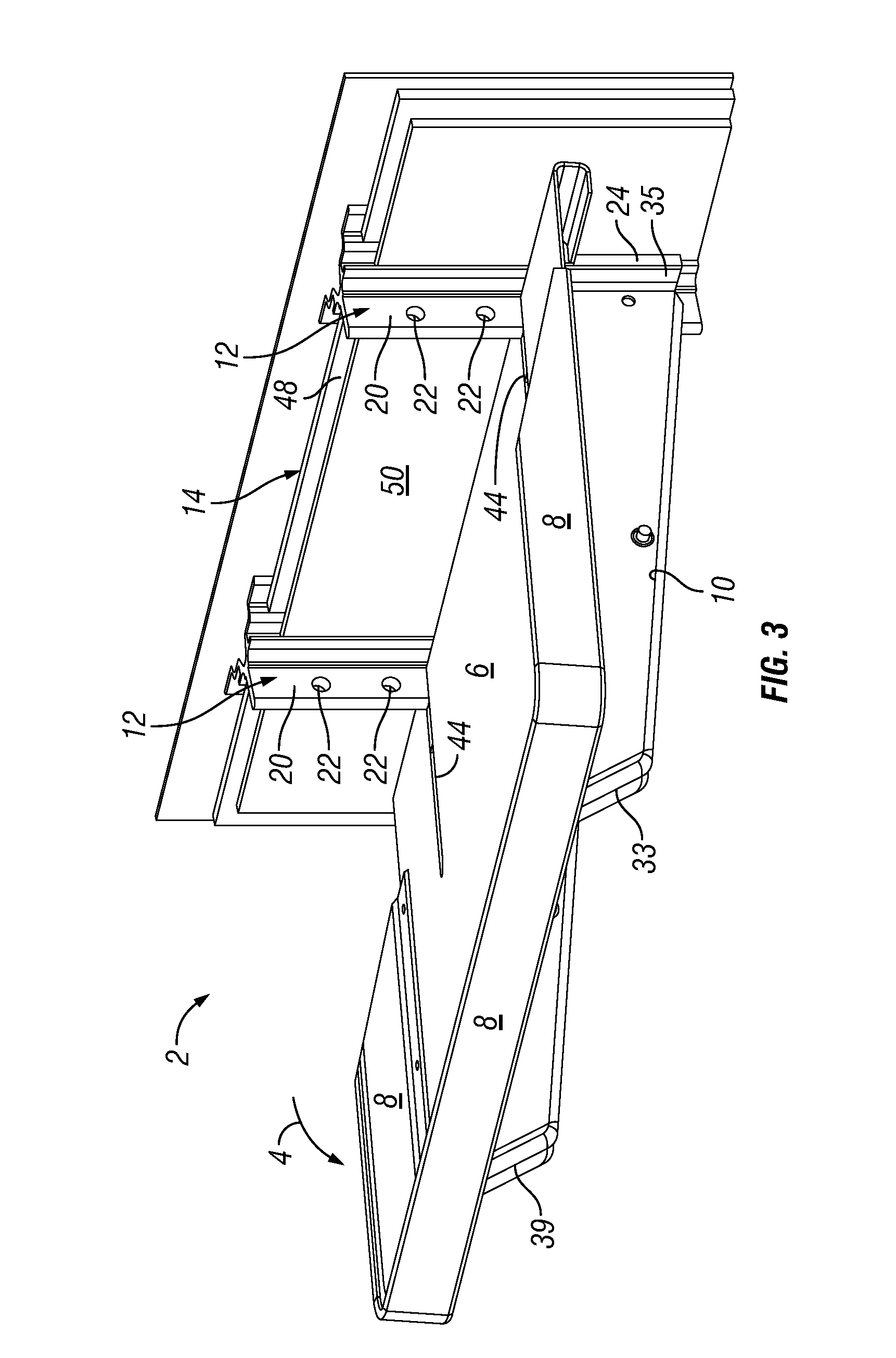

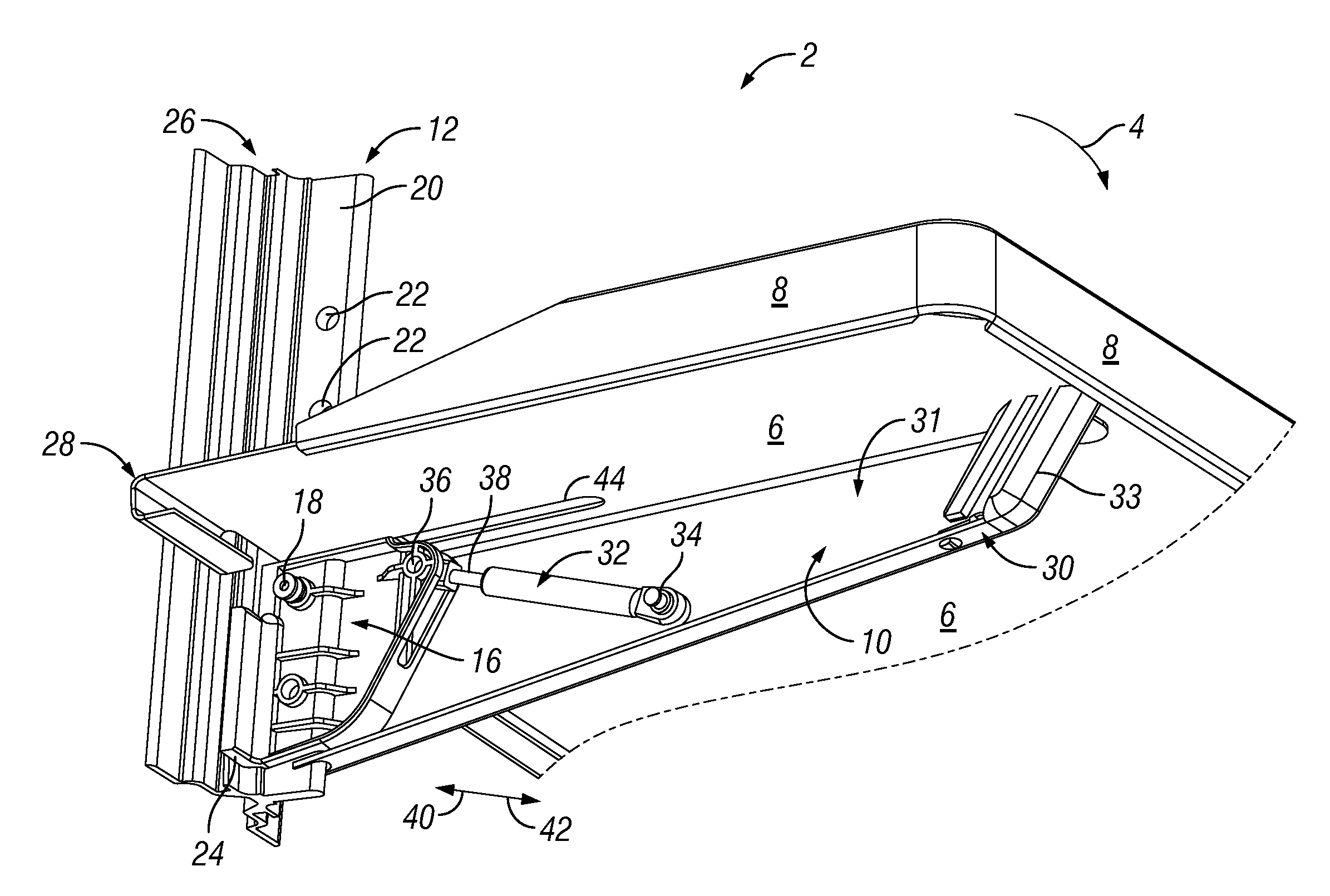

提供了一种包括搁架组件的车辆。搁架组件包括搁板、枢轴安装件和过中心伸展/缩回组件。搁板联接到车辆，并可在收起位置和使用位置之间移动。枢轴安装件联接到搁板和位于车辆上的壁。搁板相对于枢轴安装件在收起位置和使用位置之间枢转。过中心伸展/缩回组件联接到枢轴安装件，并与搁板接合以辅助将搁板移动到至少收起位置。

Original abstractA vehicle that includes a shelf assembly is provided. The shelf assembly includes a shelf panel, pivot mount, and an over-center extension/retraction assembly. The shelf panel is coupled to the vehicle and is movable between stowed and use positions. The pivot mount is coupled to the shelf panel and to a wall located on the vehicle. The shelf panel pivots with respect to the pivot mount between the stowed and use positions. The over-center extension/retraction assembly is coupled to the pivot mount and is engagable with the shelf panel to assist moving the shelf to at least the stowed position.

专利附图（8）
