来源记录显示 Expired
搁板支架及其制造方法
Shelf bracket and method of making same
US-7753327-B2用于制造搁板支架，通过弯折坯件形成。
专利摘要
一种搁板支架，具有搁板和多个侧构件，该搁板支架由坯件形成。坯件具有多个侧部，这些侧部可以向下弯曲以形成侧构件。坯件还具有形成搁板支架的搁板的搁板部分。坯件的侧部和搁板部分由多条弯折线分隔，以便于弯曲形成搁板支架。坯件理想地具有唇部部分，其可以向上弯曲以形成搁板支架的唇部。坯件还可以具有多个加强部分，其可以弯曲以在搁板支架中形成加强件，并且侧部中可具有一个或多个肋以提供强度。
Original abstractA shelf bracket having a ledge and a plurality of side members, the shelf bracket being formed from a blank. The blank has a plurality of side portions, which can be bent downwardly to create the side members. The blank also has a ledge portion which forms the ledge of the shelf bracket. The side portions and the ledge portion of the blank are separated by a plurality of bend lines, to facilitate bending for the formation of the shelf bracket. The blank desirably has a lip portion which can be bent upwardly to form a lip of the shelf bracket. The blank can also have a plurality of stiffener portions which can be bent to create stiffeners in the shelf bracket, and one or more ribs in the side portions to provide strength to the shelf bracket.

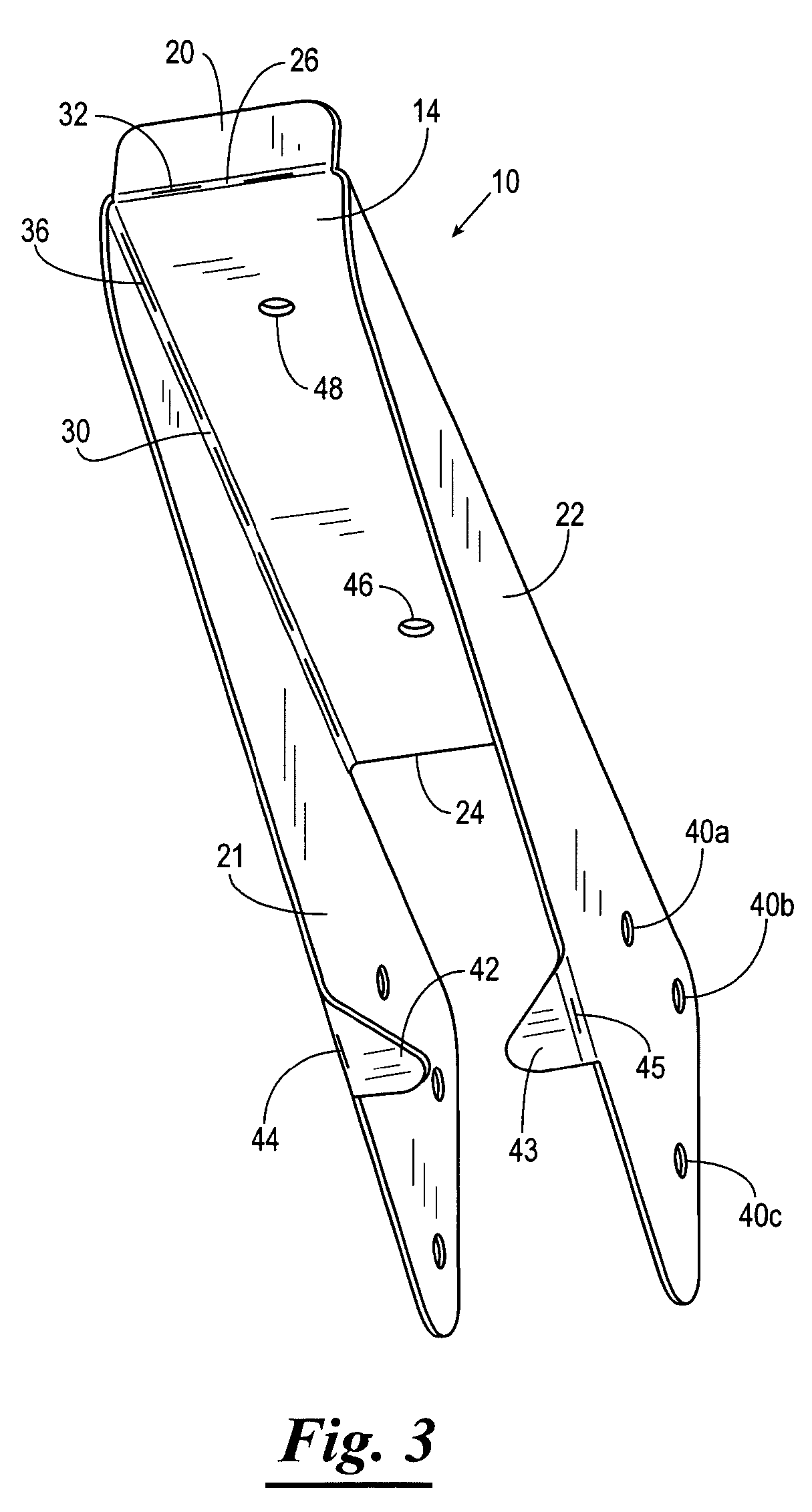

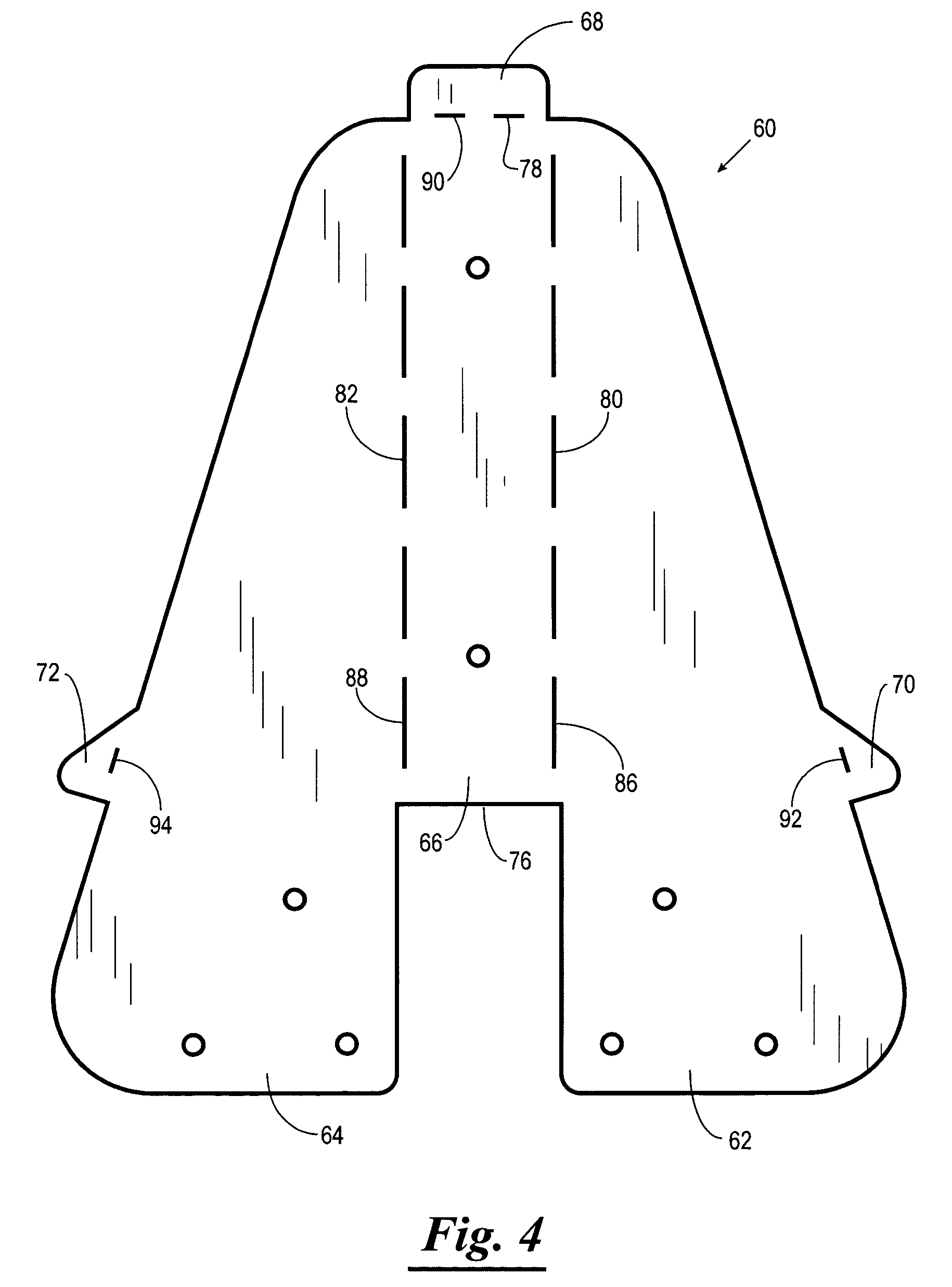

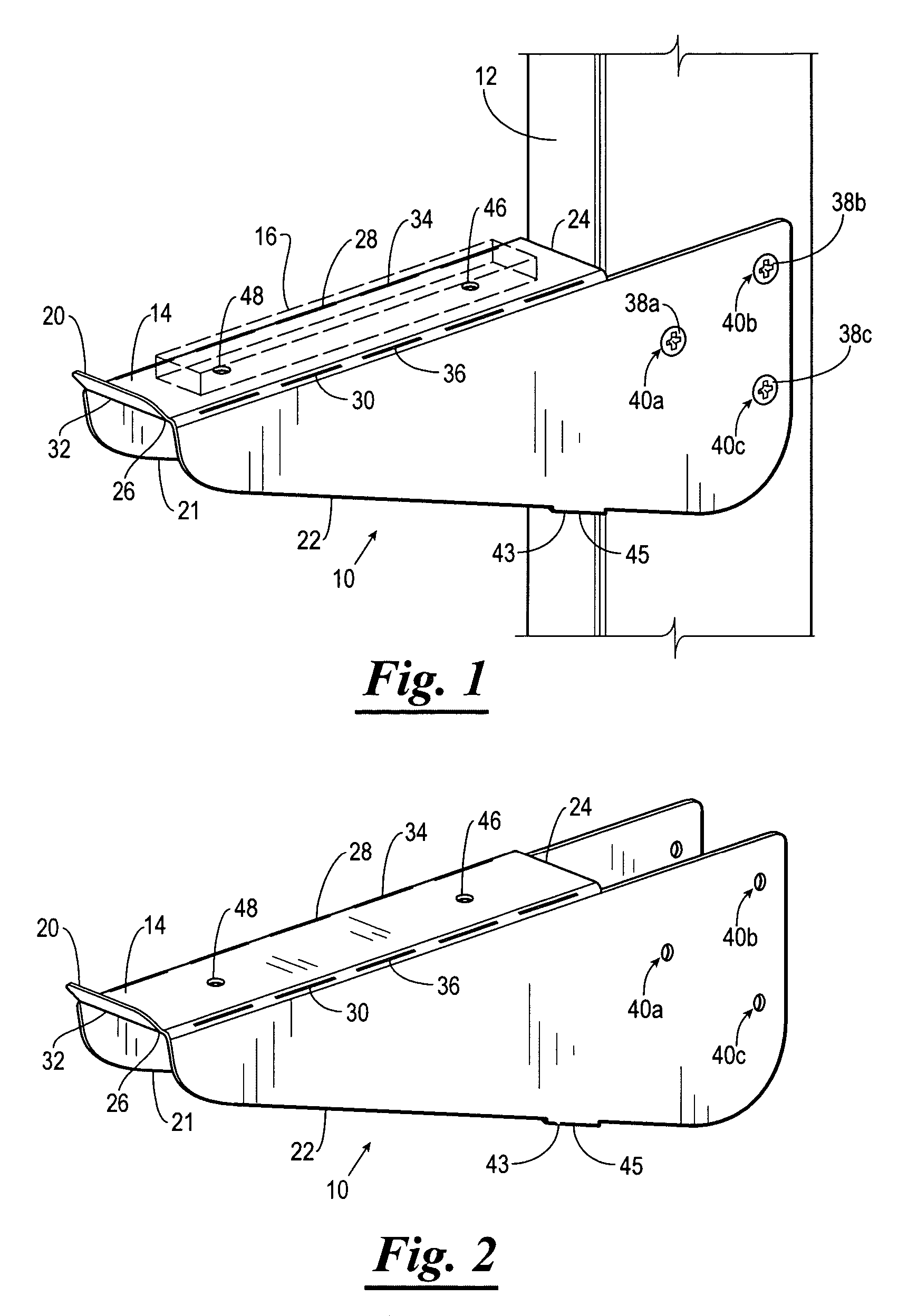

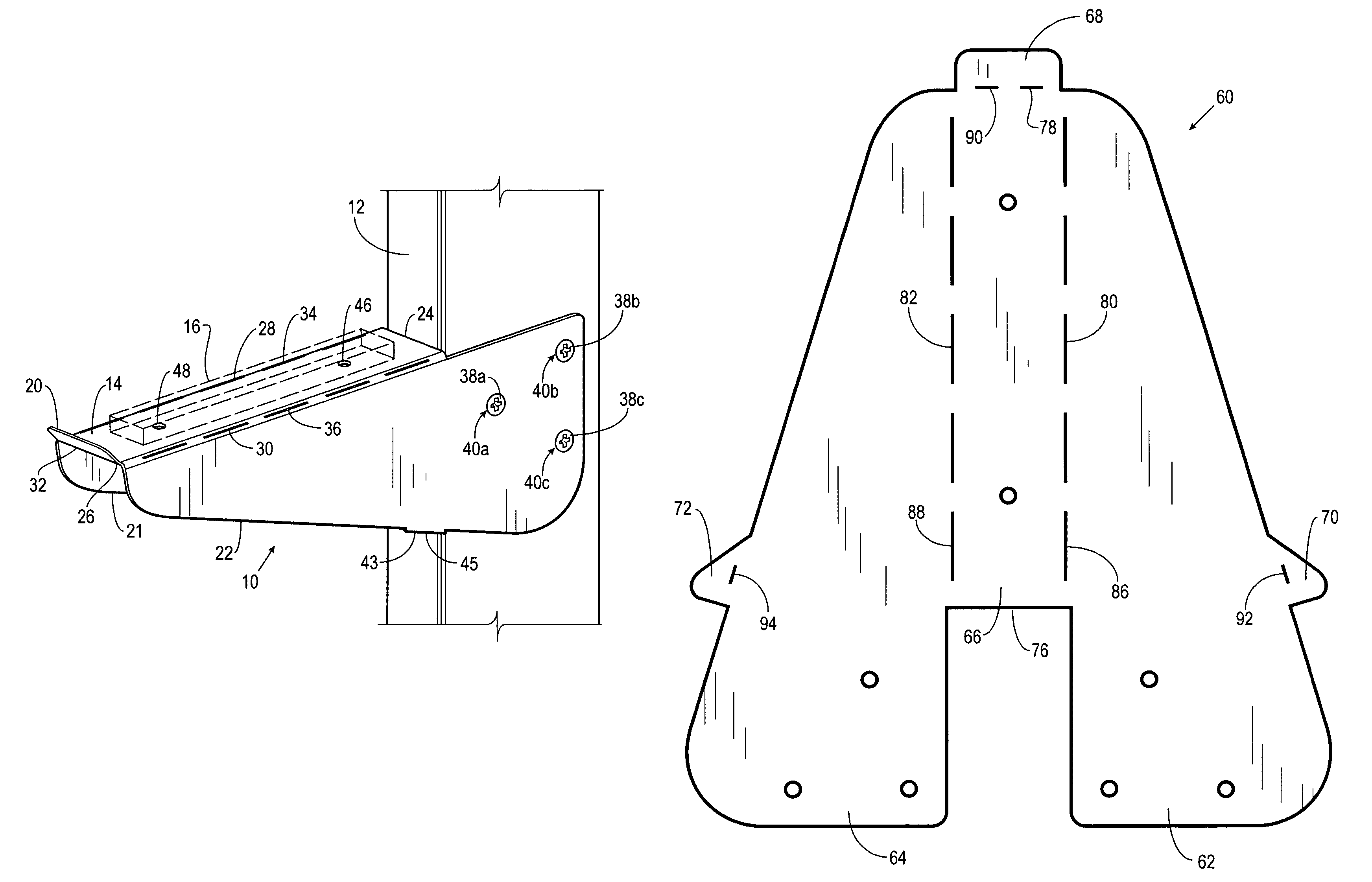

专利附图（8）
