用于淋浴房的排水底盘，使地面微倾以利排水。
专利摘要

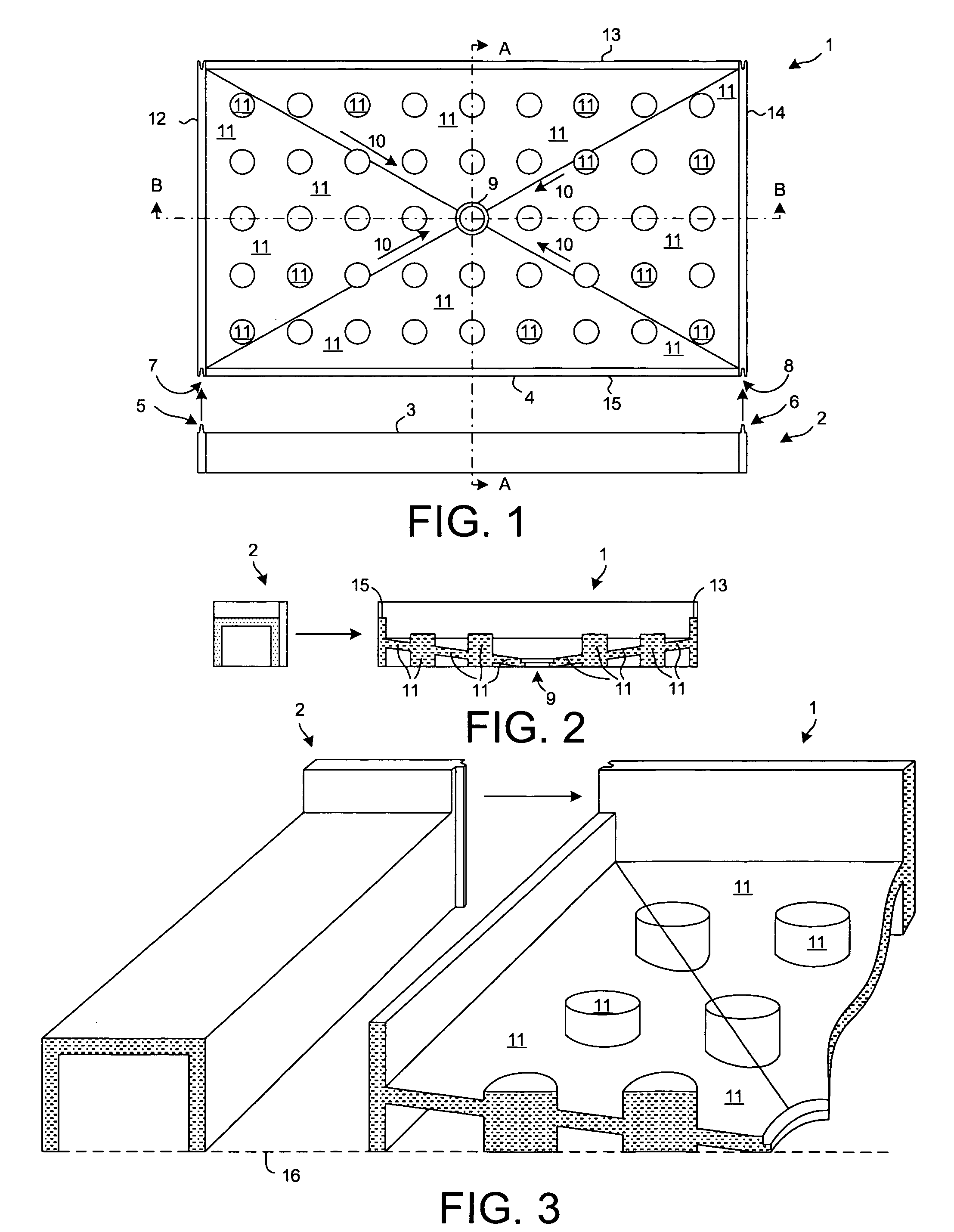

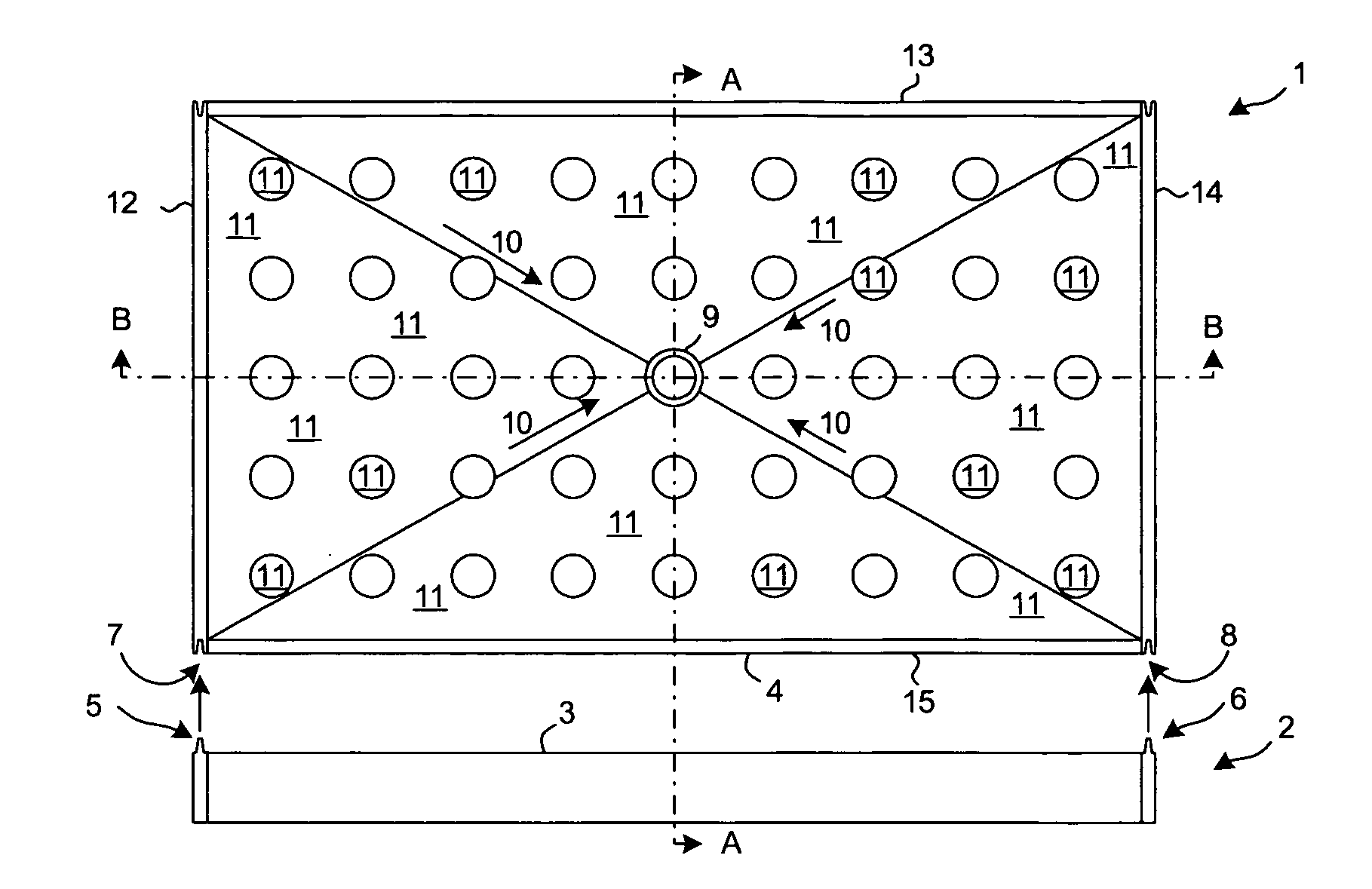

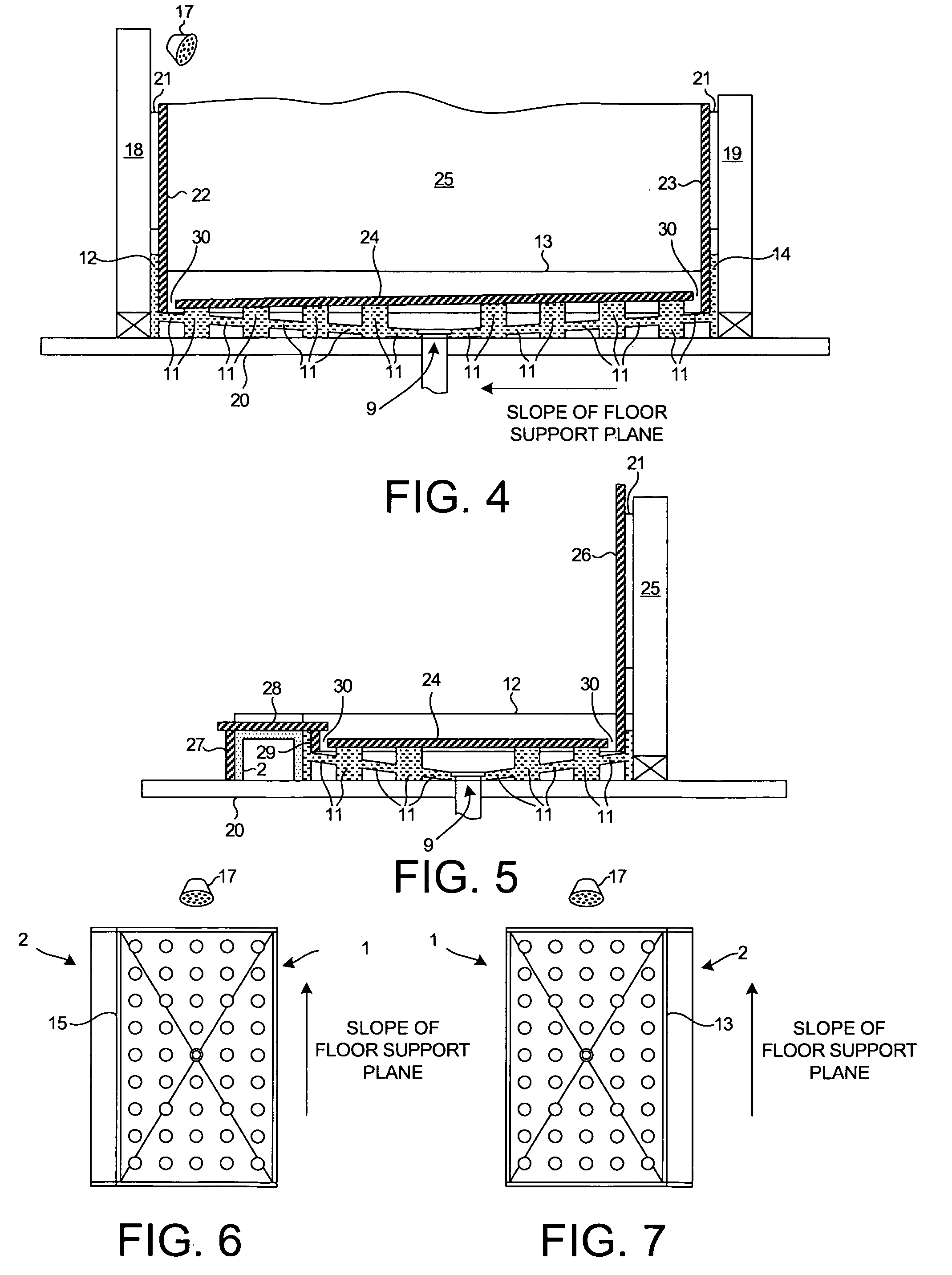

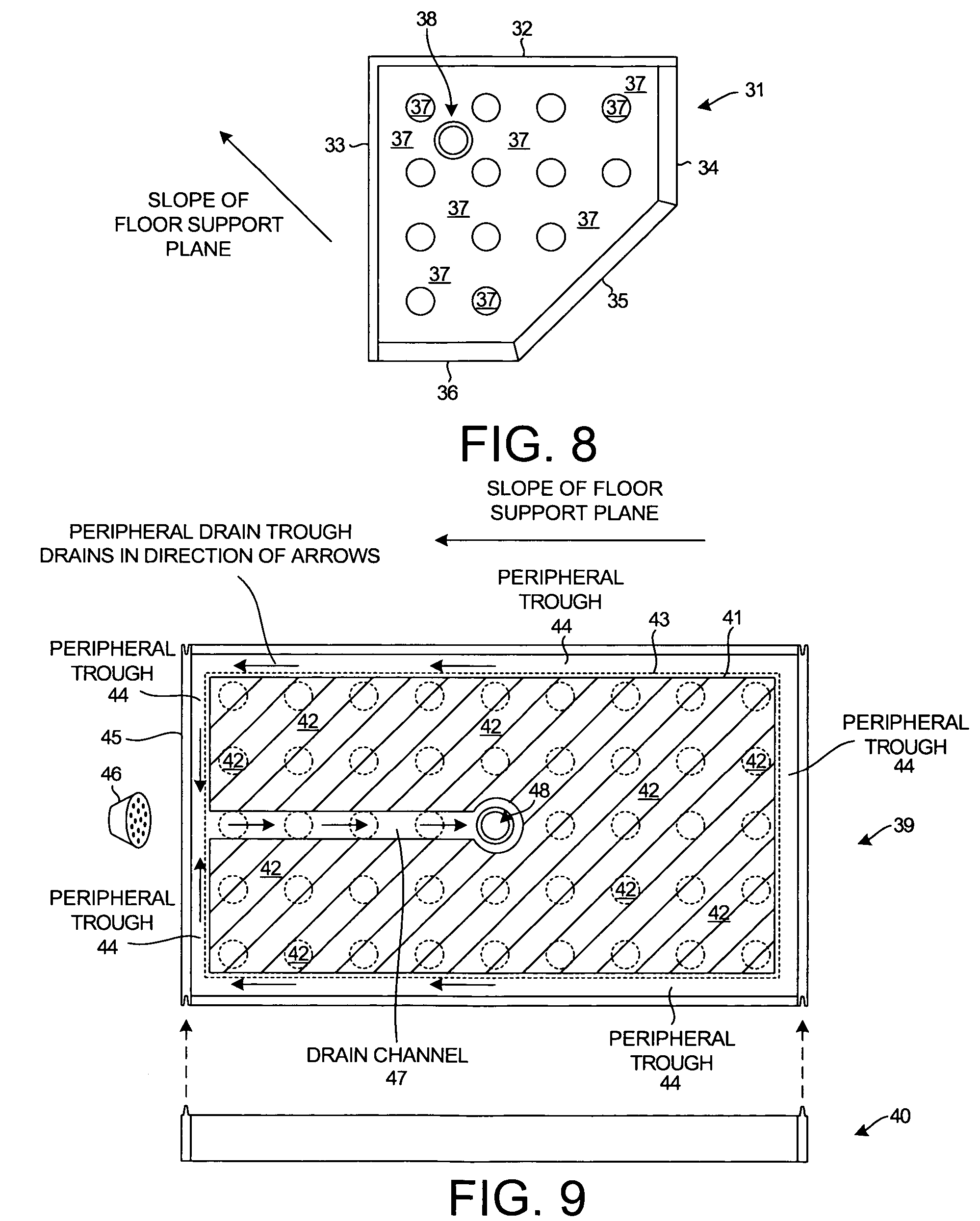

一种淋浴底盘包括排水基座部分，其排水至孔口。排水基座部分包括支撑结构，用于在孔口上方支撑板状地板构件（例如，单块花岗岩、大理石或工程石），使得地板构件的平面顶表面具有轻微倾斜。底盘安装成使得倾斜朝向淋浴喷头。淋浴围护通过用饰面材料（例如，花岗岩、大理石或工程石）包覆围护墙壁而完成，使得饰面材料向下延伸到底盘中。地板构件放置在支撑结构上，使得来自淋浴喷头落在地板构件上的水从地板构件的一个或多个边缘流下，并由排水基座部分的排水部分引导到地板构件下方的孔口。
Original abstractA shower pan includes a draining base portion that drains to an orifice. The draining base portion includes a support structure for supporting a slab floor member (for example, a single piece of granite, marble, or engineered stone) above the orifice such that a planar upper surface of the floor member has a slight tilt. The pan is installed such that the tilt is toward a shower head. The shower enclosure is finished by cladding the enclosure walls with a finishing material (for example, granite, marble or engineered stone) such that the finishing material extends down into the pan. The floor member is placed on the support structure such that water from the shower head that falls on the floor member runs off one or more edges of the floor member and is conducted to the orifice under the floor member by a draining portion of the draining base portion.
专利附图（8）
