可堆叠的文件柜，节省空间且防火锁定。
专利摘要

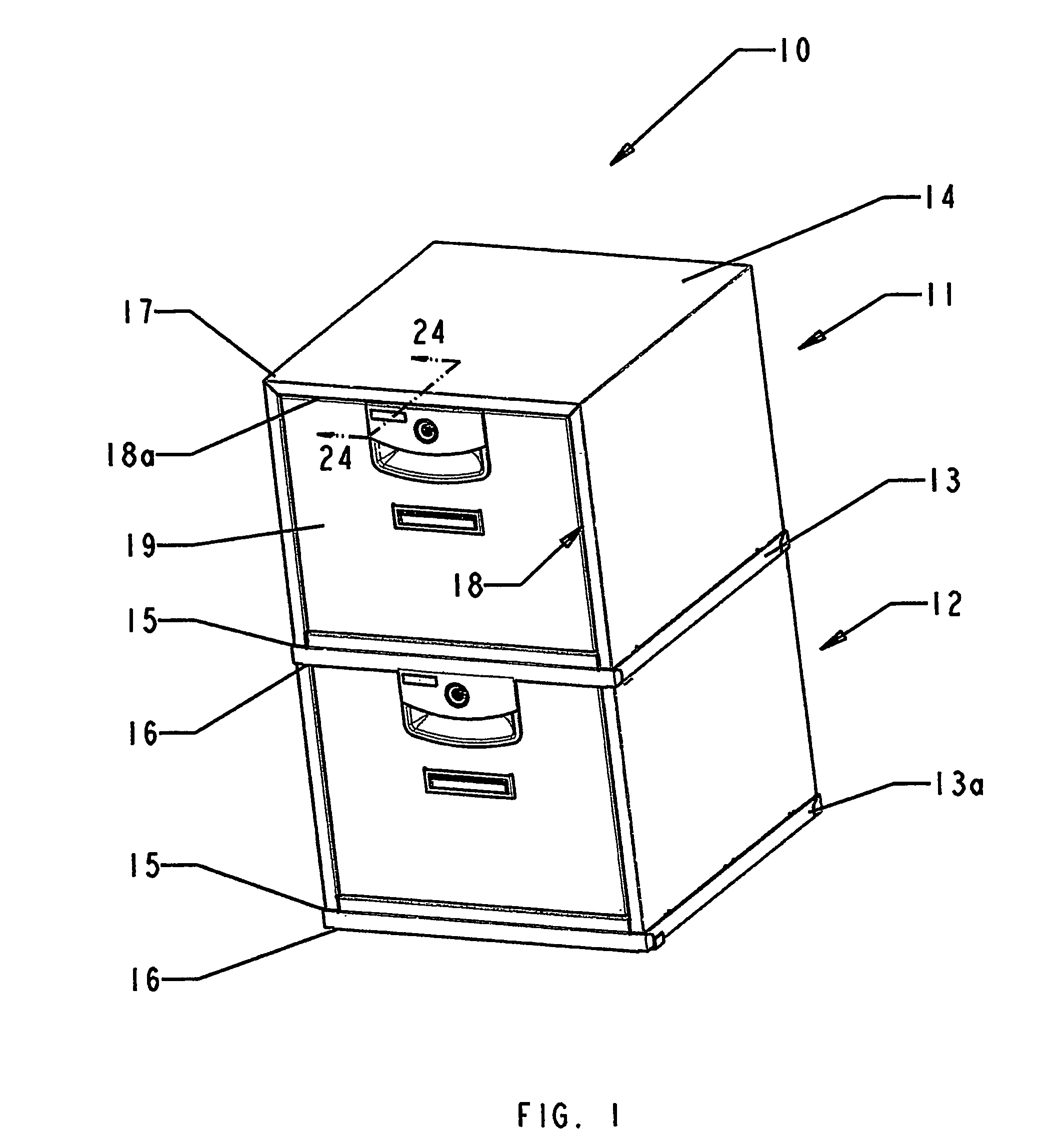

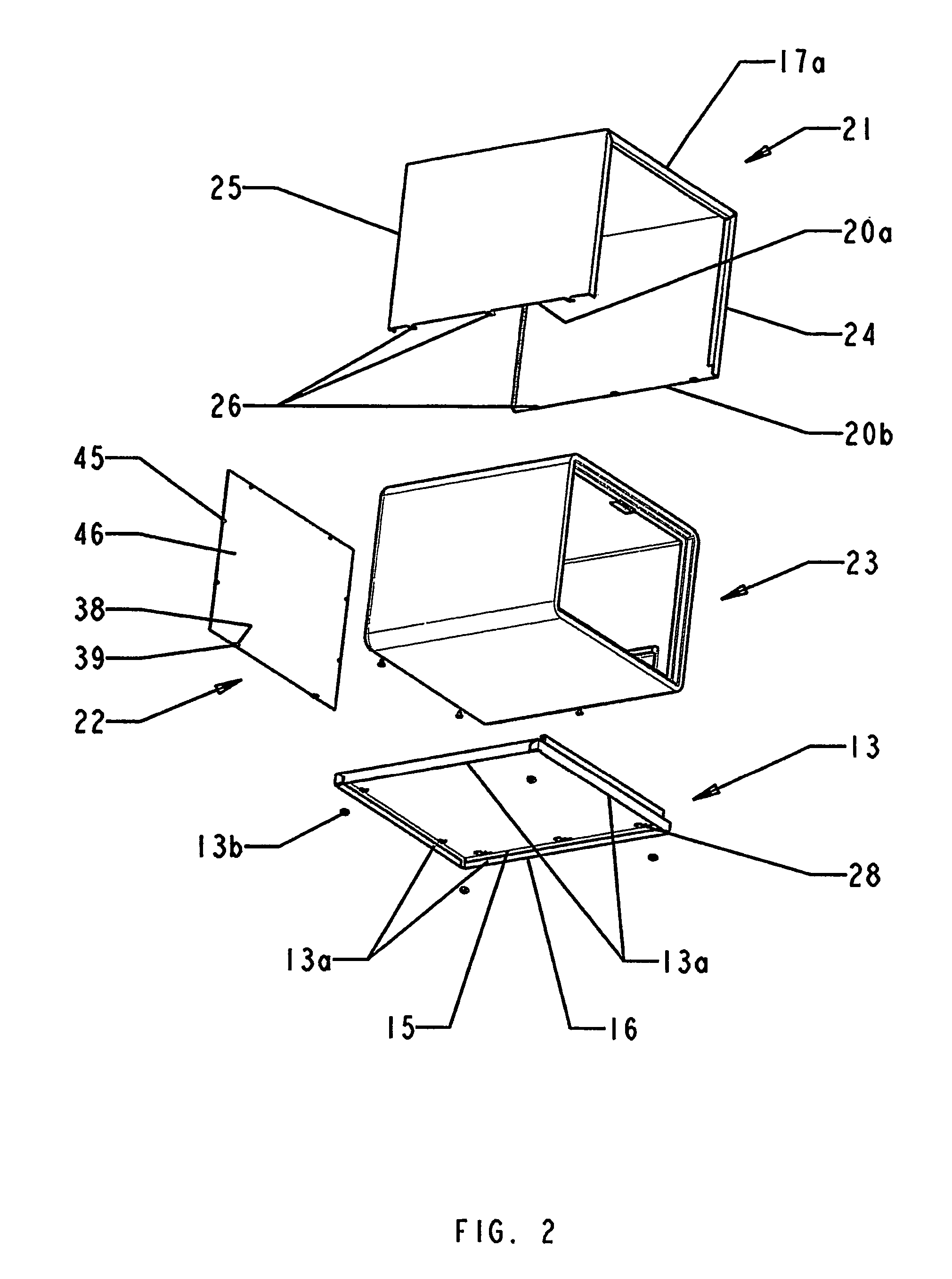

提供了一种多抽屉文件柜，其具有可堆叠在下部文件柜顶部的上部橱柜。下部橱柜包括具有周边边缘的顶表面，该周边边缘具有第一周长。上部橱柜包括具有侧壁的底座。侧壁具有周边边缘，该周边边缘具有第二周长。第二周长大于第一周长，使得侧壁围绕第一橱柜顶表面的周边边缘配合。橱柜包括可延伸的抽屉组件，该抽屉组件具有一对滑动构件，该滑动构件可滑动地定位在形成于外壳中的一对外轨道和形成于抽屉框架中的轨道之间。此外，锁定组件与外壳中的凹部和抽屉头部的凸缘相关联，以允许抽屉组件即使在橱柜遭受火灾损坏时也能保持锁定位置。
Original abstractA multi-drawer file cabinet having an upper cabinet that may be stacked on top of a lower file cabinet is provided. The lower cabinet includes a top surface having a peripheral edge with a first perimeter. The upper cabinet includes a base with a sidewall. The sidewall has a peripheral edge with a second perimeter. The second perimeter is larger than the first perimeter so that the sidewall fits around the peripheral edge of the top surface of the first cabinet. The cabinets include an extendable drawer assembly having a pair of slide members slidably positioned between a pair of outer tracks formed in a casing and tracks formed in a drawer frame. Furthermore, a locking assembly is associated with a recess in the casing and a ledge of a drawer head to allow the drawer assembly to remain in a locked position even if the cabinet sustains fire damage.
专利附图（8）
