可调体积单元及包含其制成的框架的家具

Volume-adjustable unit and furniture comprising frame made of the same

US-7735940-B2

用于制作可伸缩家具框架,便于运输和节省空间。

专利摘要

一种可调体积单元,包括第一层、第二层以及设置在第一层和第二层之间的多个内纸层。每个内纸层具有两个相对侧,并且每个相对侧通过粘合层粘附到该内纸层的相邻层。粘合层包括多个粘合条,这些粘合条大致平行、彼此间隔开,并且以这样的方式布置:每个内纸层的每个部分通过粘合条在两个相对侧之一上粘附到至多一个相邻层,从而当单元被拉伸时,由内纸层形成多个六边形柱。该单元可用于制备轻质家具的可调体积框架,并以较小的体积从一个地方运输到另一个地方。

Original abstractA volume-adjustable unit including a first layer, a second layer, and multiple inner paper layers disposed between the first and second layers. Each inner paper layer has two opposing sides, and each of the two opposing sides is adhered to an adjacent layer of the each inner paper layer through an adhesive layer. The adhesive layer includes multiple adhesive strips which are substantially in parallel, are spaced apart from each other and are arranged in such a way that each section of the each inner paper layer adheres to at most one adjacent layer on one of the two opposing sides through an adhesive strip, whereby multiple hexagonal columns are formed by the inner paper layers as the unit is stretched-out. The unit can be used to prepare a volume-adjustable frame of a piece of light furniture and transported from one place to another in smaller volume.

专利附图(8)

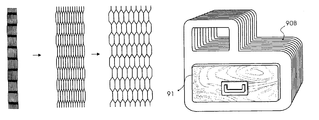

US-7735940-B2 figure 1
1

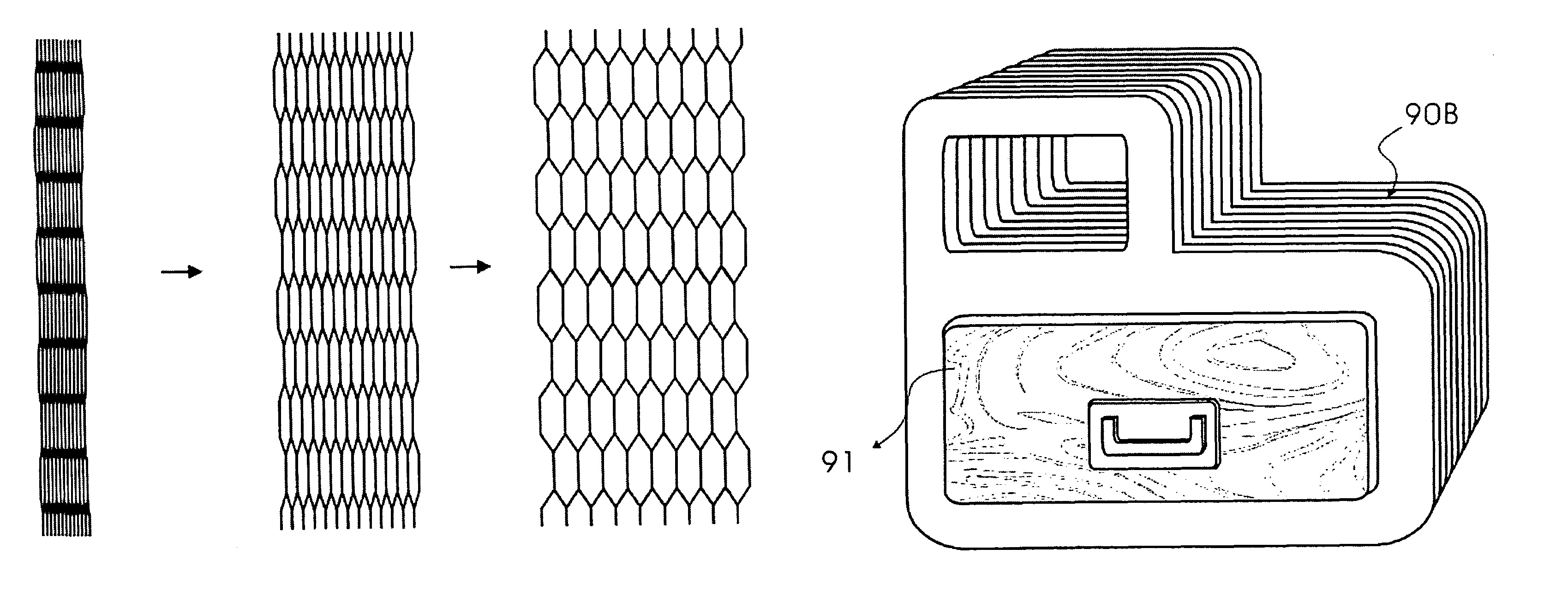

US-7735940-B2 figure 2
2
US-7735940-B2 figure 3
3

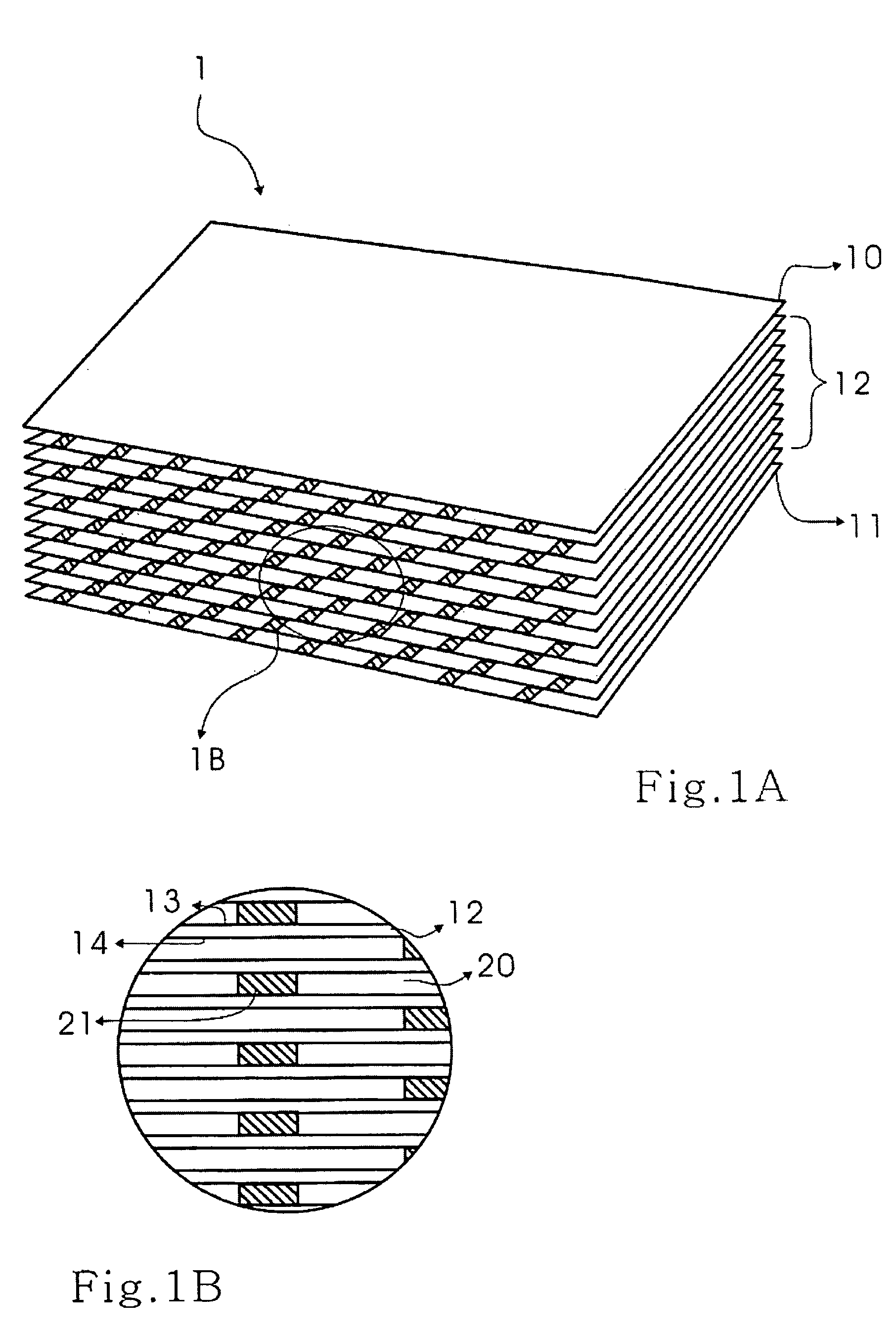

US-7735940-B2 figure 4
4
US-7735940-B2 figure 5
5

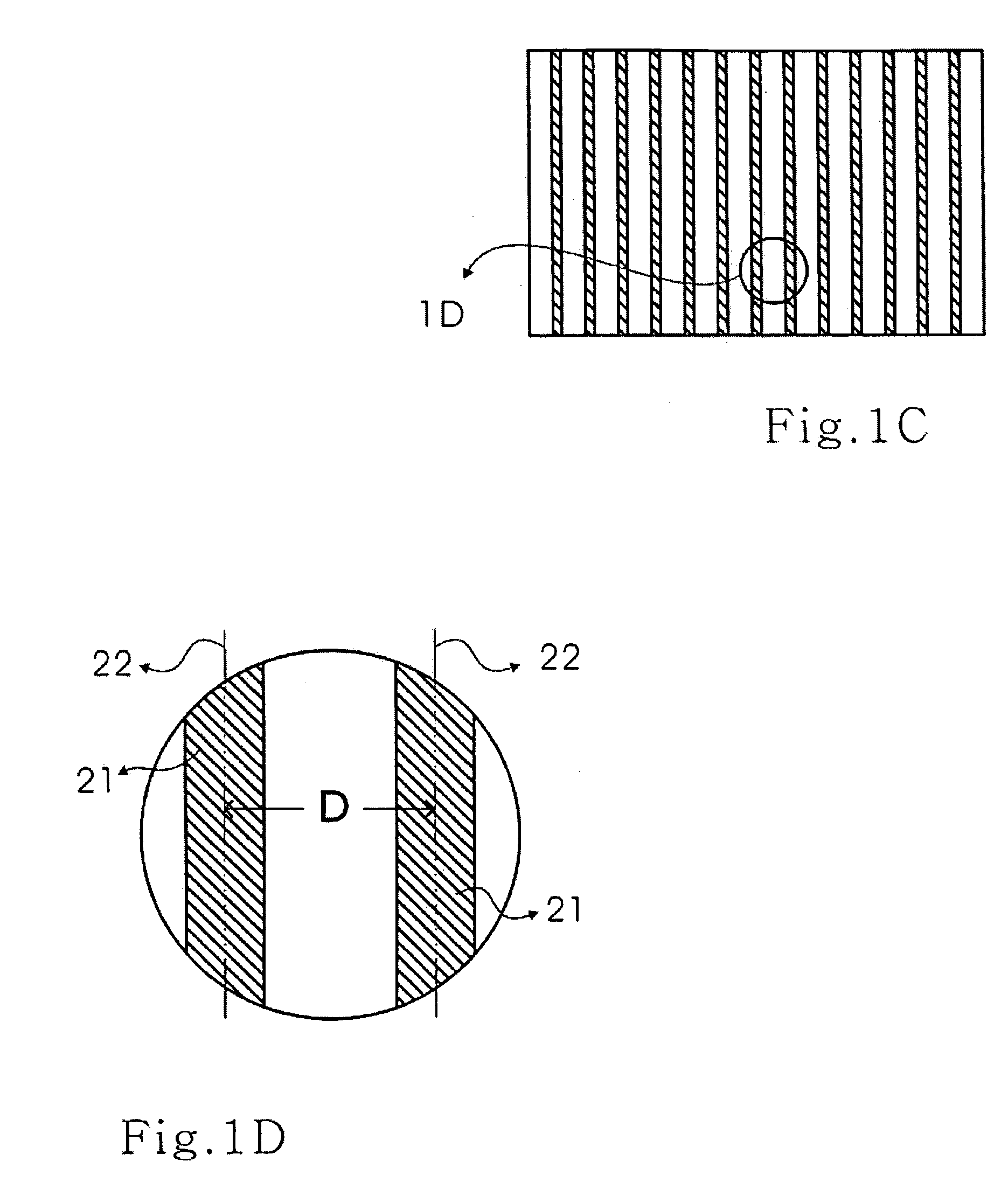

US-7735940-B2 figure 6
6
US-7735940-B2 figure 7
7

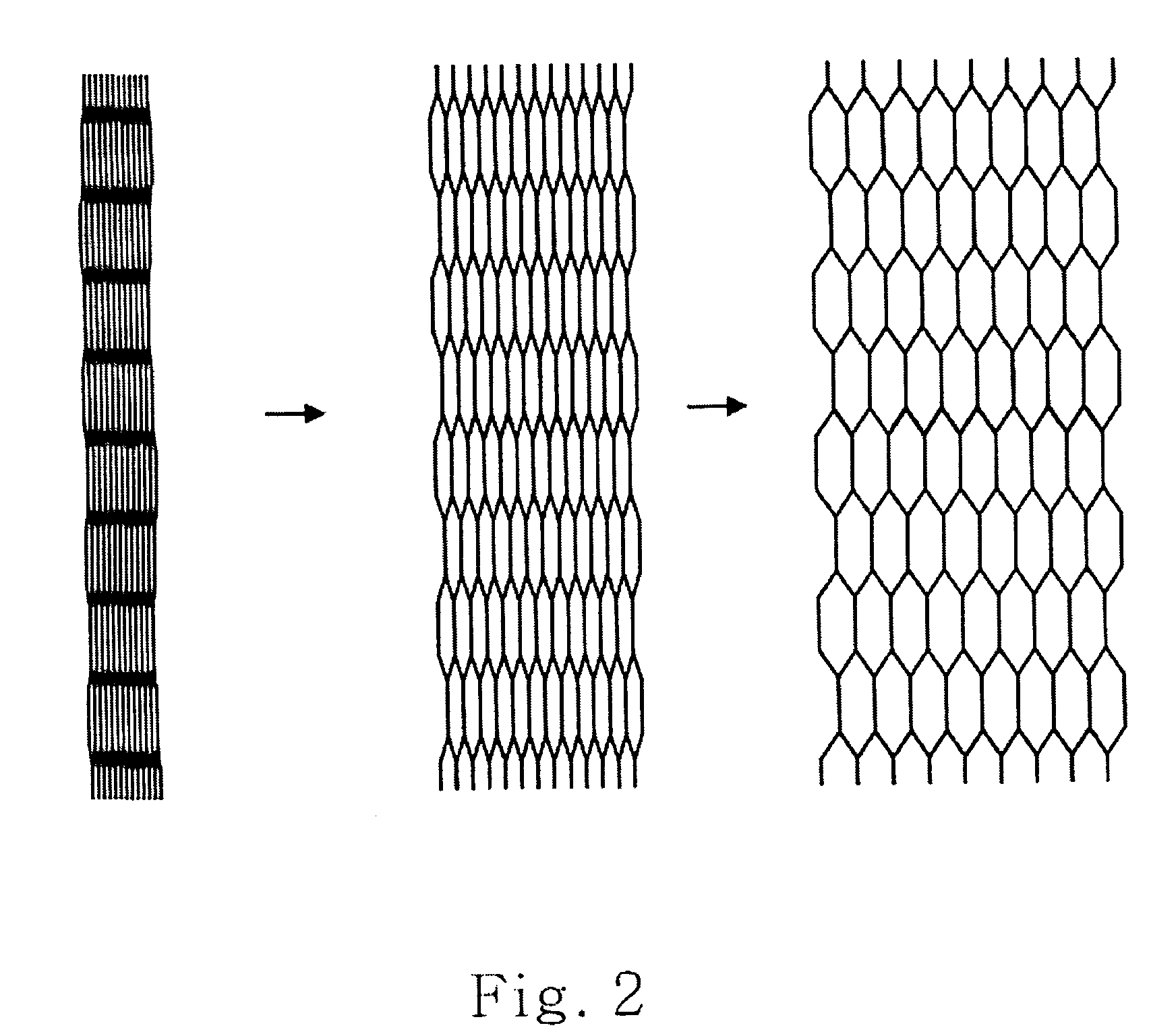

US-7735940-B2 figure 8
8
