用于固定搁架支撑件，提高稳定性。
专利摘要
公开了一种改进的搁架系统，其特征在于：提供锚定罐，其可固定且不可移动地插入搁架底板的相应孔中，该孔面向搁架底板支撑件；锚定罐中设有槽口和用于锁定螺钉的螺钉路径，该路径相对于槽口偏移并斜向延伸；搁架底板支撑件的锚定部分的一部分可插入槽中；锁定螺钉可拧紧，使得搁架底板支撑件直接或间接地至少以非正向且优选正向的方式固定。
Original abstractDisclosed is an improved shelf system which is characterized by the following features: an anchoring pot is provided which can be inserted in a fixed and captive manner into a corresponding bore of a shelf bottom, said bore facing the shelf bottom support; a slot opening and a screw path for a locking screw, which is offset relative thereto and runs diagonally, are provided in the anchoring pot; a portion of an anchoring section that is part of the shelf bottom support can be inserted into the slot; and the locking screw can be twisted in such a way that the shelf bottom support is directly or indirectly fixed at least in a non-positive and preferably a positive fashion.

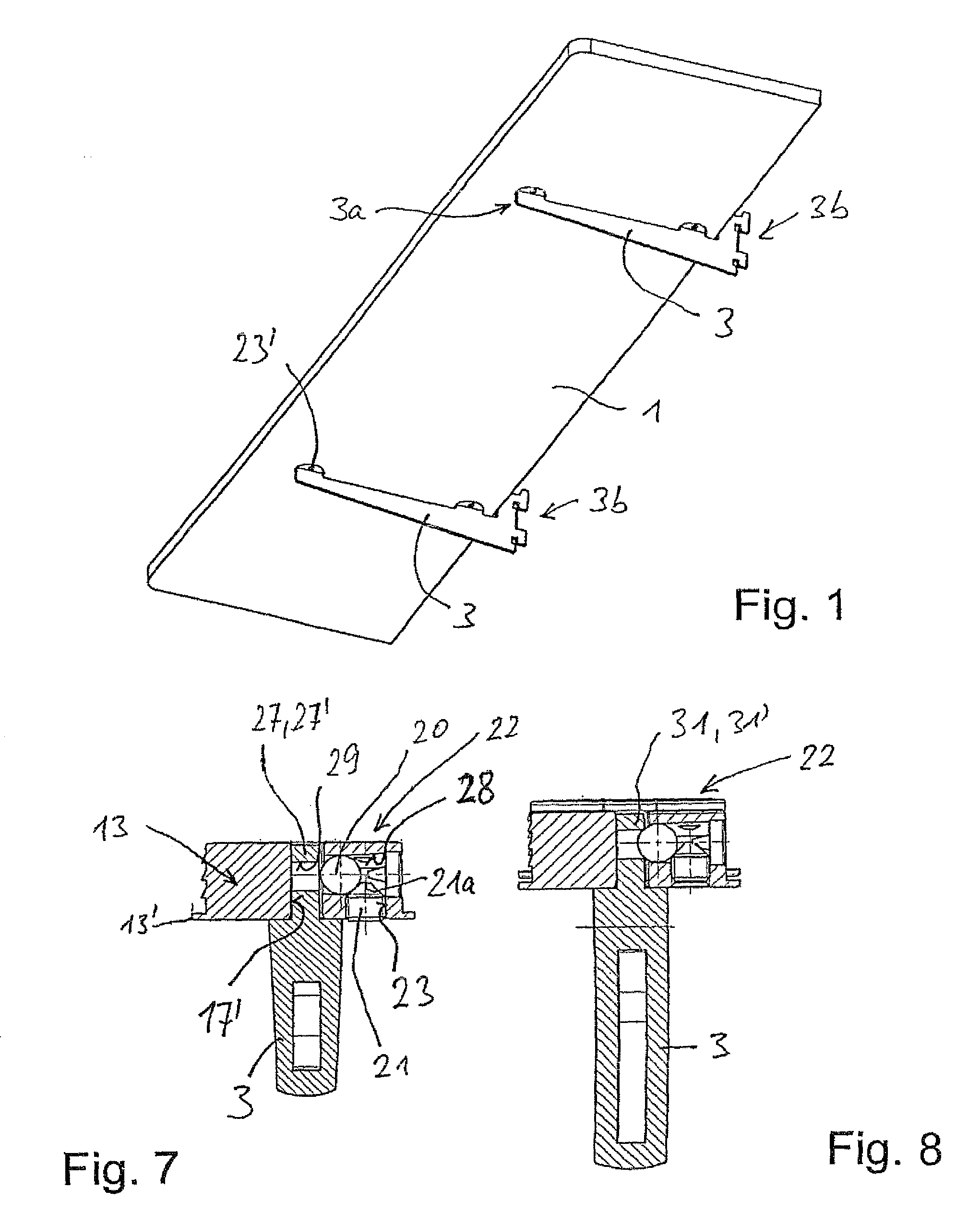

专利附图（8）
