液体分配器

Liquid dispenser

US-7726521-B2

用于分配液体,可调节高度并附接于表面。

专利摘要

一种液体分配器包括具有用于容纳液体的内腔的主体,以及提供进入内腔的通道的孔口。在孔口内安装有按压泵。至少一个高度可调节的安装座连接到主体,用于将主体可释放地附接到表面。优选地,主体为顺应形状。适配器可将液体分配器连接到液体容器以填充液体分配器。

Original abstractA liquid dispenser includes a body having an inner cavity for containing liquid, and an aperture providing access to the inner cavity. A push pump is fitted within the aperture. At least one height adjustable mount is connected to the body for releasably attaching the body to a surface. Preferably the body is conformingly shaped. An adapter can connect the liquid dispenser to a liquid container for filling the liquid dispenser.

专利附图(8)

US-7726521-B2 figure 1
1

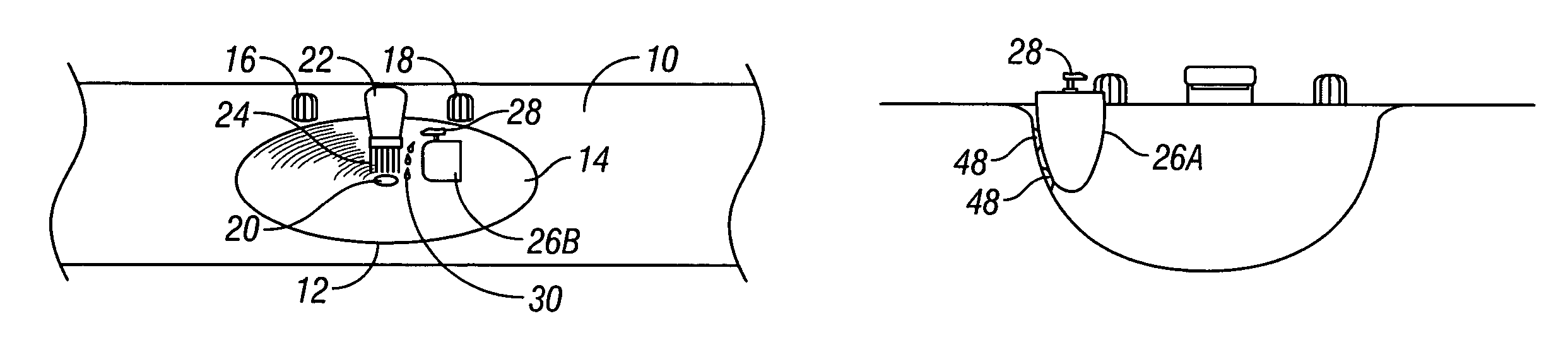

US-7726521-B2 figure 2
2
US-7726521-B2 figure 3
3

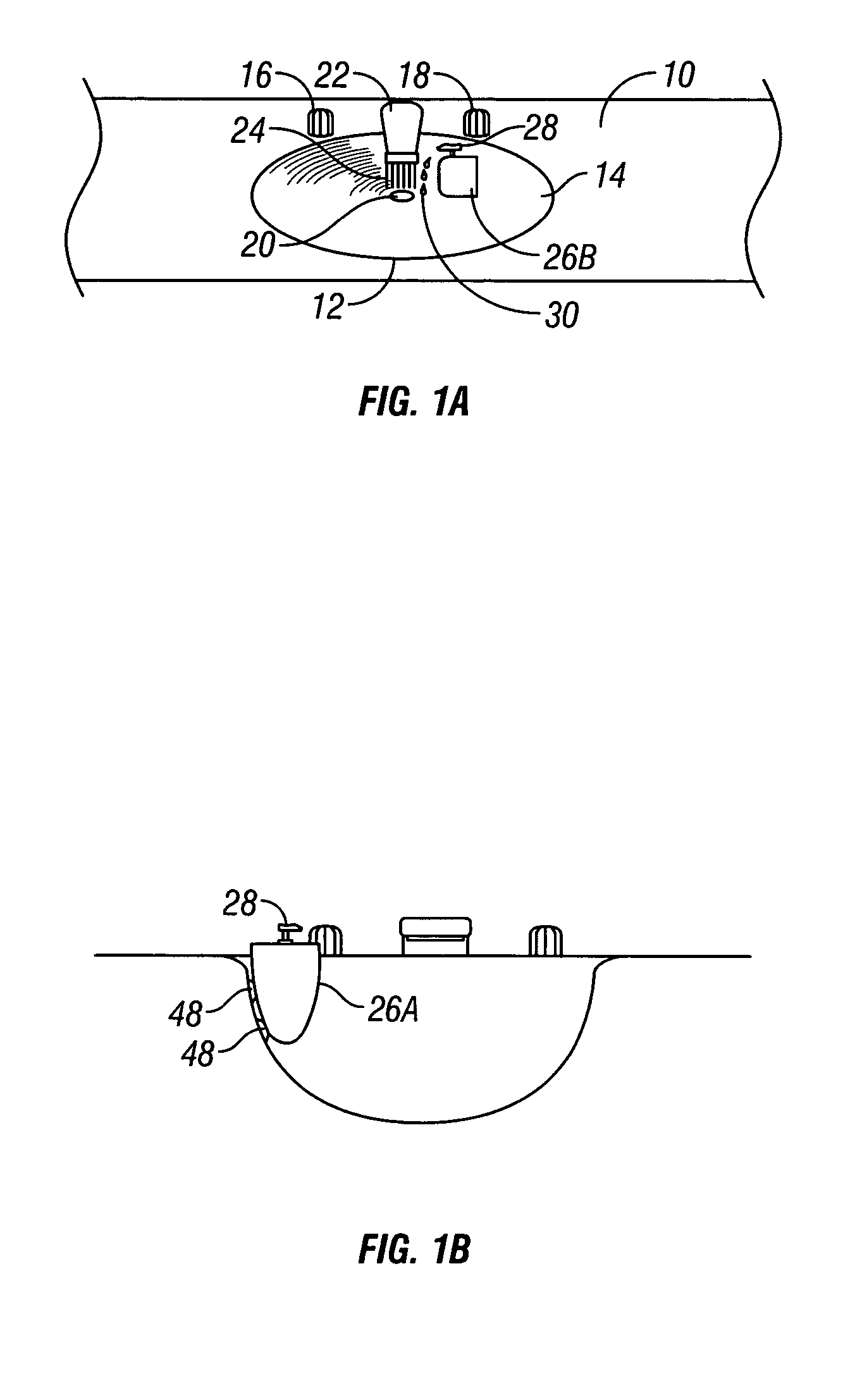

US-7726521-B2 figure 4
4
US-7726521-B2 figure 5
5

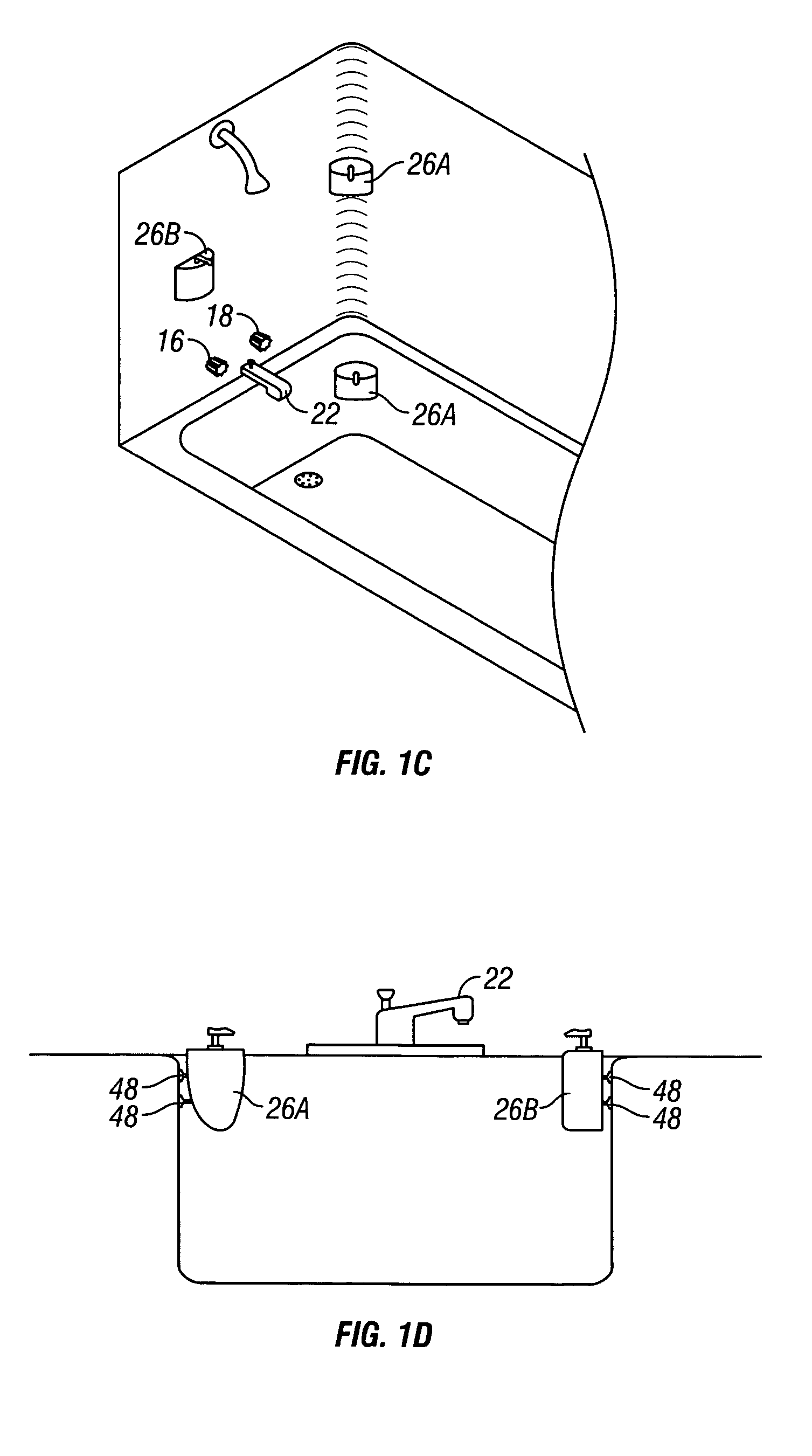

US-7726521-B2 figure 6
6
US-7726521-B2 figure 7
7

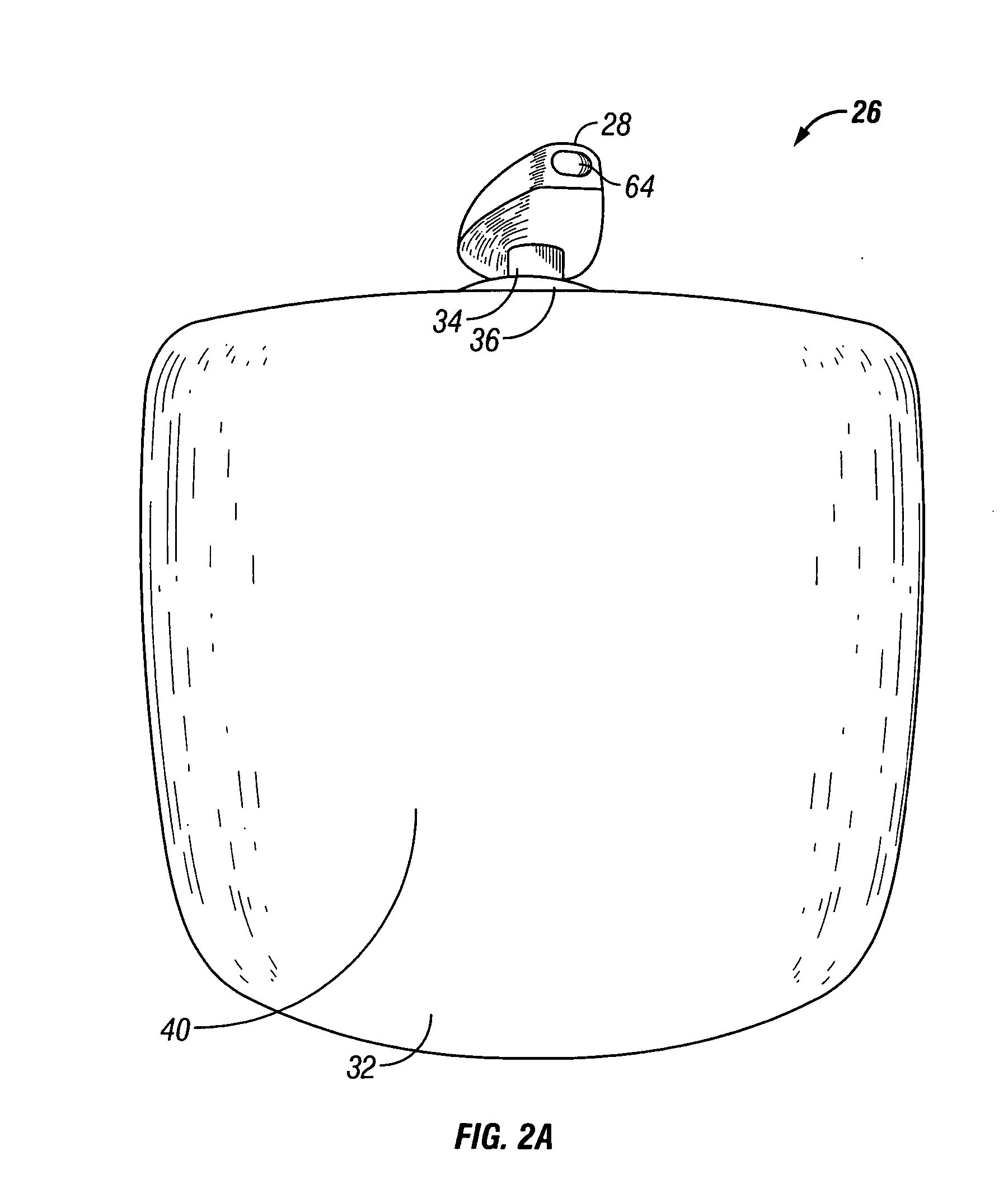

US-7726521-B2 figure 8
8
