用于杆安装系统的K型底座

K-base for a pole mounting system

US-7703728-B2

用于杆安装的K型底座，稳定支撑。

专利摘要

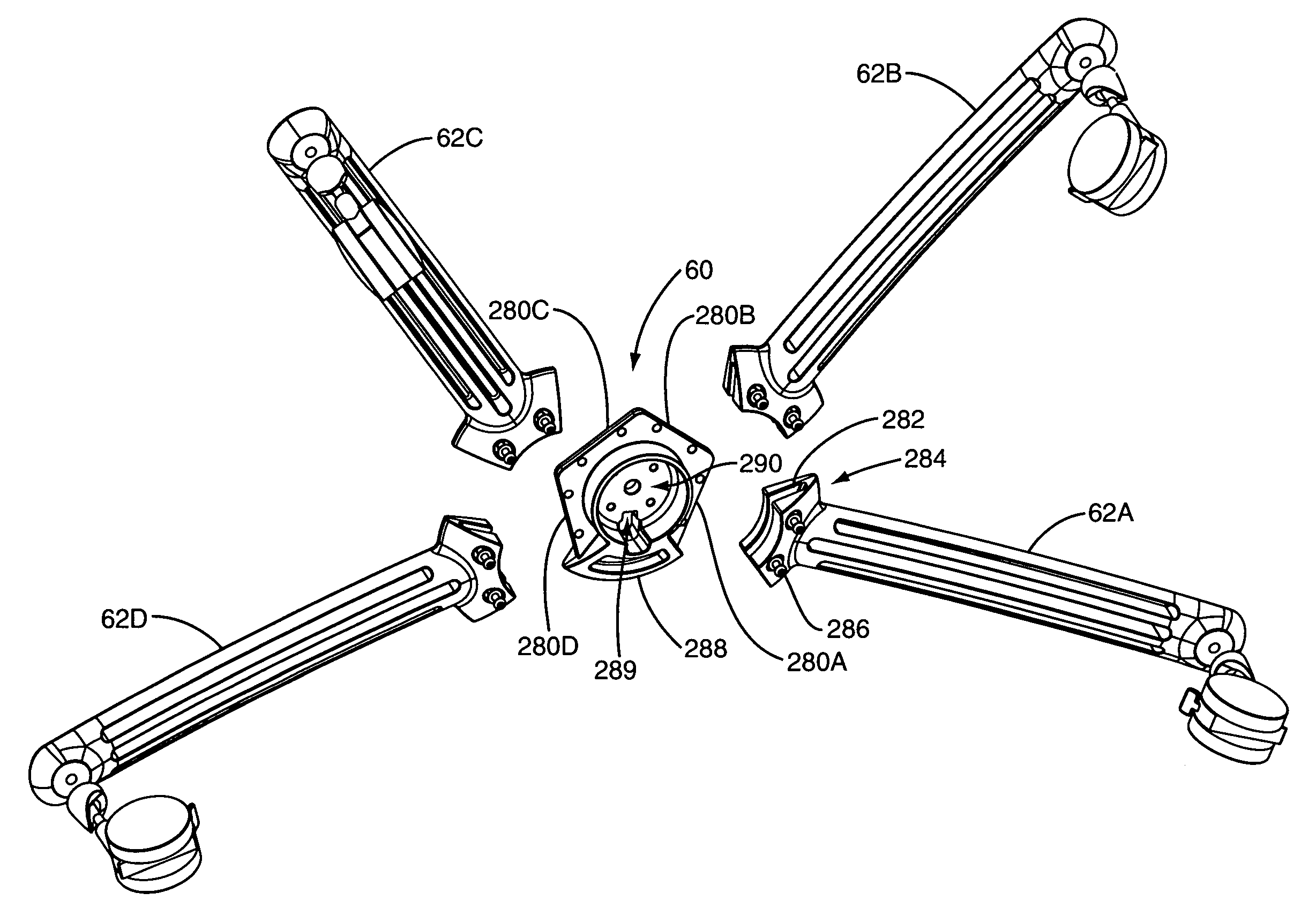

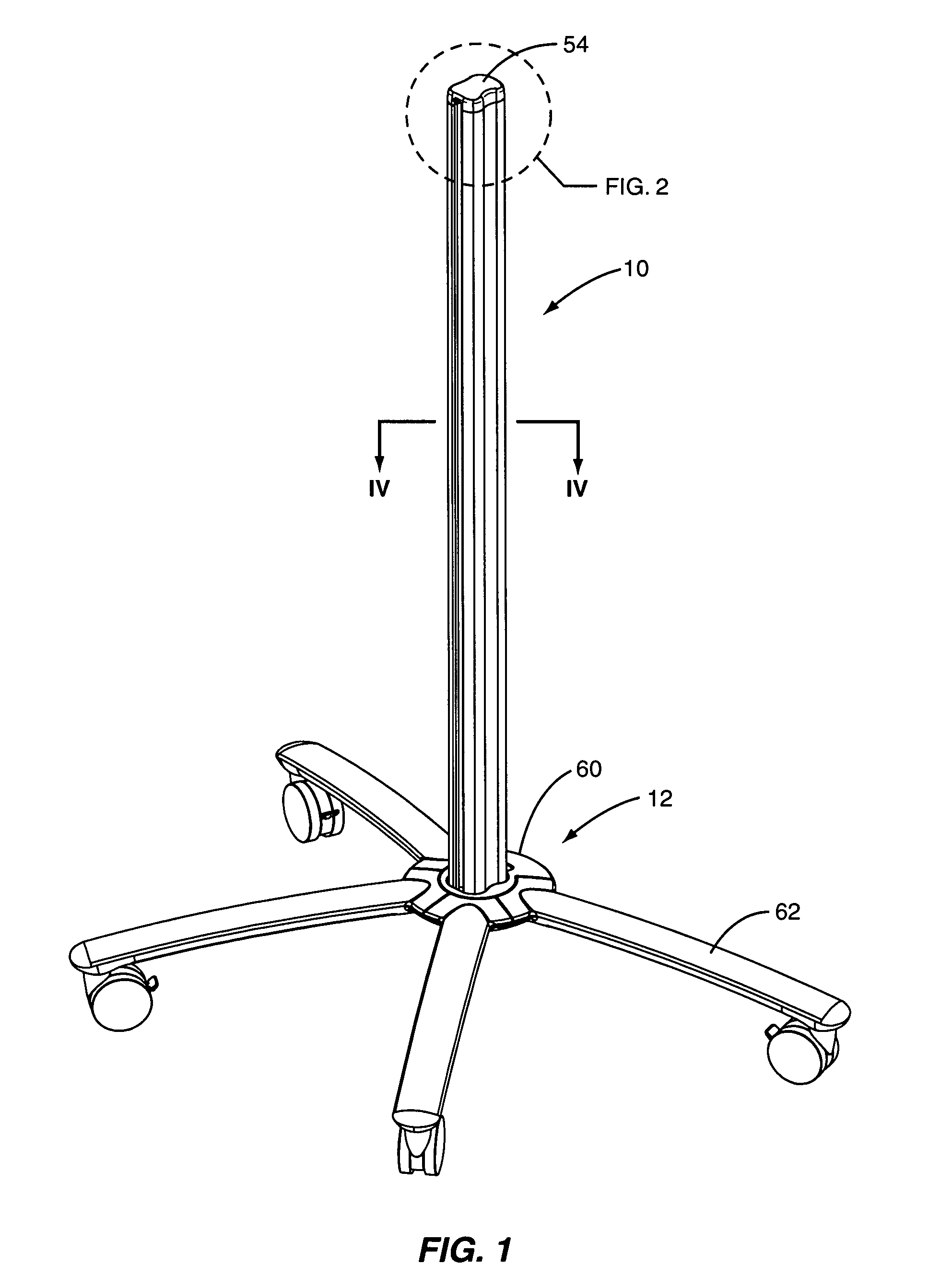

一种用于杆安装系统的K型底座，包括形成为五边形的中心毂，腿从五边形的五个边中的四个延伸。腿的端部可张开形成裂缝，配置为接收中心毂的平坦外周边，使得腿可以螺栓连接到中心毂。腿的端部和五边形的第五个未占用边可形成为近似圆盘。在中心毂的中心区域，在顶表面上，可形成凹口以近似配置为附接到K型底座的杆的外周边。在底表面上，中心区域可包含凹部，其尺寸设计为容纳垫圈和可选的重物。延伸穿过垫圈和可选地穿过重物的螺栓可用于将K型底座连接到杆。垫圈可形成为分配来自螺栓在中心毂上的应力。

Original abstractA K-base for a pole mounting system includes a central hub formed as a pentagon with legs extending from four of the five sides of the pentagon. The ends of the legs may splay to form clefts configured to receive a flat outer perimeter of the central hub so that the legs may be bolted to the central hub. The ends of the legs and the fifth unoccupied side of the pentagon may be formed to approximate a disk. In the central region of the central hub, on the top surface, an indentation may be formed to approximate an outer perimeter of a pole configured to be attached to the K-base. On the bottom surface, the central region may contain a depression sized to receive a washer and optionally a weight. Bolts extending through the washer and optionally through the weight may be used to connect the K-base to a pole. The washer may be formed to distribute stress from the bolts on the central hub.

专利附图（8）

来源状态与事件

暂无可展示的状态事件记录。
