颗粒产品分配系统

Granular product dispensing system

US-7703639-B2

分配颗粒产品,如食品或洗涤剂。

专利摘要

一种用于分配颗粒产品的系统。该系统包括可再填充、可密封的容器,其下端具有颈部,颈部内具有可旋转且柔性的叶轮,叶轮的形状和尺寸与颈部的形状和尺寸大致相符,提供密封以保持颗粒产品的新鲜度。优选地,叶轮包括中空中心芯,轴延伸穿过中空芯进入形成在颈部中的至少一个通孔。存在手柄用于转动轴以旋转叶轮。底座设有保持臂,用于可拆卸地接收容器。该系统能够通过从容器的内部移除容器和叶轮而易于拆卸以进行清洁。还提供了一种用于分配多种产品的多系统,具有多个容器和相关的分配机构,安装在单个支架上。

Original abstractA system for dispensing a granular product. The system includes a refillable, sealable receptacle, having a neck at its lower end, a rotatable and flexible impeller within the neck, with the shape and size of the impeller conforming generally to the shape and size of the neck, providing sealing for maintaining the freshness of the granular product. Preferably the impeller comprises a hollow central core, and a shaft extends through the hollow core into at least one through-hole formed in the neck. A handle is present for turning the shaft to rotate the impeller. A base is provided with a retaining arm for removably receiving the receptacle. The system is capable of easy disassembly for cleaning, by removal of the receptacle and impeller from within the receptacle. Also provided is a multi-system for dispensing a plurality of products; having several receptacles and associated dispensing mechanisms mounted on a single support.

专利附图(8)

US-7703639-B2 figure 1
1

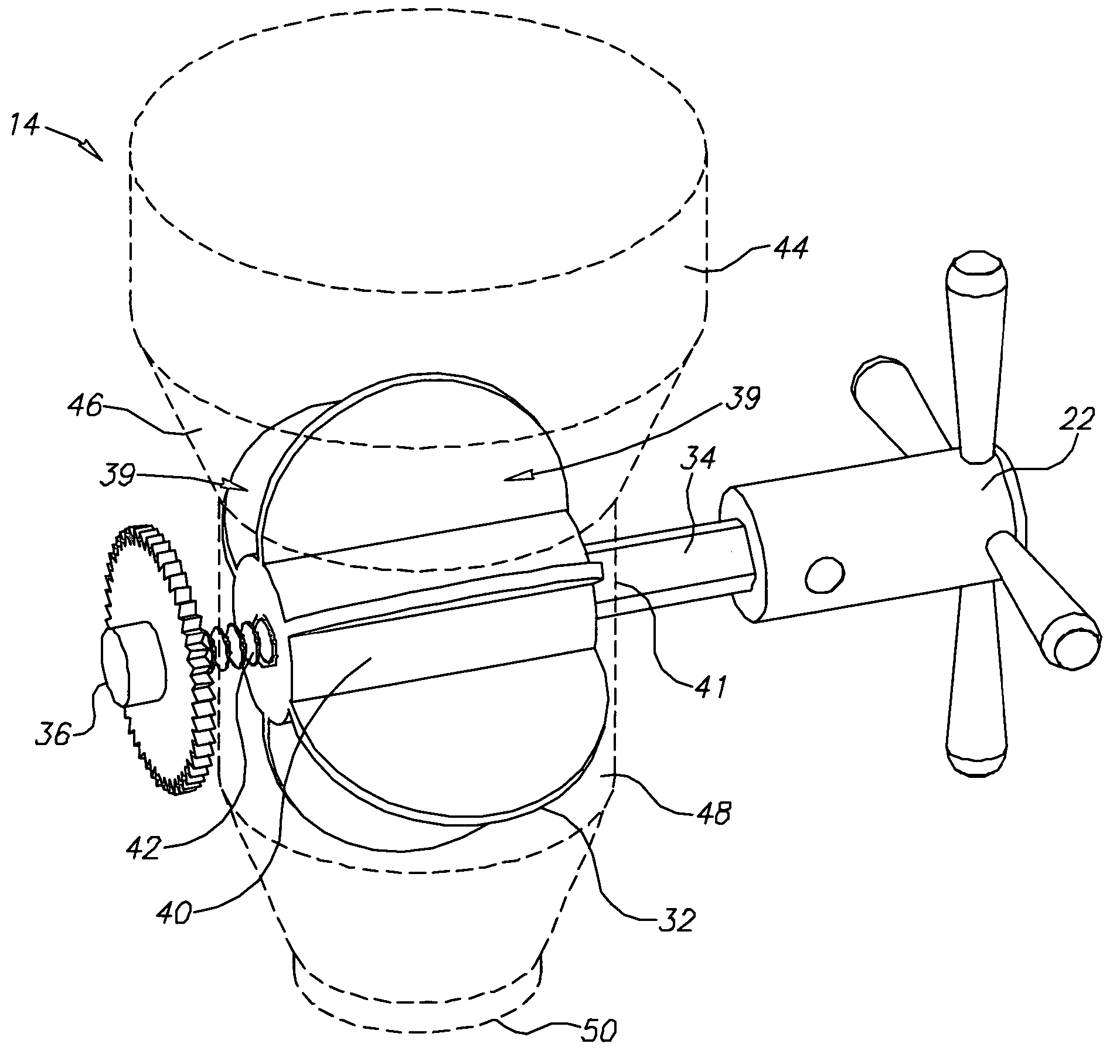

US-7703639-B2 figure 2
2
US-7703639-B2 figure 3
3

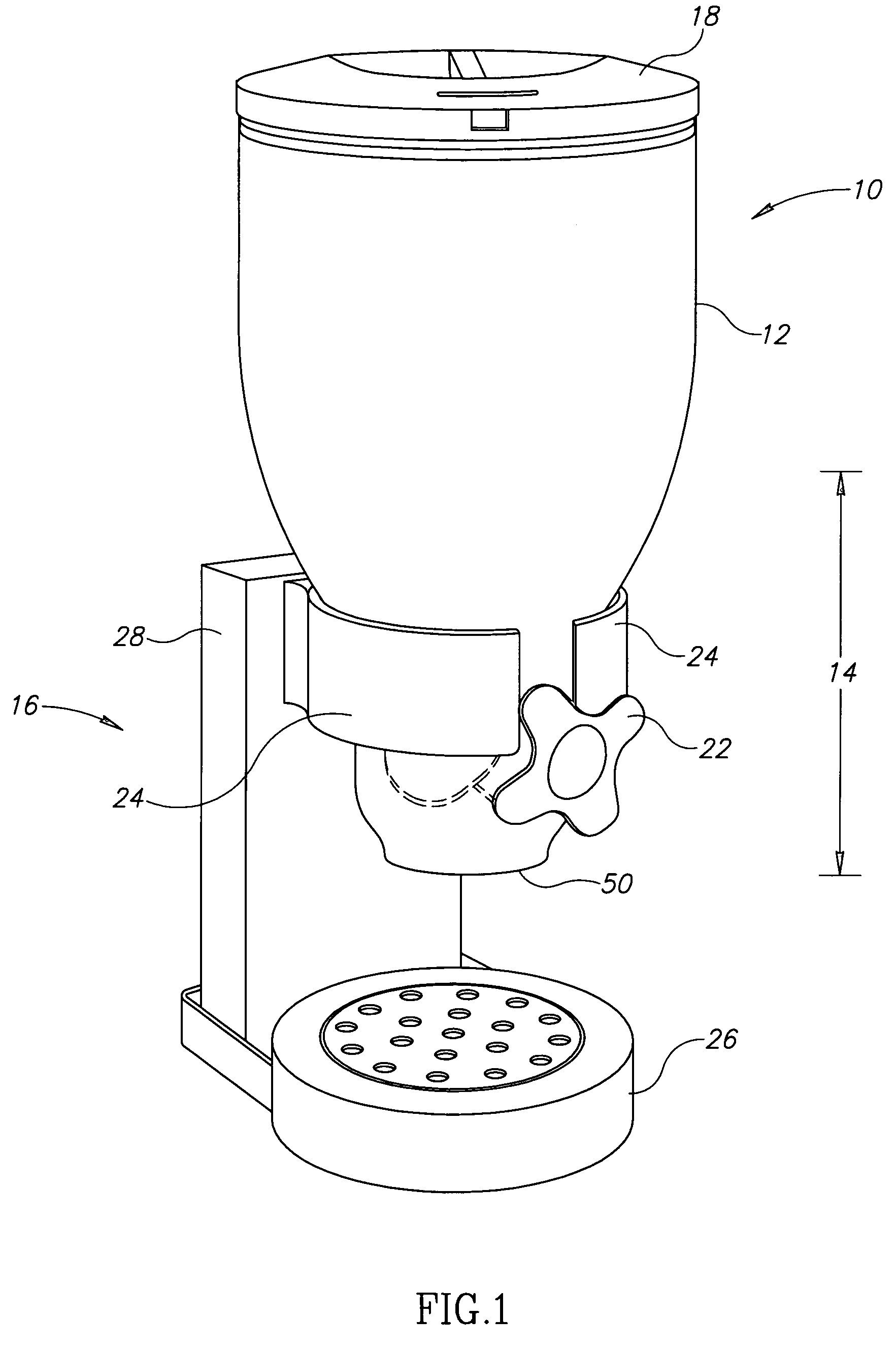

US-7703639-B2 figure 4
4
US-7703639-B2 figure 5
5

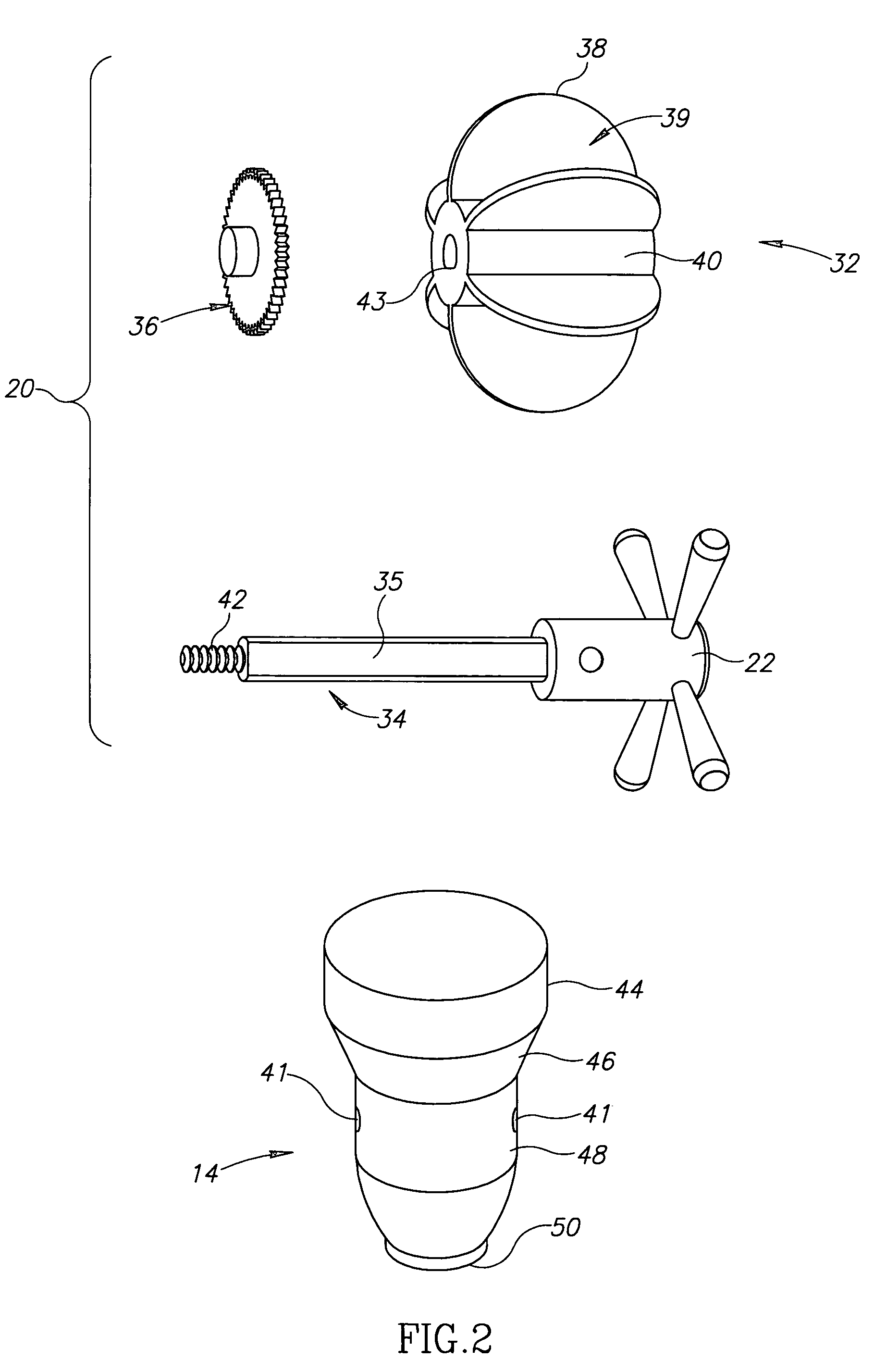

US-7703639-B2 figure 6
6
US-7703639-B2 figure 7
7

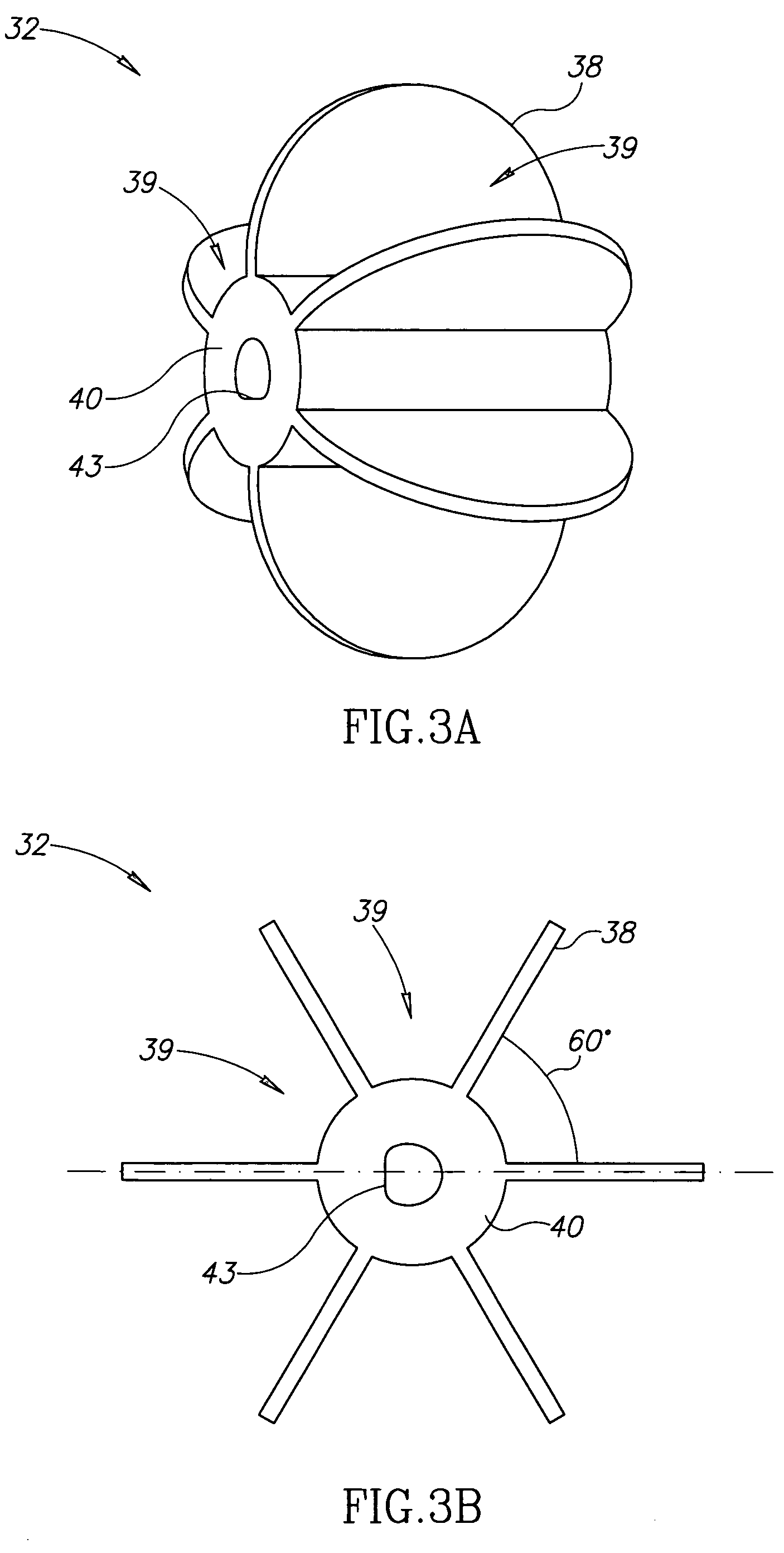

US-7703639-B2 figure 8
8
