桌子，尤其是会议桌和办公桌

Table, especially conference and office table

US-7703398-B2

一种可调节尺寸的桌子，适用于办公室和会议室。

专利摘要

提供了一种具有可变尺寸（特别是长长度）的桌子，主要用于办公室和会议室。桌子的底座由桌脚（6）支撑，并承载桌面板（1,1），桌面板在其纵向侧边处并拢，以及一个插入件（8,81），该插入件可插入桌面板之间，可具有不同配置，并可用作各种结构的支撑。桌子的底座包括至少两个横向支撑件（2），其设有中央下沉通道区域（20），两个延伸臂（21）分别从该区域沿相反方向延伸，桌脚（6）安装在臂上，支撑桌面板（1,1）的侧向支柱（4）布置在外侧。

Original abstractA table is provided which has variable dimensions, especially a long length, and is mainly used in offices and conferences. The base of the table is supported by feet ( 6 ) and carries table leaves ( 1,1 ) which are brought together at the longitudinal sides thereof, and an insert ( 8,81 ) which can be inserted in-between the leaves, can have different configurations and can be used as a support for various structures. The base of the table includes at least two transversal supports ( 2 ) provided with a central sunken channel region ( 20 ) from which two extension arms ( 21 ) respectively extended in opposite directions, the feet ( 6 ) being mounted on the arms, and lateral struts ( 4 ) supporting the table leaves ( 1,1 ) being arranged on the outside.

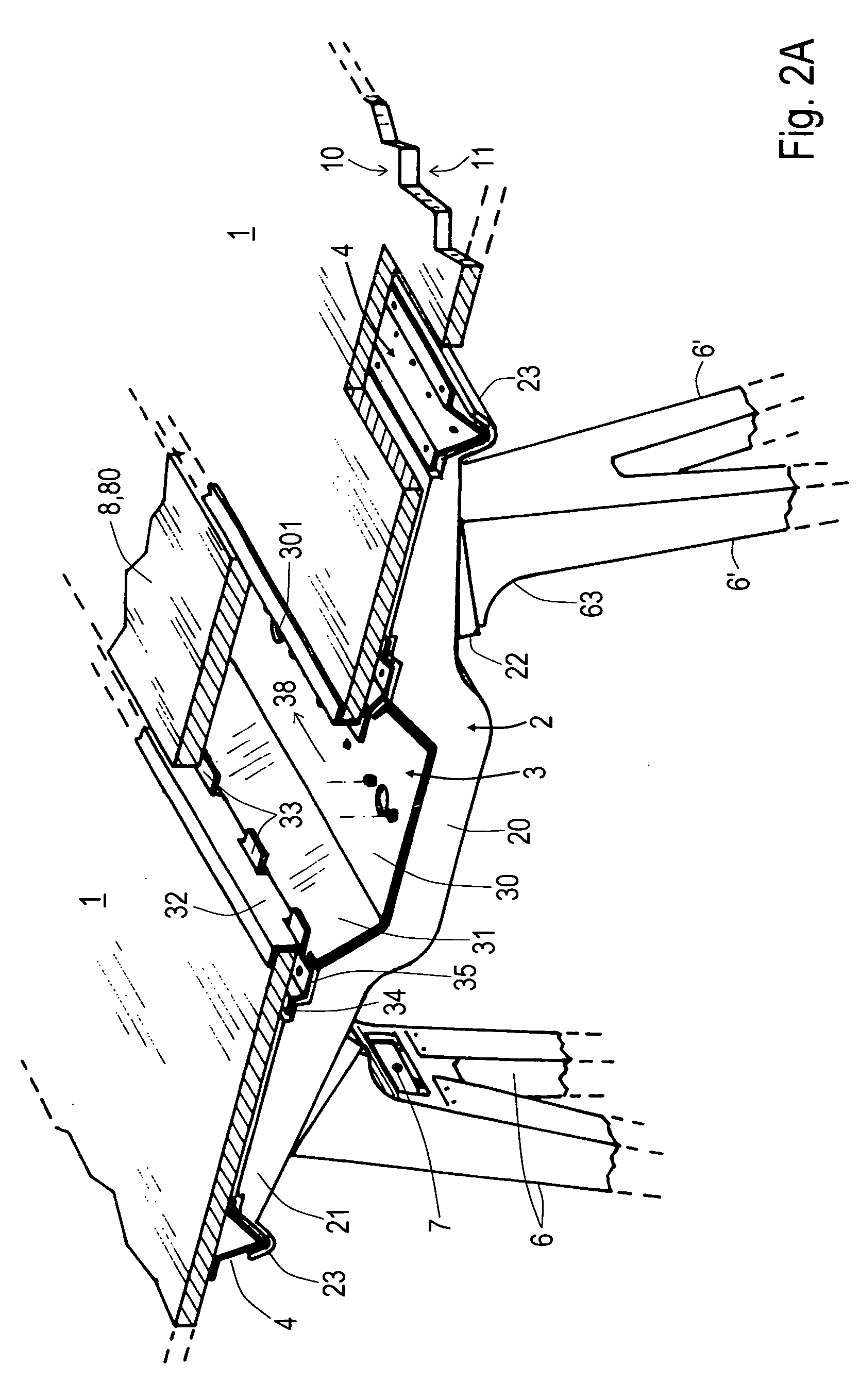

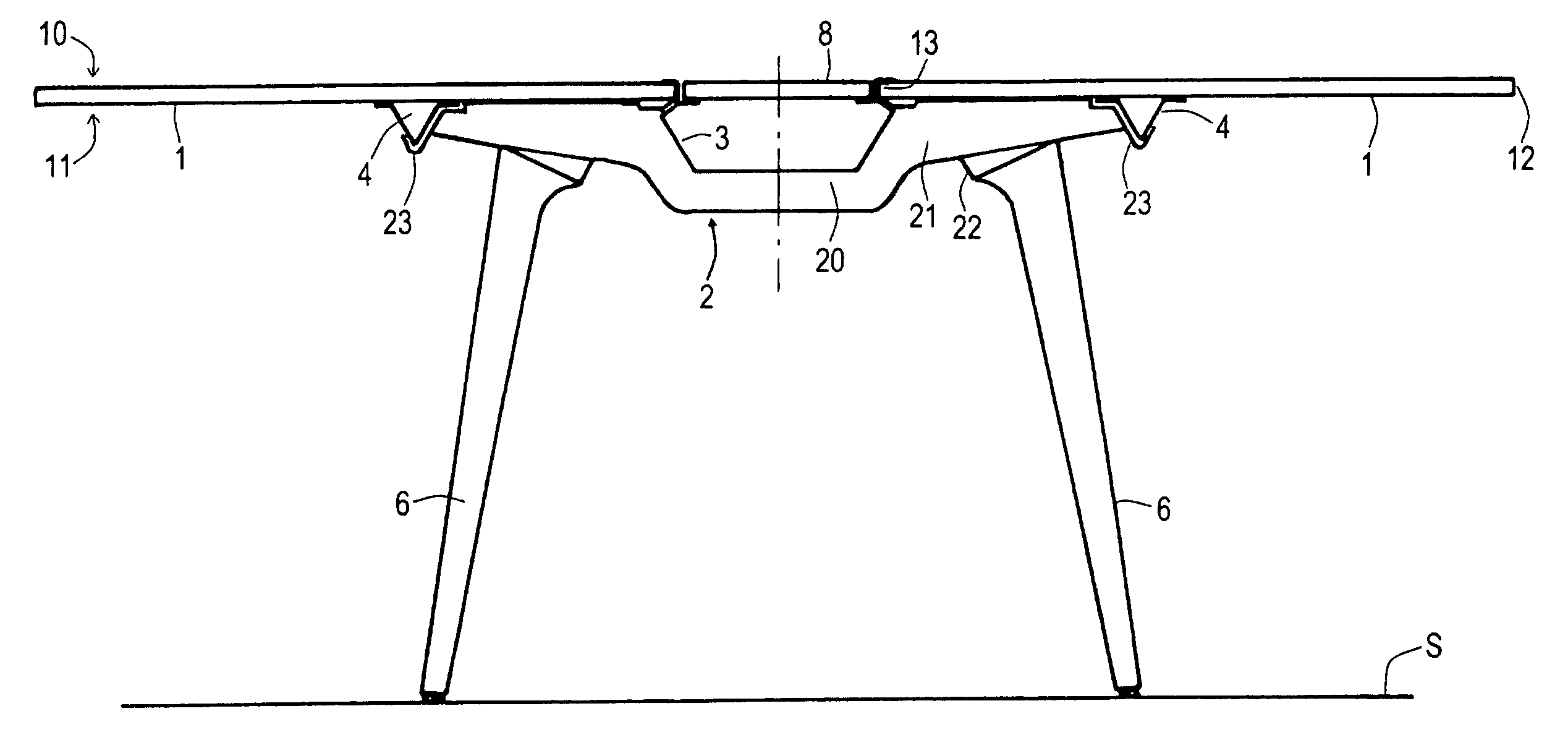

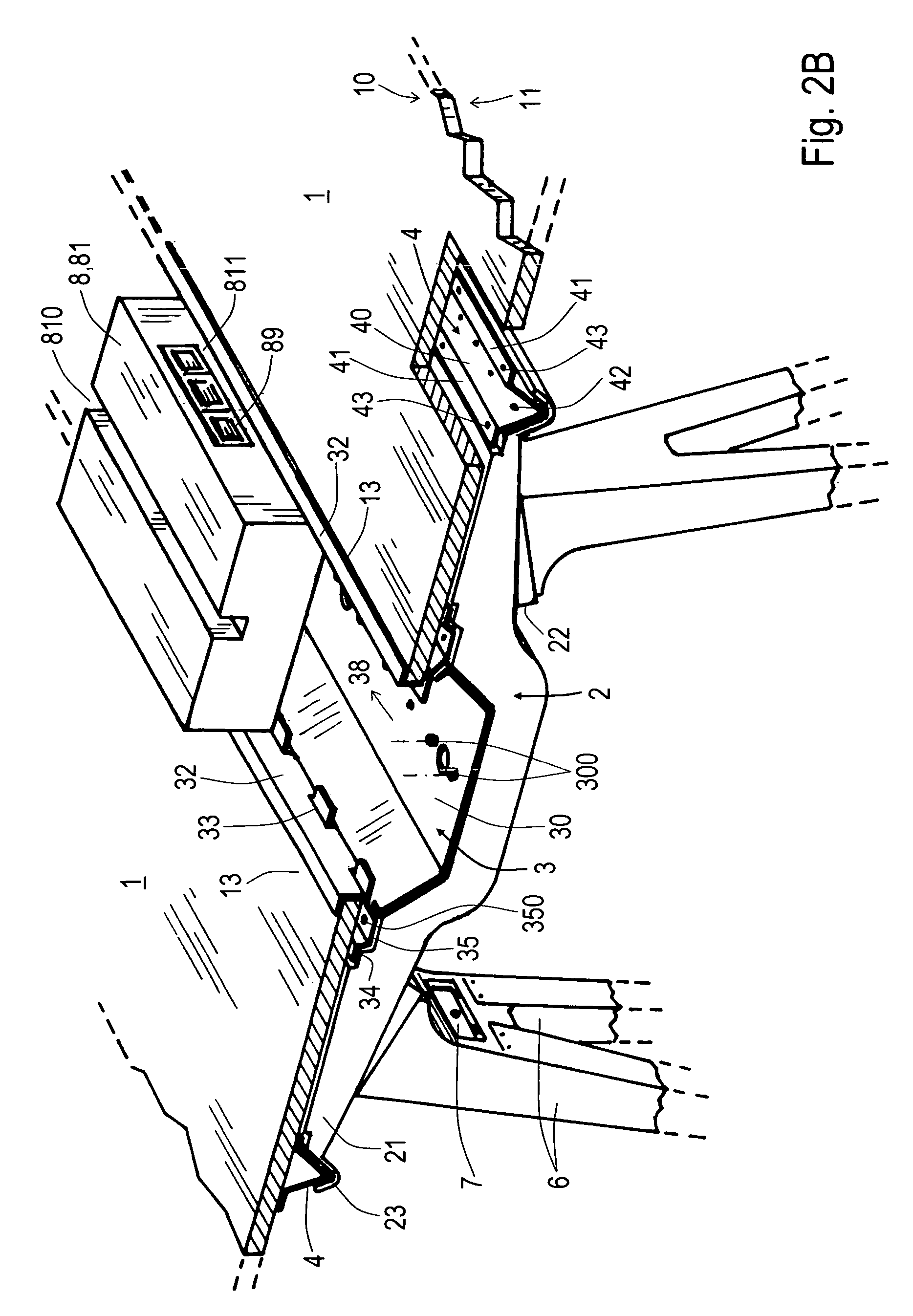

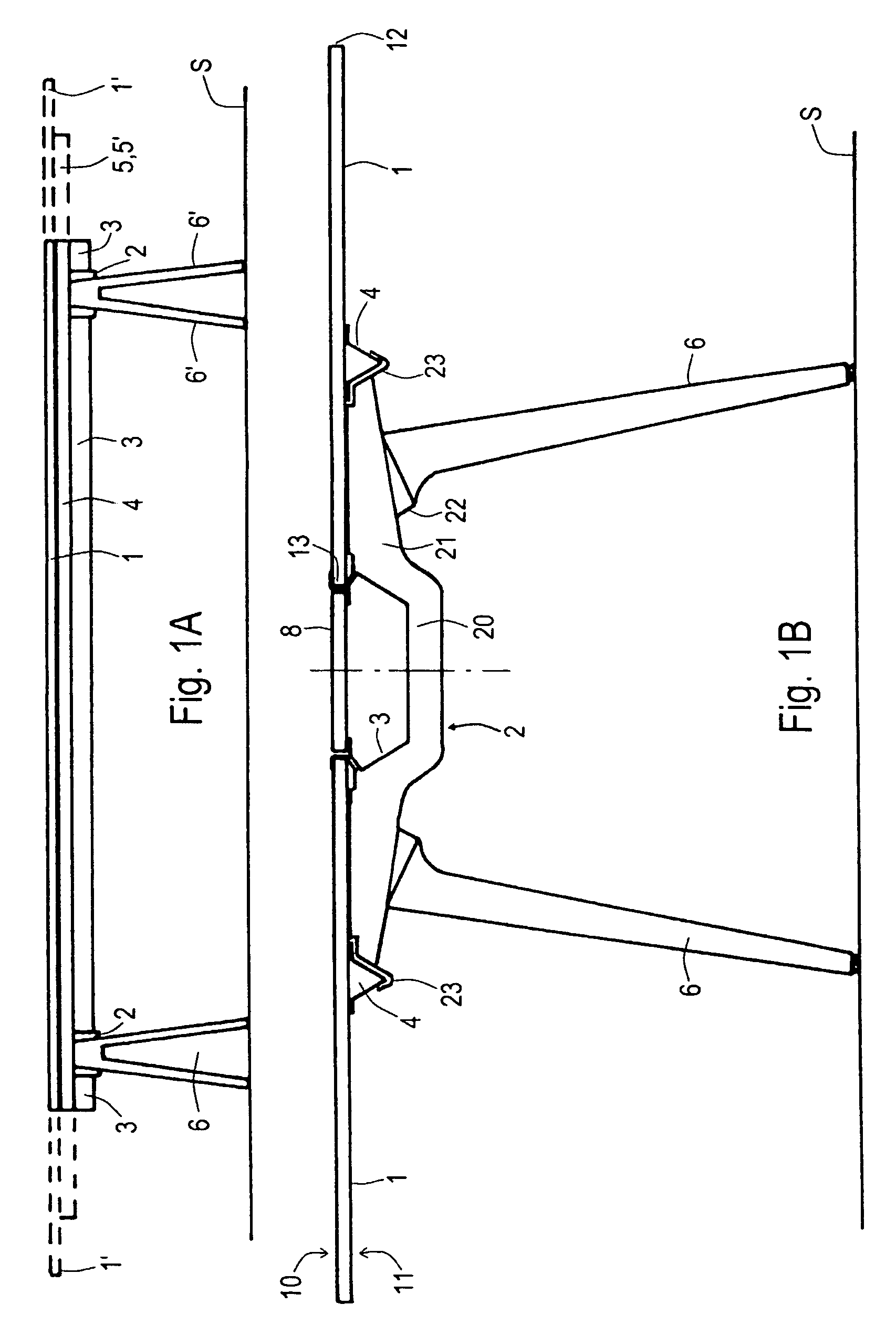

专利附图（8）

来源状态与事件

暂无可展示的状态事件记录。

本页提供信息参考，不构成法律意见

来源状态不是法律结论专利状态可能因补缴、恢复、同族权利或地域差异而变化，应以当前权威记录和专业判断为准。

实施前应完成 FTO 评估任何生产、进口或销售决策前，应委托专利代理人或律师完成自由实施检索与侵权分析。
