用于水槽边存放液体分配器和毛巾、海绵等工具。
专利摘要
公开了一种组合式分配器和工具保持器。该组合包括多个容器，每个容器用于容纳液体。每个容器包括底壁、至少一个侧壁和顶壁。每个容器的顶壁优选包括分配喷嘴。每个容器通过至少一个侧壁与其他容器流体隔离，从而不会发生液体混合。毛巾架从至少一个容器的至少一个侧壁突出，优选地，海绵架从同一壁突出，位于毛巾架下方。海绵架的底壁中包括排水孔。在本发明的一个具有三个容器的实施例中，第三个容器的宽度优选大于海绵架和毛巾架的宽度。因此，从正面观察组合时，毛巾架和海绵架均不可见。
Original abstractA combination dispenser and implement holder is disclosed. The combination comprises a plurality of containers, each for retaining a liquid. Each container includes a bottom wall, at least one side wall, and a top wall. The top wall of each container preferably includes a dispensing nozzle. Each container is fluidly isolated from each other container by at least one of the side walls so that mixing of the liquids does not occur. A towel rack projects from at least one side wall of at least one container, and preferably a sponge holder projects from the same wall below the towel rack. Drain holes are included in a bottom wall of the sponge holder. In one embodiment of the invention having three containers, the width of the third container is preferably larger than the width of the sponge holder and the towel rack. As such, when viewing the combination from the front, neither the towel rack or the sponge holder are visible.

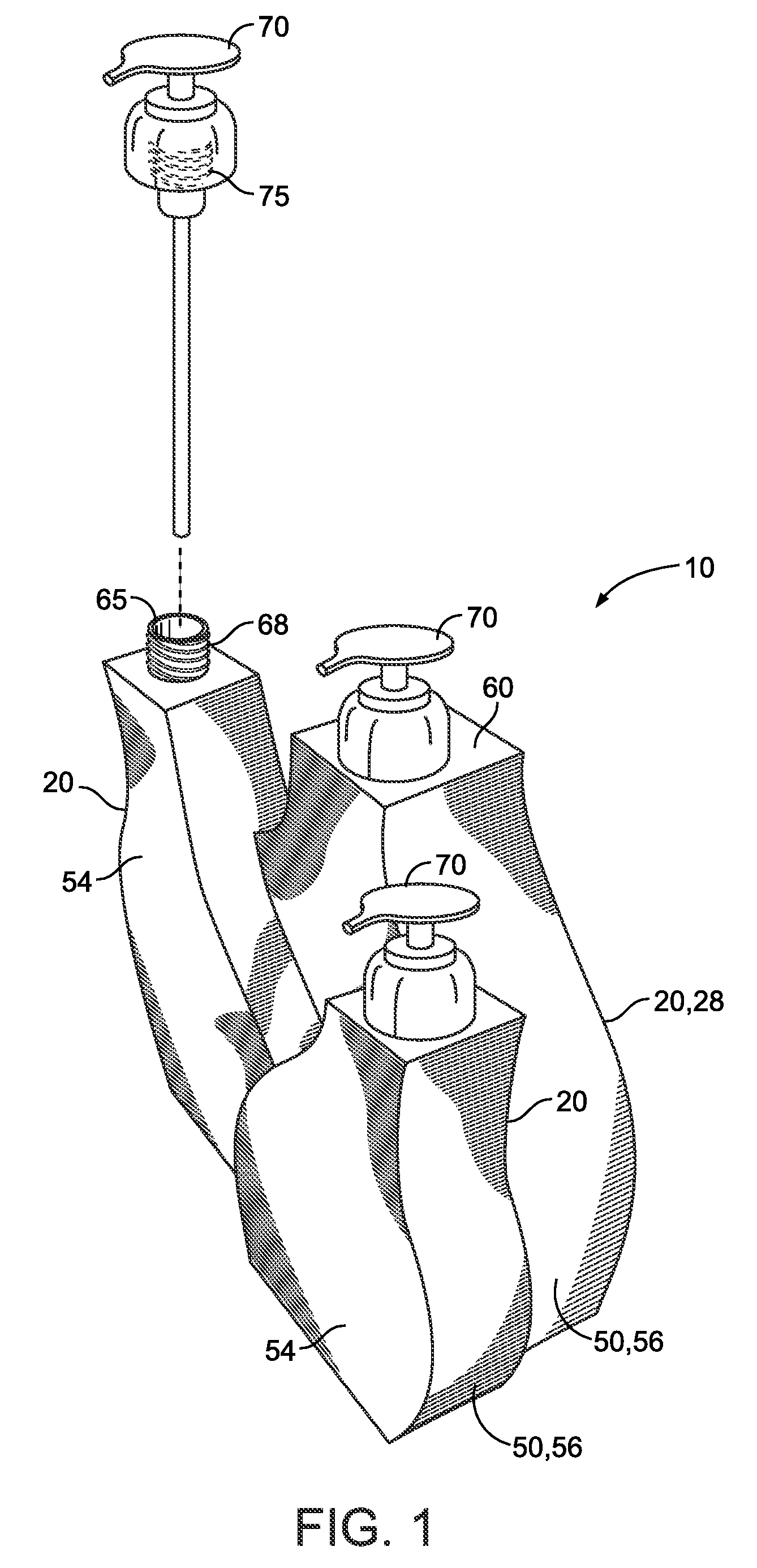

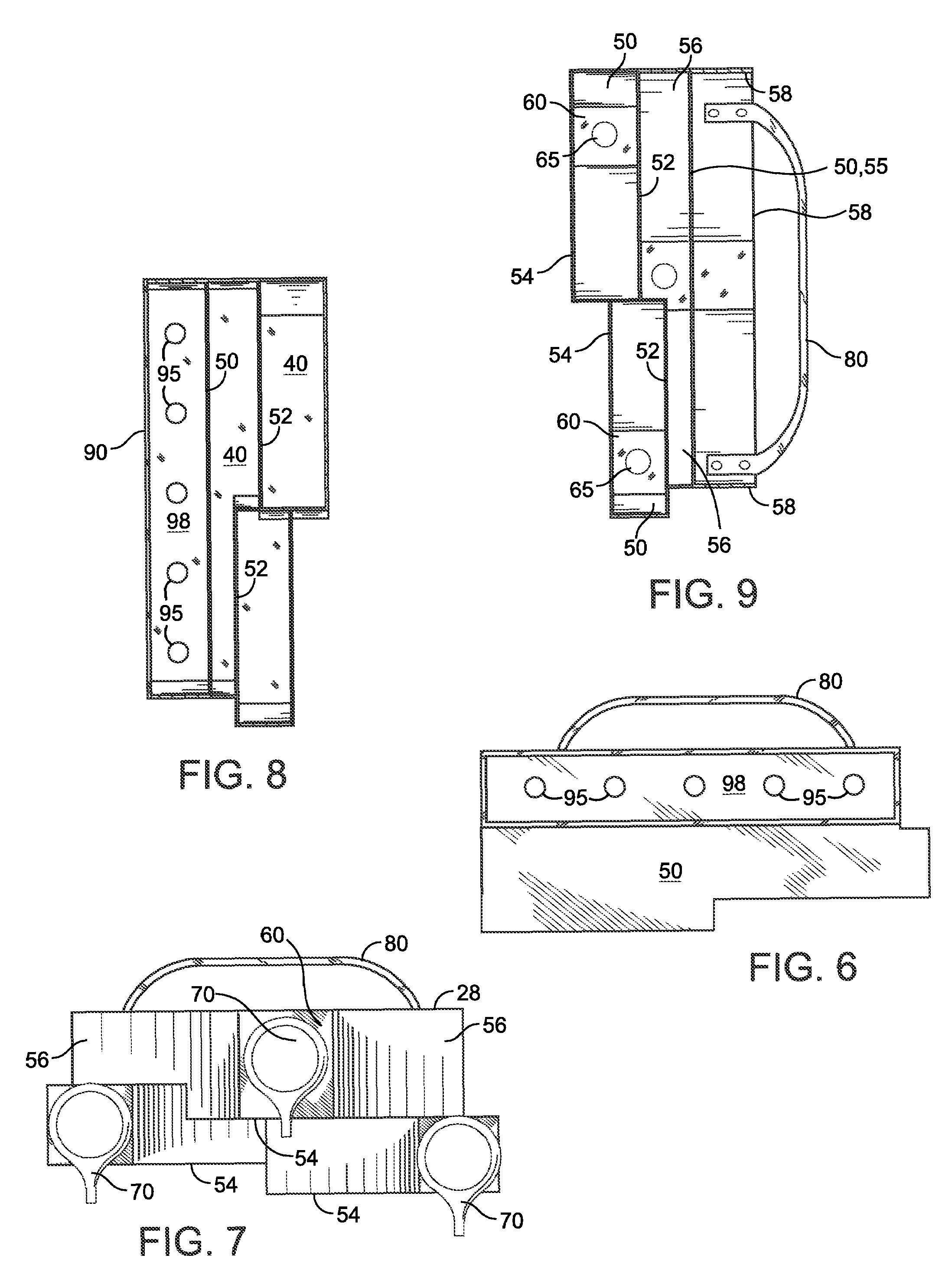

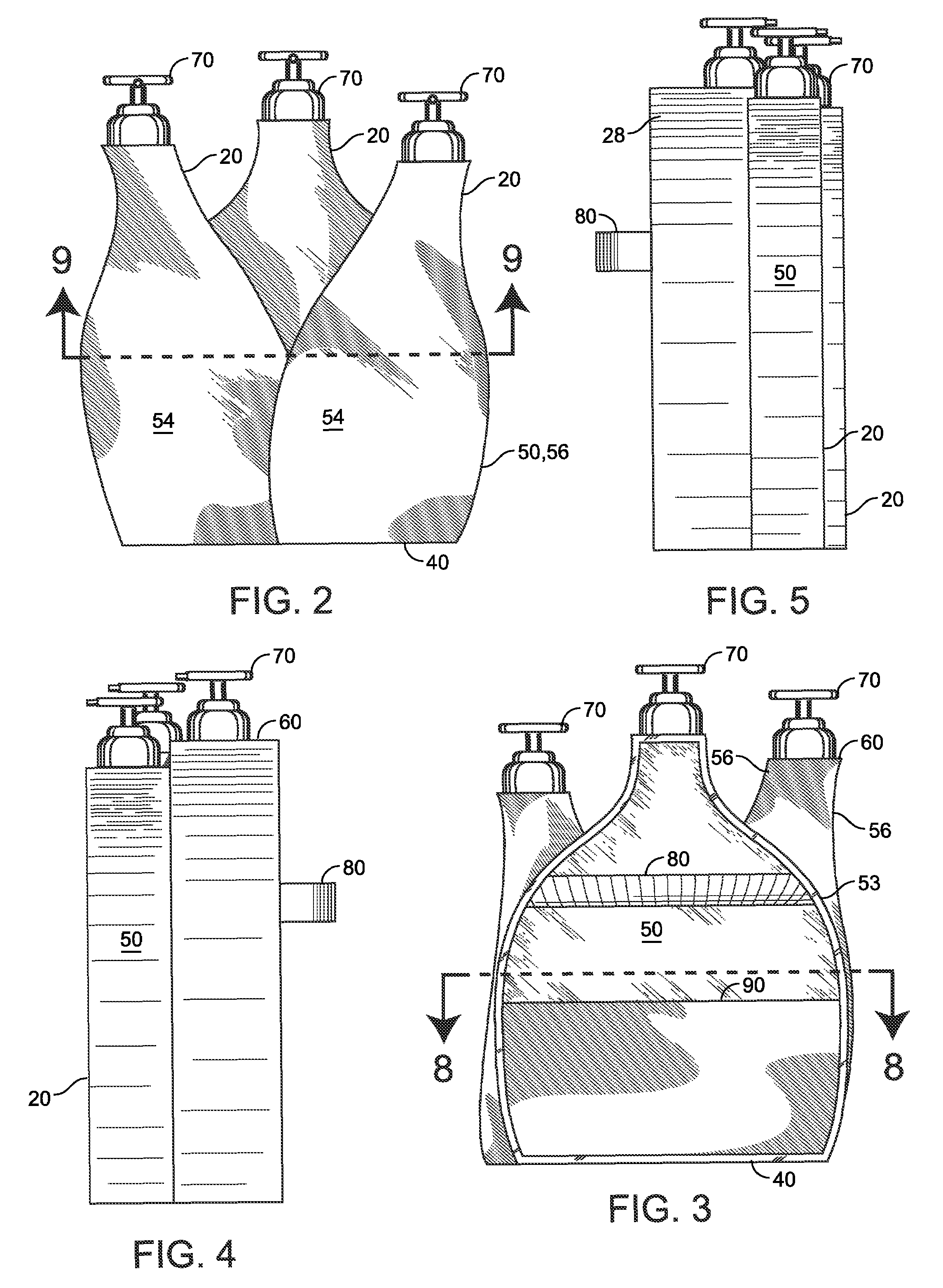

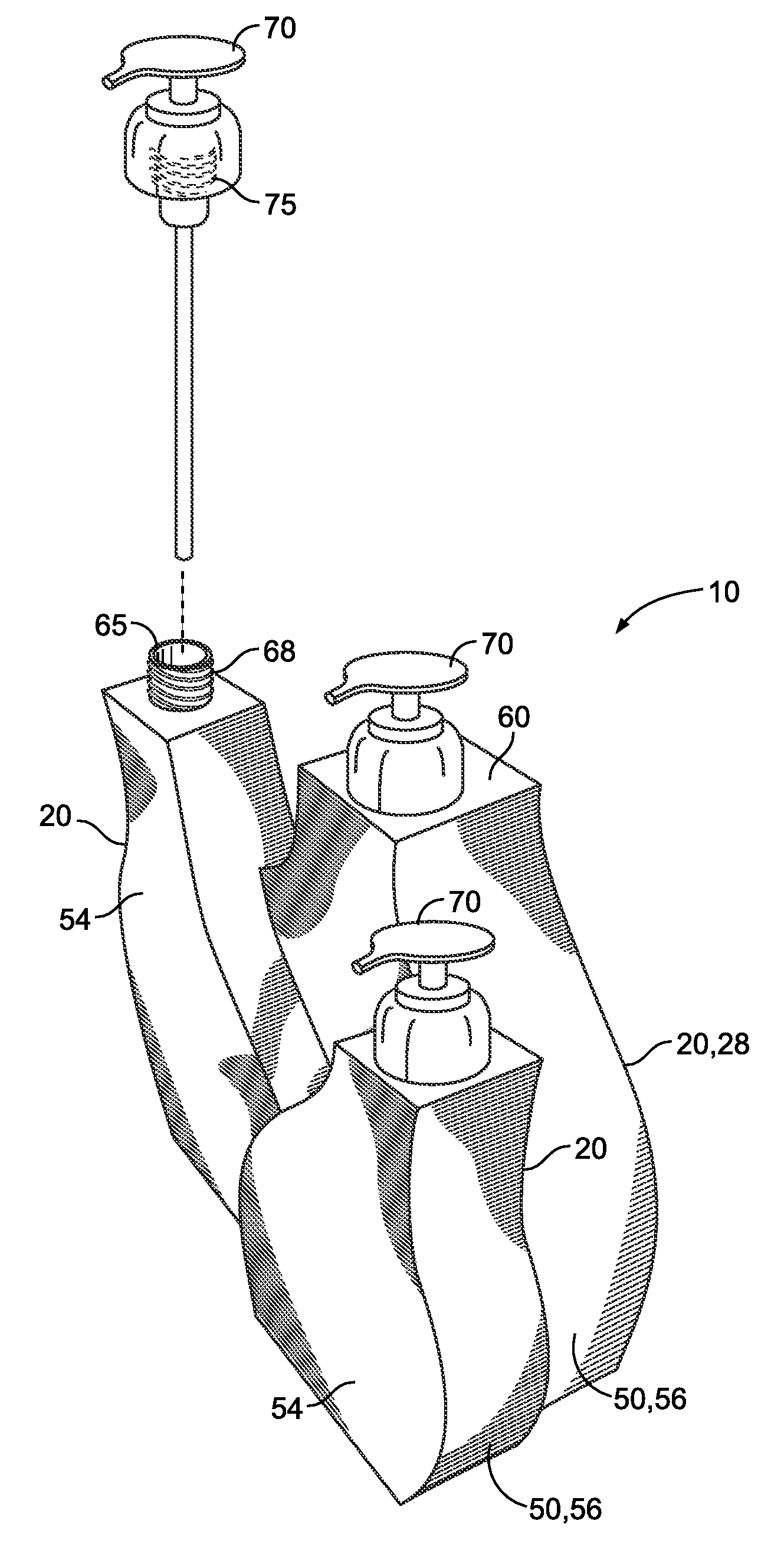

专利附图（8）
