用于双拉杆箱的可调节手柄，便于操作拉杆。
专利摘要
一种双拉杆箱的手柄包括手柄本体和设置在手柄本体相对两端的拉杆装置。手柄本体包括可枢转地设置有铰接件的壳体。铰接件在其外部设置有齿部。铰接件连接有复位弹簧。壳体至少包括在其相对两侧的第一和第二连接件。第一和第二连接件与齿部配合。第一和第二连接件的外端分别设置有第一和第二按压件。拉杆装置包括两个拉杆单元和一个传动件。每个拉杆单元包括至少一根拉杆。传动件可枢转地设置在拉杆中。传动件与第一和第二连接件或第一和第二按压件连接。
Original abstractA handle of a two pulling rod suitcase includes a handle body and a pulling rod device disposed at opposite ends of the handle body. The handle body includes a casing pivotably disposed with a hinge member. The hinge member is disposed with a tooth portion at the outside thereof. The hinge member is connected with a spring for return. The casing at least includes first and second connecting members at opposite sides thereof. The first and second connecting members are mated with the tooth portion. Outer ends of the first and second connecting members are respectively disposed with first and second pressing members. The pulling rod device includes two pulling rod units and a transmission member. Each pulling rod member includes at least one pulling rod. The transmission member is pivotably disposed in the pulling rod. The transmission member is connected with the first and second connecting members or the first and second pressing members.

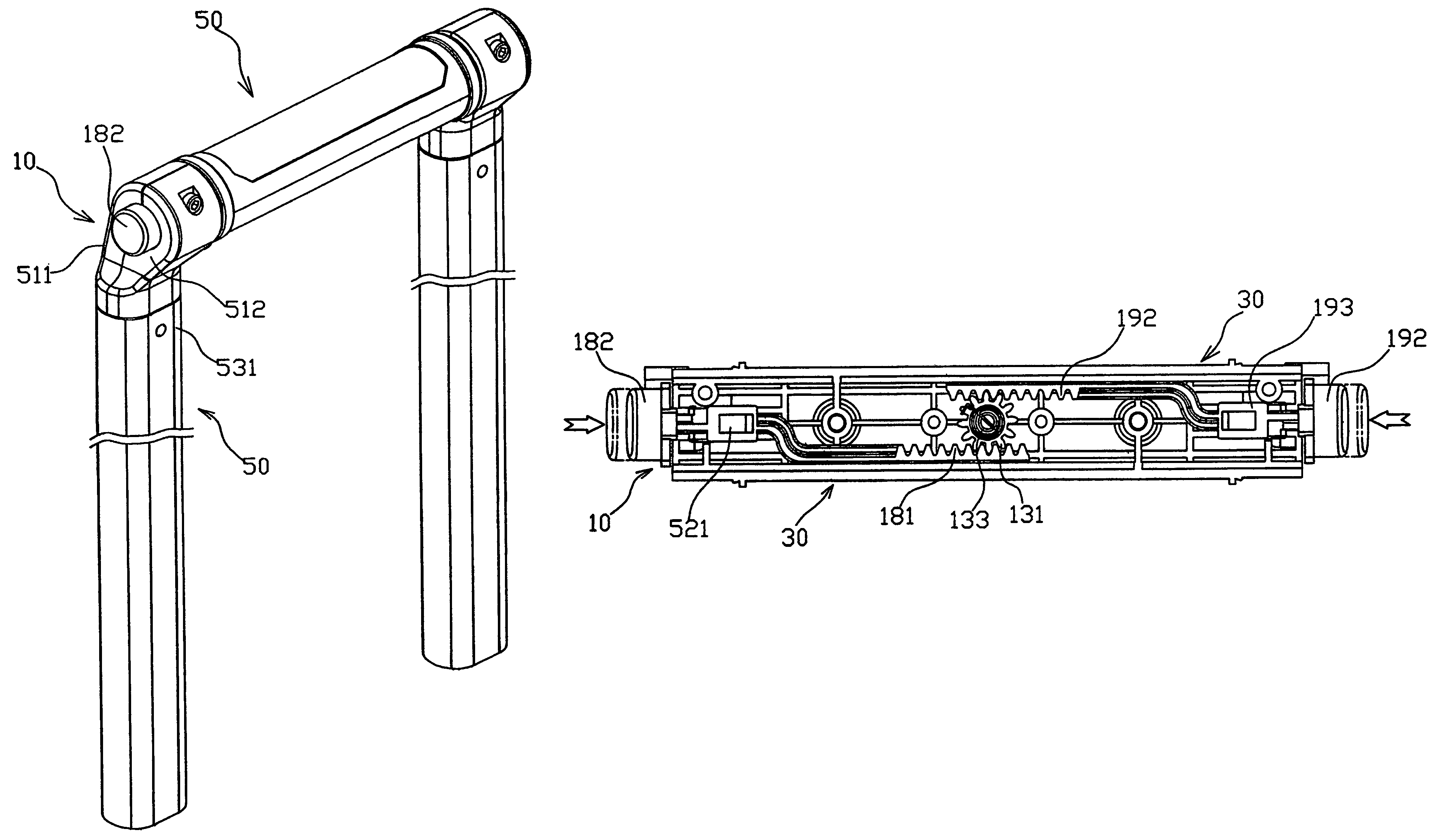

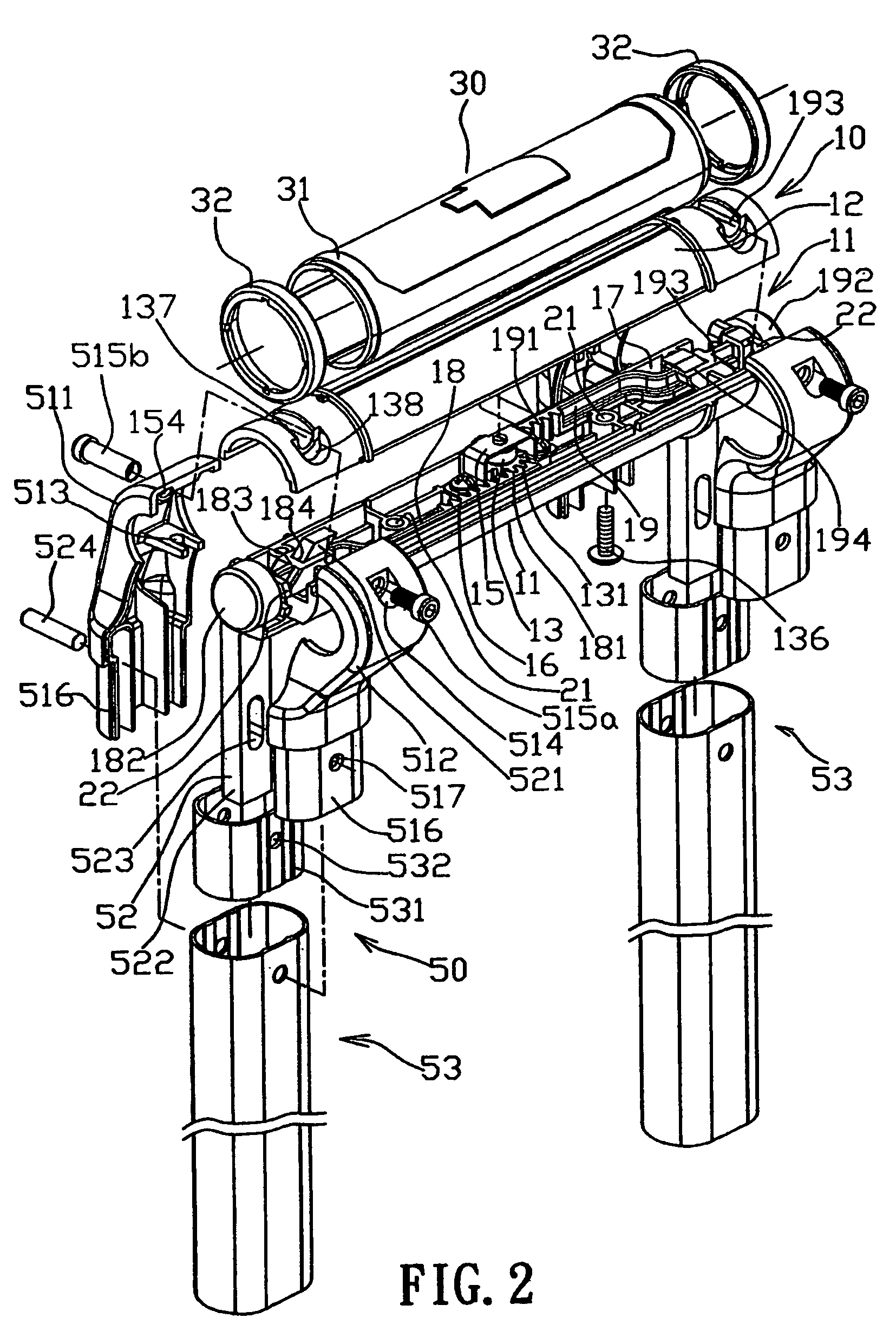

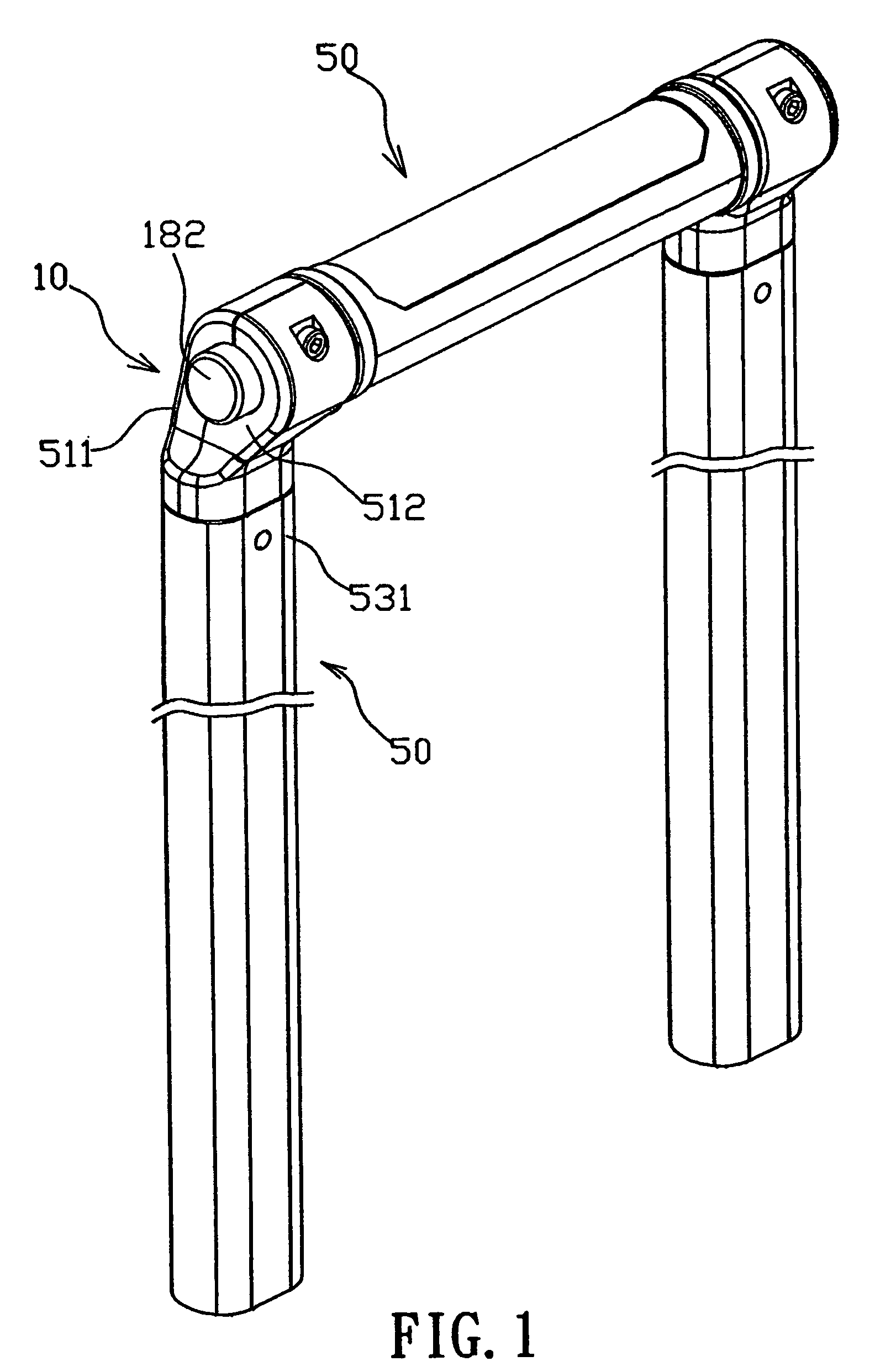

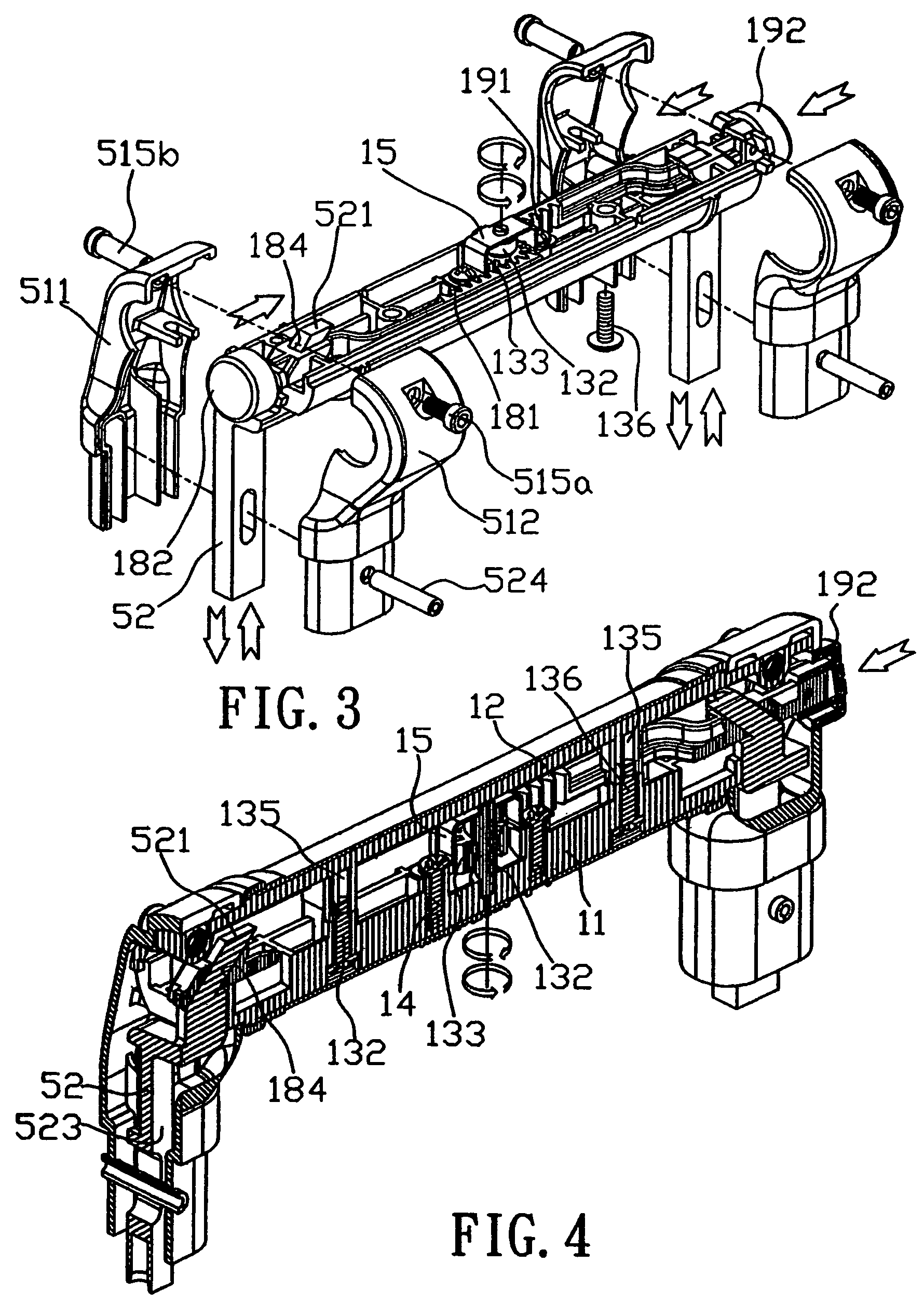

专利附图（8）
