重力进给分配器和分配交叉折叠餐巾的方法

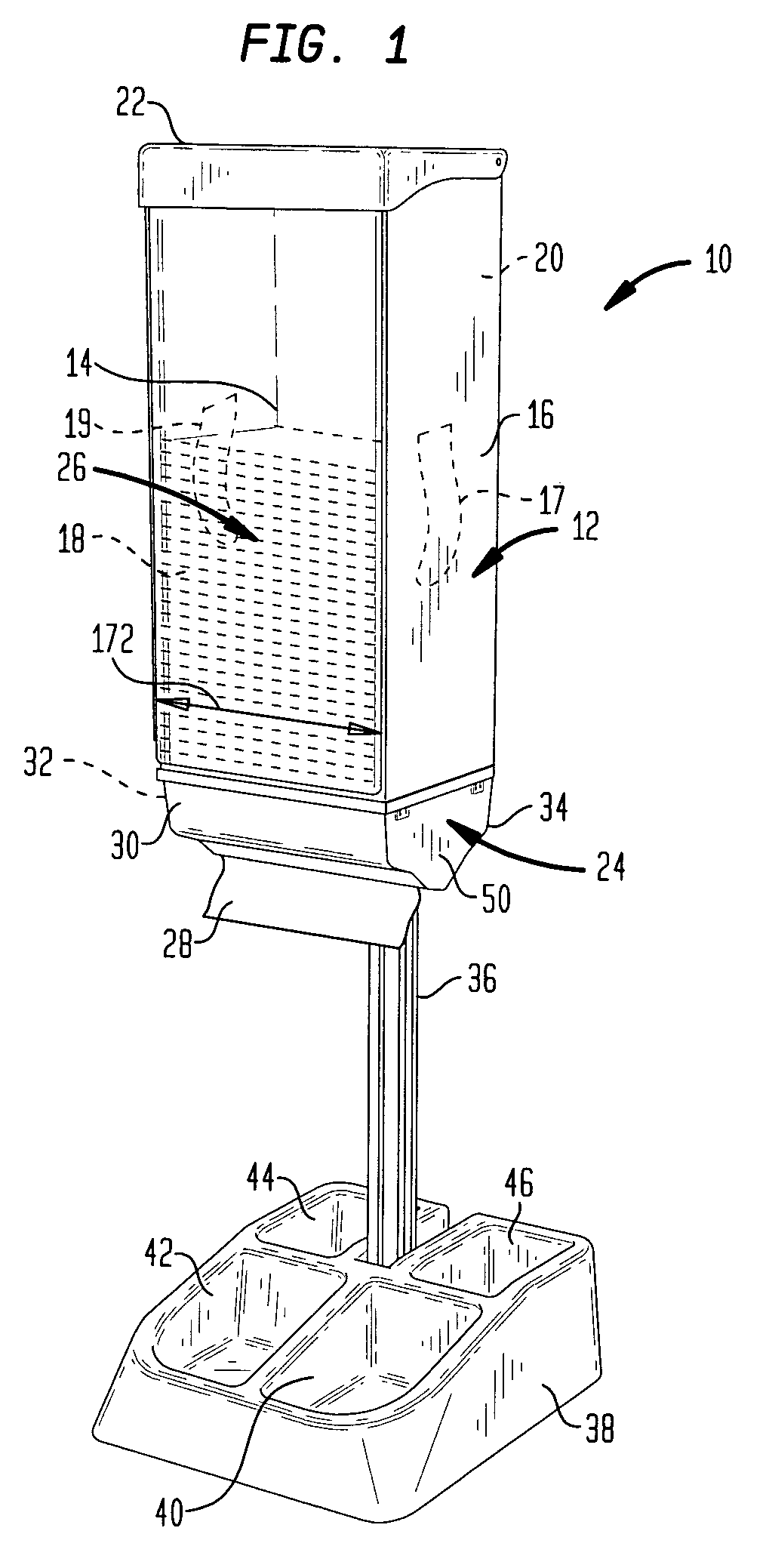

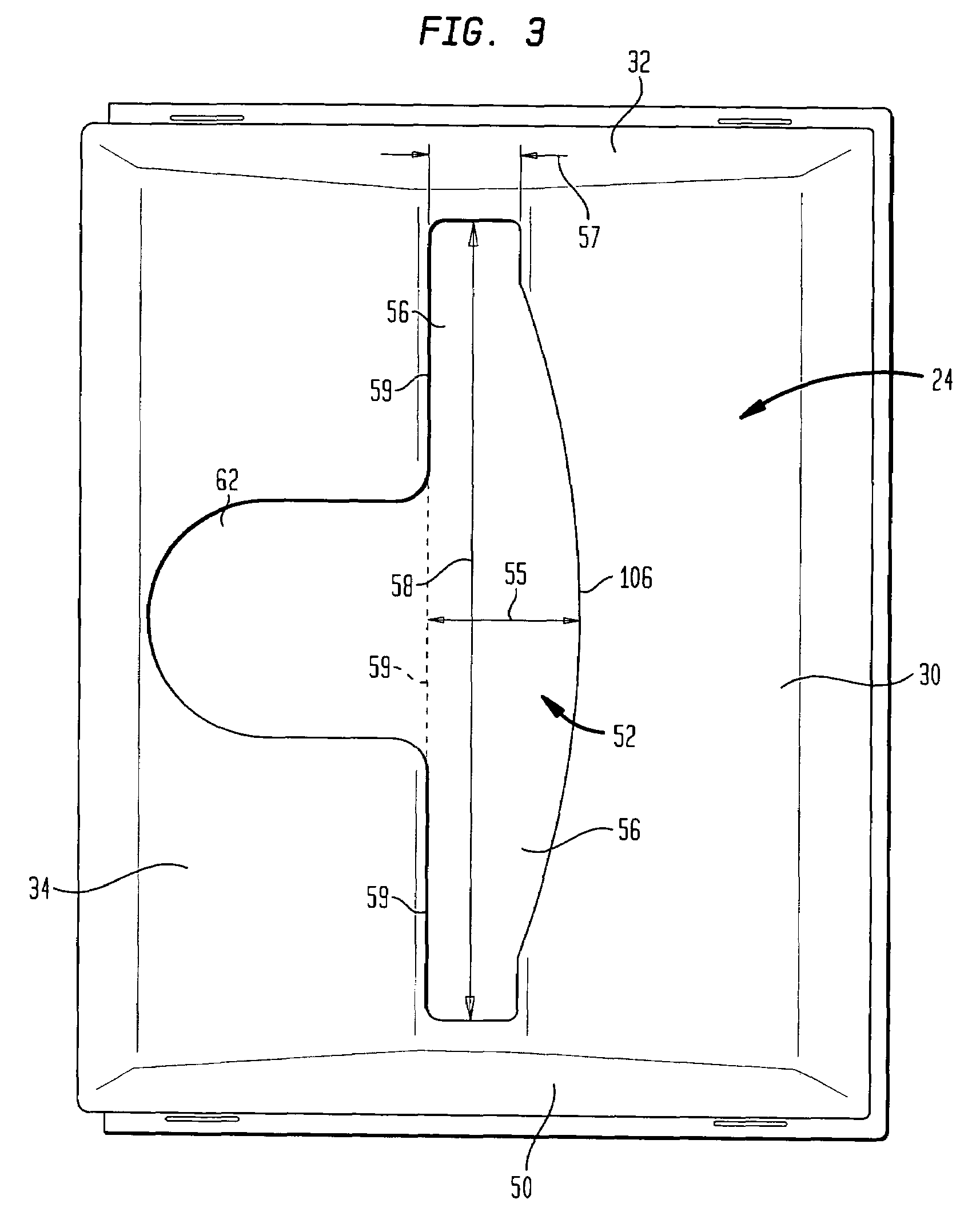

Original abstractA gravity-feed dispenser for a stack of sheets such as inter-folded napkins includes a generally rectangular housing provided with a front wall, a back wall, two sidewalls and a lower portion as well as a funnel portion coupled to the lower portion of the housing provided with a generally convergent profile such that a front wall of the funnel portion extends downwardly and inwardly with respect to the front wall of the housing, a rear wall of the funnel portion extends downwardly and inwardly with respect to the rear wall of the housing and two sidewalls of the funnel portion extend downwardly substantially in alignment with the sidewalls of the housing. A dispensing aperture defined by the funnel portion of the dispenser has an elongate portion extending substantially from one sidewall of the funnel portion to the other sidewall of the funnel portion thus defining an elongate axis of the aperture. The elongate axis of the aperture is generally parallel to the front wall of the housing as well as generally parallel to its rear border. The aperture is configured so that the elongate portion thereof extends upwardly from its rear border to the front wall of the funnel portion of the dispenser such that folded absorbent sheets are presented at the front of the dispenser.
