改进的马桶座铰链，易于清洁且减少缝隙。
专利摘要
公开了一种马桶座铰链和包括该马桶座铰链的马桶座组件。所公开的马桶座铰链被配置为消除或减少传统马桶座铰链中及其周围发现的间隙、边缘、尖角和/或暴露表面的数量。这可以例如在不损害简单性或可制造性的情况下完成。所公开的马桶座铰链的几个特征使其比传统马桶座铰链更容易清洁。例如，座和盖可以连接到可旋转元件上，这些元件被支撑在底座中并在基本相同的轴上旋转。铰链的轮廓可以流线型化，具有许多凹面。座和盖的未连接到可旋转元件之一的部分可以滑动抵靠其他元件，从而不产生间隙或尖角。
Original abstractA toilet seat hinge and a toilet seat assembly comprising the toilet seat hinge are disclosed. The disclosed toilet seat hinge is configured to eliminate or reduce the number of gaps, edges, sharp corners and/or exposed surfaces found in and around conventional toilet seat hinges. This can be done, for example, without compromising simplicity or manufacturability. Several features of the disclosed toilet seat hinge make it easier to clean than conventional toilet seat hinges. The seat and lid, for example, can be attached to rotatable elements that are cradled in a base and rotate on substantially the same axis. The profile of the hinge can be streamlined with numerous concave surfaces. Portions of the seat and lid that are not connected to one of the rotatable elements can slide against other elements, so as not to create gaps or sharp corners.

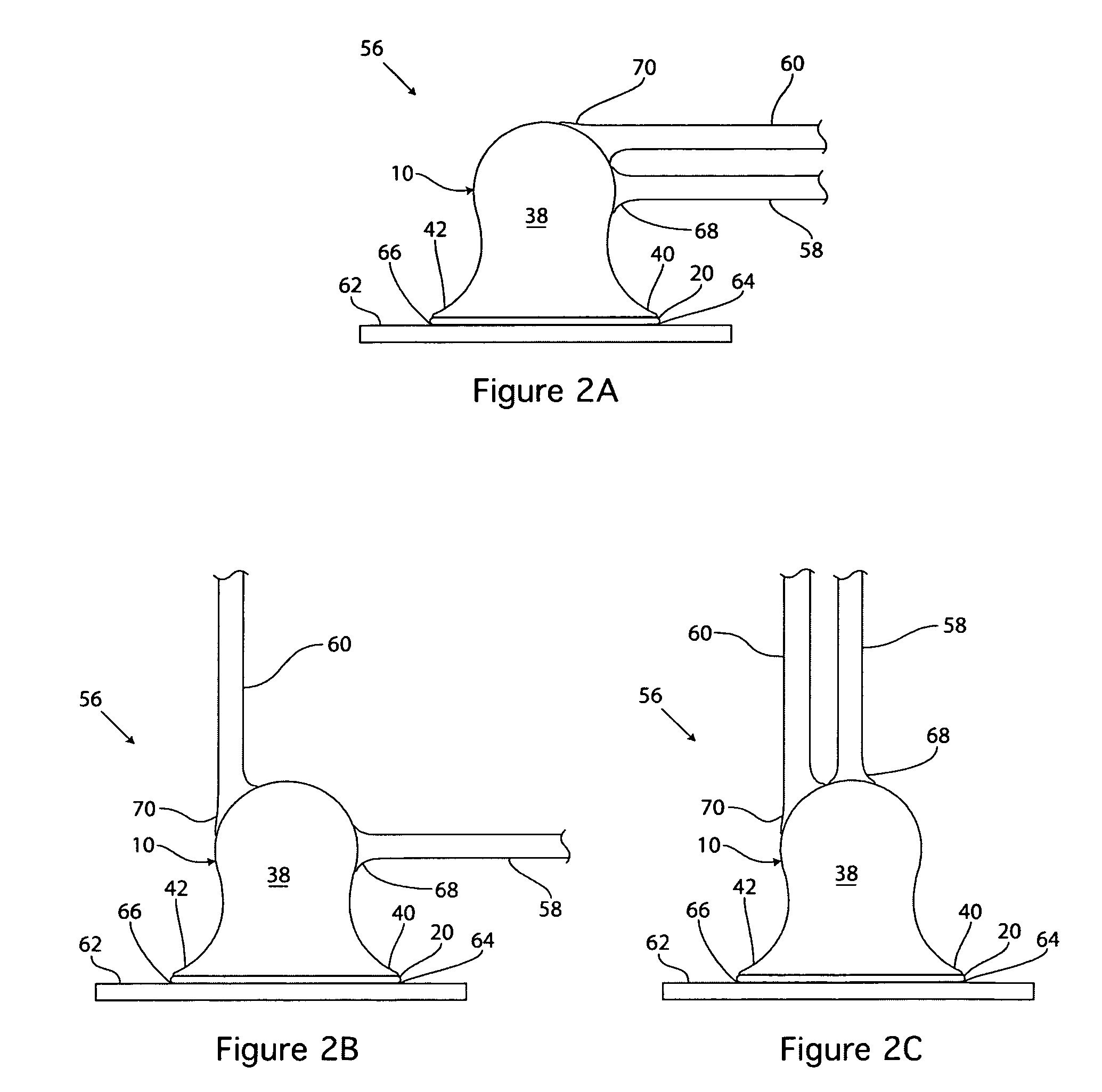

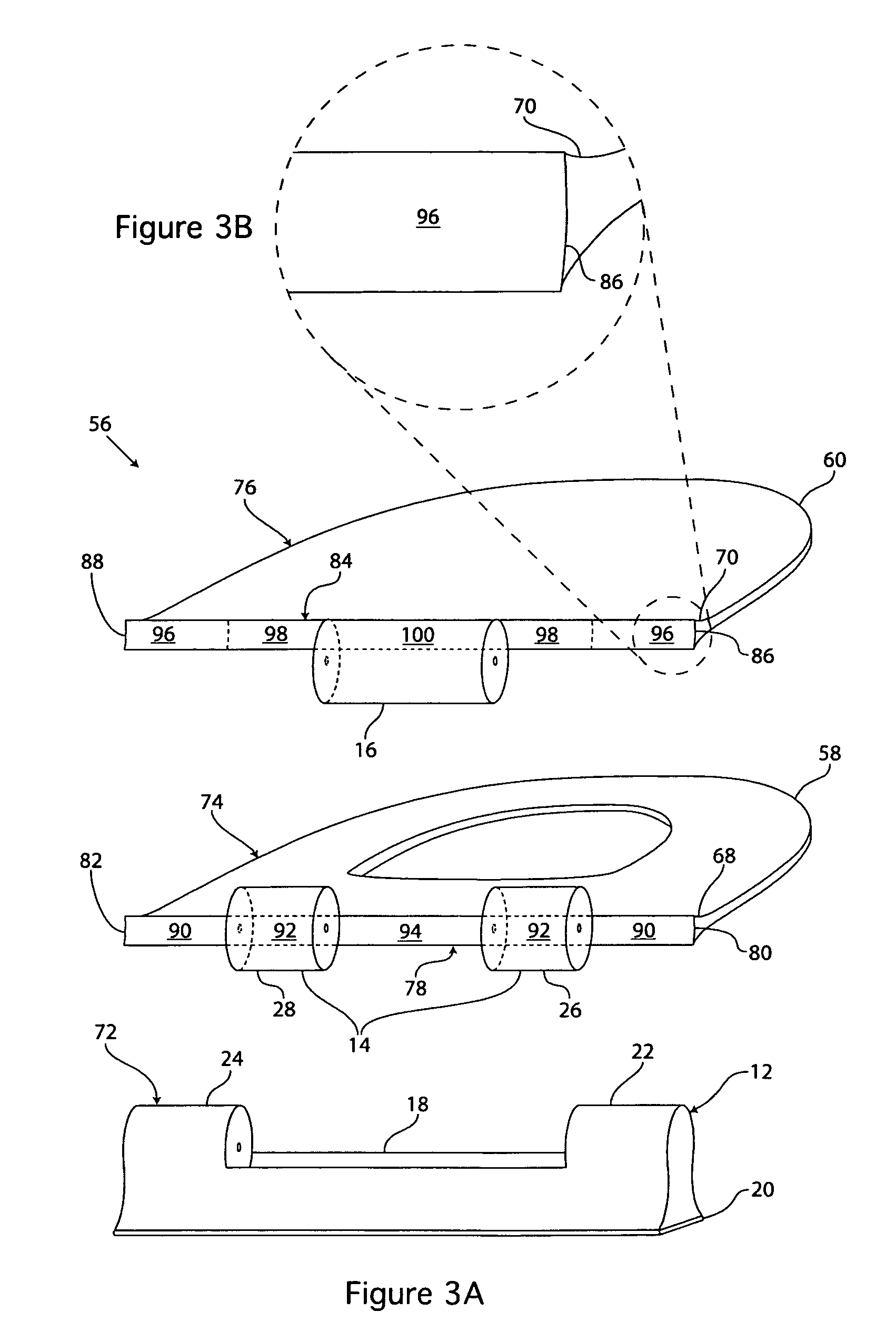

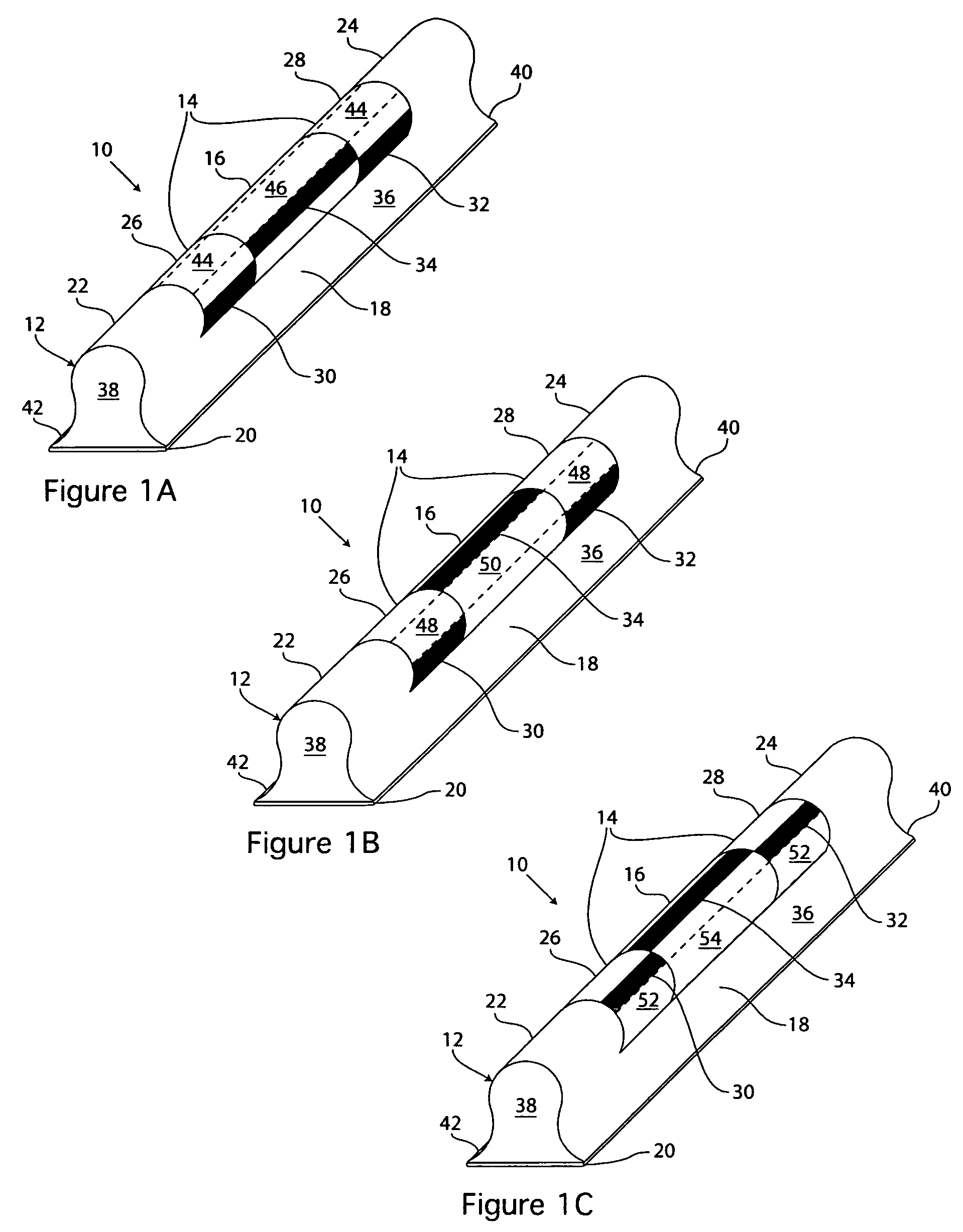

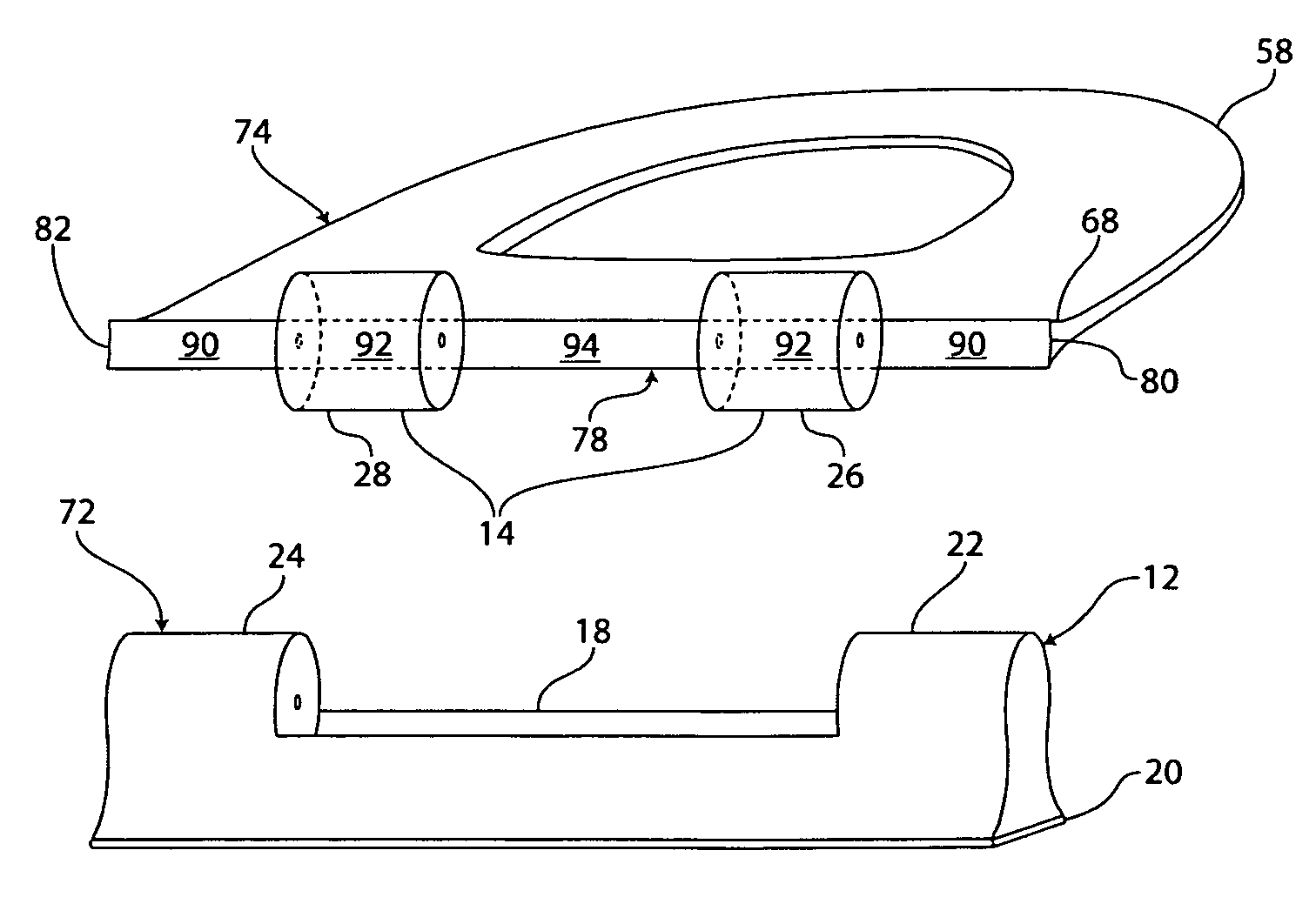

专利附图（8）
