用于固定浴帘的固定系统。
专利摘要

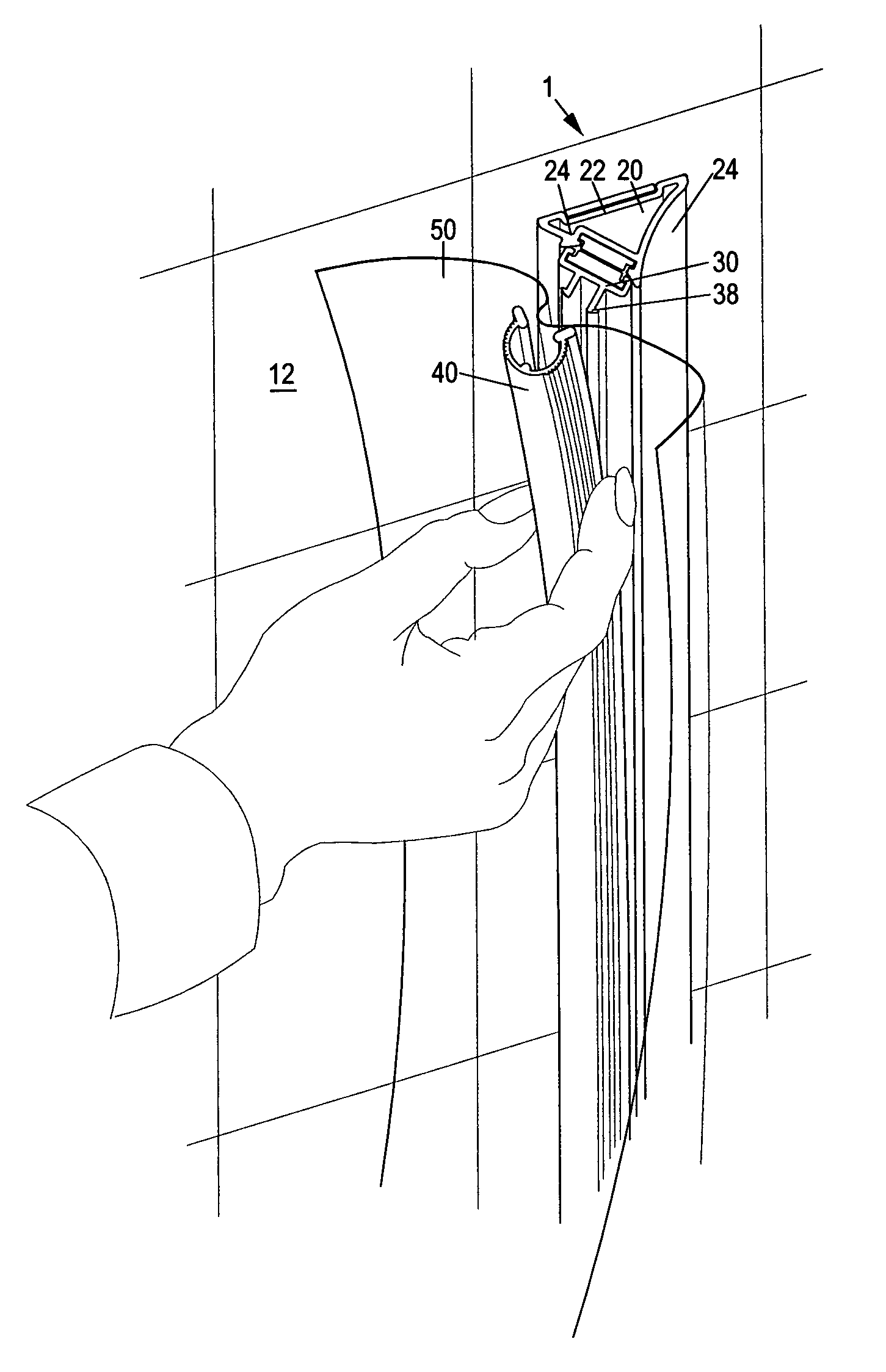

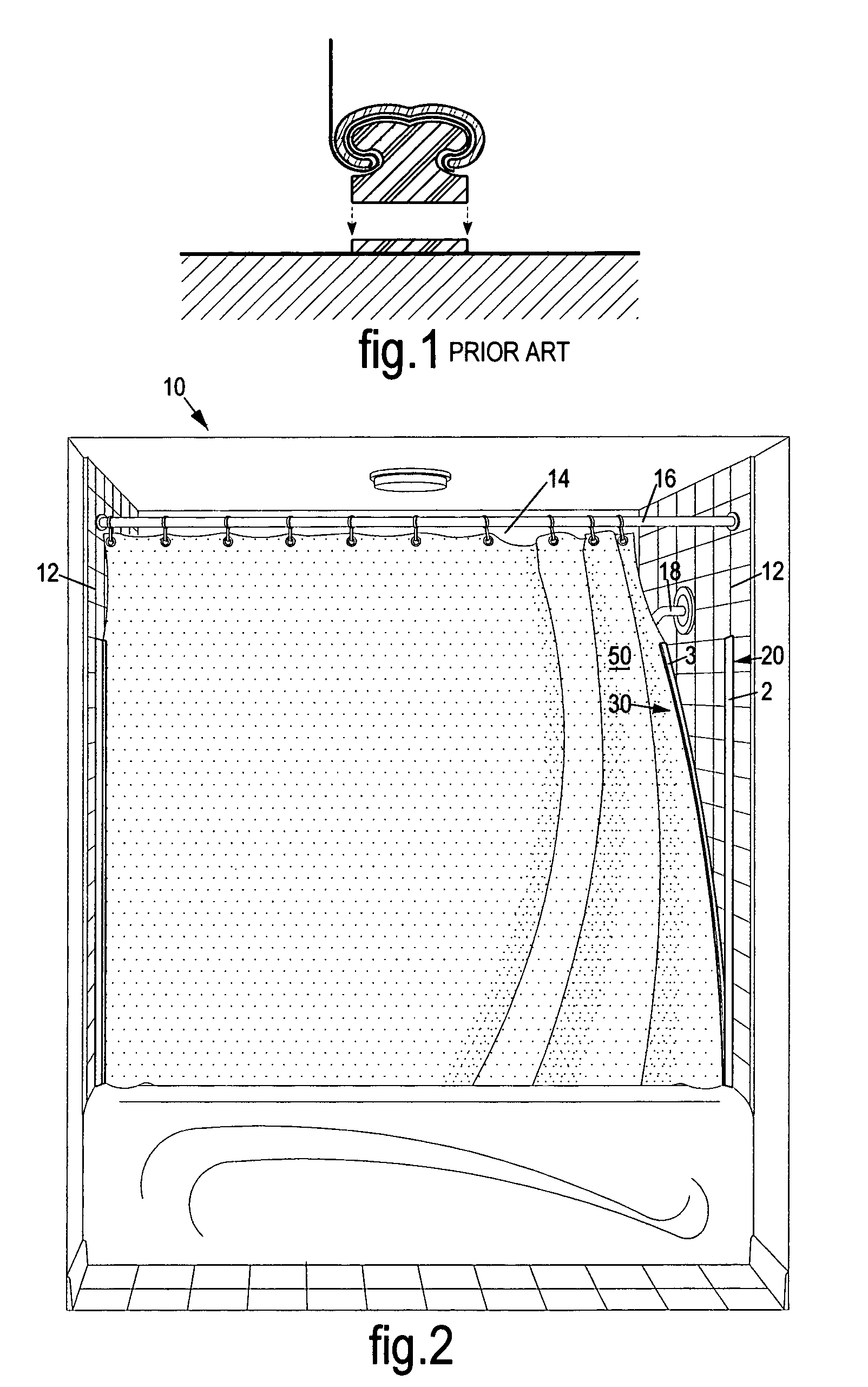

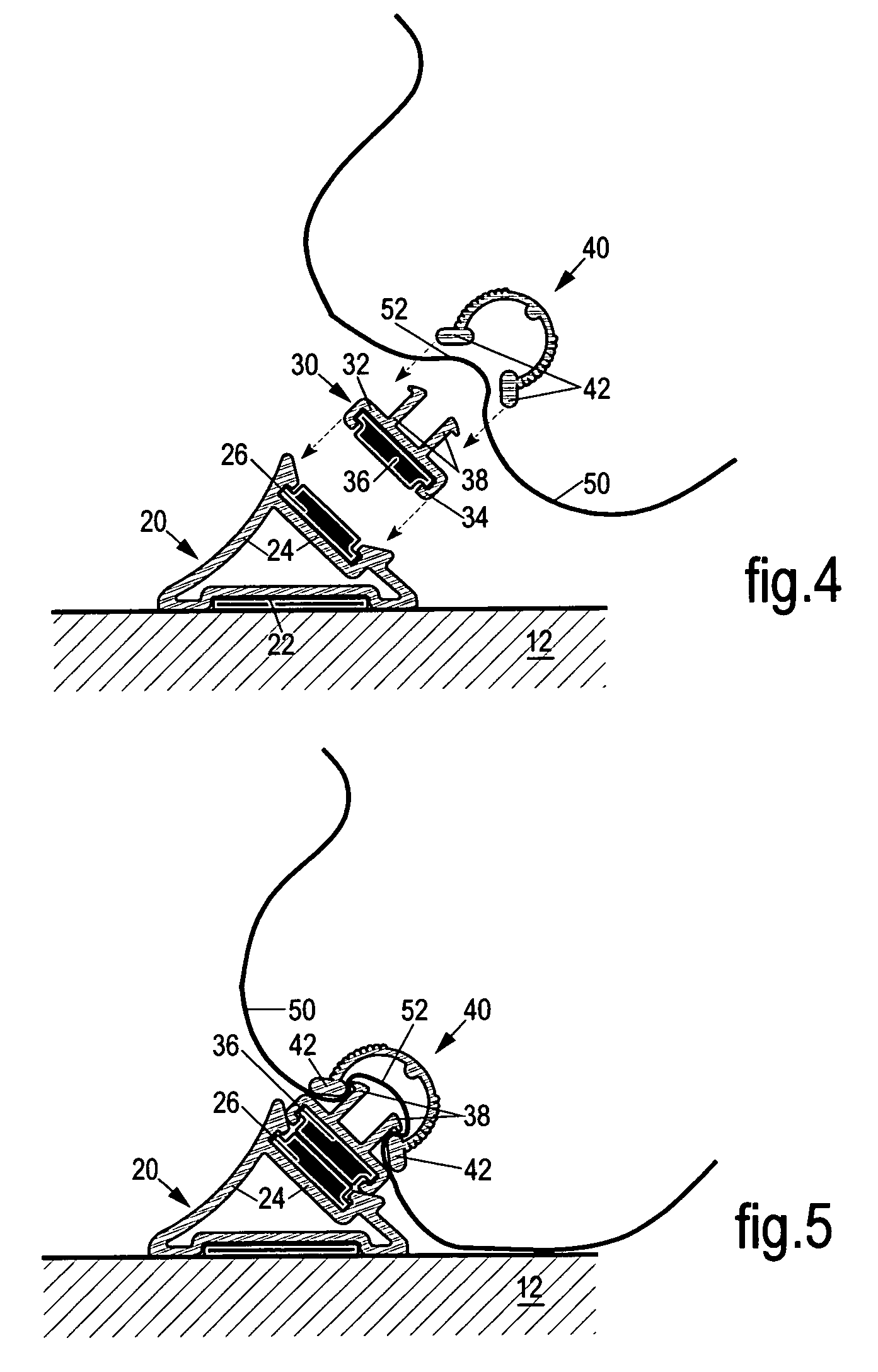

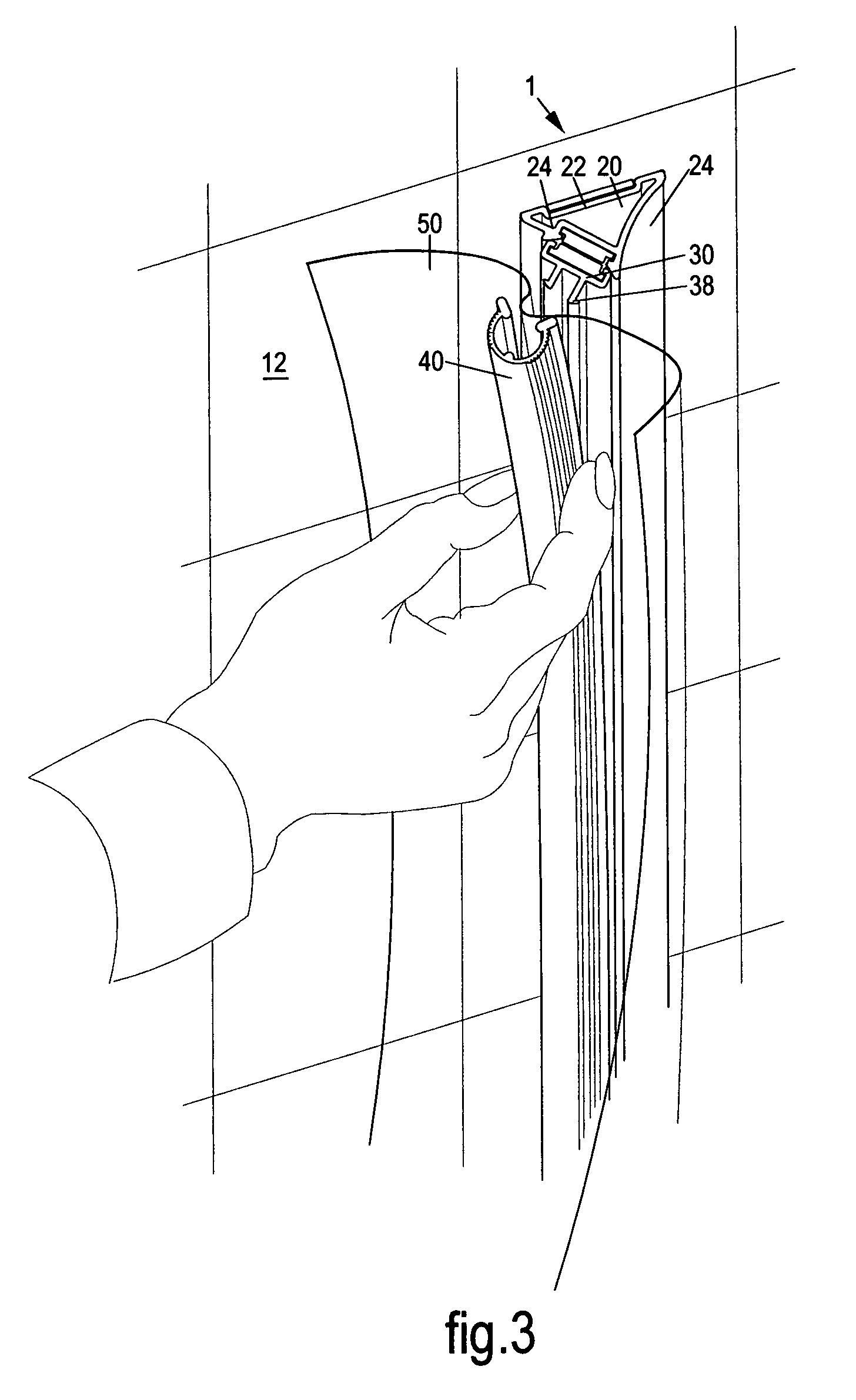

本发明涉及一种用于带有浴帘的淋浴间的套件。该套件包含墙壁组件、连接组件和保持组件。墙壁组件具有后壁和至少一个前壁，并且可移除地附接到淋浴间的墙壁表面。连接组件具有前部和后部。后部通过附接的磁铁可拆卸地连接到墙壁组件的所述至少一个前壁之一。一旦墙壁组件和连接组件连接在一起，它们形成防水屏障。连接组件的前部包含一个突起，该突起呈两个间隔开的细长臂的形式，每个臂设有邻接边缘，浴帘的一部分可抵靠该边缘定位。保持组件可拆卸地连接到连接组件的突起，浴帘的一部分卡入其间。保持组件具有一对臂，其端边缘彼此面对，尺寸设计为卡扣到连接组件突起的细长臂的邻接边缘上，浴帘的一部分被夹在中间。
Original abstractThe present invention relates to a kit for use in a shower enclosure with a shower curtain. The kit contains a wall component, a connecting component and a retaining component. The wall component has a back wall and at least one front wall, and is removably attachable to a wall surface of the shower enclosure. The connecting component has both a front portion and back portion. The back portion is detachably connectable to one of said at least one front wall of the wall component by means of magnets attached thereto. Once the wall component and connecting component are connected together, they form a watertight barrier. The front portion of the connecting component contains a protrusion in the form of two spaced apart, elongated arms that are each provided with an abutting edge against which part of the shower curtain may be positioned. The retaining component is detachably connectable to the protrusion of the connecting component with the part of the shower curtain snapped in between. The retaining component has a pair of arms with end edges that face toward each other and are sized to snap onto the abutting edges of the elongated arms of the protrusion of the connecting component with the part of the shower curtain pinched in between.
专利附图（8）
