用于身份证等的私密查看盒

Private viewing case for I.D. cards and the like

US-7641102-B1

用于防止旁人窥视身份证等卡片信息的便携查看装置。

专利摘要

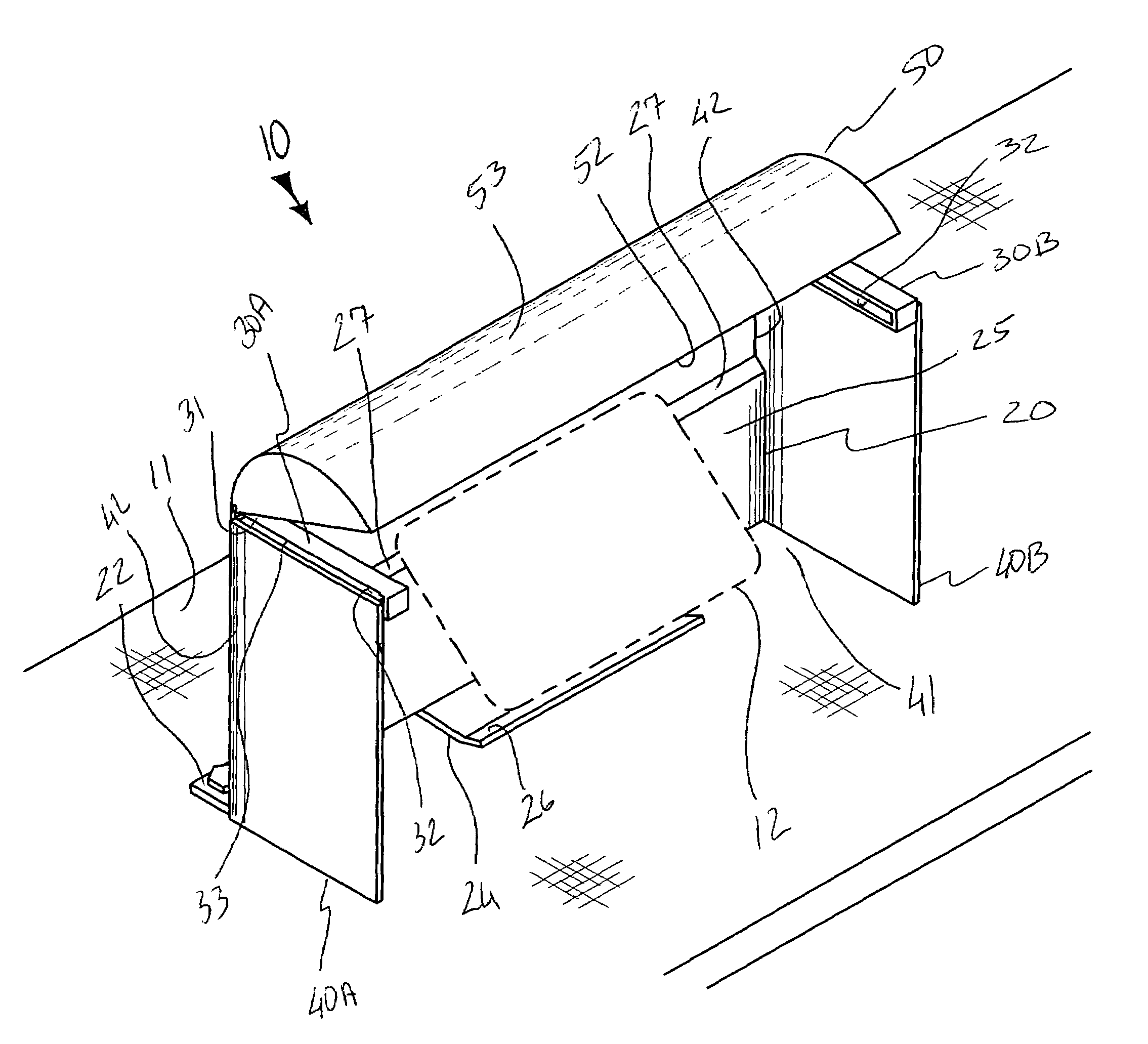

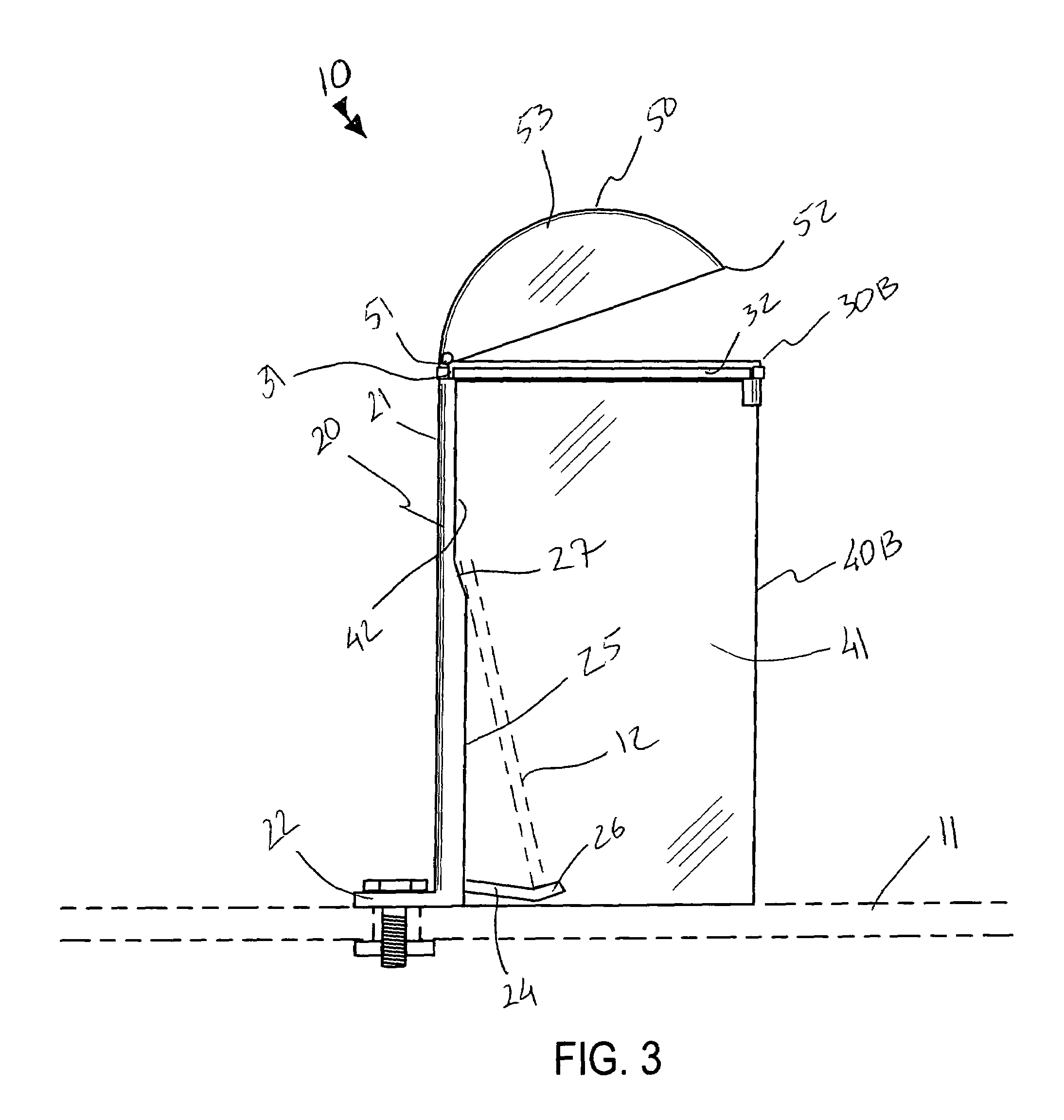

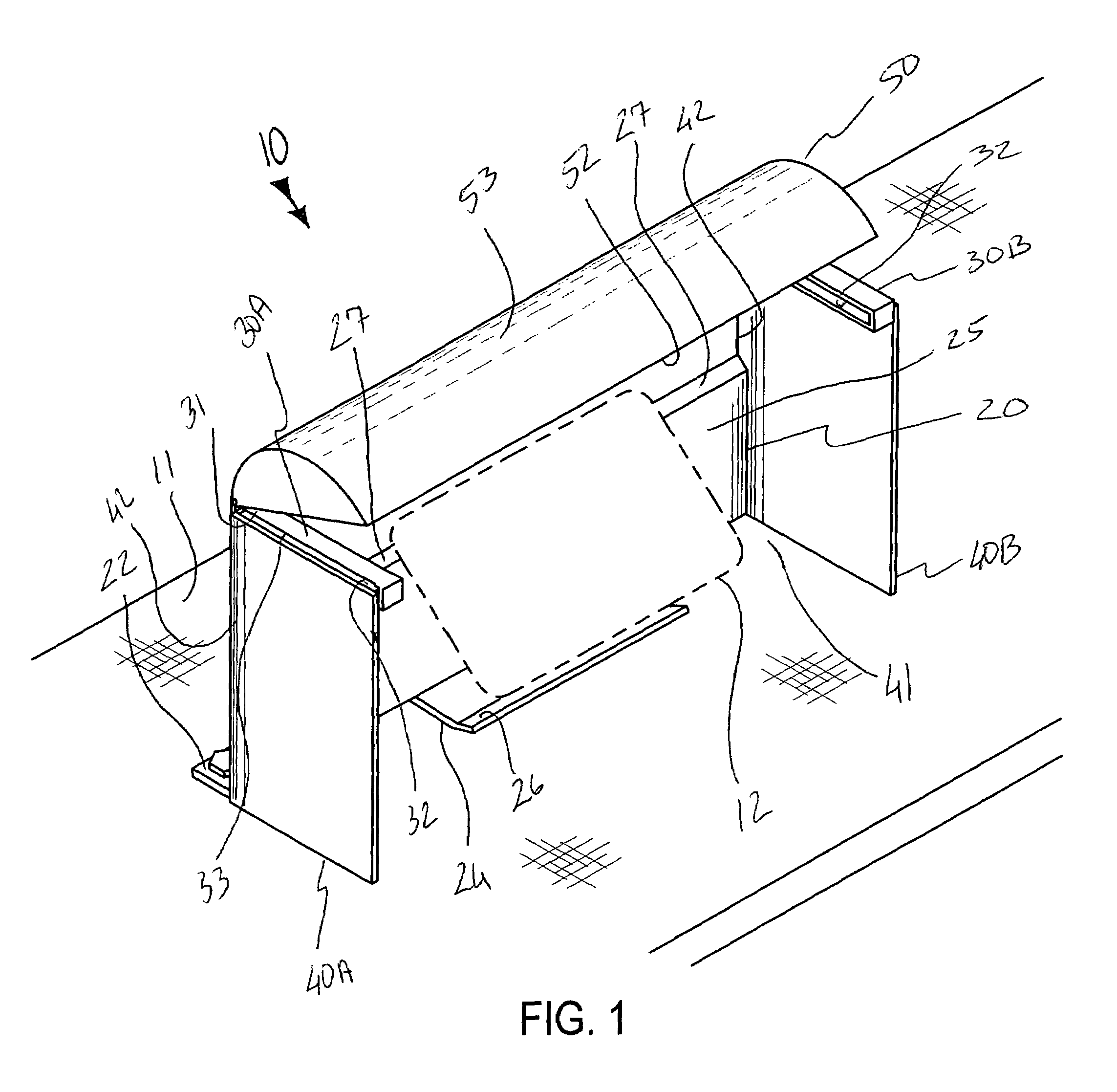

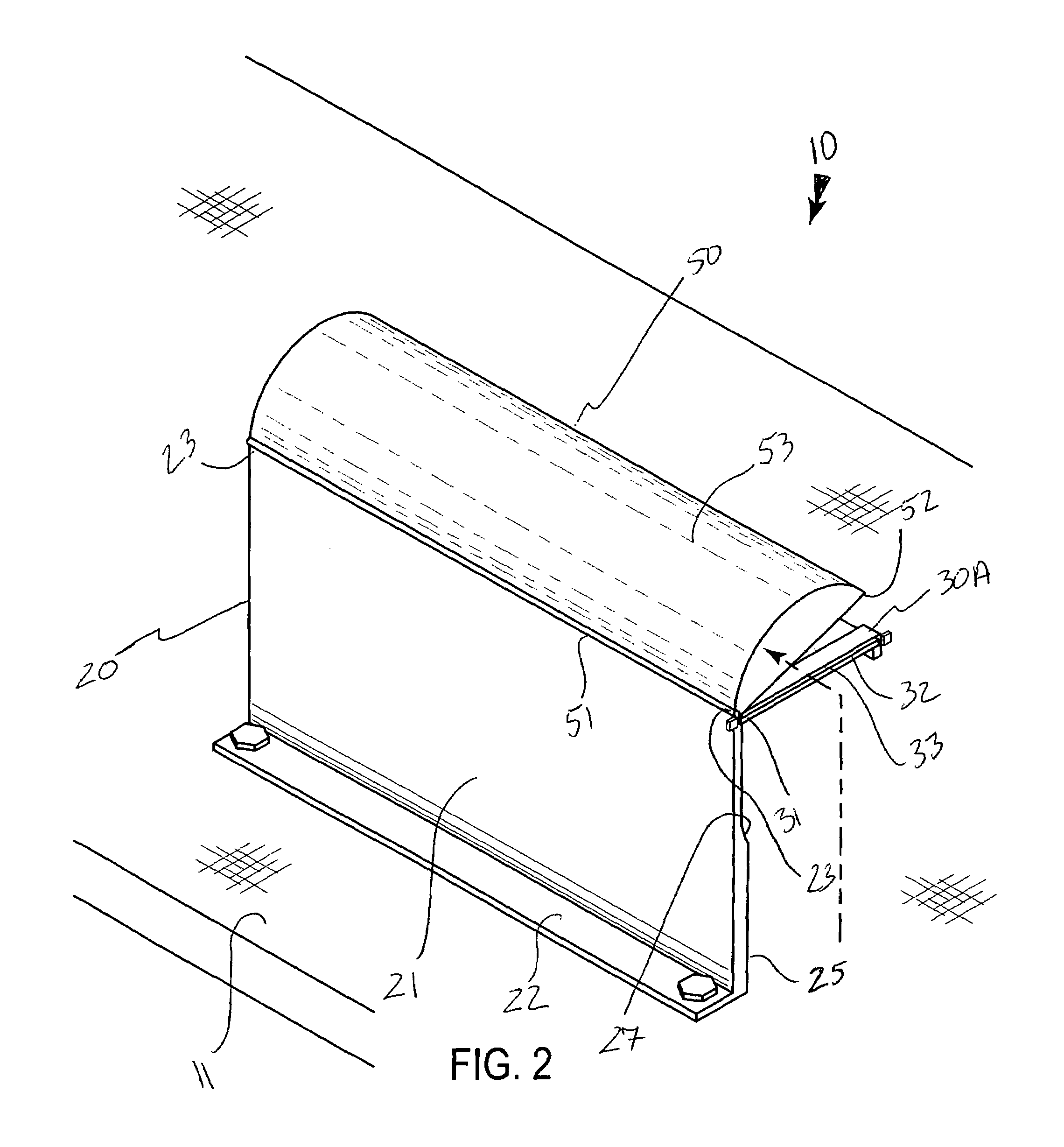

一种私密查看盒包括从支撑表面向上延伸的后壁,后壁具有与其一体形成的正交延伸的底部凸缘,该底部凸缘可拆卸地固定到支撑表面。第一和第二共延稳定臂的后端附接到相对设置的后壁顶部边缘并与其正交对齐。第一和第二隐私面板抵靠稳定臂的外侧并从其向下延伸,使得在它们之间限定内部空间,并且具有邻接后壁的后边缘。穹顶形顶盖枢转连接到后壁,具有在稳定臂之间横穿的前边缘,并包括偏振滤光器,该滤光器阻止光线通过,防止旁观者看穿顶盖。用户的卡片位于顶盖下方和隐私面板之间,从而禁止旁观者看到它。

Original abstractA private viewing case includes a rear wall that extends upward from a support surface and has an orthogonally extending bottom flange formed therewith that is removably fastened to the support surface. First and second coextensive stabilizing arms have a rear end attached to oppositely seated top rear wall edges and are orthogonally registered therewith. First and second privacy panels are abutted to exterior sides of the stabilizing arms and extend downwardly therefrom in such a manner that an inner space defined therebetween, and have rear edges adjoining the rear wall. A dome-shaped top cover is pivotally connected to the rear wall, has a front edge traversing between the stabilizing arms, and includes a polarizing filter that eliminates light from passing therethrough, preventing bystanders from seeing through the cover. The user's card is seated beneath the top cover and between the privacy panels thus prohibiting bystanders from acquiring sight thereof.

专利附图(8)

US-7641102-B1 figure 1
1
US-7641102-B1 figure 2
2
US-7641102-B1 figure 3
3
US-7641102-B1 figure 4
4
US-7641102-B1 figure 5
5
US-7641102-B1 figure 6
6
US-7641102-B1 figure 7
7
US-7641102-B1 figure 8
8
