用于支撑桶的模块化装置
Modular device for the support of casks
US-7641059-B2用于模块化地支撑和堆叠桶。
专利摘要

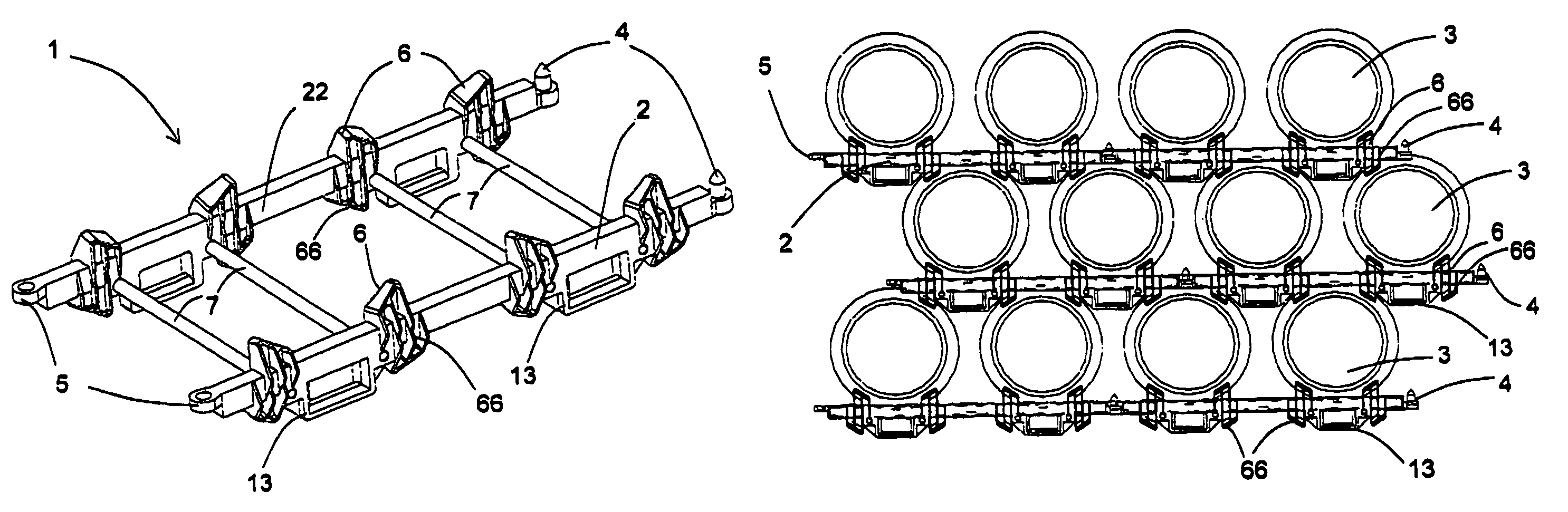

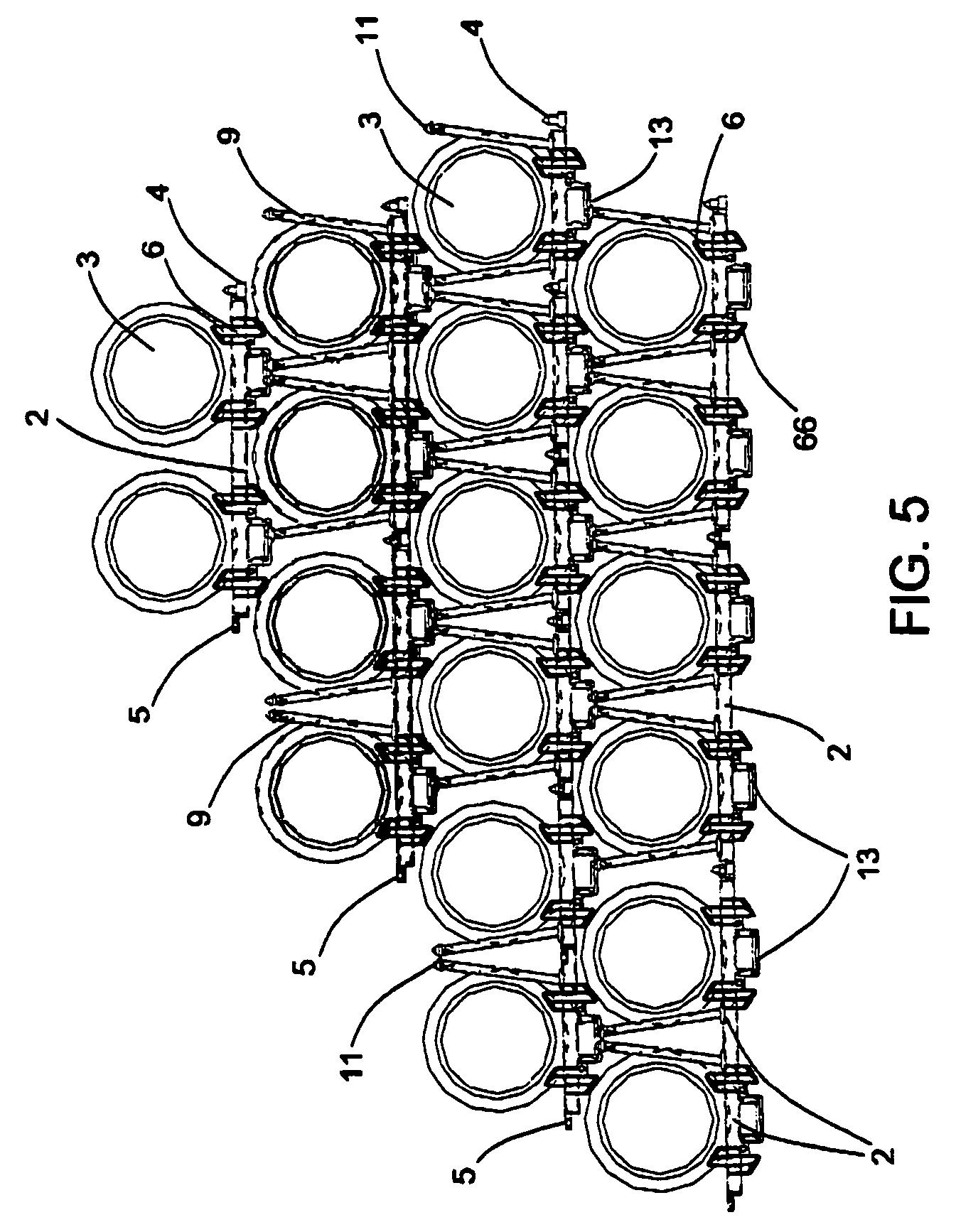

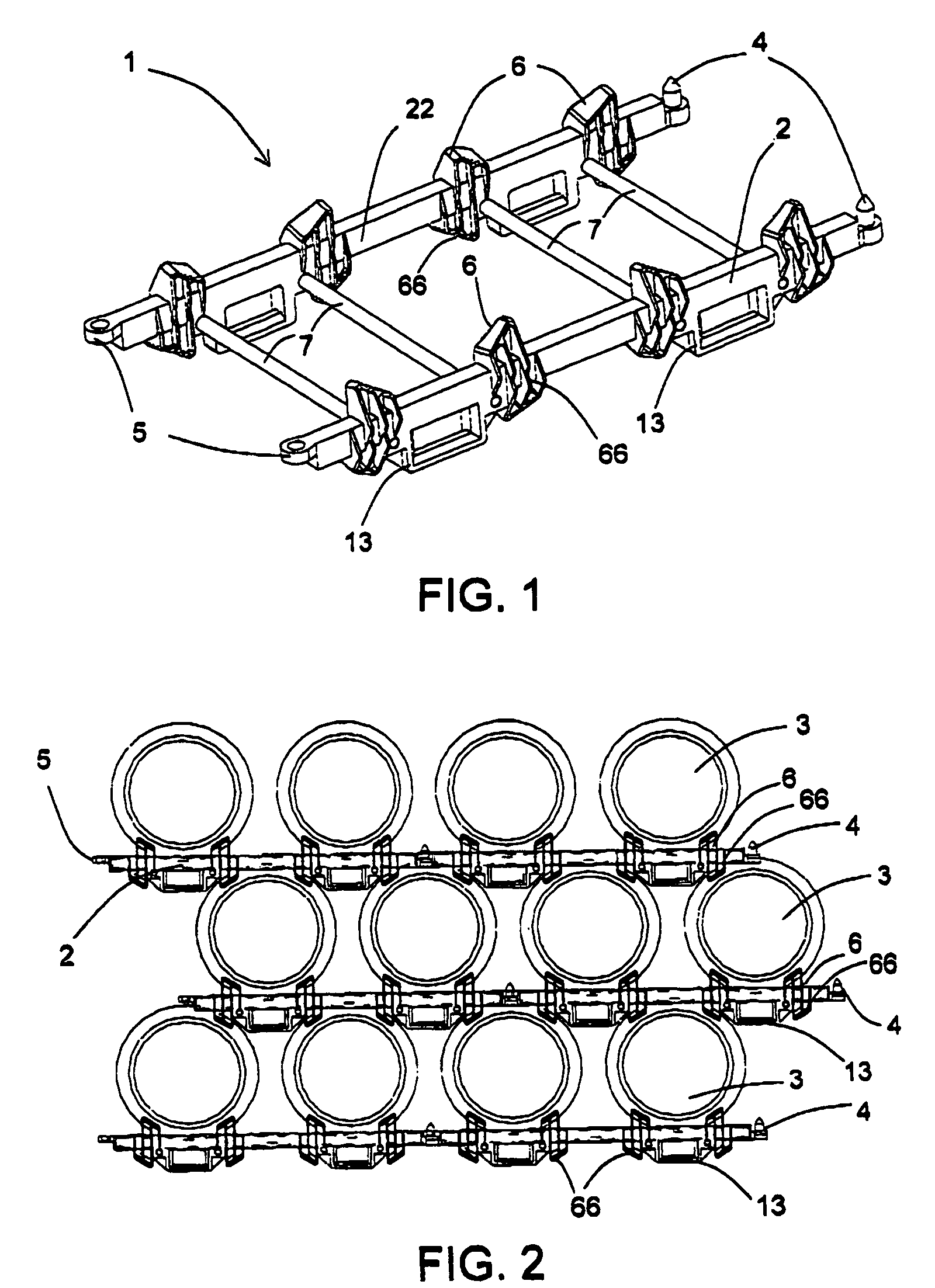

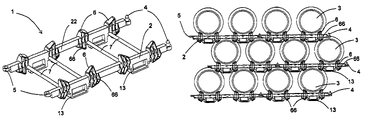

一种用于支撑桶的模块化装置包括基座结构，桶以多行和/或多列支撑在基座结构上，该基座结构由至少两个基本平行的杆形成，具有镜像的形状和几何结构，每个杆的一端装有公连接元件，相对端装有互补的母连接元件。每个杆包括至少一对上部相对的支撑元件，其形式为具有相对倾斜表面的楔形件，在杆的上侧相互间隔布置，以便稳定地支撑桶，以及至少另一对相应的下部相对的支撑元件，它们间隔开，但布置在杆的下侧，并在使用时支撑在下方桶上。
Original abstractA modular device for the support of casks includes a base structure on which the casks are supported in multiple rows and/or columns formed by at least two, substantially parallel bars, with specular form and geometry, with one end of each of the bars being fitted with a male joining element and the opposite end fitted with a complementary female joining element. Each bar includes at least one pair of upper facing support elements in the form of wedges with facing inclined surfaces, arranged with a mutual separation on the upper side of each of the bars so that they support a cask in a stable position, and at least one other pair of respective lower facing support elements, which are separated, but arranged on the lower side of the bar and in positions that are supported on a lower cask in use.
专利附图（8）
