可伸缩折叠的桌子，便于调节高度和收纳。
专利摘要
一种伸缩折叠桌包括一个桌架，其两侧有两个支撑柱；每个柱子有一个可升降的内管；每个柱子底部安装有一个横向支腿；柱子的内管上端有一个枢转单元，其枢转安装到桌面，使得桌面可以枢转移动或横向移位。通过上述组件，桌子是可伸缩和可折叠的。每个柱子有多个开口用于确定柱子的高度；每个内管有一个伸缩扣和一个控制杆，用于控制扣的伸缩运动；控制杆由一个从内管伸出的控制单元控制。枢转单元枢转安装到桌面底表面的枢转座上。
Original abstractA telescopic and foldable table comprises a table frame having two supporting posts at two sides thereof; each post having a liftable inner tube; each post being installed to a transversal leg at a bottom end thereof; an upper end of the inner tube of the post having a pivotal unit which is pivotally installed to the table plane so that the table plane can pivotally move or transversally displace. By above mentioned components, the table is telescopic and foldable. Each post has a plurality of openings for determining the elevation of the post; each inner tube has a telescopic buckle and a control rod for controlling the telescopic movement of the buckle; and the control rod is controlled by a control unit protruding out of the inner tube. The pivotal unit is pivotally installed to a pivotal seat at a bottom surface of the table plane.

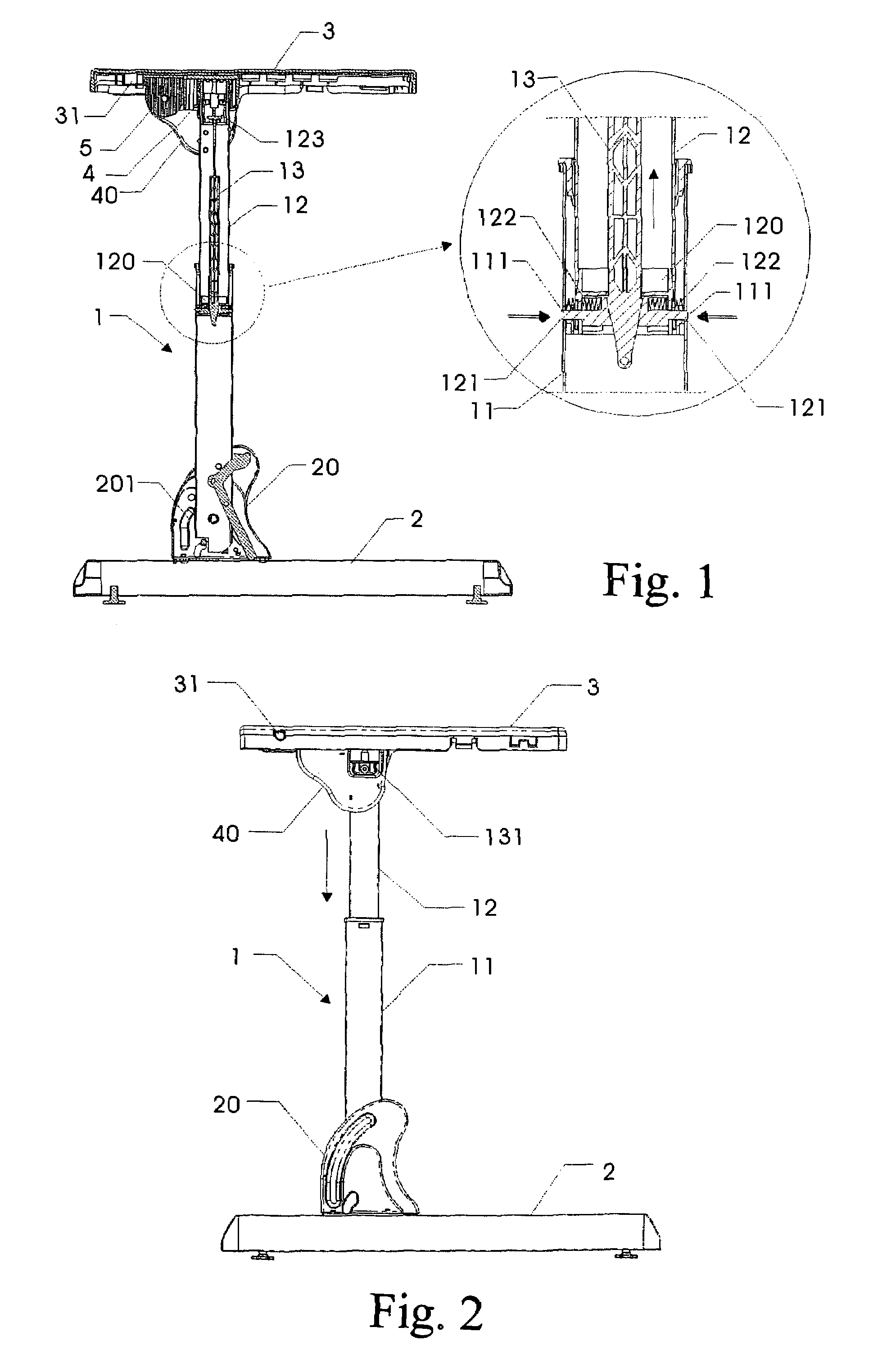

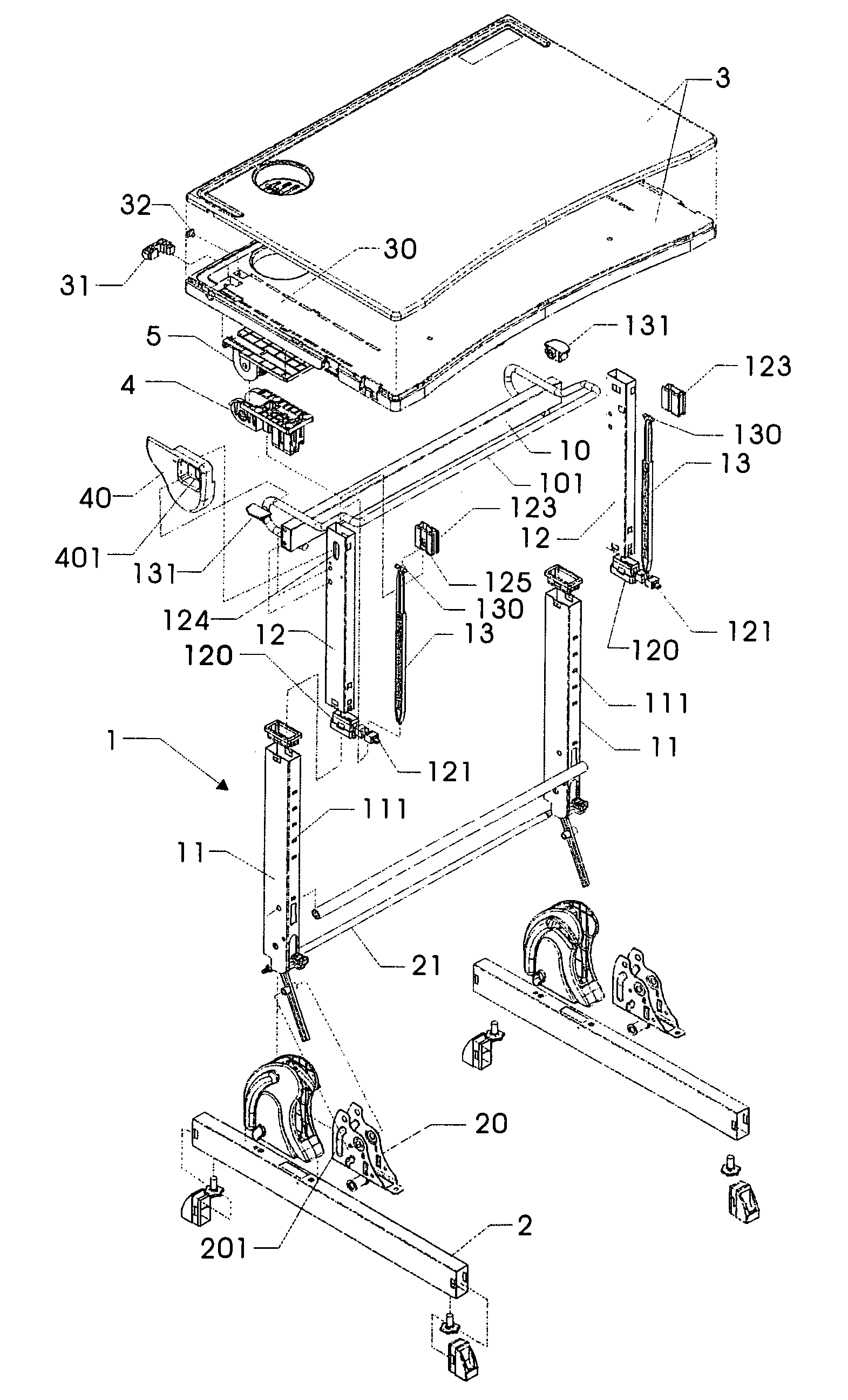

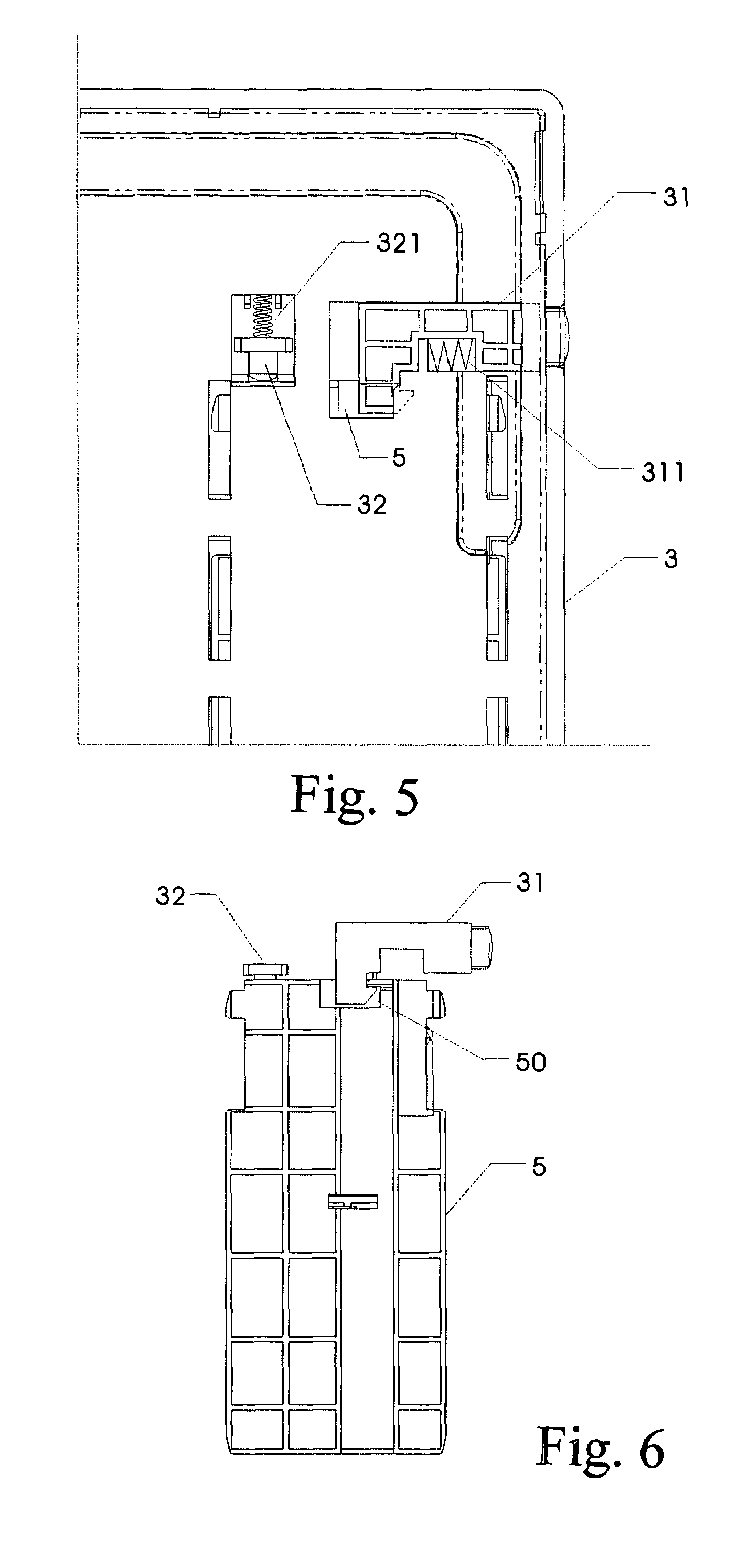

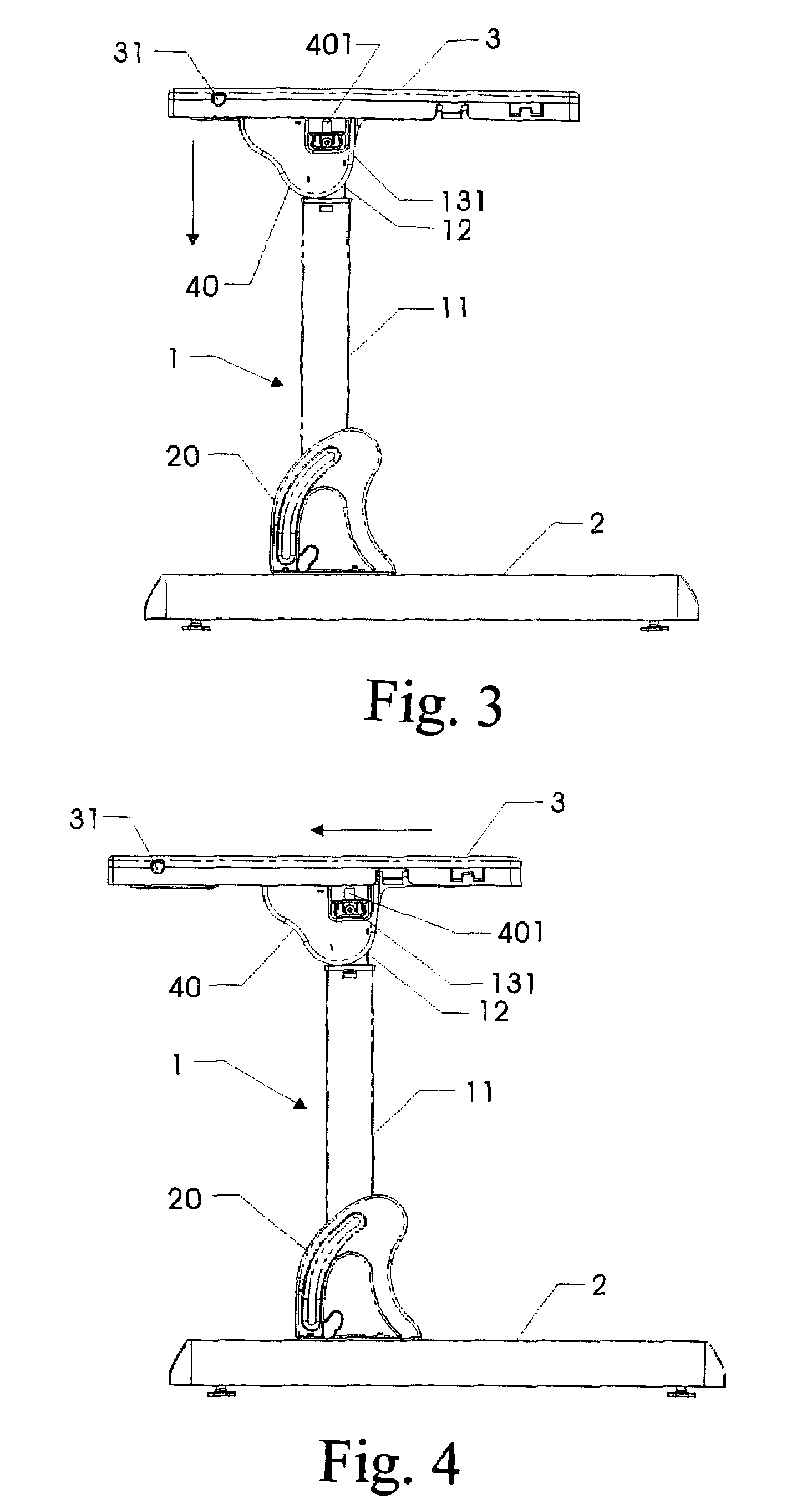

专利附图（8）
