支撑前倾工作时的躯干，减轻疲劳。
专利摘要
一种支撑装置及相关附件，用于在用户前倾位置时支撑其躯干。该装置包括一个休息件，用户在前倾位置工作时可以将其躯干靠在上面，以及支撑结构，其可以调节休息件的角度、高度和/或横向位置。支撑装置包括支撑结构和由支撑结构从底座支撑的休息件。当用户将躯干靠在休息件上时，休息件可以从底座支撑用户的躯干。运输结构可用于沿底座来回移动支撑结构。可以使用从底座到休息件的一个或多个枢转。本发明在用户长时间前倾的任何地方都有用，例如牙医、在桌子上工作、在绘图桌上工作，或在生产线或装配线上工作。
Original abstractA support device and associated appurtenances, which support a user's torso while in a forward leaning position. The device includes a rest the user can lean his/her torso on while working in a forward leaning position, and support structure adapted which can adjust the angle, height, and/or lateral position of the rest. A support device includes support structure, and a rest supported by the support structure, from a base. The rest can support the torso of a user, from the base, as the user leans his/her torso against the rest. Transport structure can be used to move the support structure back and forth along the base. One or more pivotations can be used from base to rest. The invention is useful anywhere a user leans forward for an extended time, such as dentists, working over a desk, over a drafting table, or over a manufacturing line or assembly line.

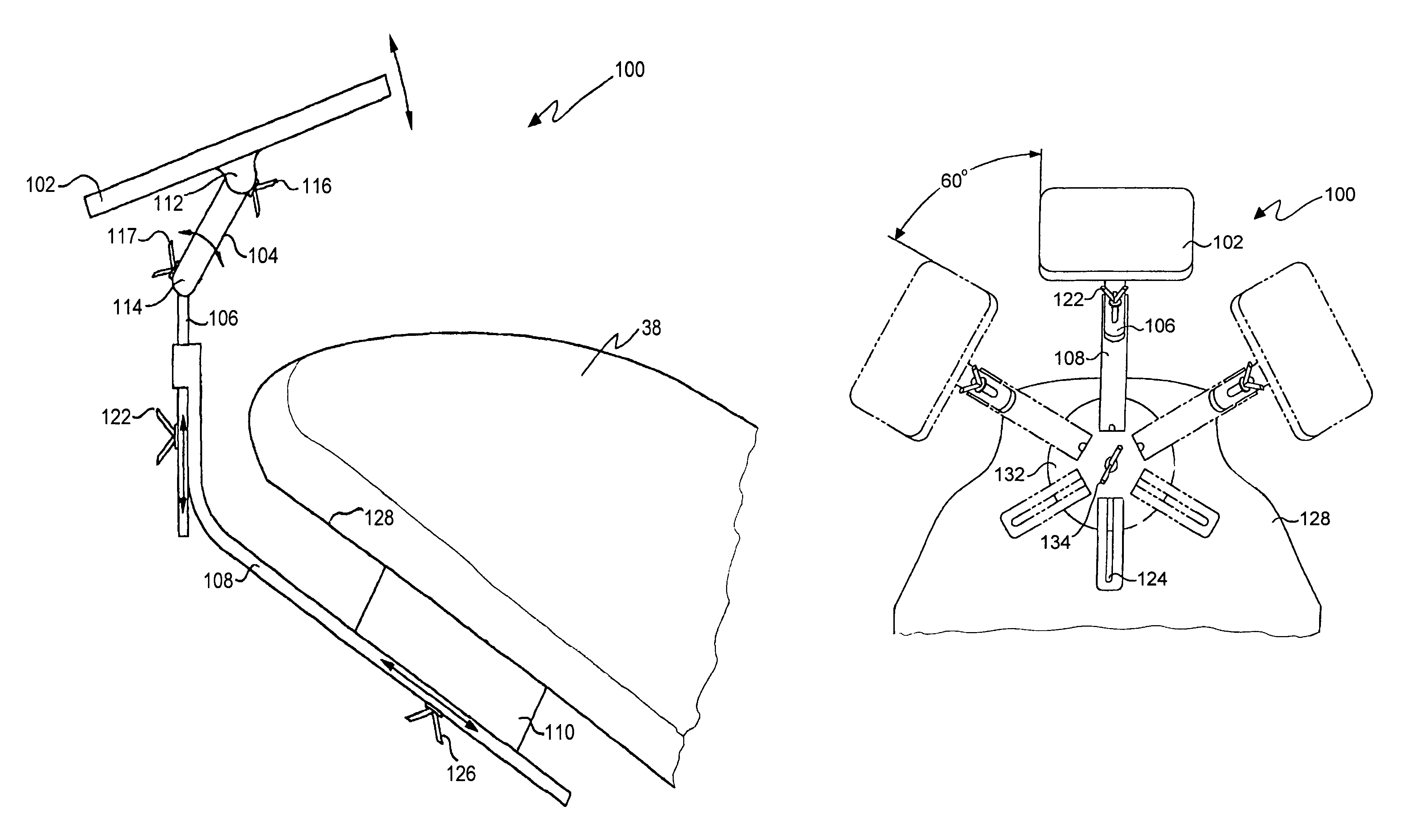

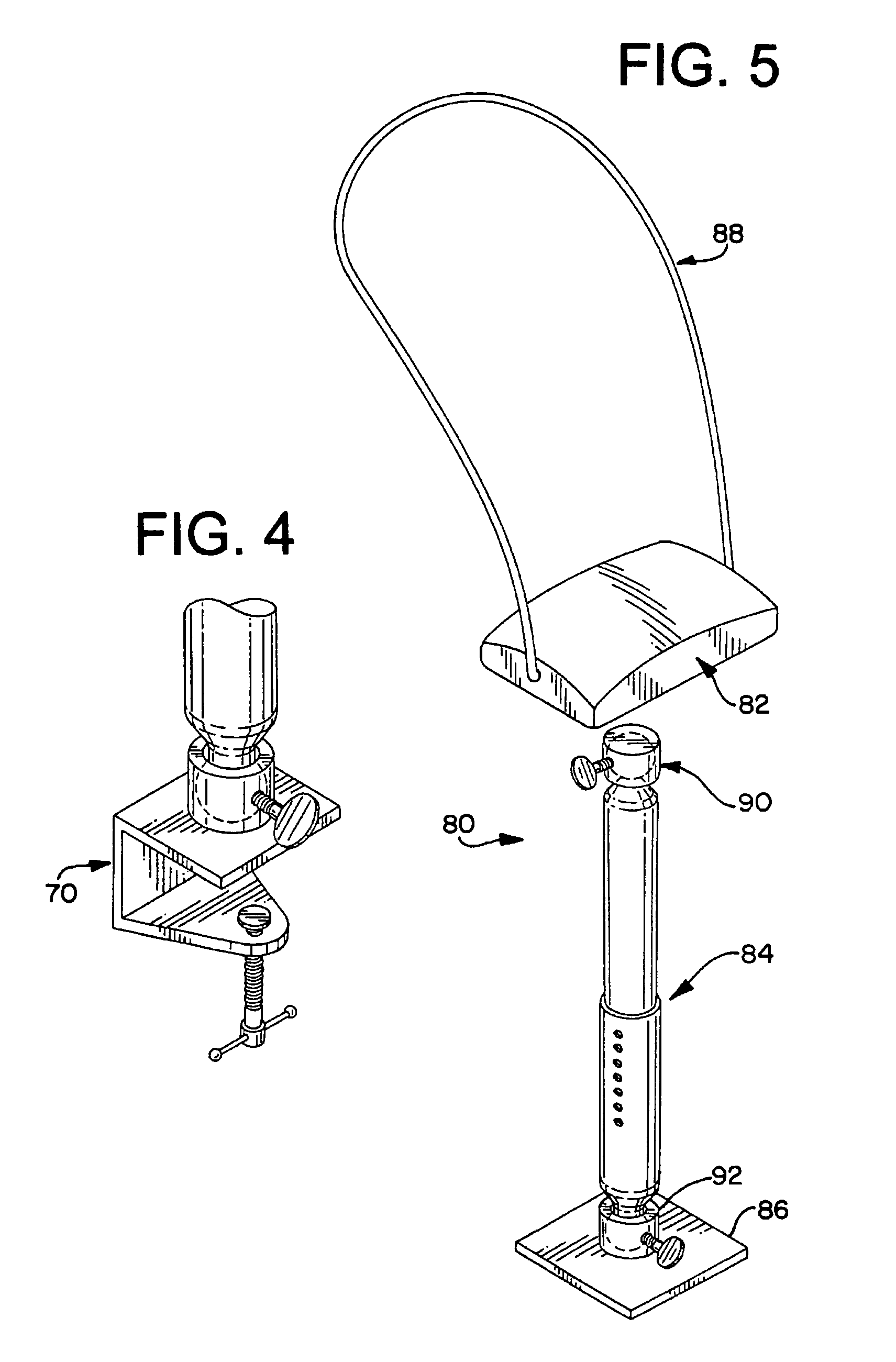

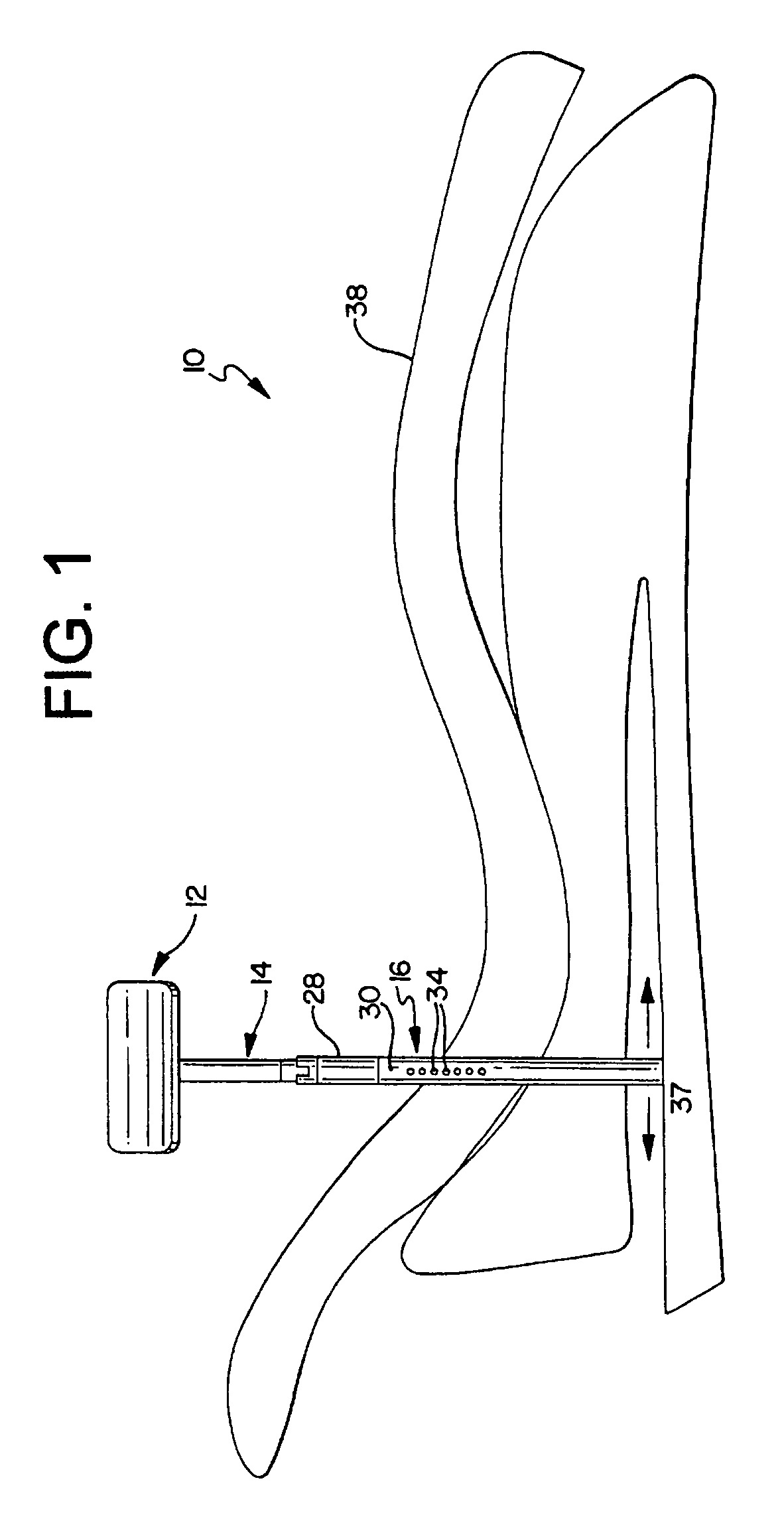

专利附图（8）
