一种用于存储和分配卡片的装置。
专利摘要

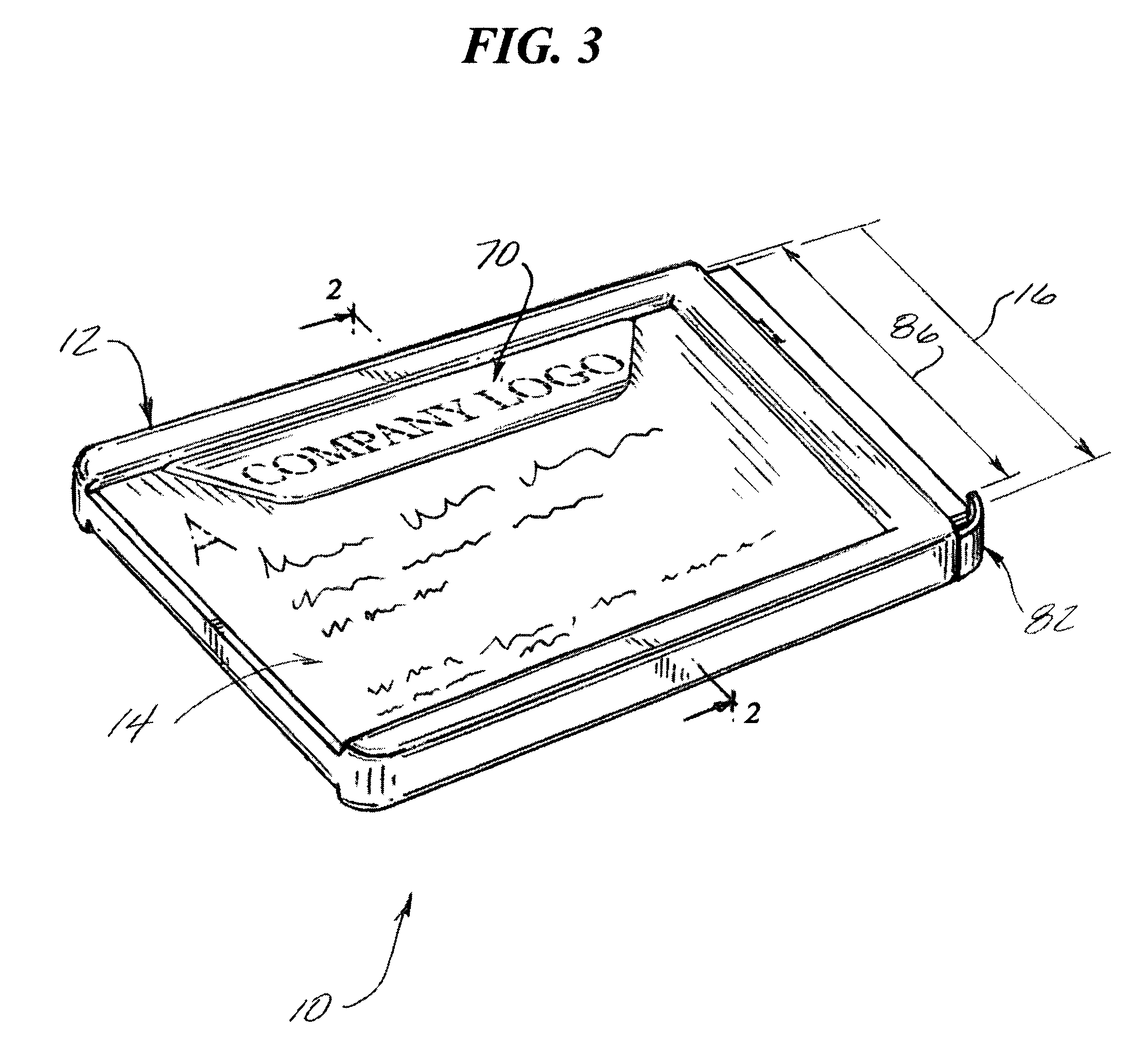

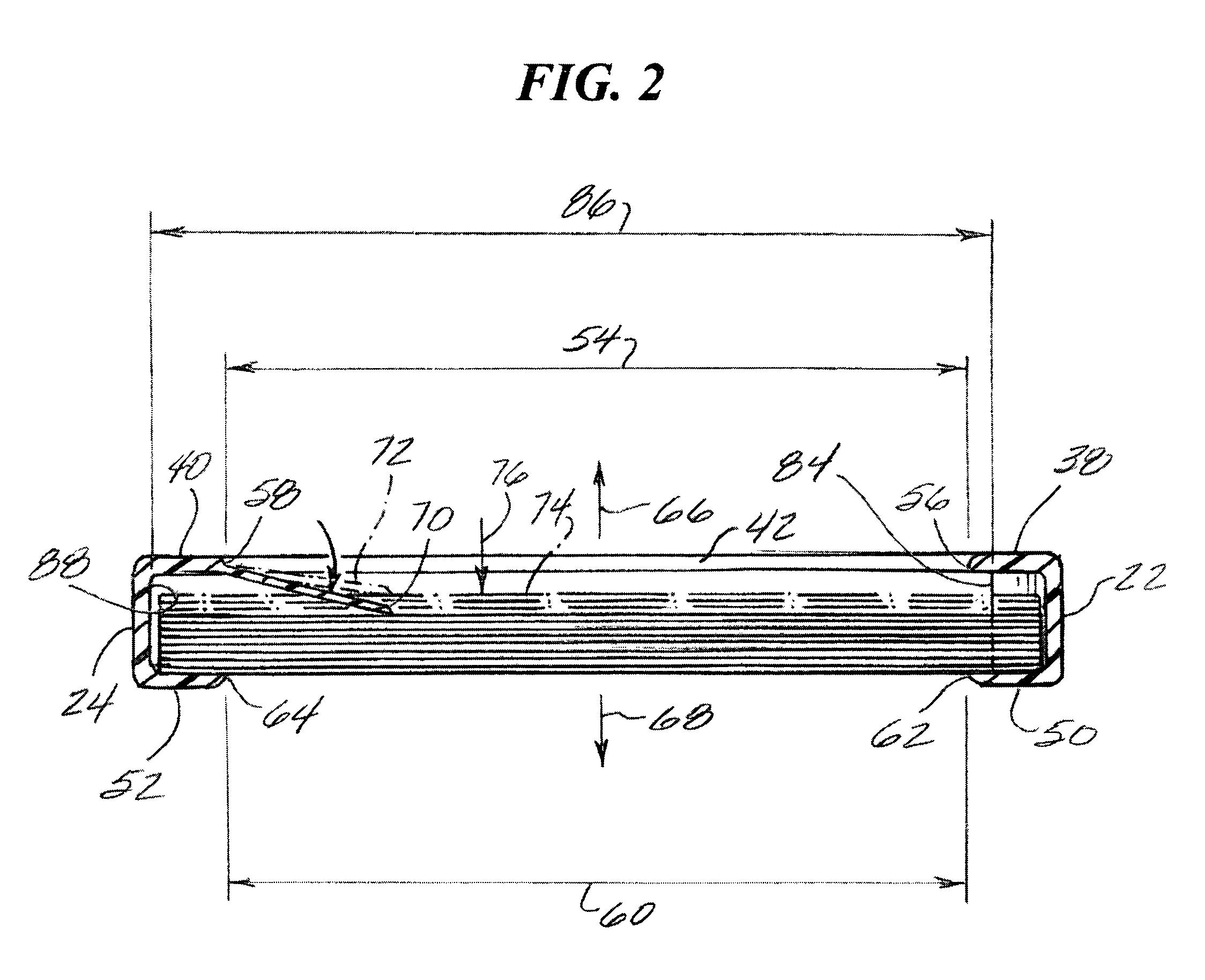

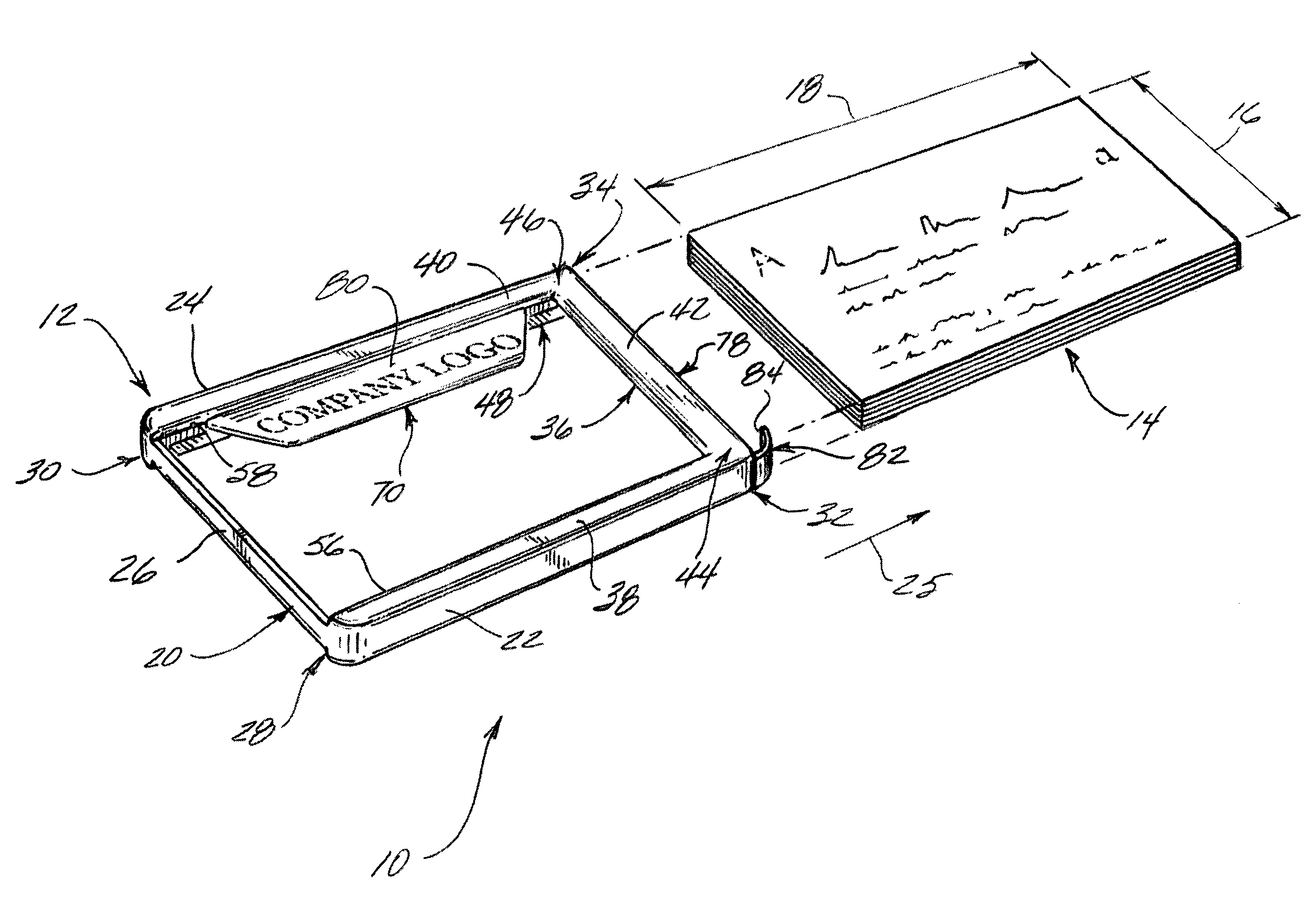

一种卡片夹持和分配装置包括矩形框架构件，该矩形框架构件包括上、下和侧周边段。这些形成一外壳，其中放置多个通常为塑料的卡片。上段和下段形成一开放区域，该区域小于卡片的表面积，使得卡片不能通过这些开口移除。一卡片保持突片从一侧周边段延伸超出由框架构件形成的外壳。这限制了卡片从卡片插入开口移出。顶部框架段之一包括一突片部分，该突片部分通常向下偏置到外壳体积内，以对存储的卡片施加向下的力。这允许用户将一个或多个卡片部分移出外壳，直到到达所需卡片，并有助于取出所需卡片。突片部分可以不同地成形、定尺寸和轮廓化以容纳印刷标记。
Original abstractA card holder and dispensing device comprises a rectangularly shaped frame member including upper, lower and side perimeter segments. These form an enclosure into which is placed a plurality of, typically, plastic cards. The upper and lower segments form an open area which is less than the surface area of the cards so that they can't be removed through these openings. A card retention tab extends from one of the side perimeter segments beyond the enclosure formed by the frame member. This restrains movement of the cards out of the card insertion opening. One of the top frame segments includes a tab section which is typically biased downward into the enclosure volume to exert a downward force on the stored cards. This permits the user to move one or more of the cards partially out of the enclosure until the desired card is reached and assists in the removal of the desired card. The tab section can be variously shaped, sized and contoured to accommodate printed indicia.
专利附图（8）
